Ignition Control Module

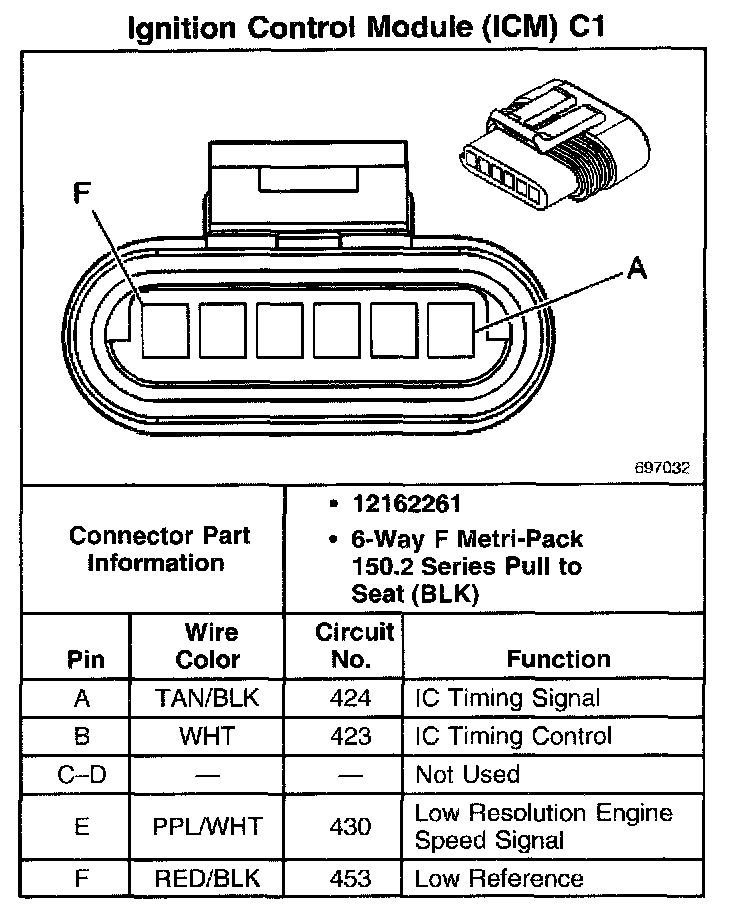

Ignition Control Module (ICM) C1:



Ignition Control Module (ICM) C2:



Ignition Control Module (ICM) C3:
