Power Steering Fluid Leaks

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

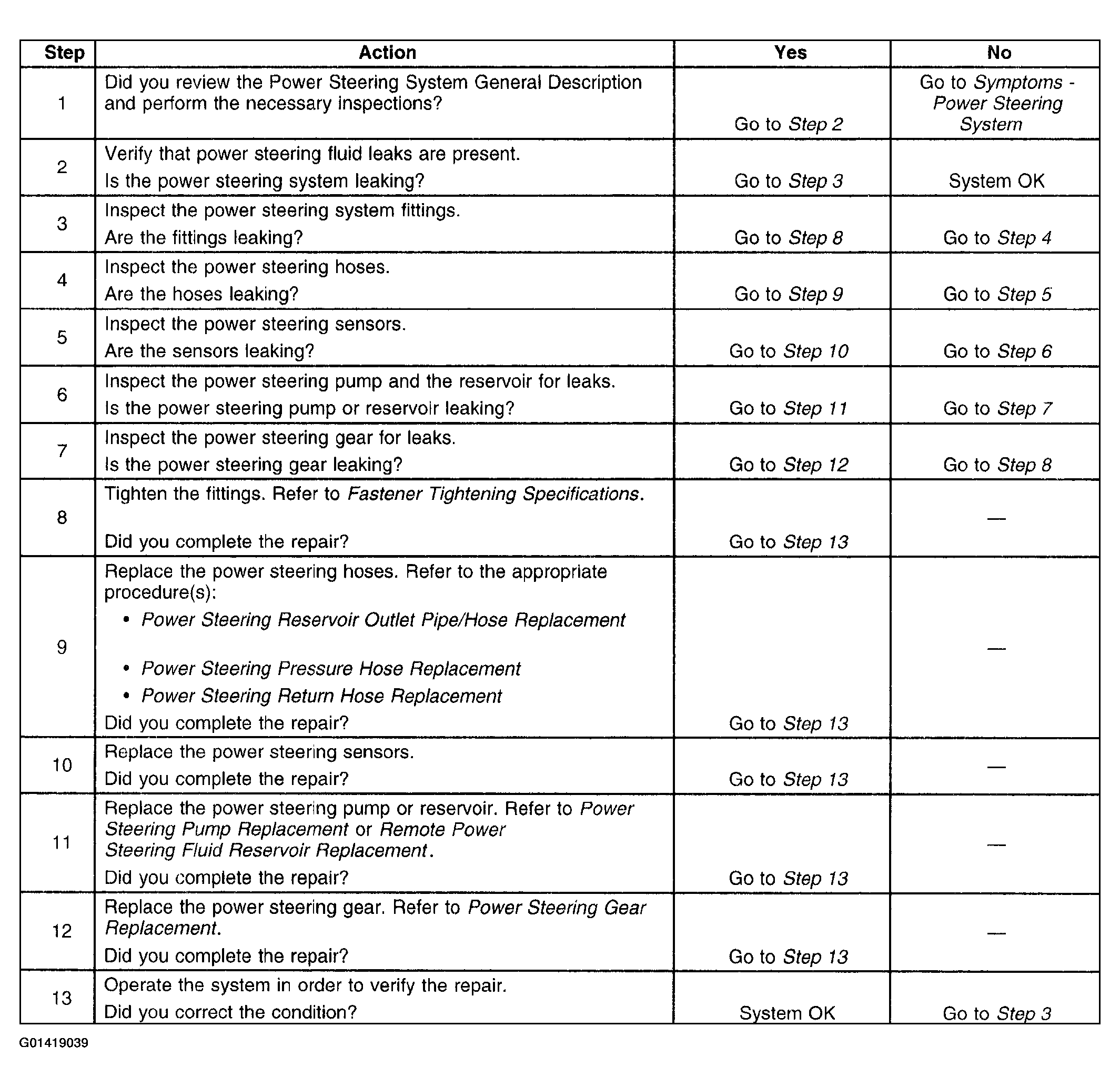

Fig 1: Diagnostic System Check - Power Steering Fluid Leaks
G01419039Courtesy of GENERAL MOTORS CORP.
