Installation Procedure

  1. Position the right I/P insulator to the floorpan beneath the I/P.

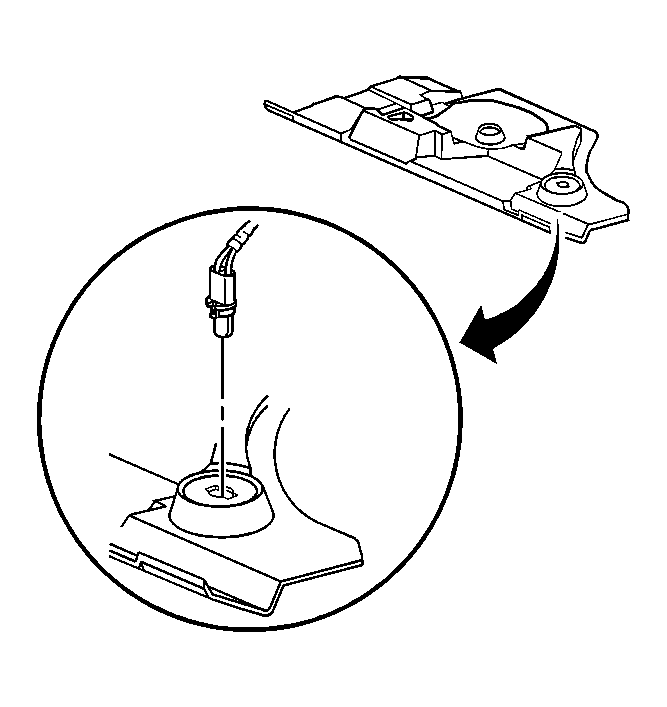

    2. Fig 1: Instrument Panel Insulator Courtesy Lamp Connector
    GM182459Courtesy of GENERAL MOTORS CORP.
  2. Install the courtesy lamp to the I/P insulator. Rotate the lamp 1/4 turn clockwise to secure the lamp.

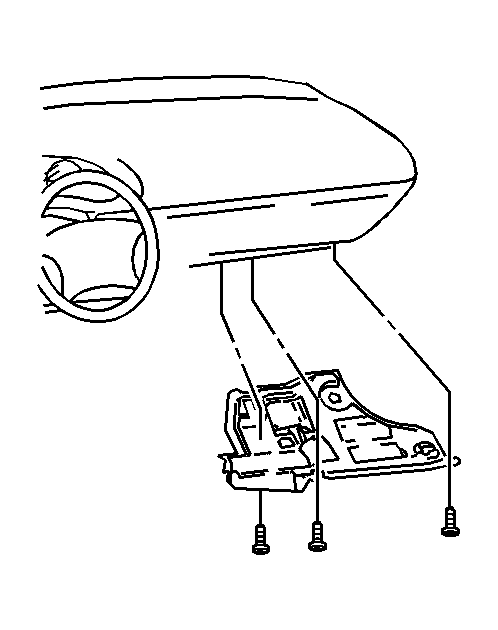

    3. Fig 2: Right Instrument Panel Retainers
    GM812568Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the right I/P insulator does not block the floor heater outlet.
  3. Install the right I/P insulator retainers.
  4. Return the carpet to the original position.
