Ground Distribution Schematics

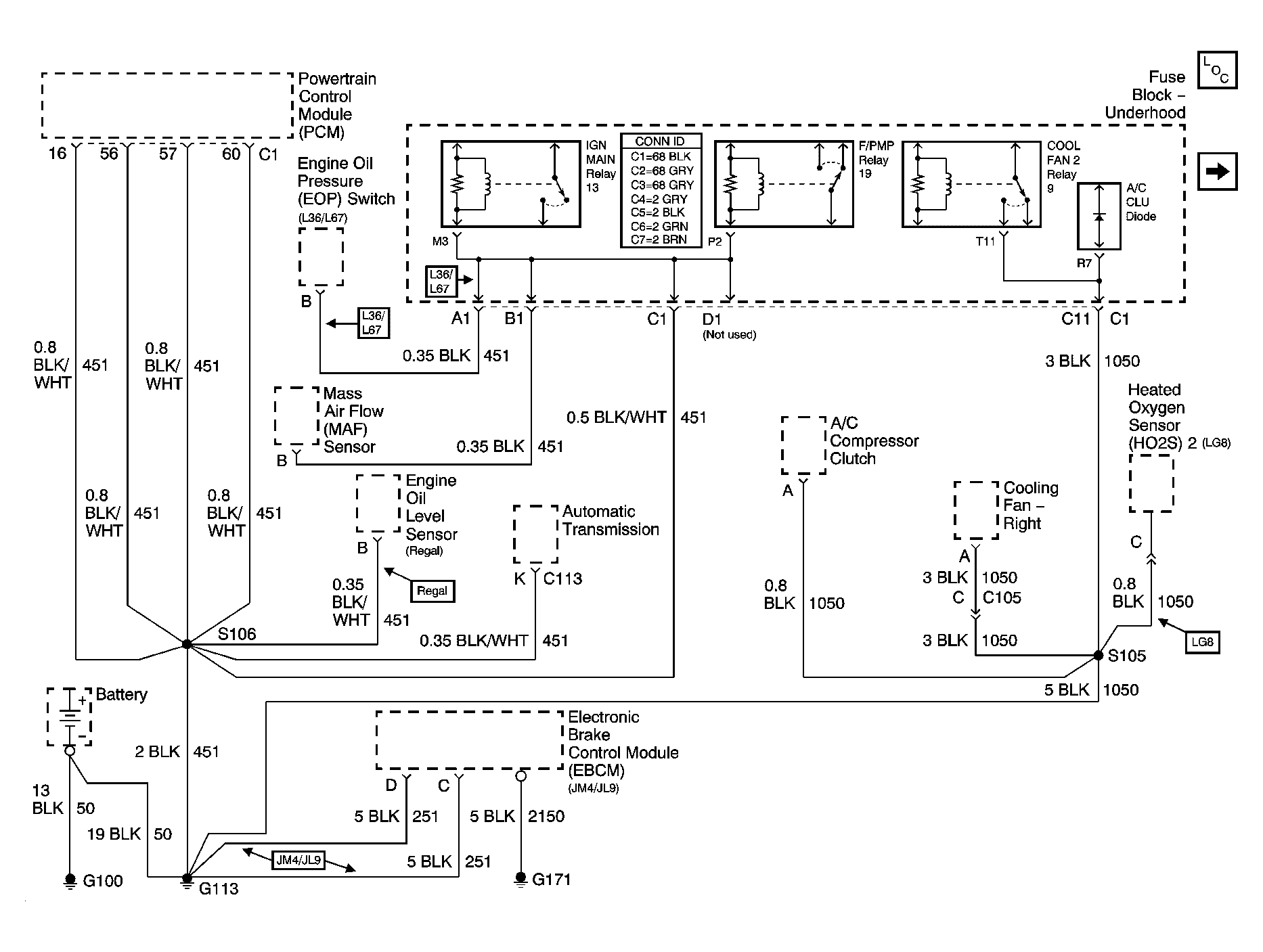

Fig 1: G100, G113, & G171 Schematic

GM1220738

Courtesy of GENERAL MOTORS CORP.

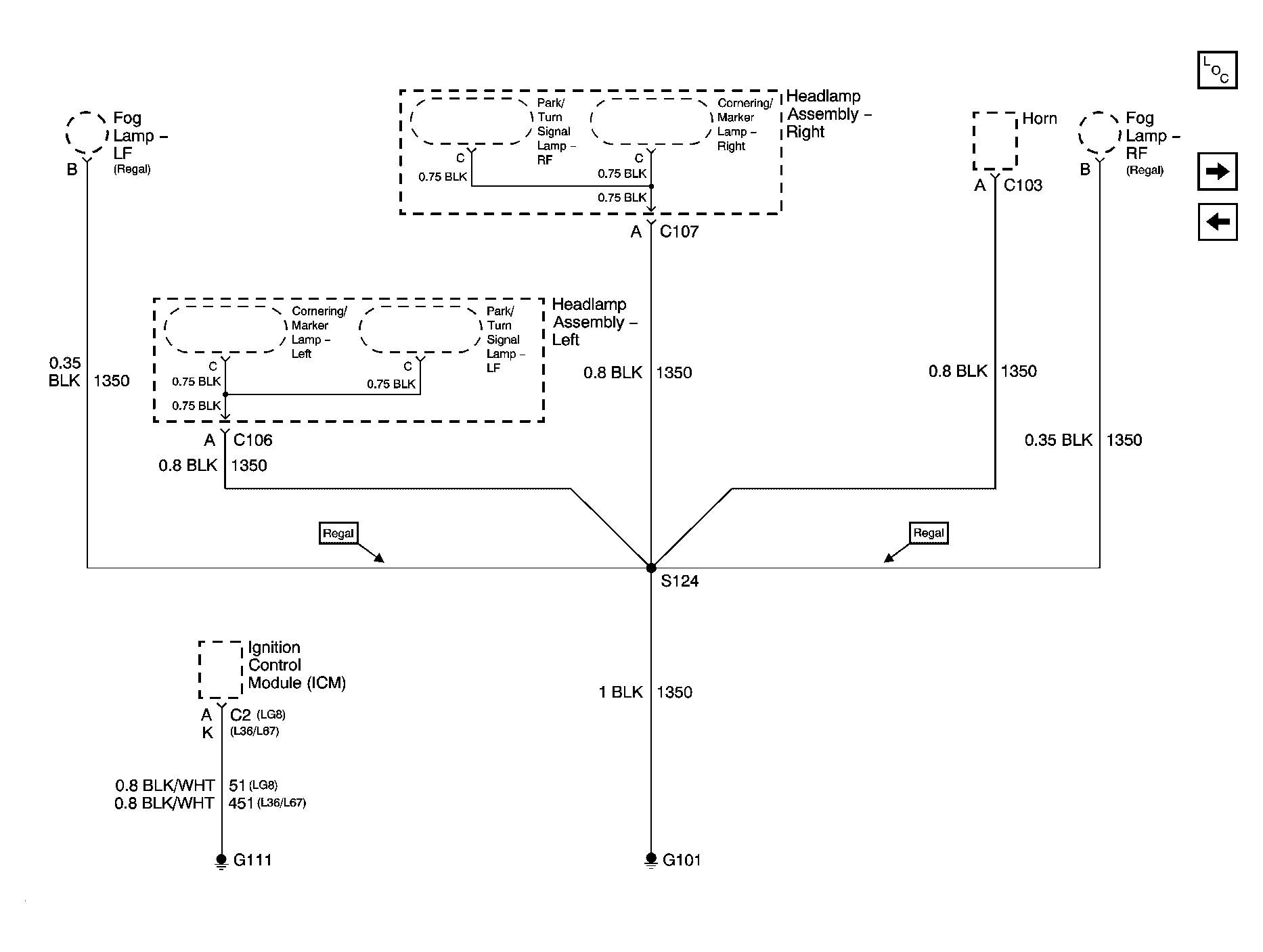

Fig 2: G101 & G111 Schematic

GM1220744

Courtesy of GENERAL MOTORS CORP.

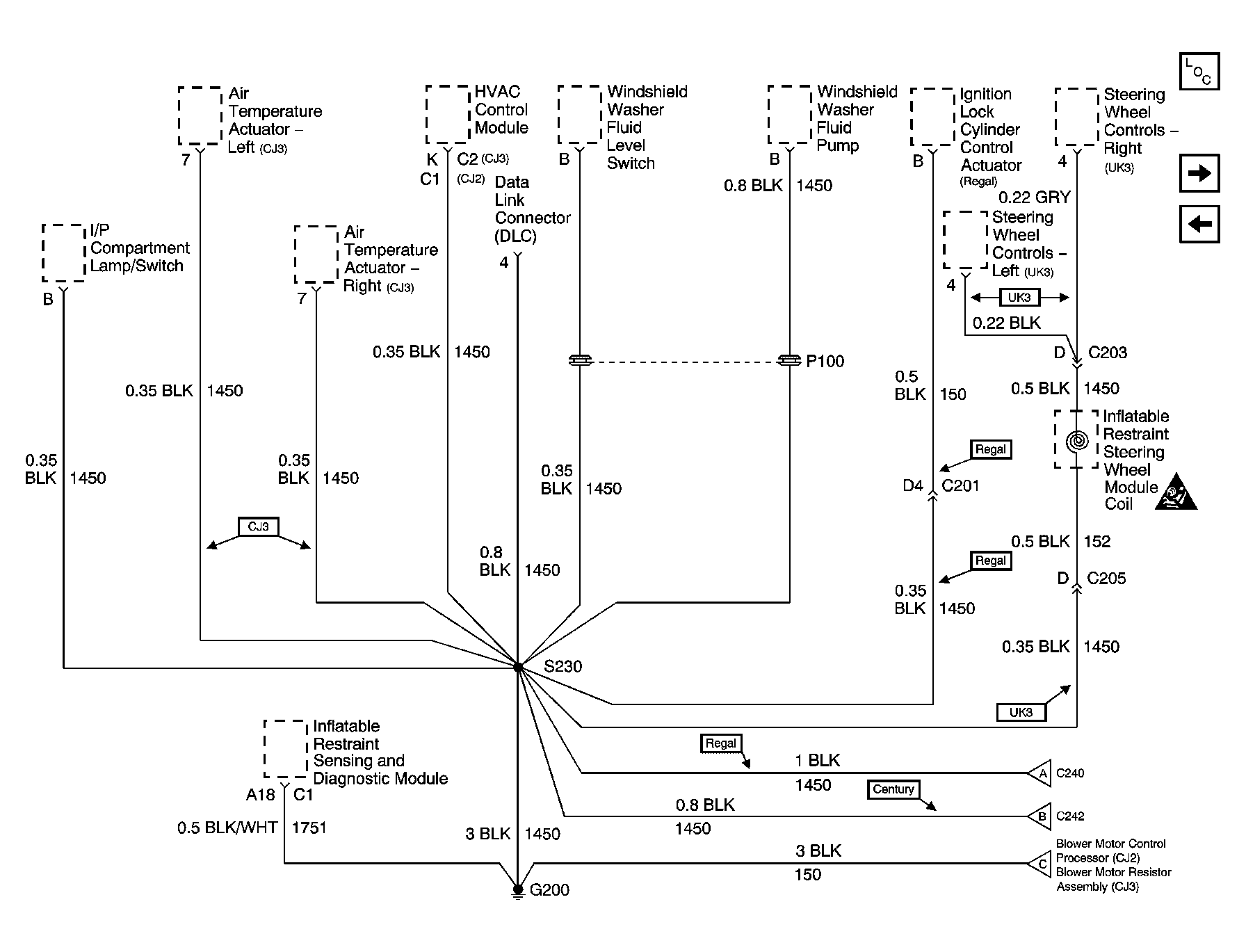

Fig 3: G200 Schematic, 1 Of 2

GM1220753

Courtesy of GENERAL MOTORS CORP.

Fig 4: G200 Schematic, 2 Of 2

GM1220758

Courtesy of GENERAL MOTORS CORP.

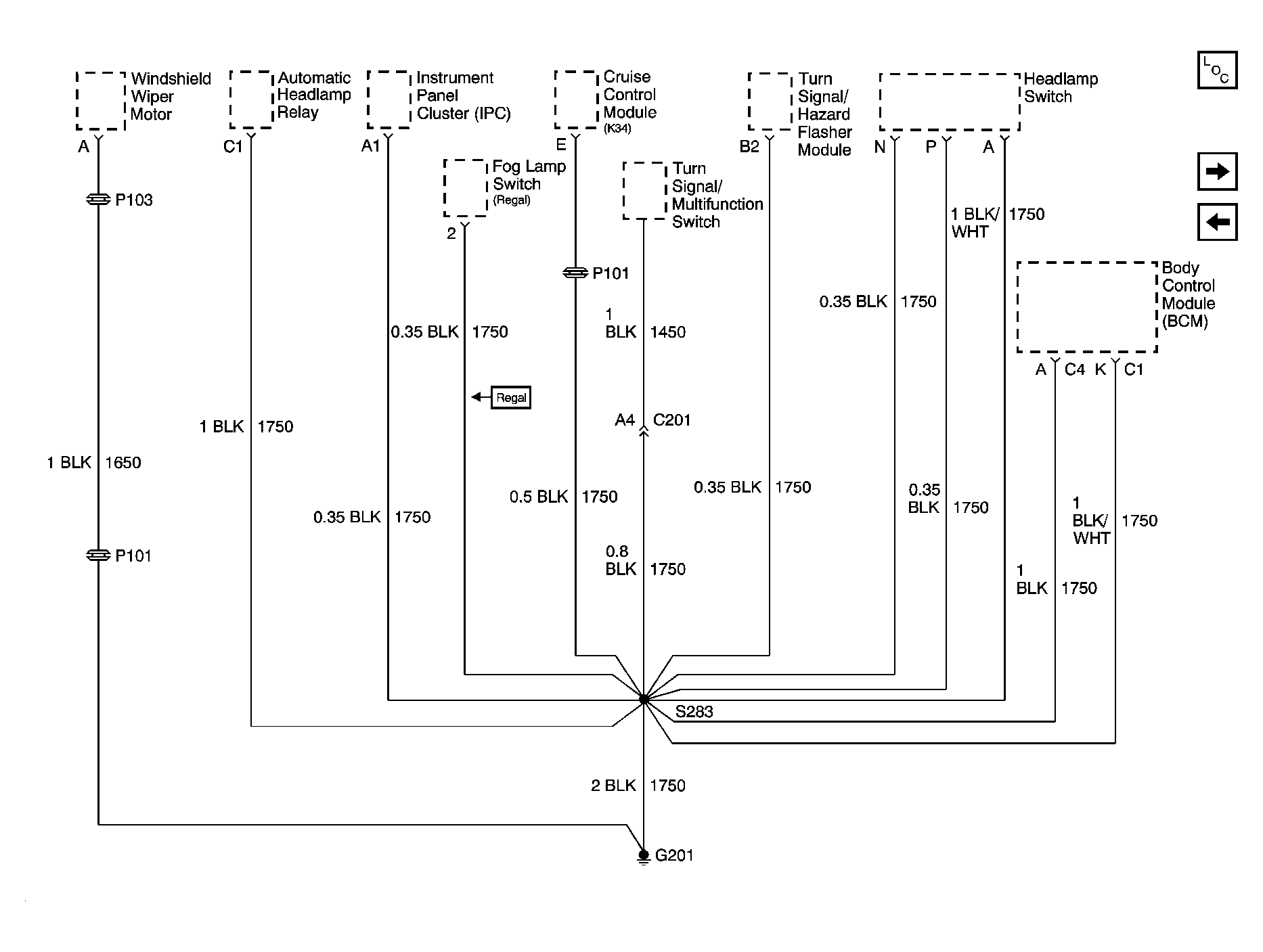

Fig 5: G201 Schematic

GM1362515

Courtesy of GENERAL MOTORS CORP.

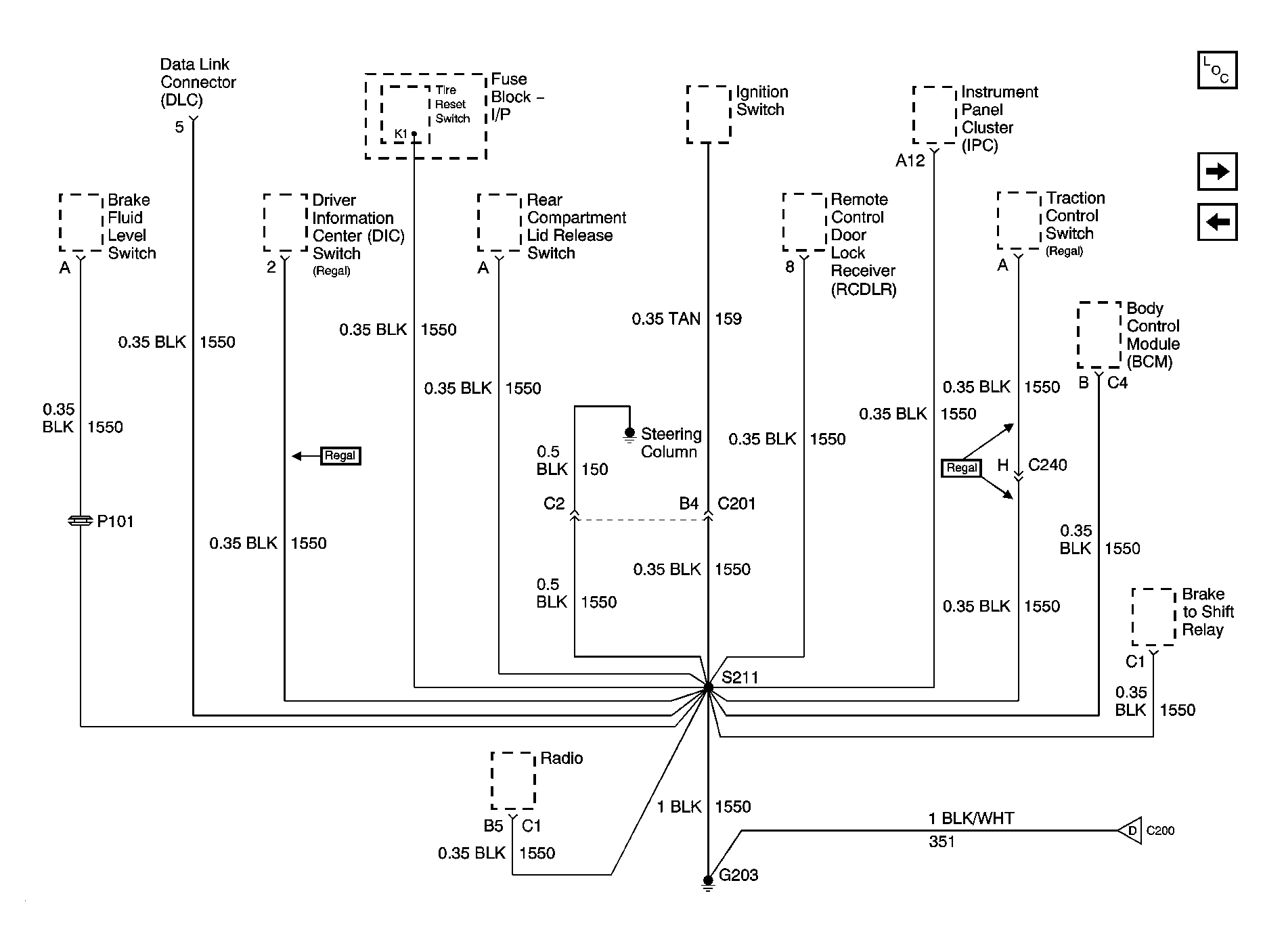

Fig 6: G203 Schematic, 1 Of 2

GM1220762

Courtesy of GENERAL MOTORS CORP.

Fig 7: G203 Schematic, 2 Of 2

GM1220769

Courtesy of GENERAL MOTORS CORP.

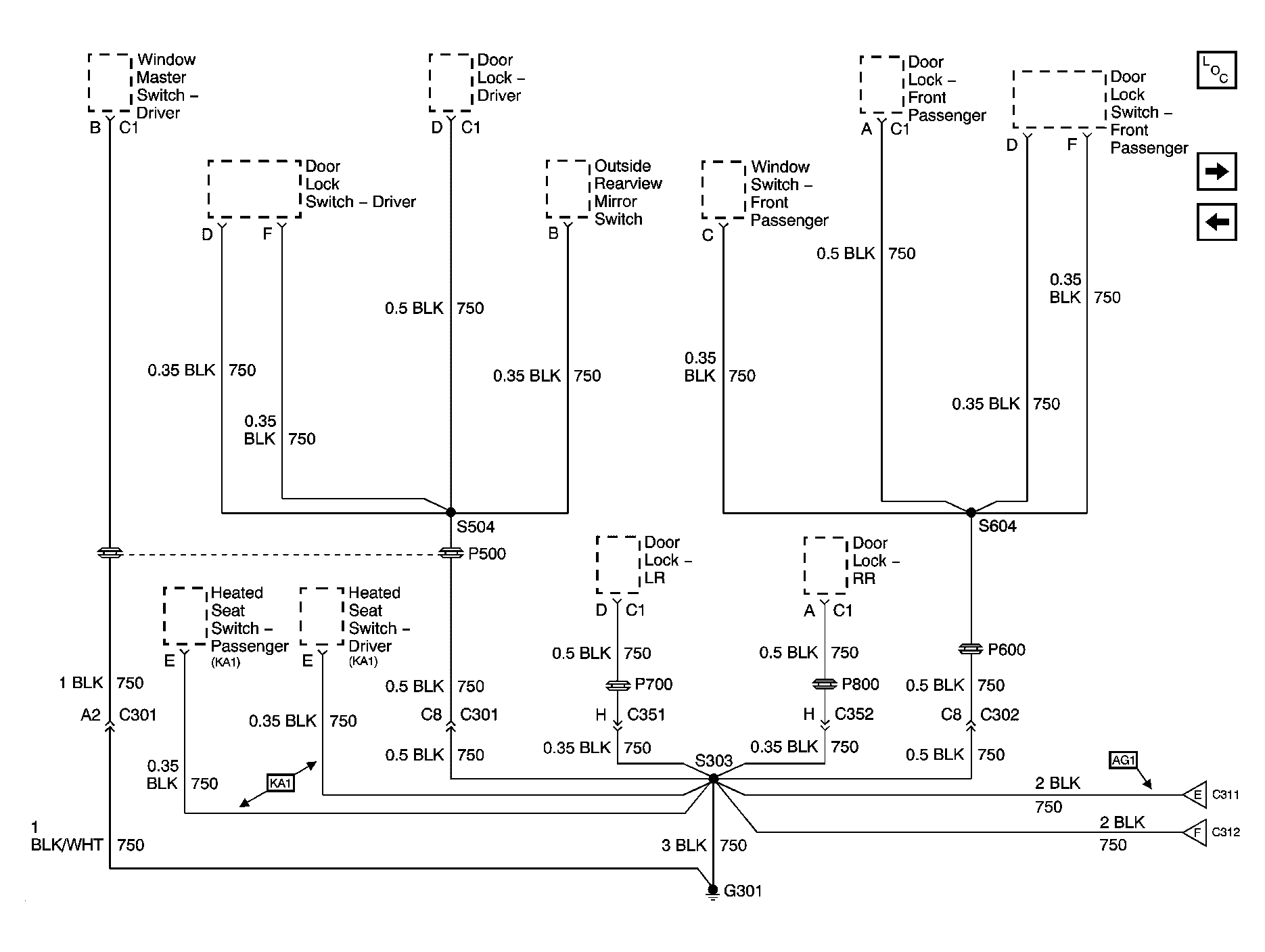

Fig 8: G301 Schematic, 1 Of 2

GM1276962

Courtesy of GENERAL MOTORS CORP.

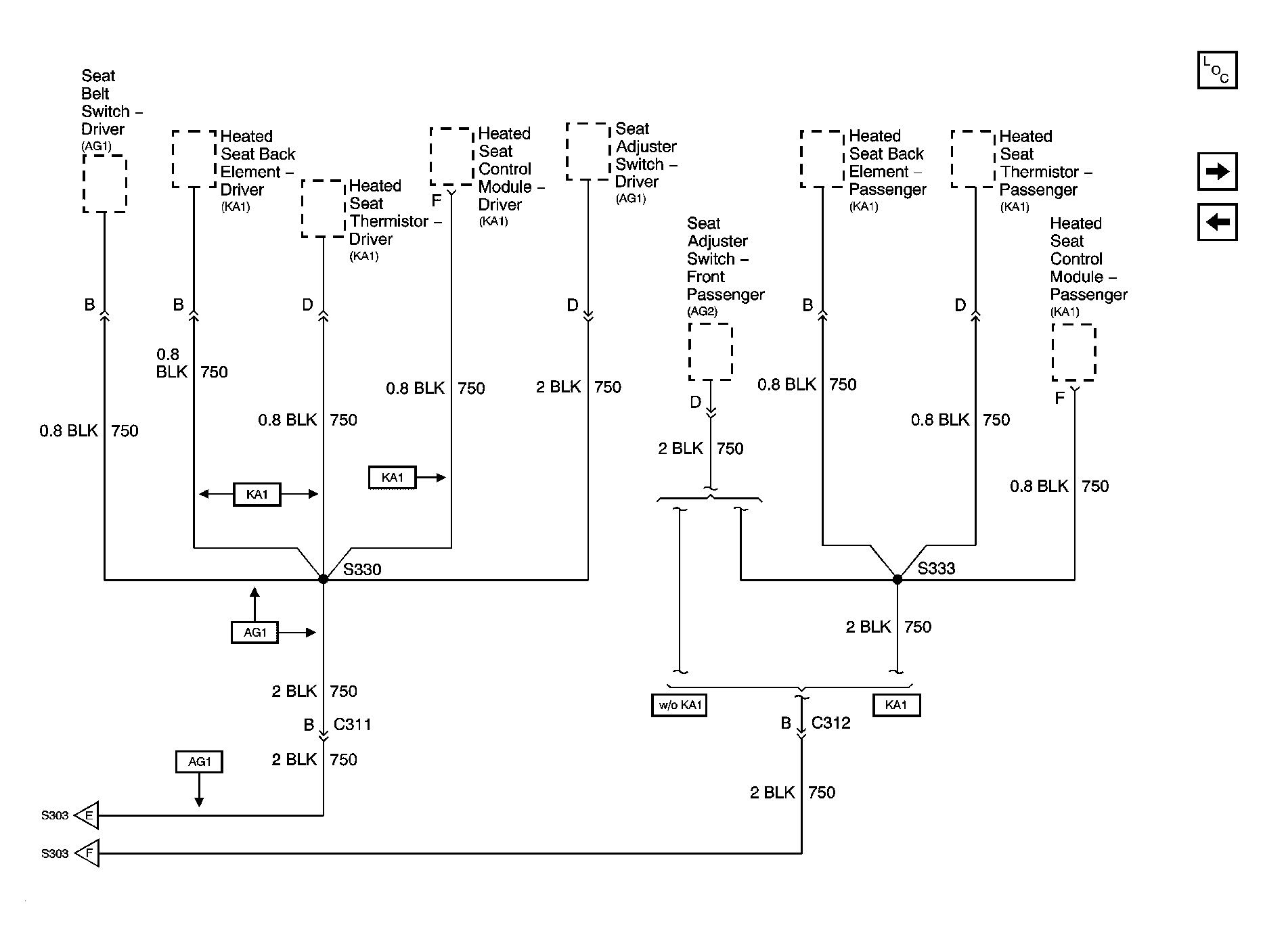

Fig 9: G301 Schematic, 2 of 2

GM1276964

Courtesy of GENERAL MOTORS CORP.

Fig 10: G401 Schematic

GM850394

Courtesy of GENERAL MOTORS CORP.

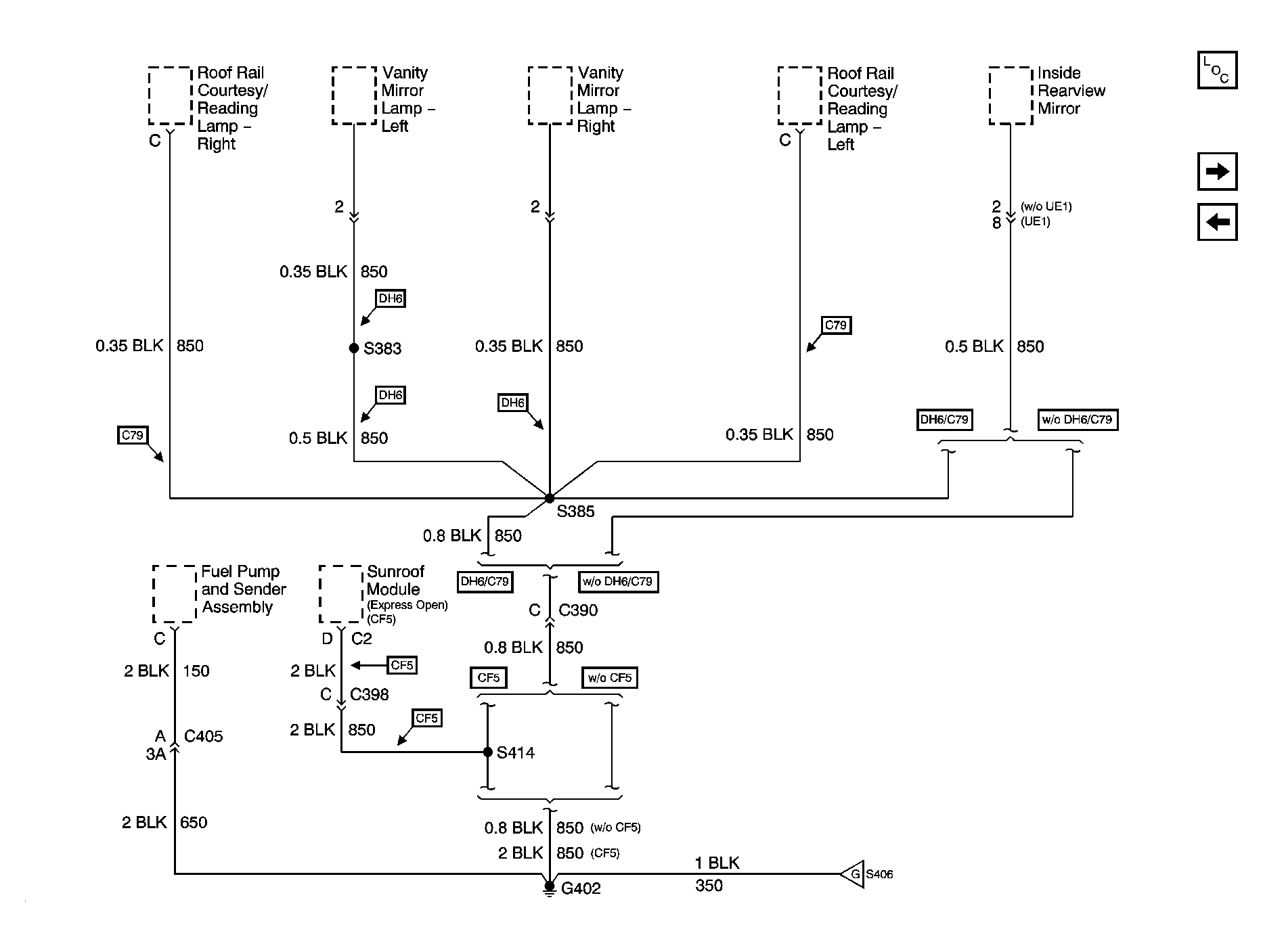

Fig 11: G402 Schematic, 1 Of 2

GM1220777

Courtesy of GENERAL MOTORS CORP.

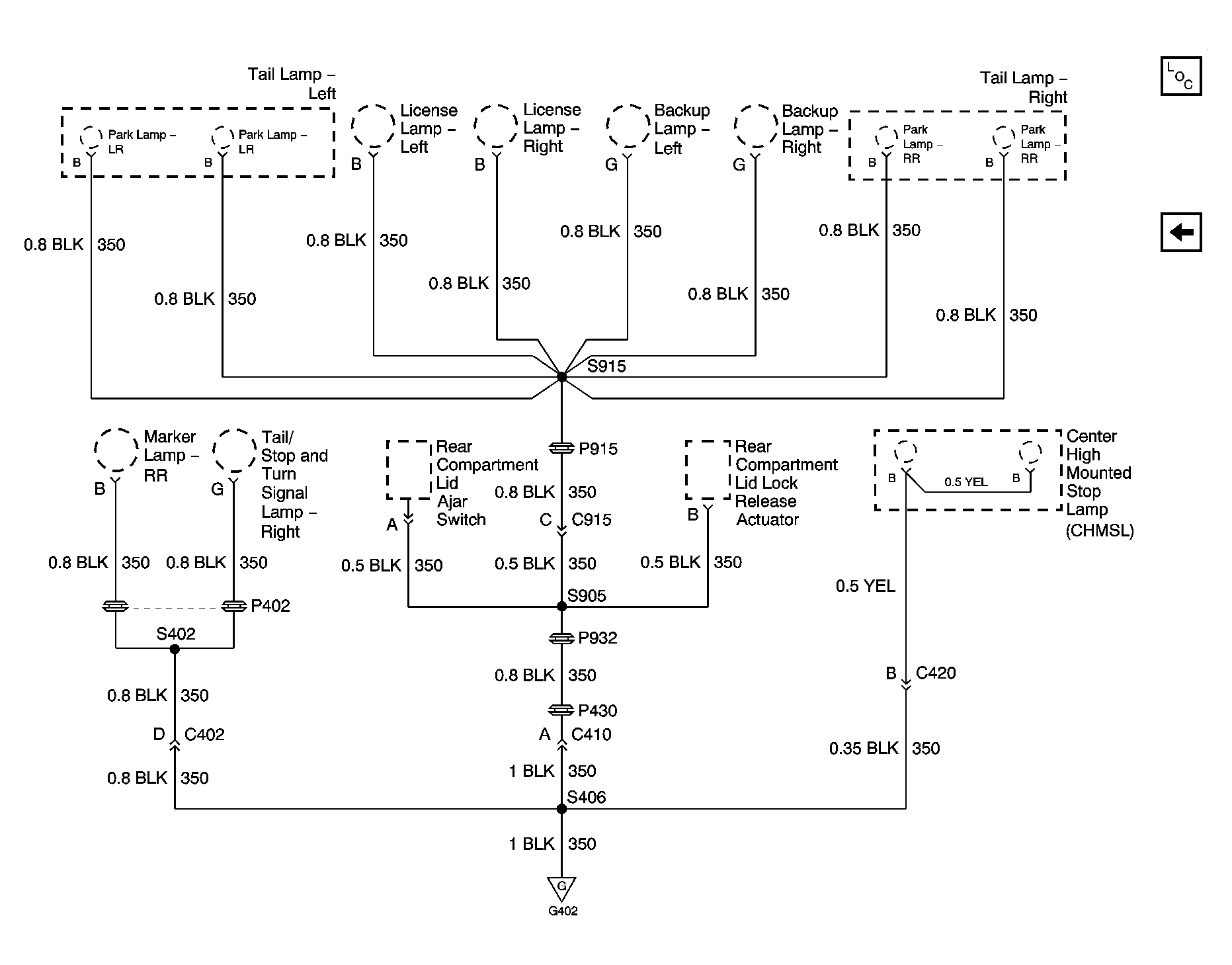

Fig 12: G402 Schematic, 2 Of 2

GM1343616

Courtesy of GENERAL MOTORS CORP.
