Outside Mirror Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Outside Mirror Schematics

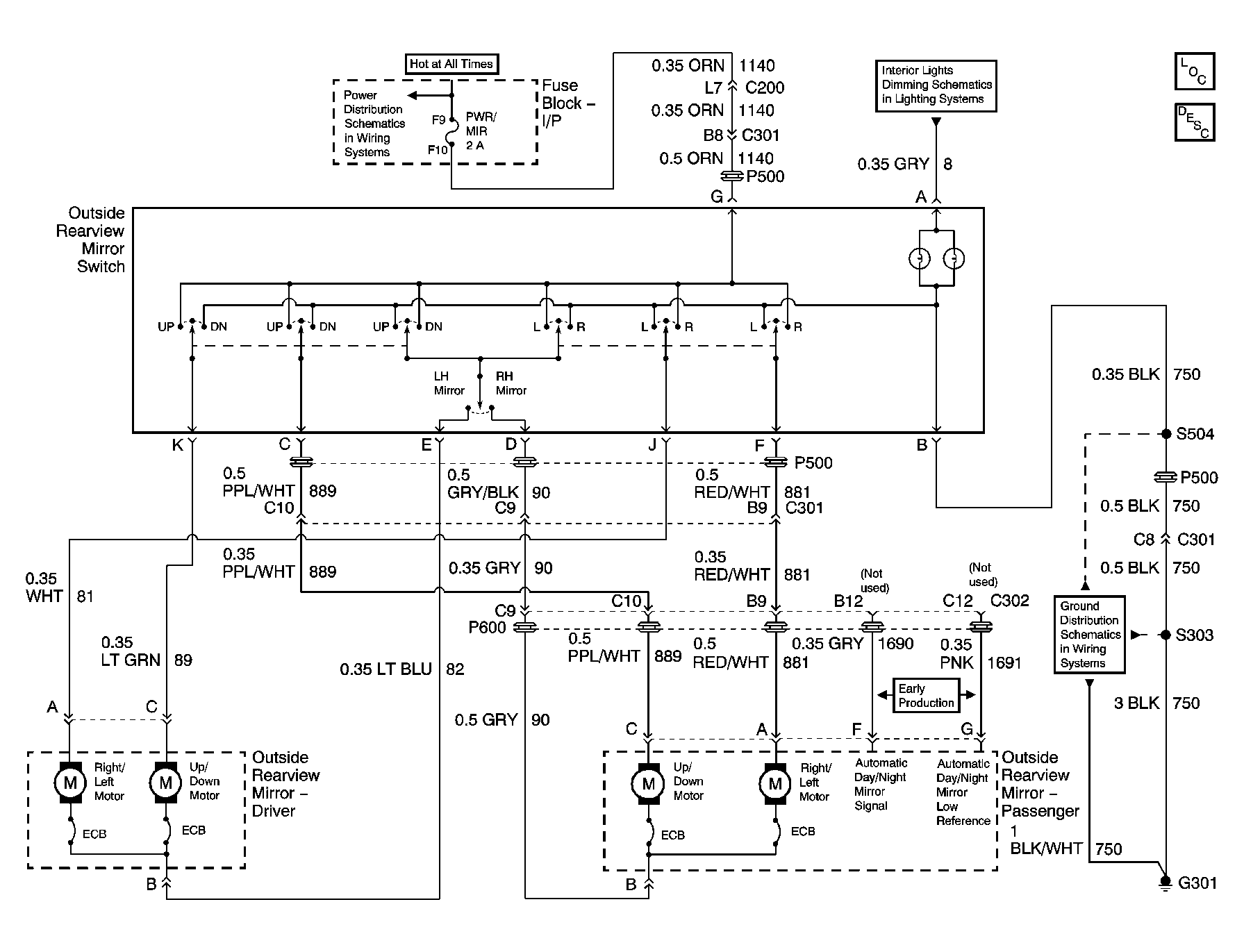

Fig 1: Outside Mirror Schematics
Courtesy of GENERAL MOTORS CORP.
