Removal Procedure

  1. Remove the rear carpet retainers. Refer to Carpet Retainer Replacement - Rear in Interior Trim.

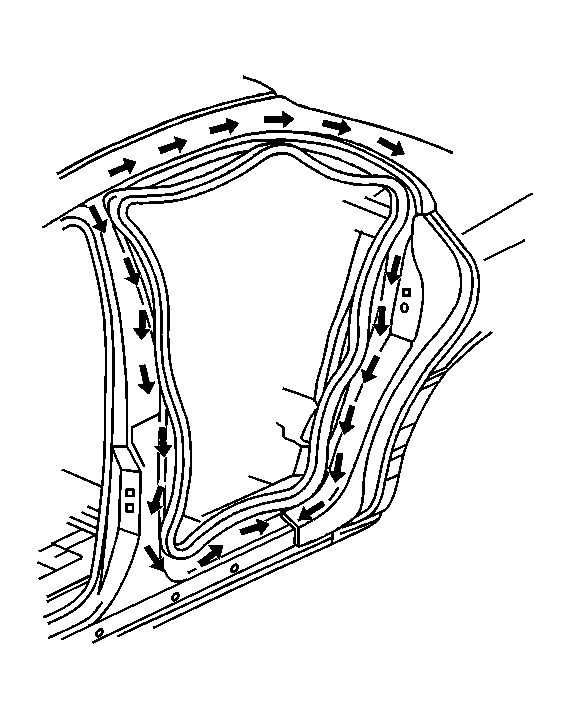

    2. Fig 1: Rear Door Opening Weatherstrip
    GM164727Courtesy of GENERAL MOTORS CORP.
  2. Pull the lower edges of the weatherstrip and retainers away from the door.
  3. Pull the upper edges of the weatherstrip from the door.
  4. Remove the weatherstrip from the door.
