Installation Procedure

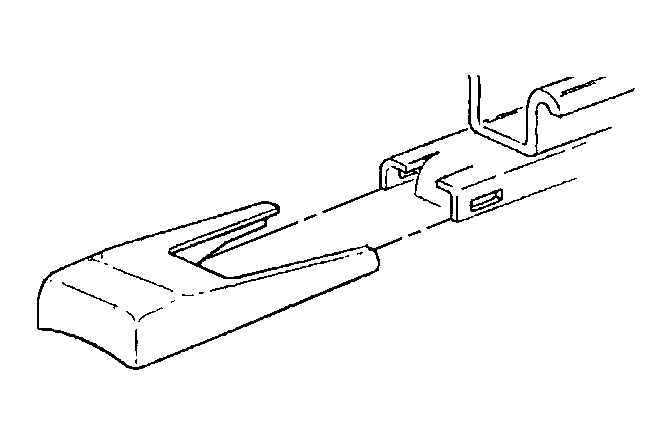

Fig 1: Rear Adjuster Covers (Power Seats)

Courtesy of GENERAL MOTORS CORP.

Position the rear seat track adjuster covers to the rear of the adjuster power seats.

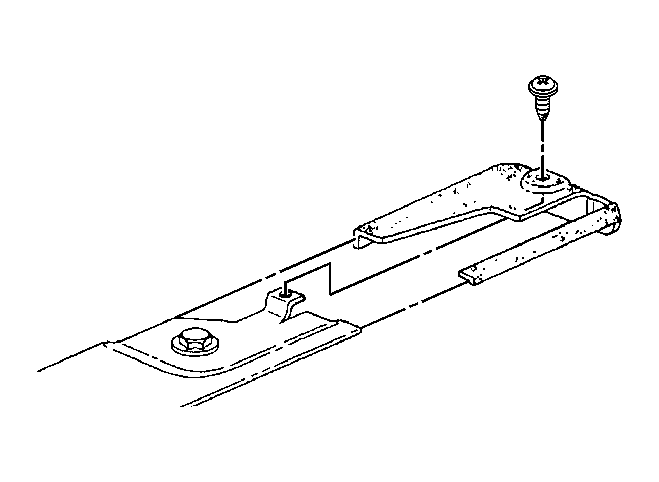

Fig 2: Rear Adjuster Track Cover & Retaining Screw

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the rear manual seat adjuster track cover retaining screw to the rear adjuster track cover manual seat.
Tighten: Tighten the screw to 2 N.m (18 lb in).

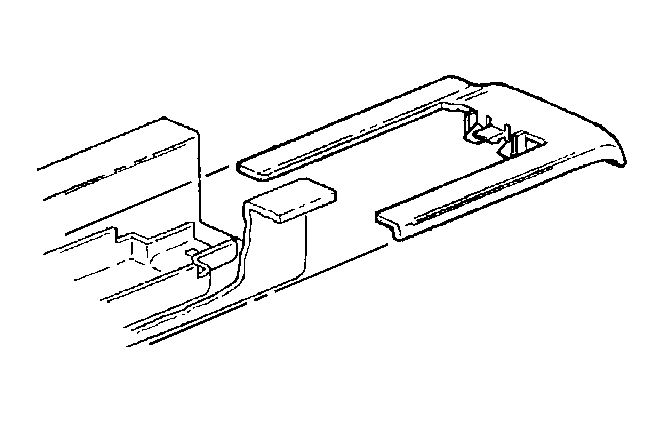

Fig 3: Front Track Adjuster Cover

Courtesy of GENERAL MOTORS CORP.

Install the front track adjuster cover to the front seat adjuster manual and power seats.
