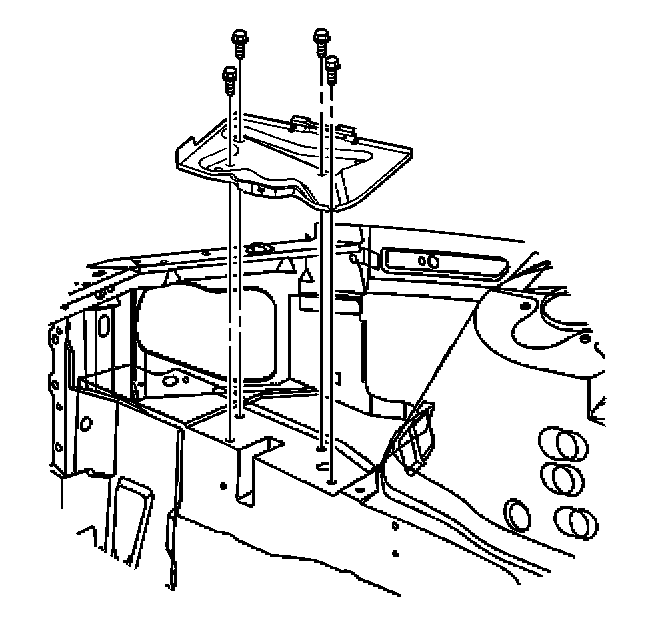

Battery Tray Replacement

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Remove the battery.




3. Remove the battery tray bolts.
4. Remove the battery tray.

INSTALLATION PROCEDURE




1. Install the battery tray.
2. Install the battery tray bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the battery tray bolts to 5 N.m (44 lb in).

3. Install the battery.
4. Connect the negative battery cable.
