Installation Procedure

  1. Install the power steering pulley to the power steering pump Using J 25033-C.

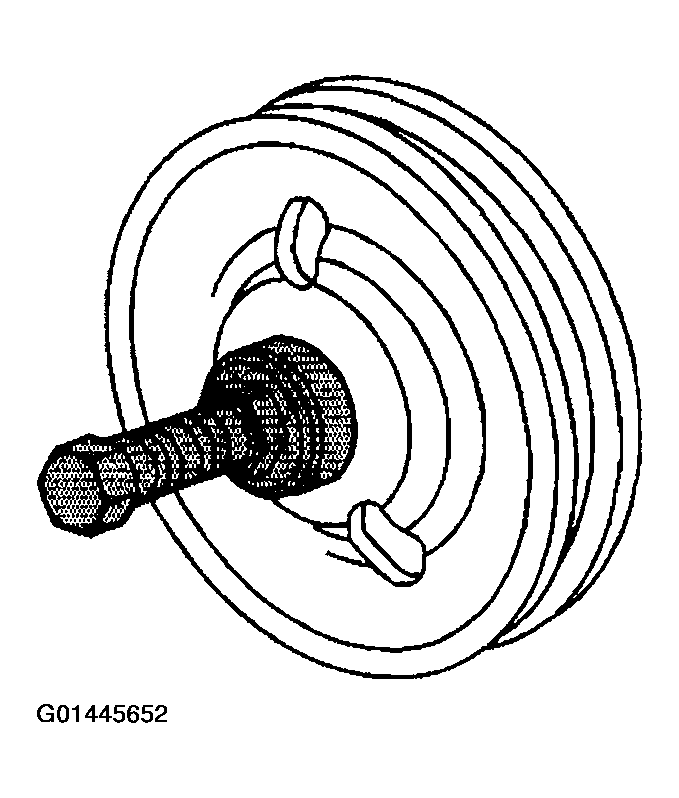

    Fig 1: Installing Power Steering Pulley
    G01445652Courtesy of GENERAL MOTORS CORP.
  2. Ensure that the axial tolerance of the power steering pulley on the power steering pump is within 0.25 mm (0.010 in), plus or minus.

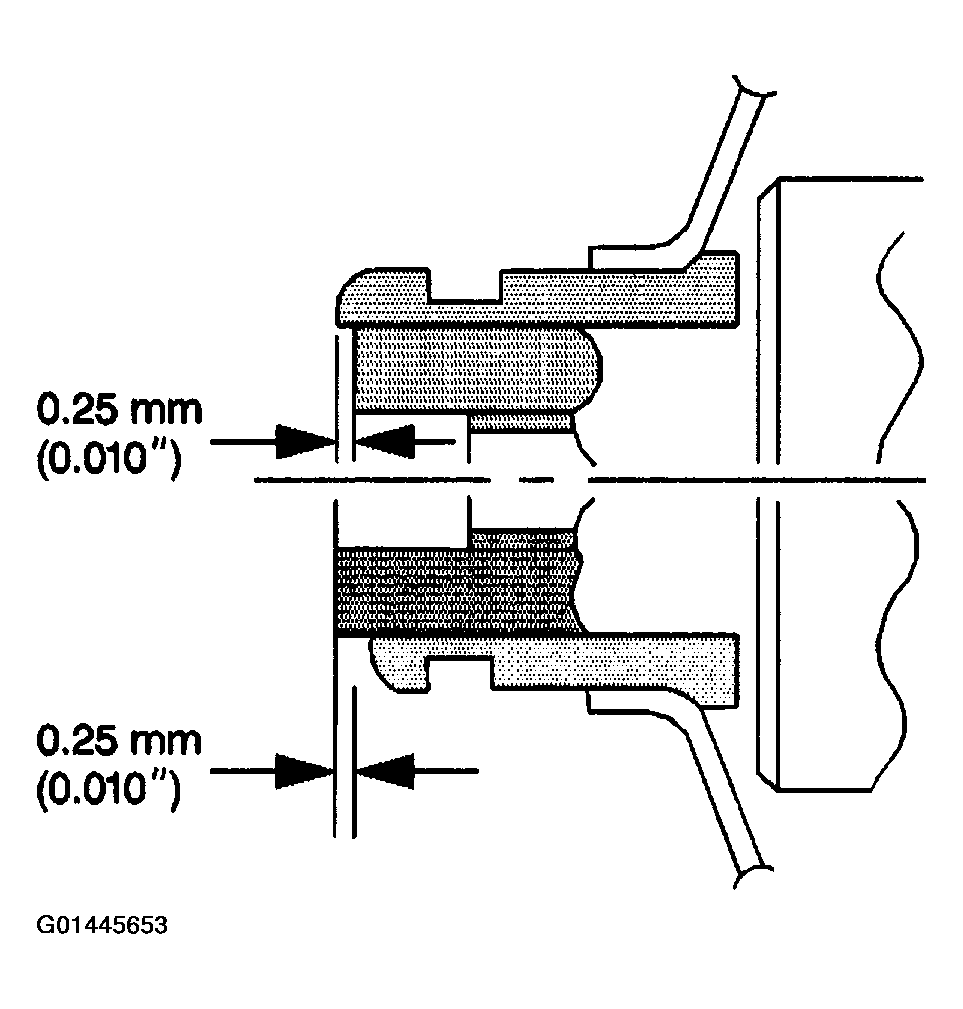

    3. Fig 2: Identifying Axial Tolerance
    G01445653Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering pump to the engine. Refer to POWER STEERING PUMP REPLACEMENT  .
  4. Install the power steering pump drive belt. Refer to DRIVE BELT REPLACEMENT (L36) or DRIVE BELT REPLACEMENT (L67) in Engine Mechanical-3.8 L.
  5. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
  6. Inspect the power steering system for leaks.
