Passenger Door Module (PDM) Connector End View C5

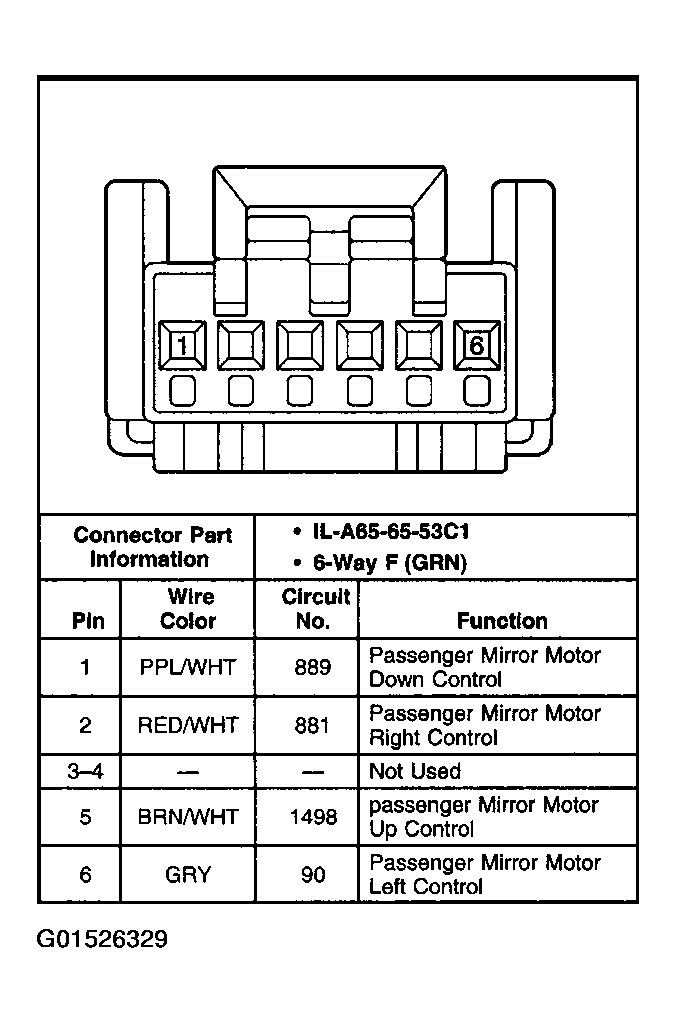

Fig 1: Passenger Door Module (PDM) C5
Courtesy of GENERAL MOTORS CORP.
