Passenger Door Module (PDM) Connector End View C3

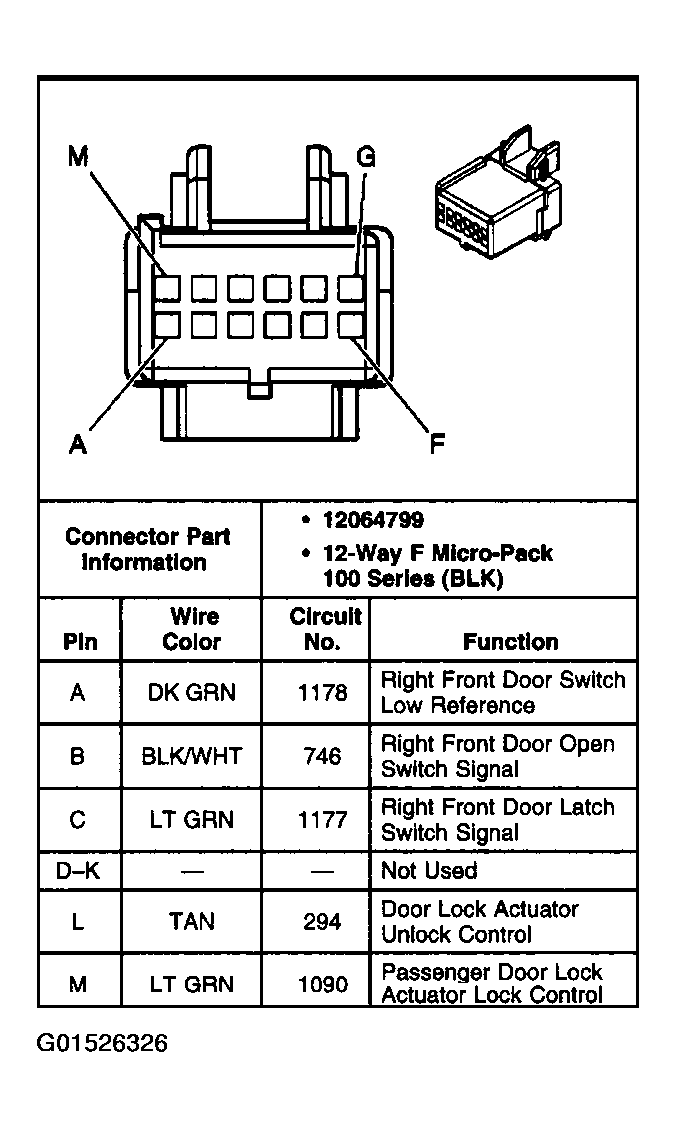

Fig 1: Passenger Door Module (PDM) C3
Courtesy of GENERAL MOTORS CORP.
