Passenger Door Module (PDM) Connector End View C2

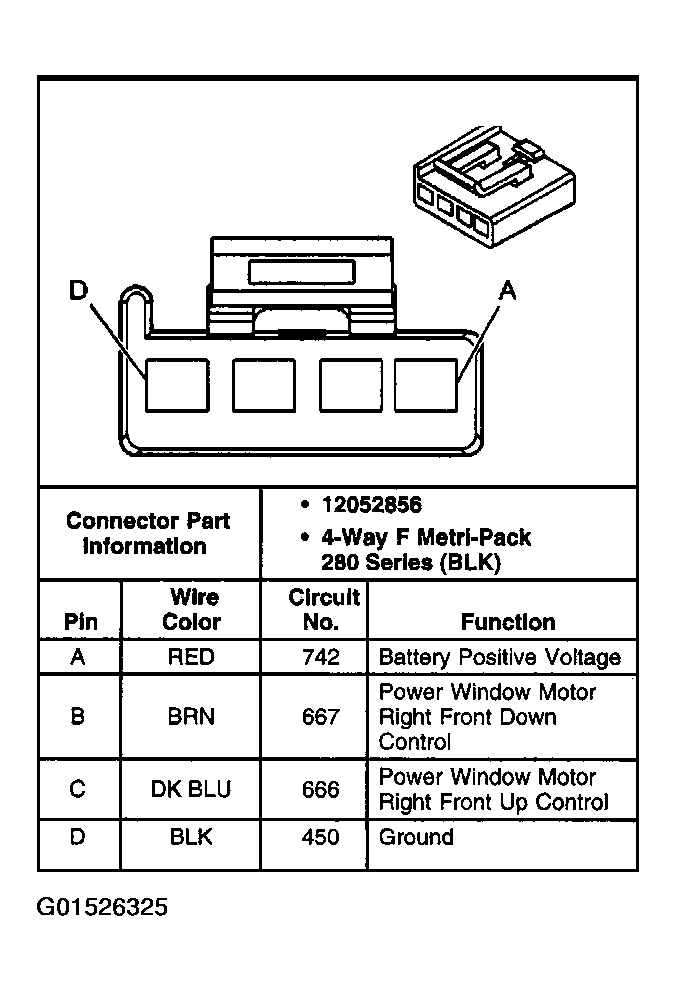

Fig 1: Passenger Door Module (PDM) C2
Courtesy of GENERAL MOTORS CORP.
