Heated Seat Module Connector End View - Driver - C1

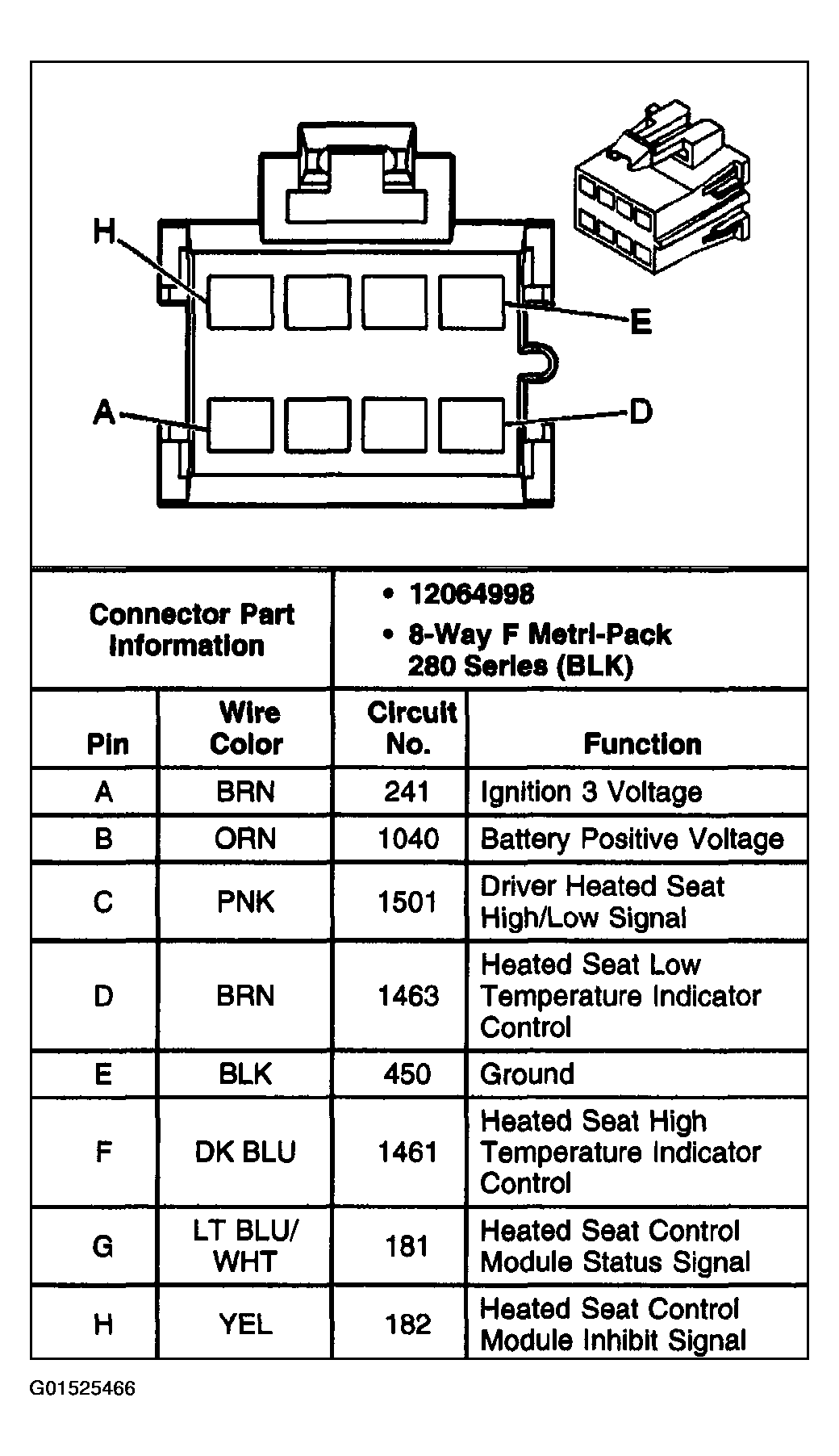

Fig 1: Heated Seat Module - Driver - C1
G01525466Courtesy of GENERAL MOTORS CORP.
