Driver Information Center Switch Connector End View

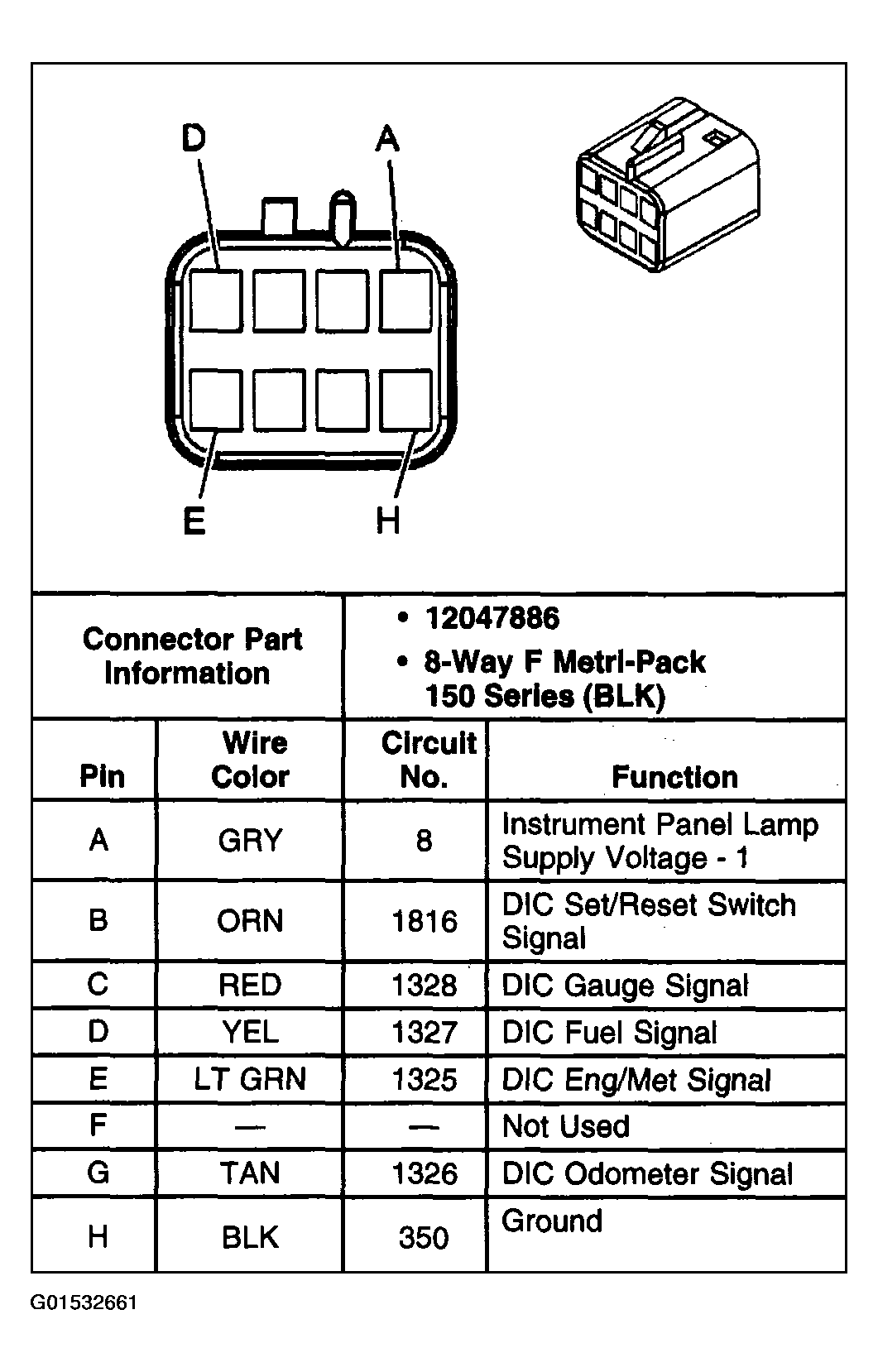

Fig 1: Driver Information Center Switch (With UB7)
G01532661Courtesy of GENERAL MOTORS CORP.

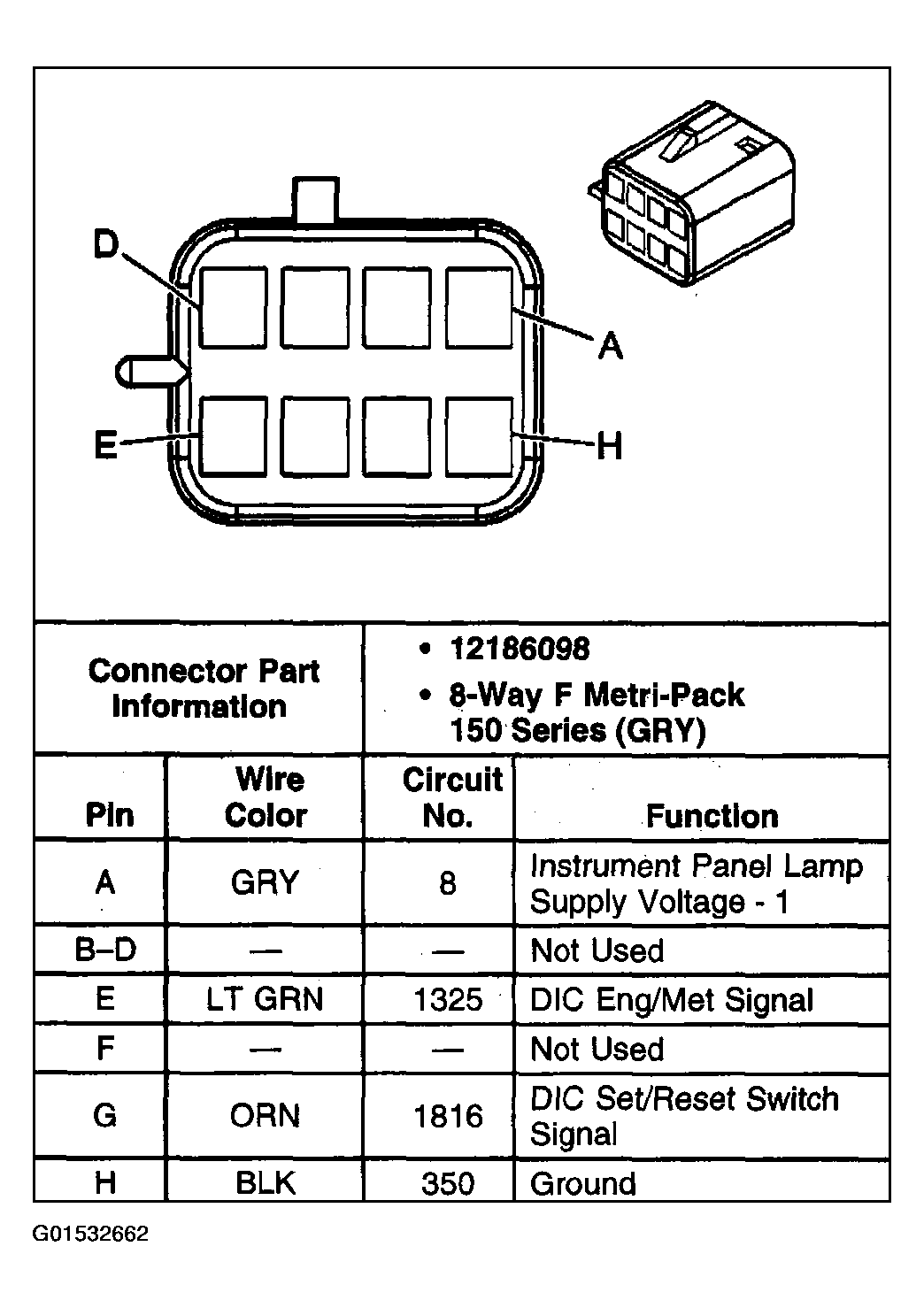

Fig 1: Driver Information Center Switch (With UH8)
G01532662Courtesy of GENERAL MOTORS CORP.
