Driver Door Module (DDM) Connector End View C2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Door Module (DDM) Connector End View C2

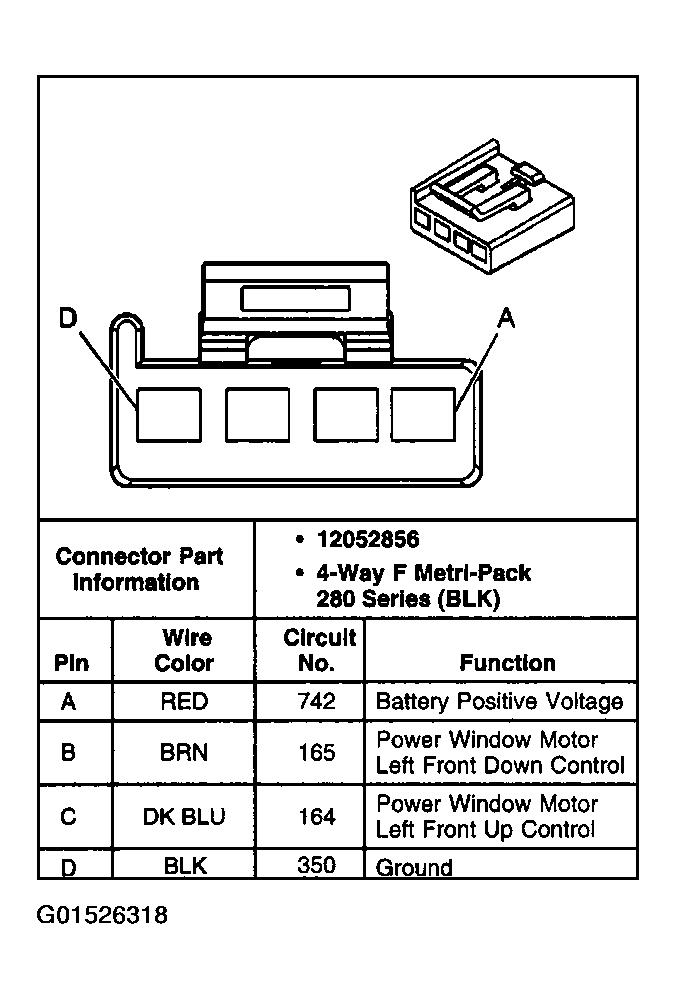

Fig 1: Driver Door Module (DDM) C2
Courtesy of GENERAL MOTORS CORP.
