Power Door Systems Connector End Views

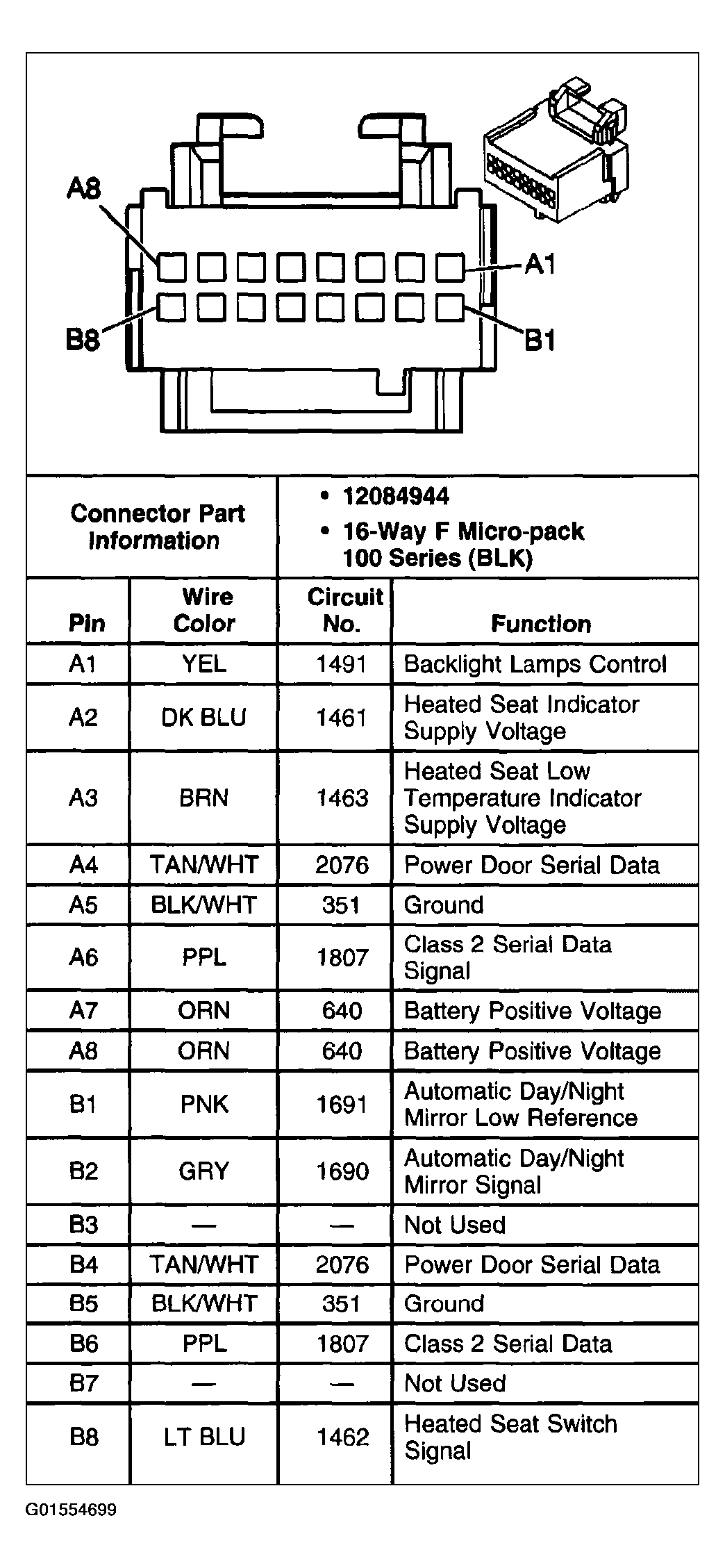

Fig 1: Power Door Systems Connector C1 End View (Driver Door Module DDM)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Door Systems Connector C2 End View (Drivers Door Module DDM)
Courtesy of GENERAL MOTORS CORP.

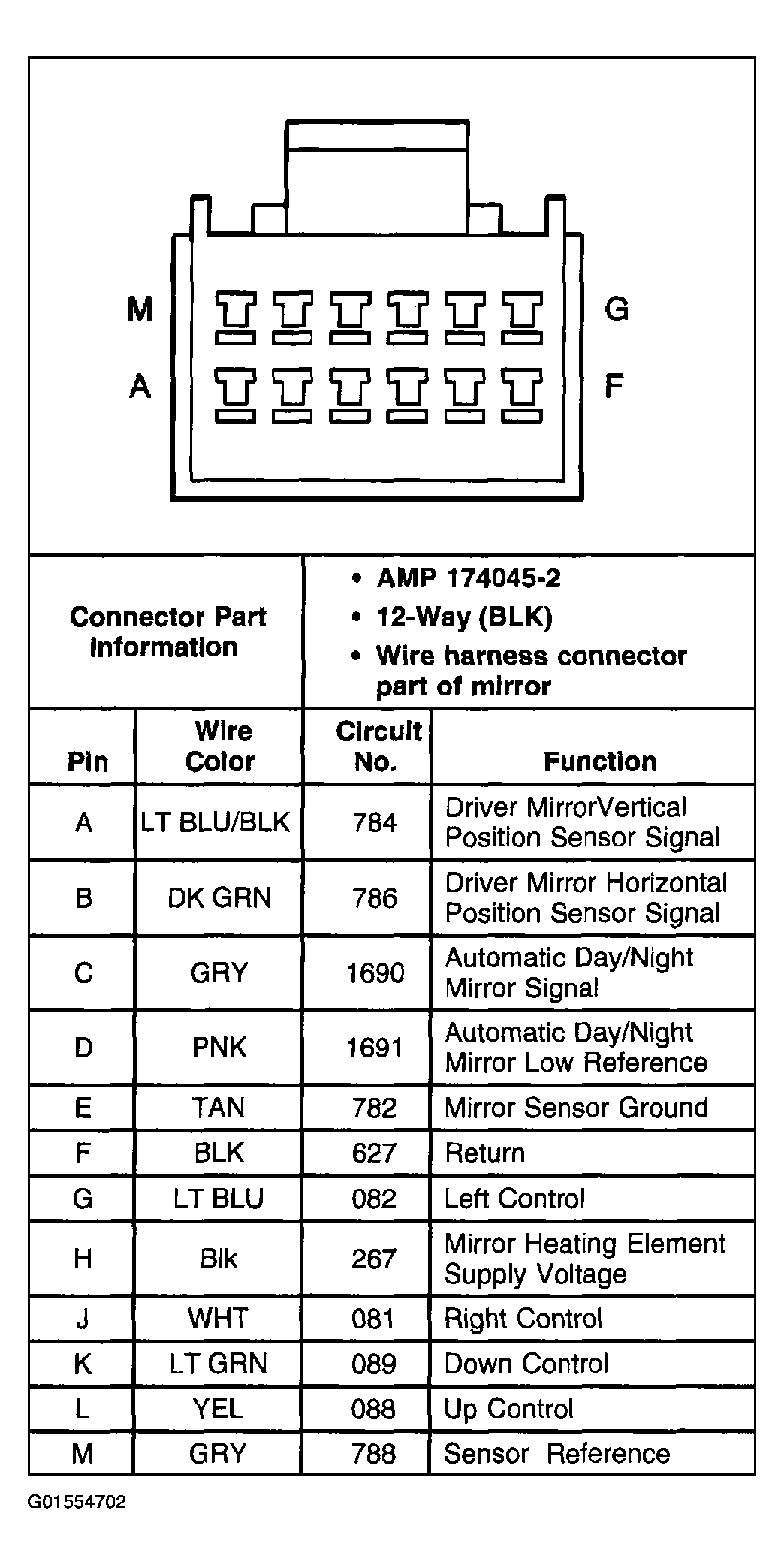

Fig 3: Power Door Systems Connector C3 End View (Driver Door Module DDM)
Courtesy of GENERAL MOTORS CORP.

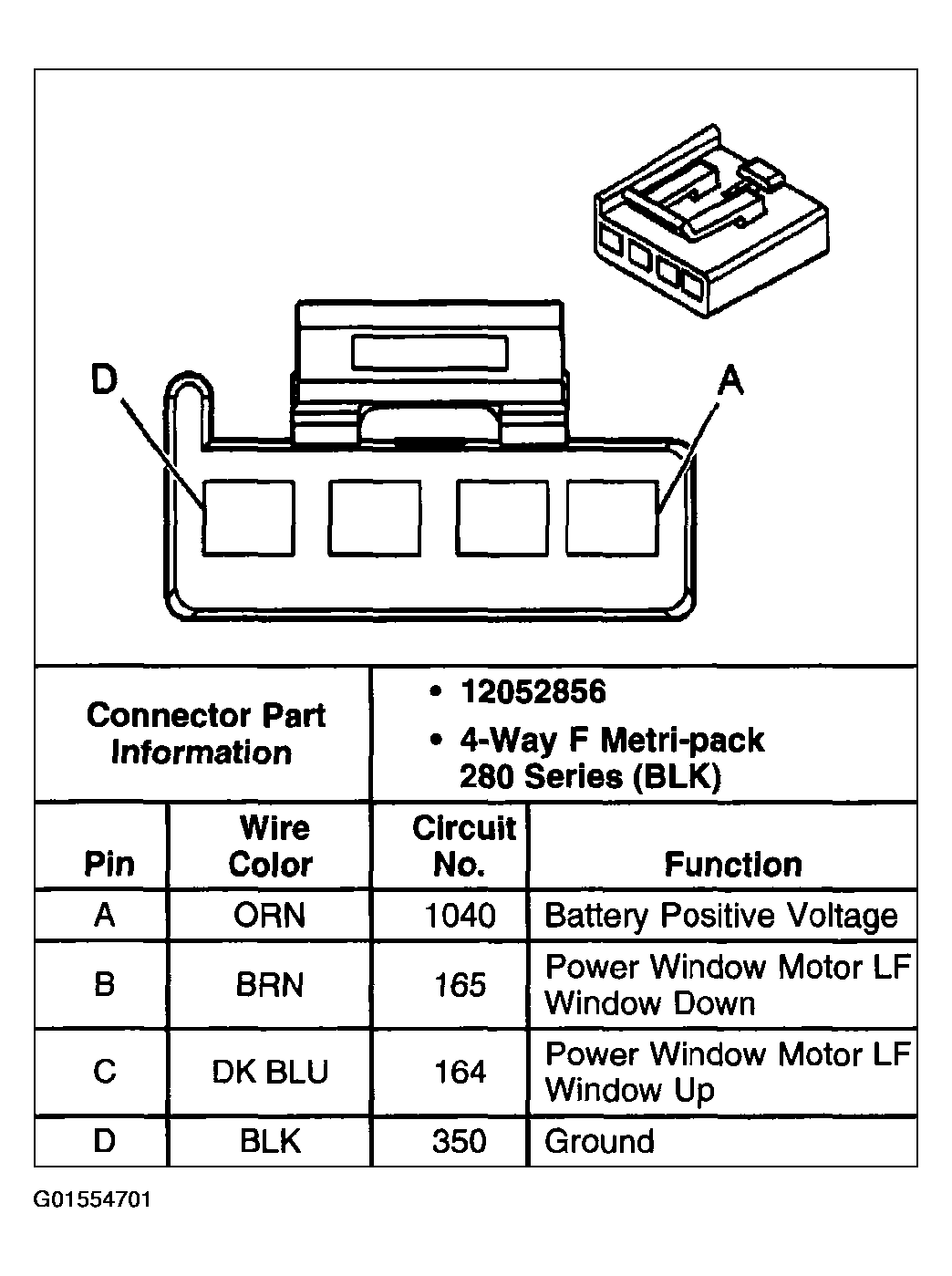

Fig 4: Power Door Systems Connector C4 End View (Driver Door Module DDM)
Courtesy of GENERAL MOTORS CORP.

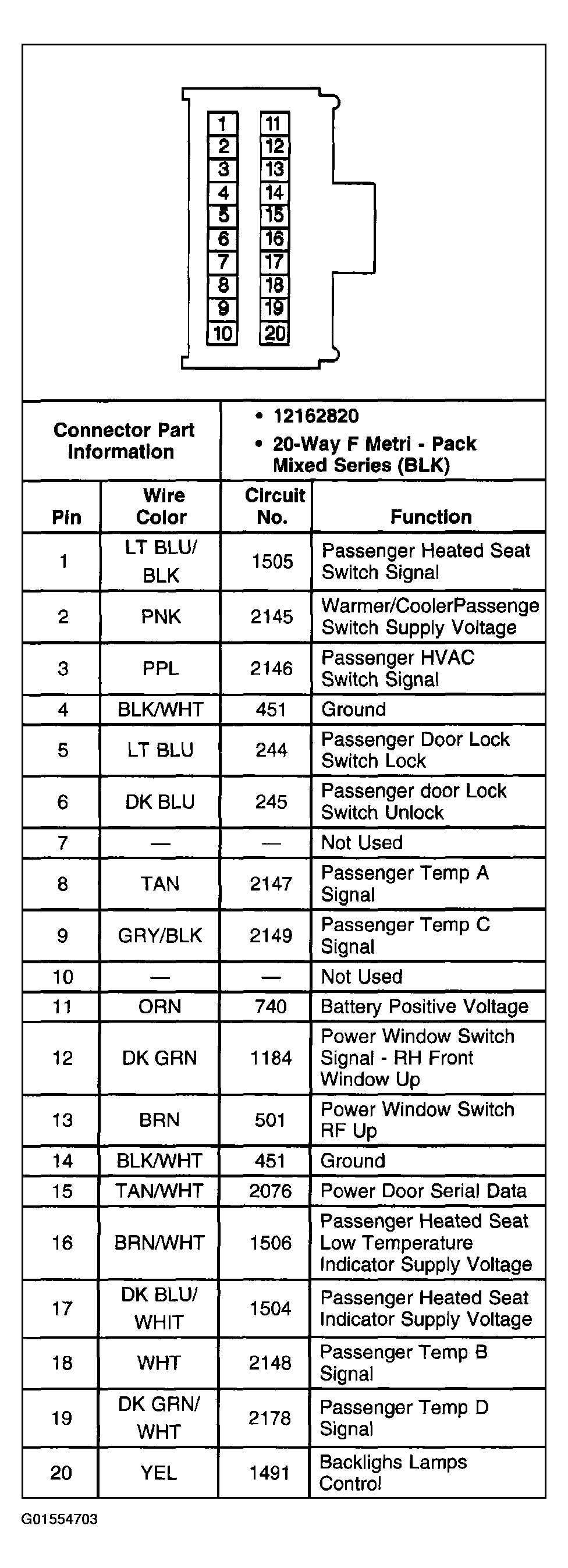

Fig 5: Power Door Systems Connector C1 End View (Front Passenger Door Module FPDM)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Power Door Systems Connector C2 End View (Front Passenger Door Module FPDM)
Courtesy of GENERAL MOTORS CORP.

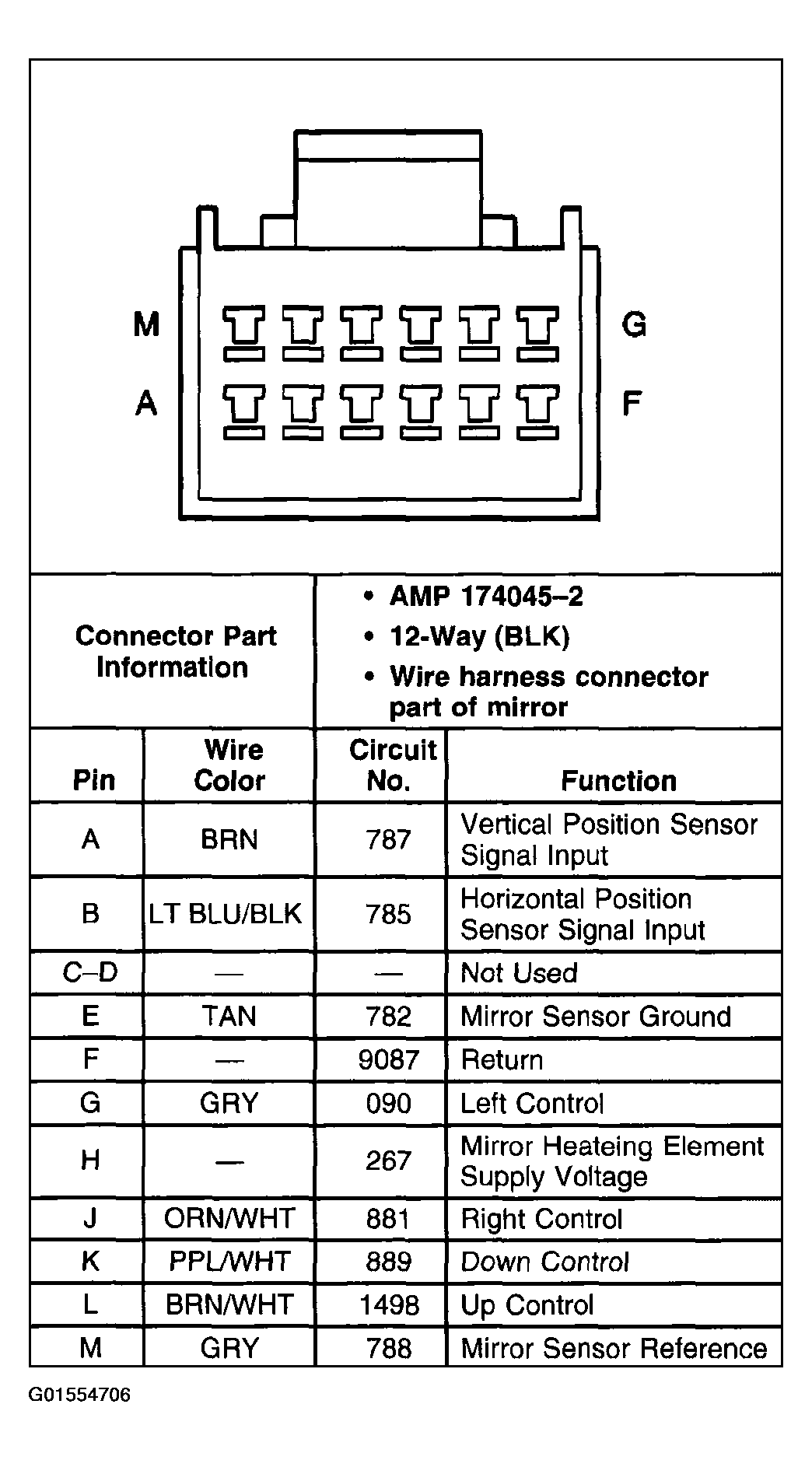

Fig 7: Power Door Systems Connector C3 End View (Front Passenger Door Module FPDM)
Courtesy of GENERAL MOTORS CORP.

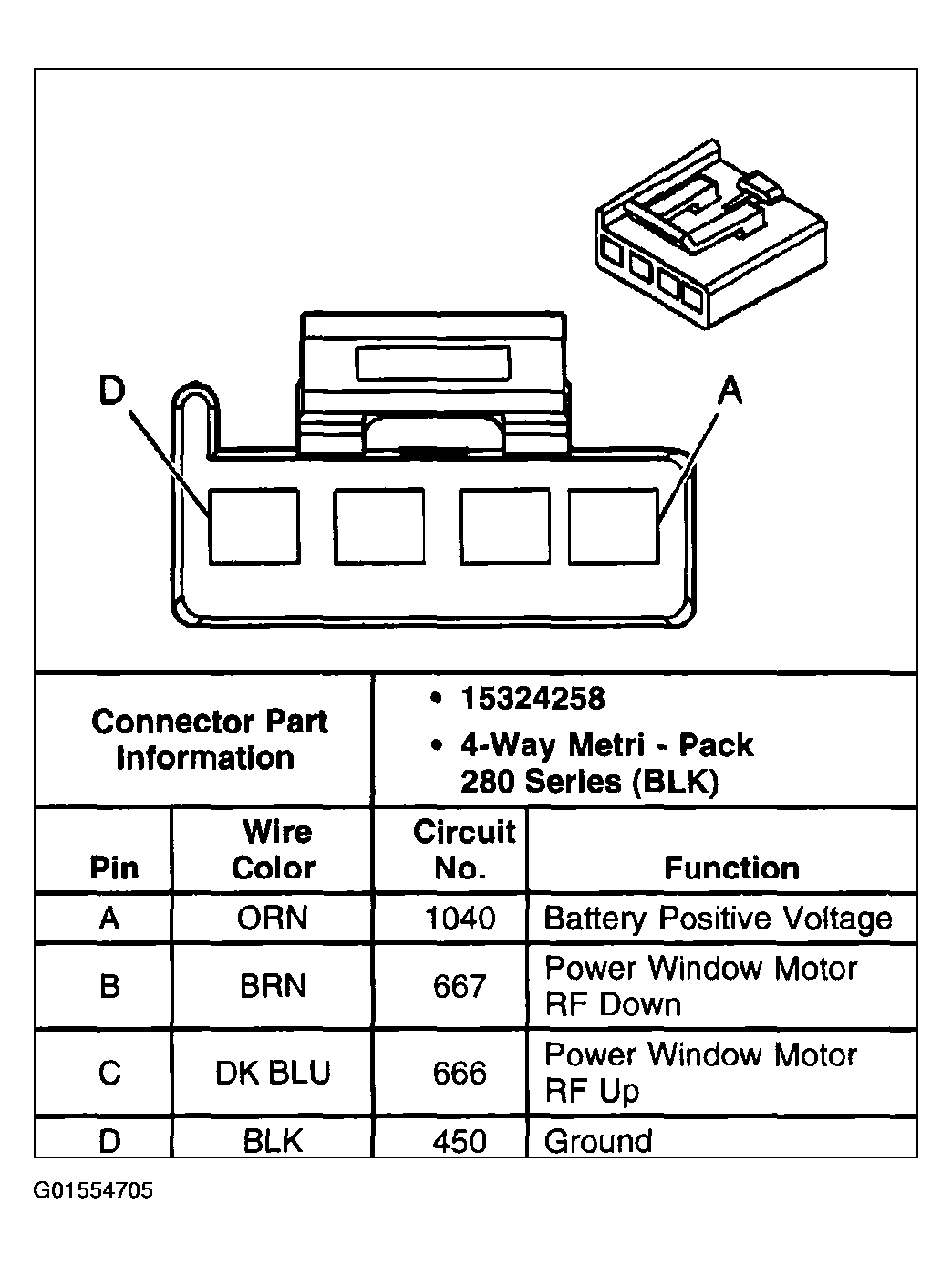

Fig 8: Power Door Systems Connector C4 End View (Passenger Door Module)
Courtesy of GENERAL MOTORS CORP.

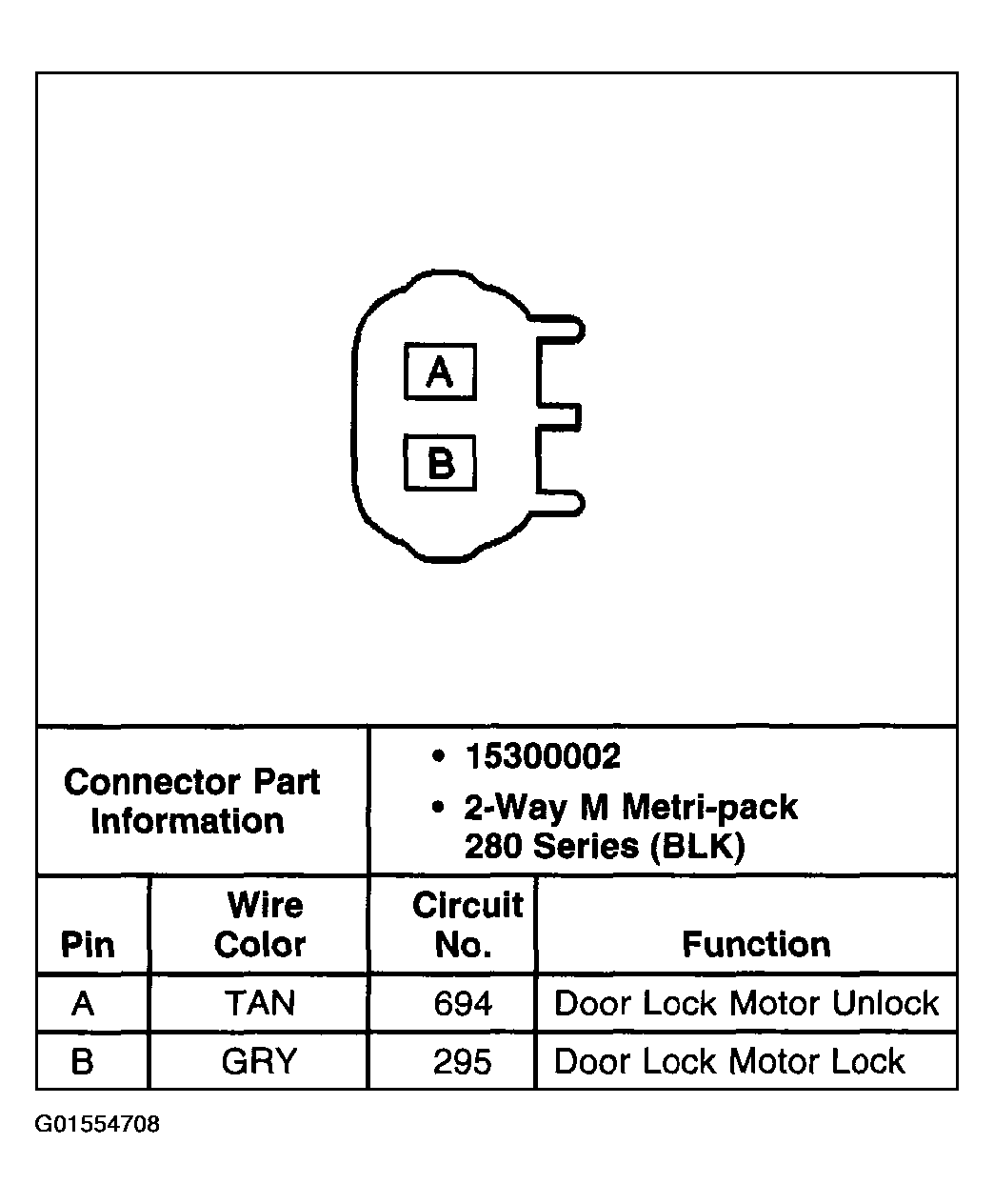

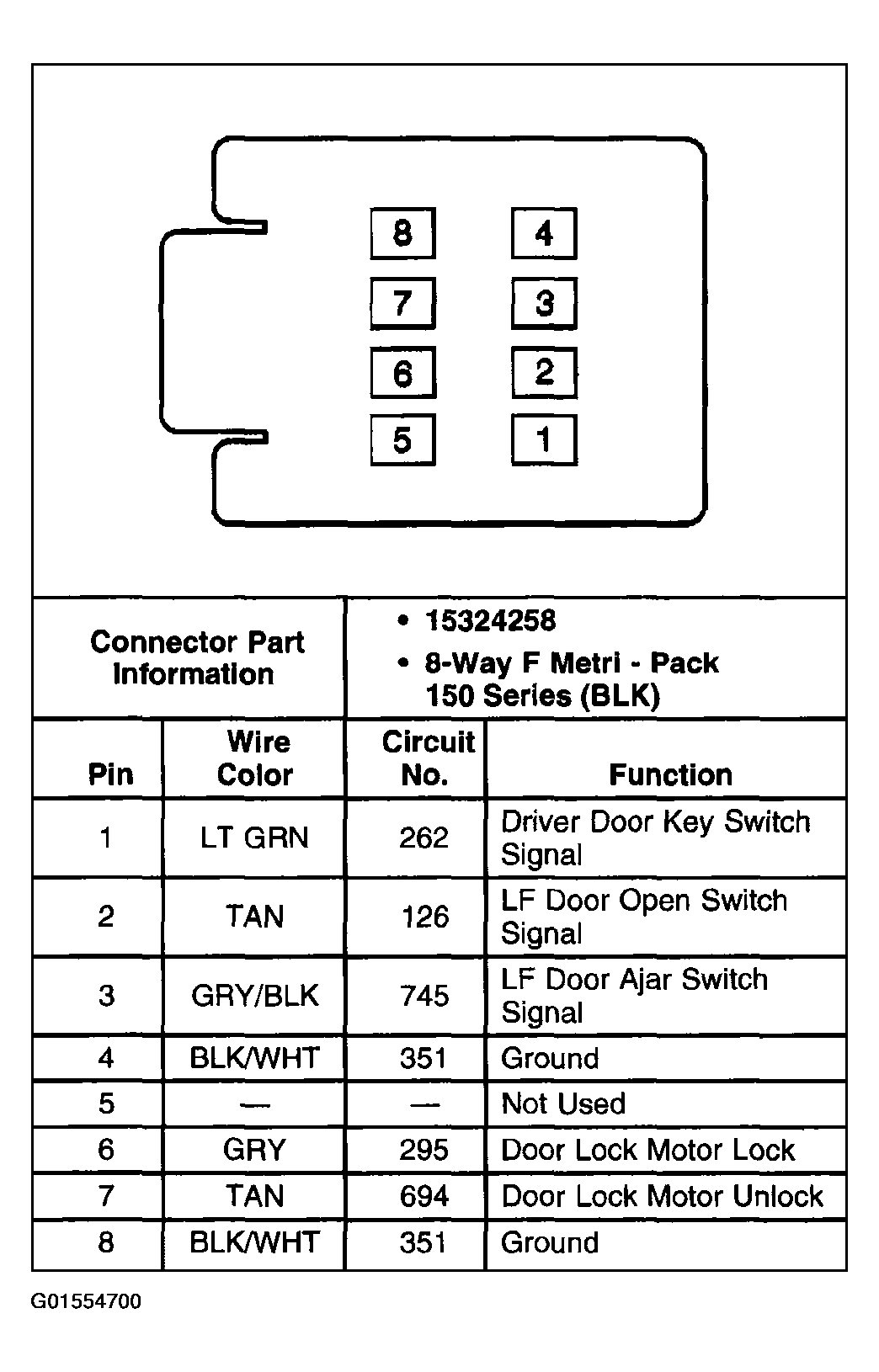

Fig 9: Power Door Systems Connector C1 End View (Door Lock Actuator - Driver)
Courtesy of GENERAL MOTORS CORP.

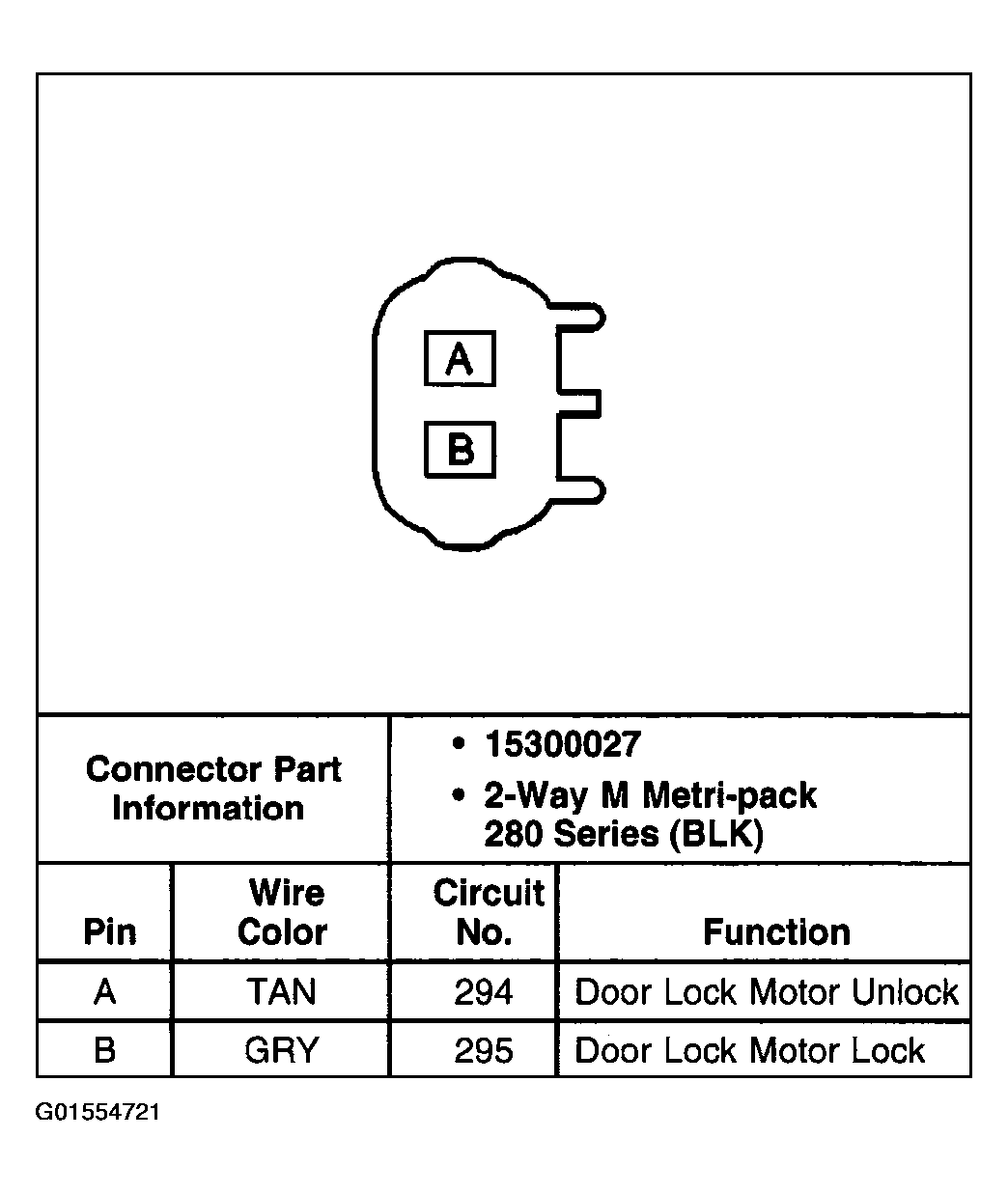

Fig 10: Power Door Systems Connector C2 End View (Door Lock Actuator - Driver)
Courtesy of GENERAL MOTORS CORP.

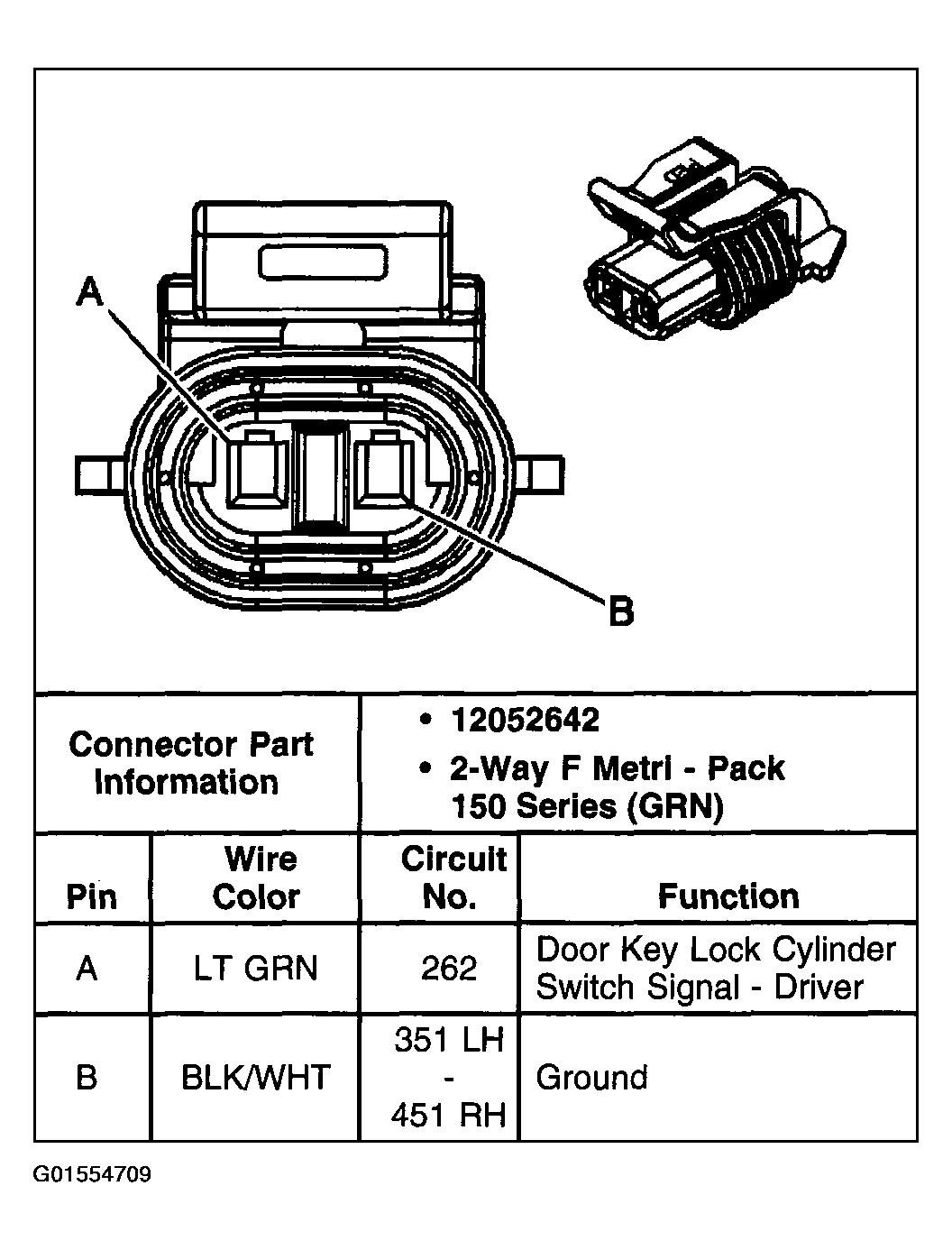

Fig 11: Power Door Systems Connector End View (Door Lock Cylinder Switch - Driver - Front Passenger - W/UA6)
Courtesy of GENERAL MOTORS CORP.

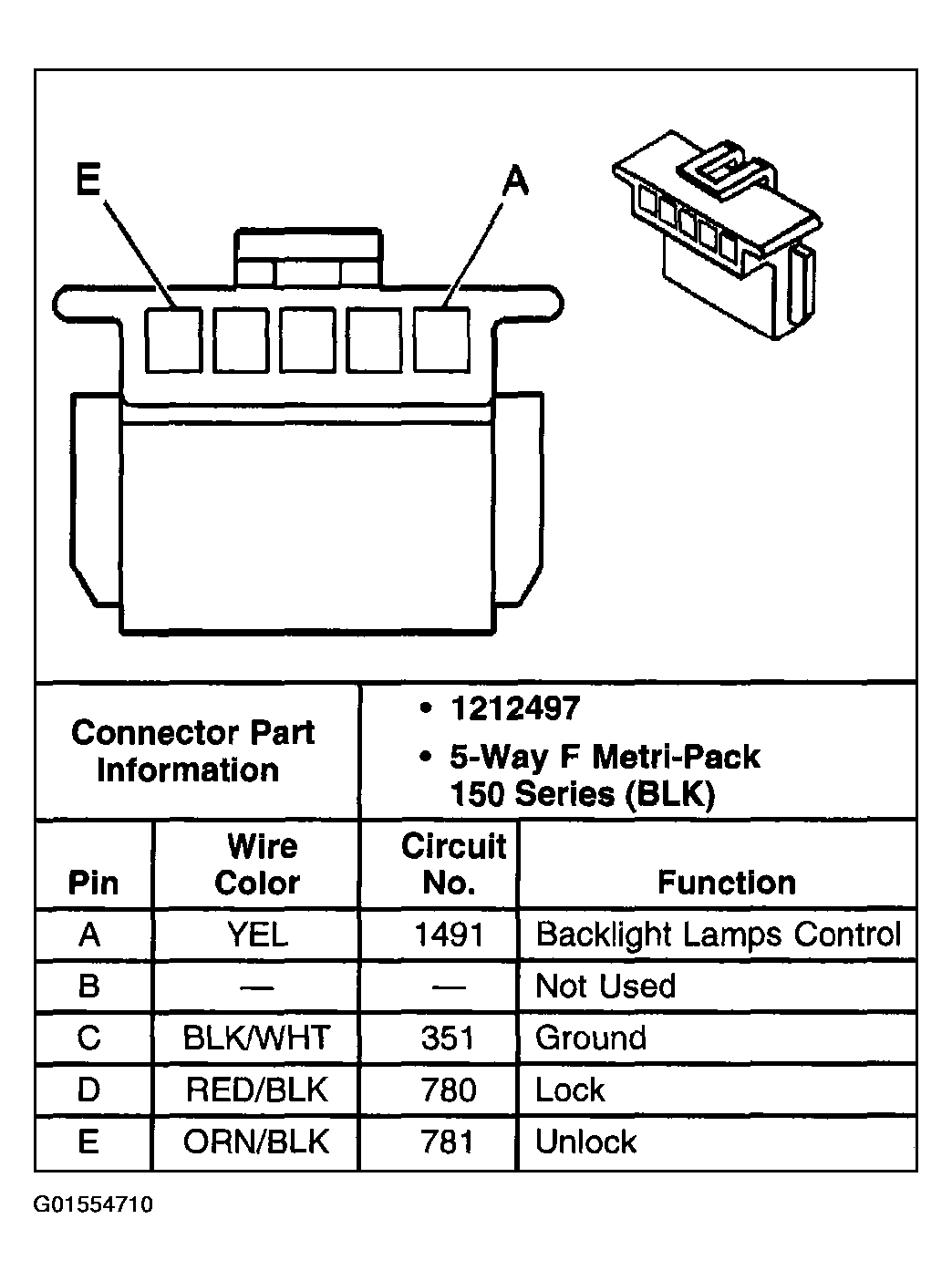

Fig 12: Power Door Systems Connector End View (Door Lock Switch - Driver)
Courtesy of GENERAL MOTORS CORP.

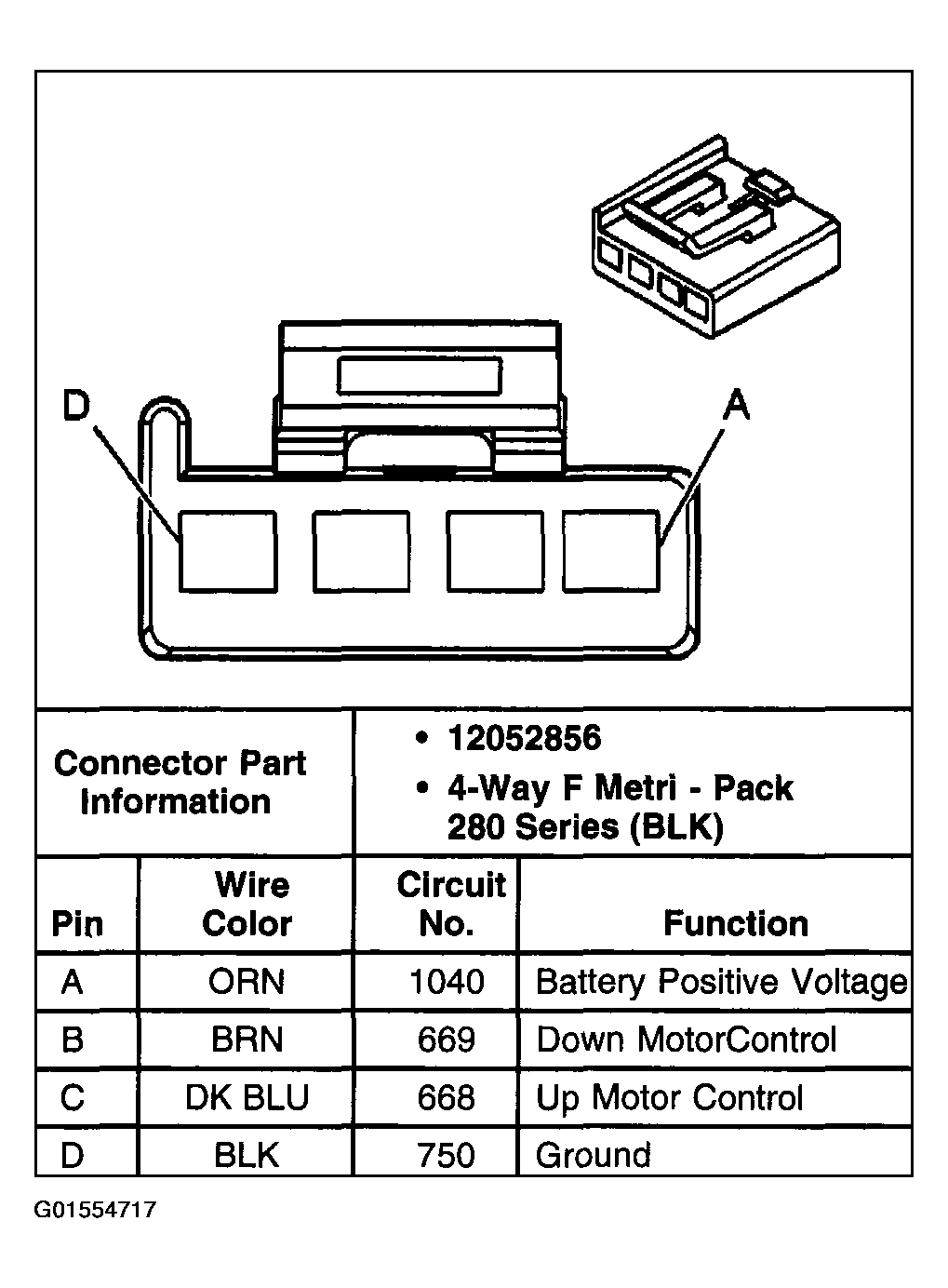

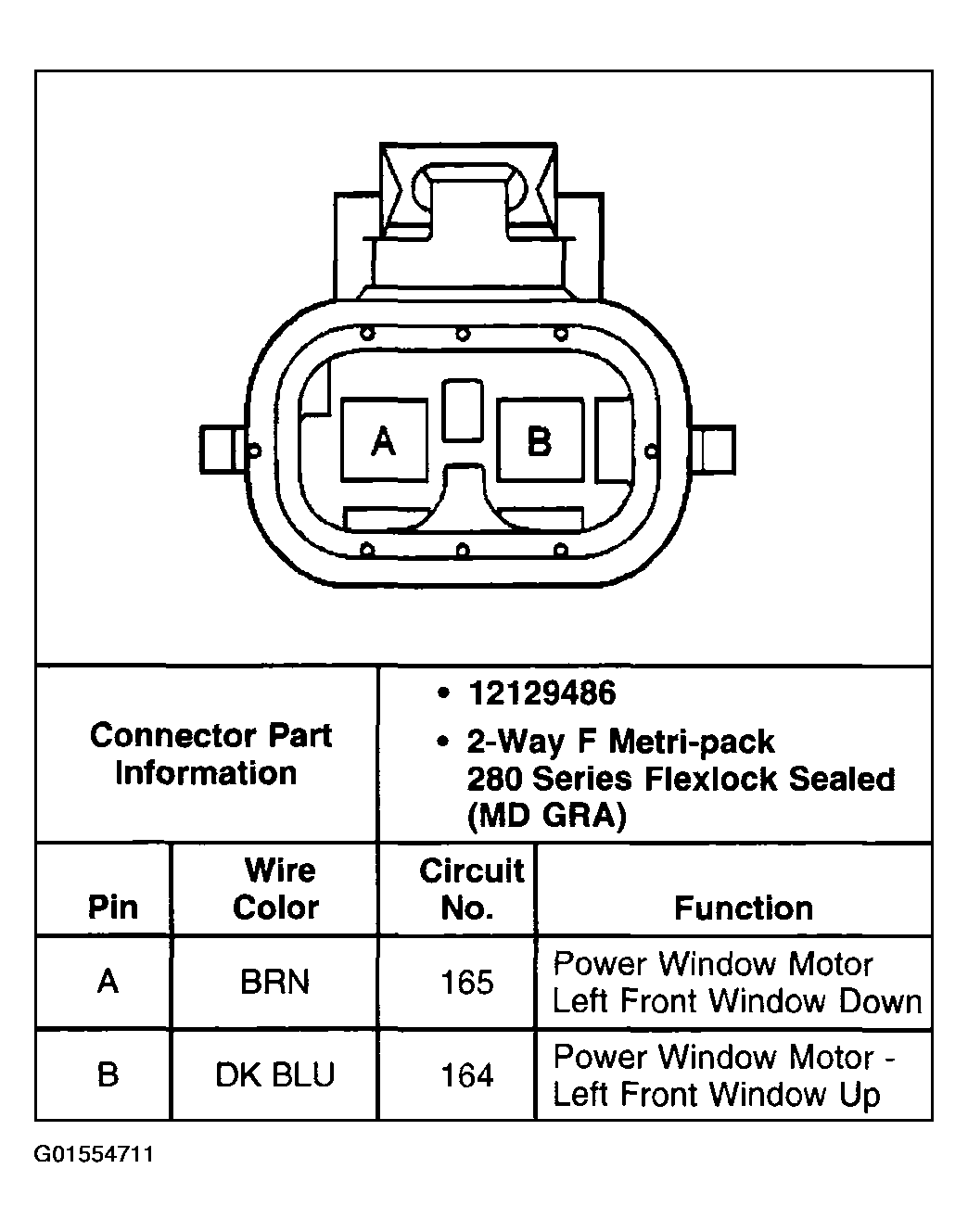

Fig 13: Power Door Systems Connector End View (Window Motor - Driver)
Courtesy of GENERAL MOTORS CORP.

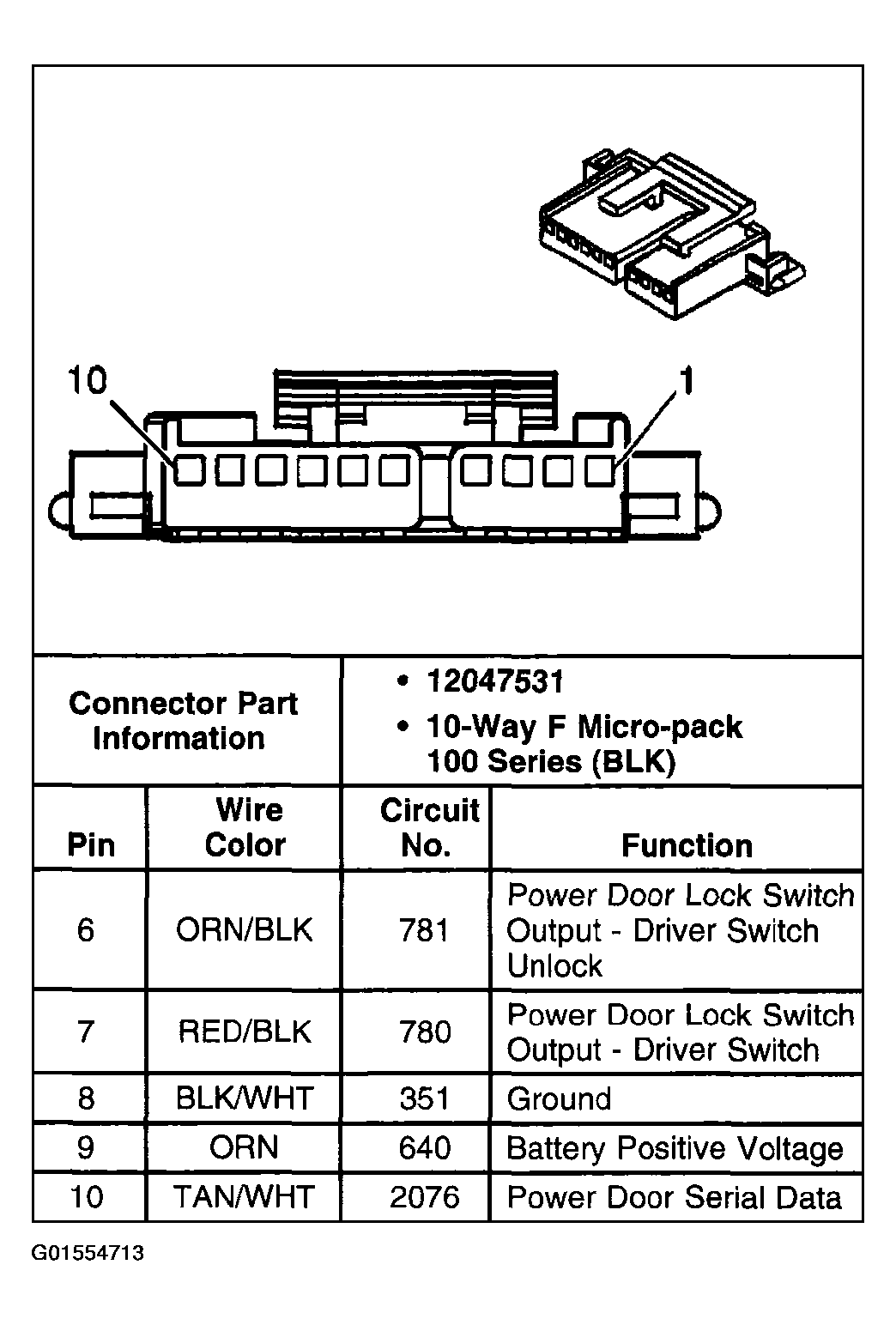

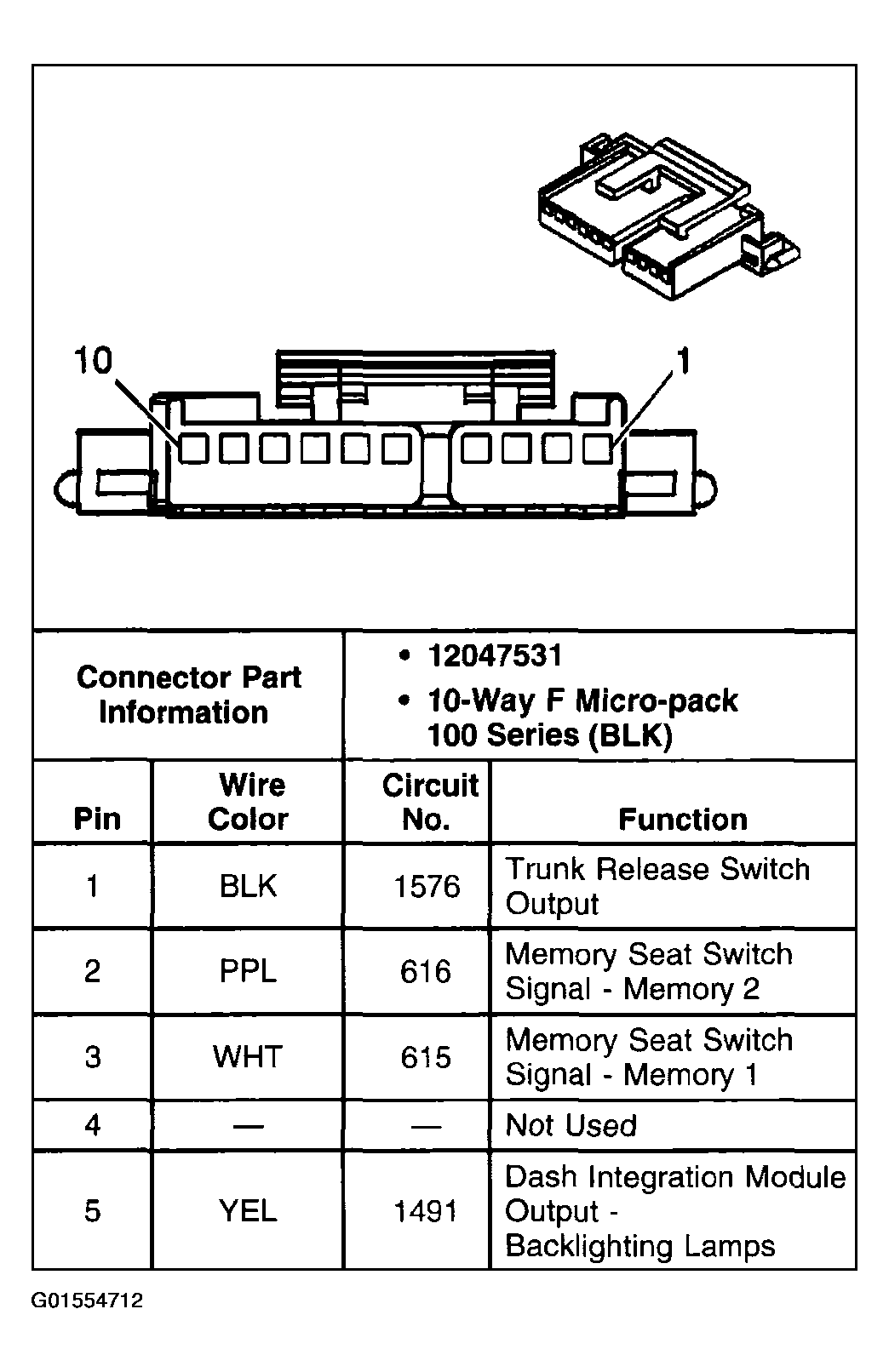

Fig 14: Power Door Systems Connector End View (Driver Door Switch Assembly DDSA) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Power Door Systems Connector End View (Driver Door Switch Assembly DDSA) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

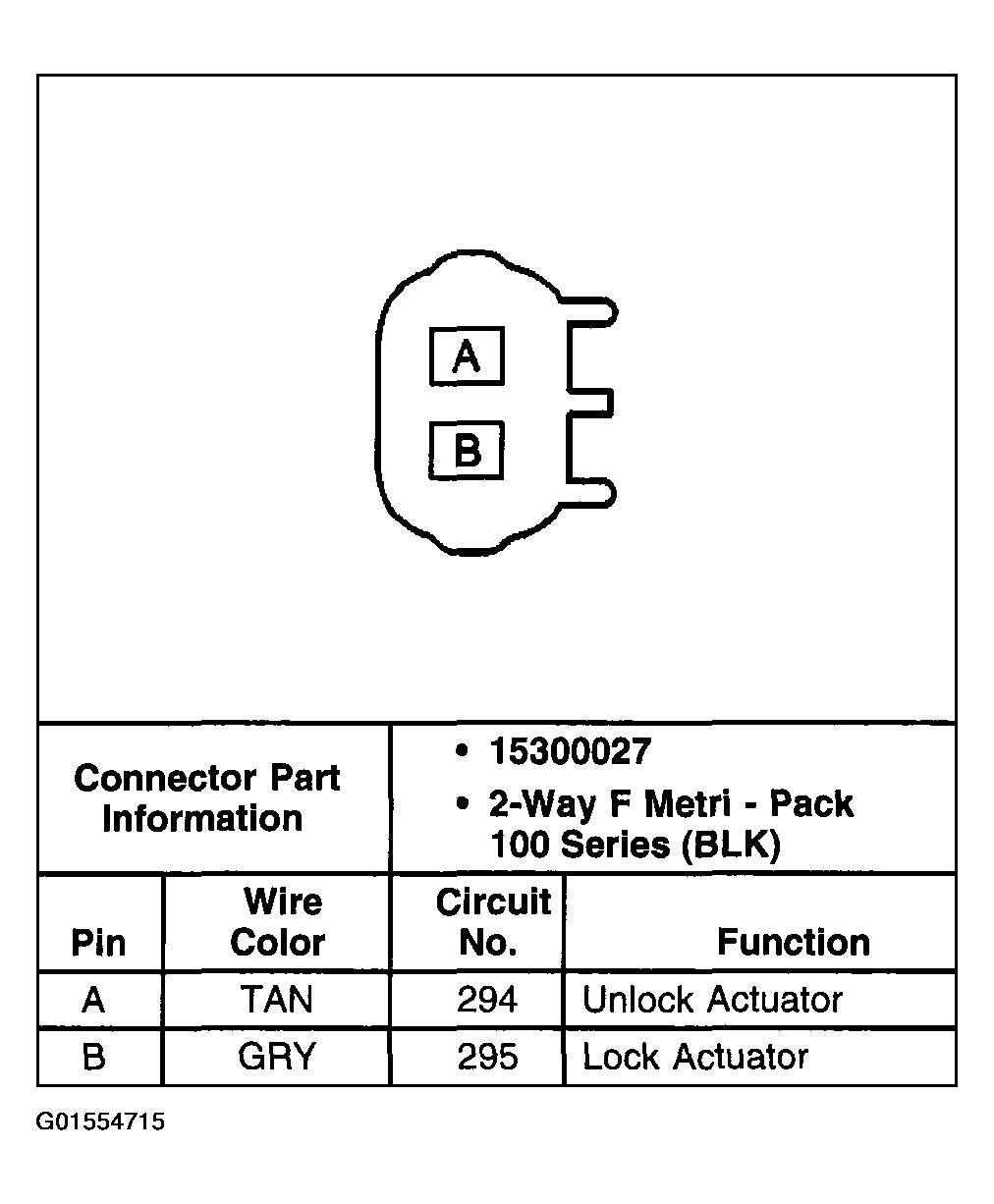

Fig 16: Power Door Systems Connector C1 End View (Door Lock Actuator - LR)
Courtesy of GENERAL MOTORS CORP.

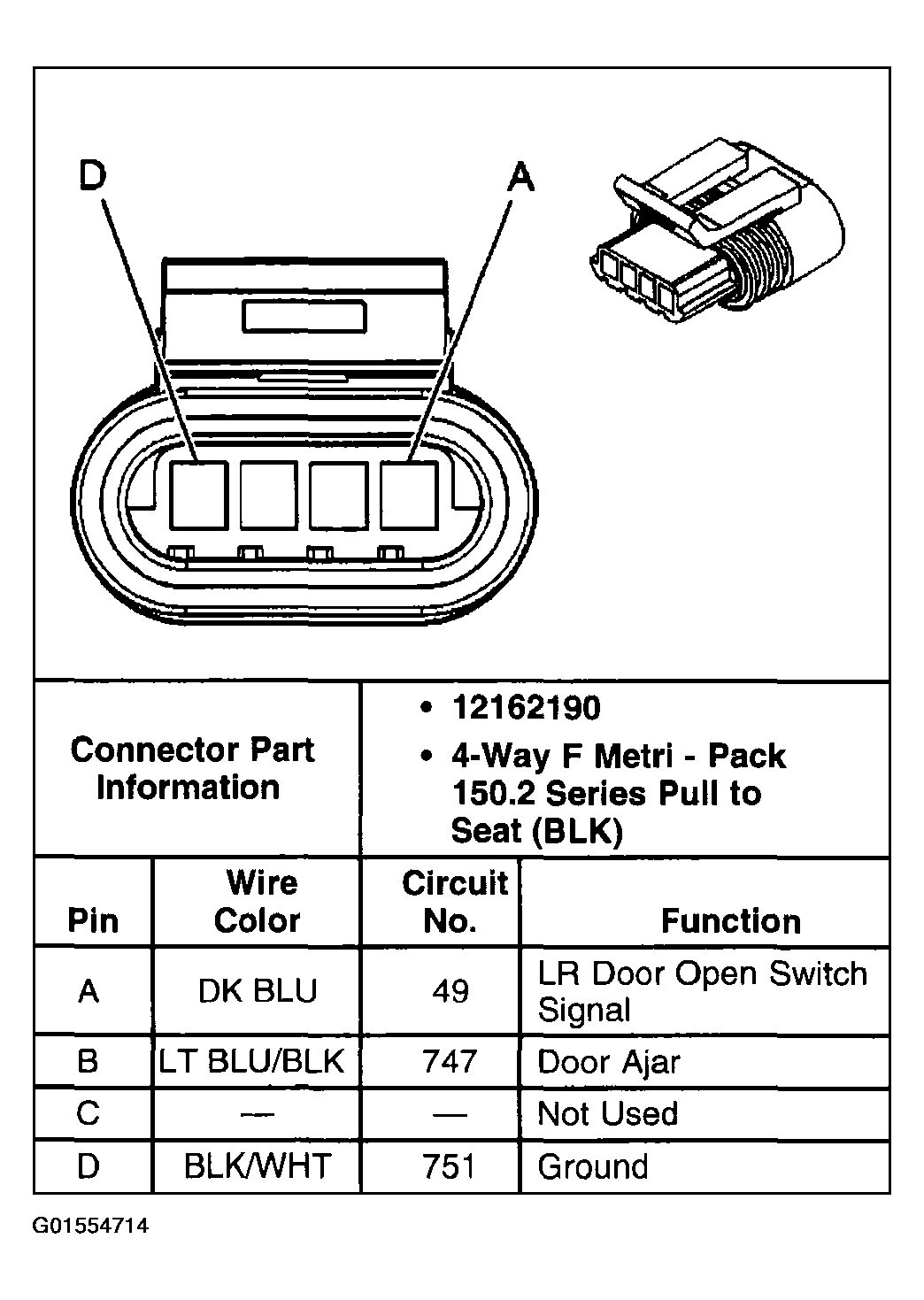

Fig 17: Power Door Systems Connector C2 End View (Door Lock Actuator - LR)
Courtesy of GENERAL MOTORS CORP.

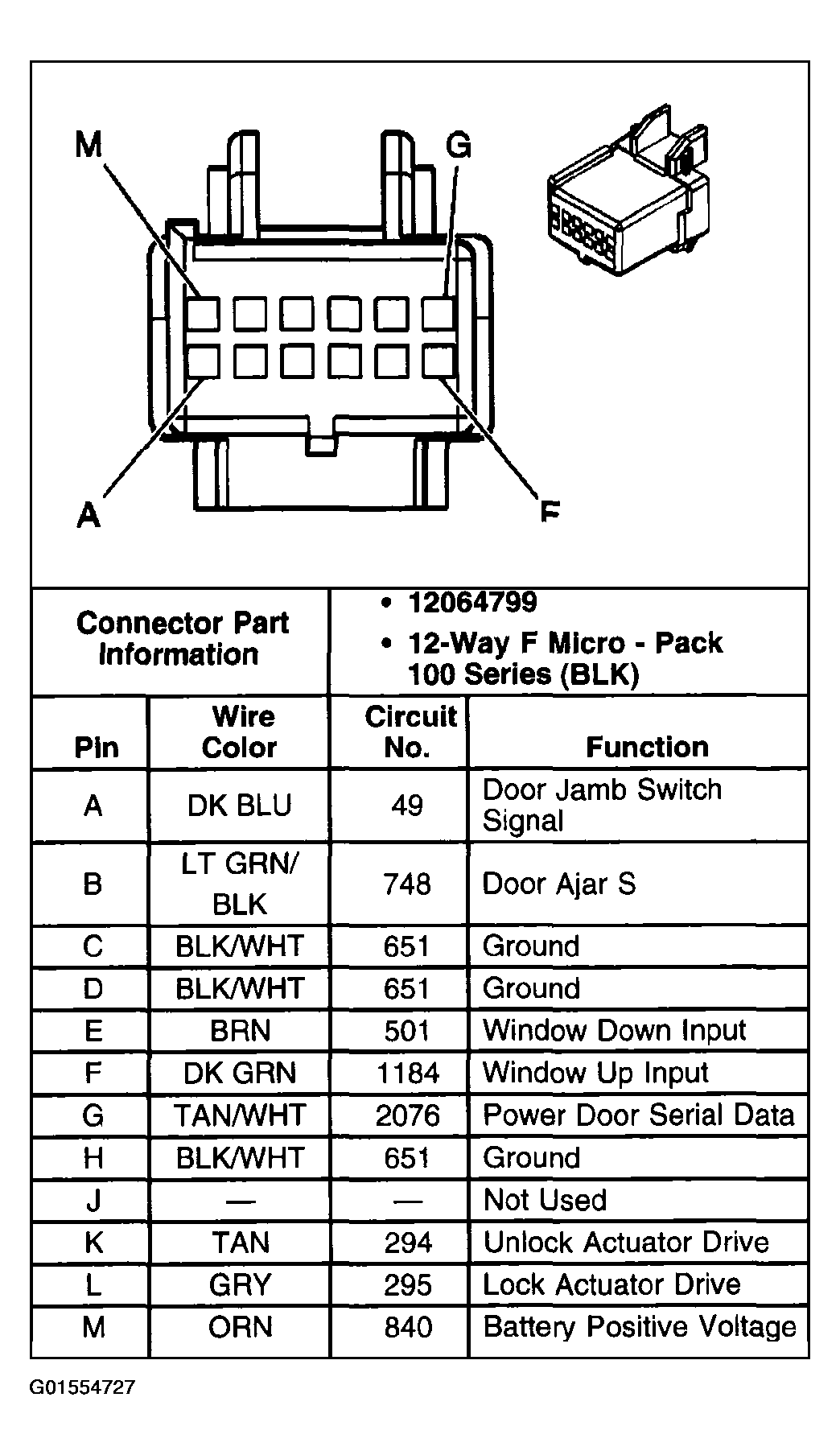

Fig 18: Power Door Systems Connector End View (Left Rear Door Module LRDM)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Power Door Systems Connector End View (Left Rear Door Module LRDM)
Courtesy of GENERAL MOTORS CORP.

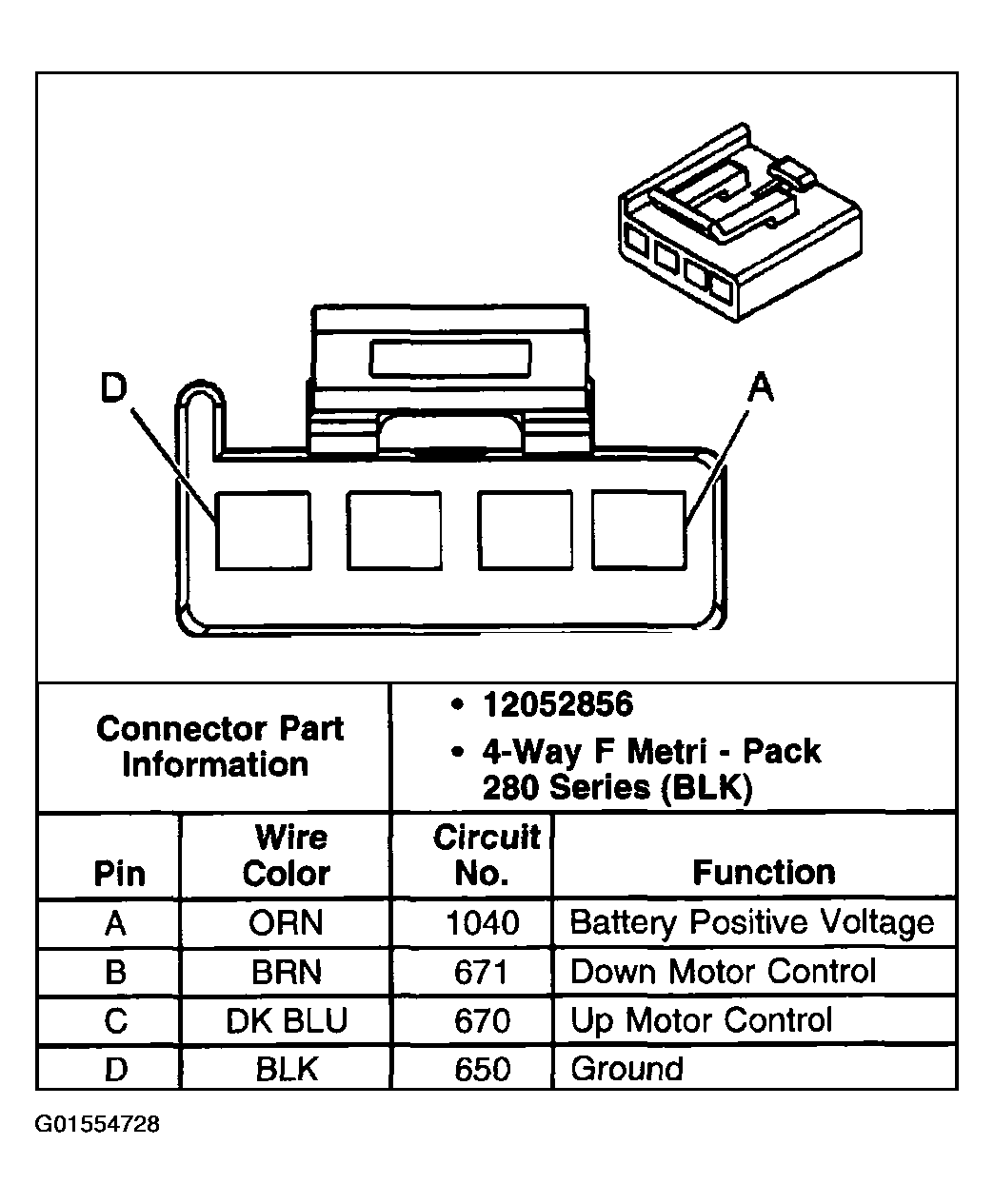

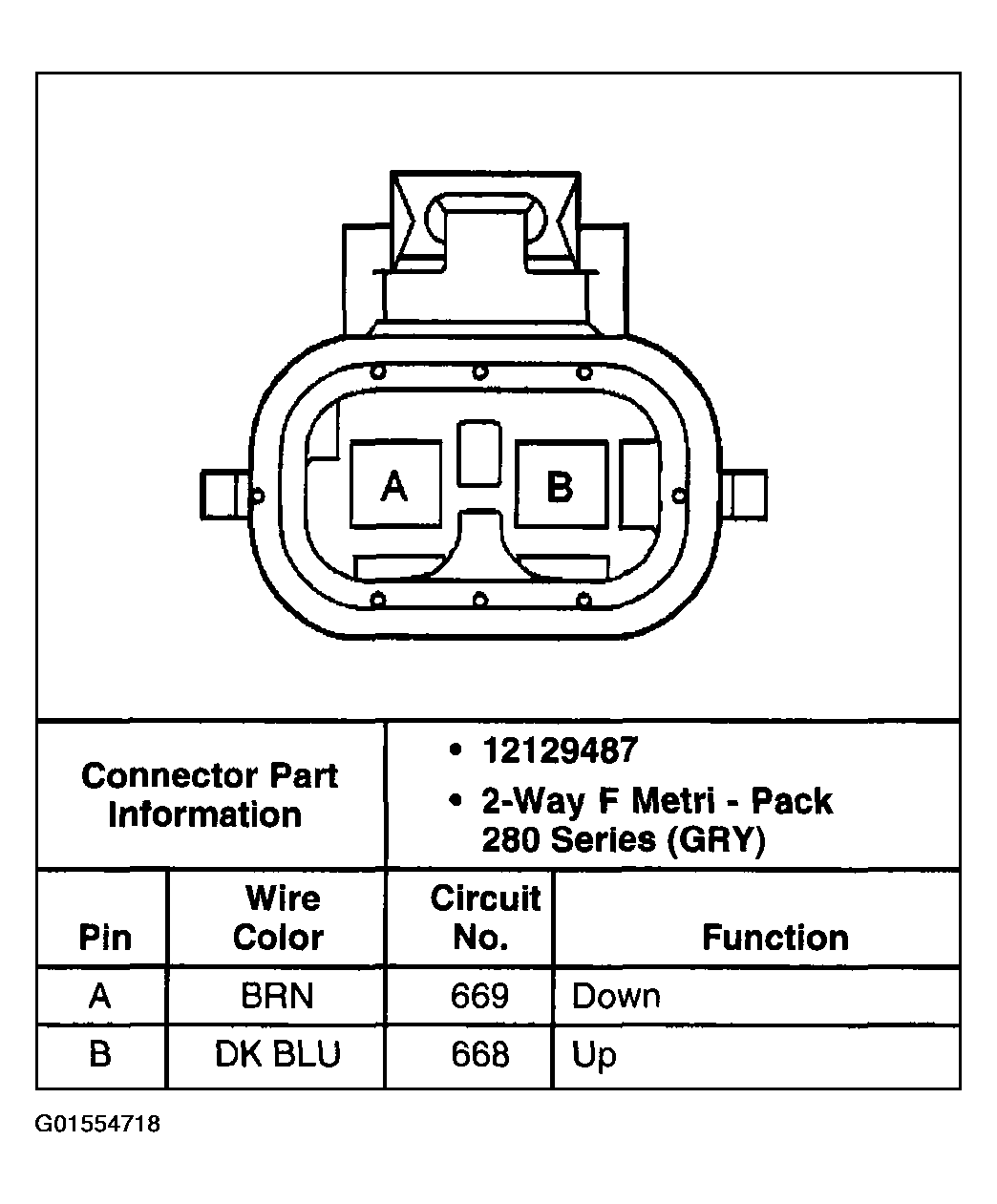

Fig 20: Power Door Systems Connector End View (Window Motor - LR)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Power Door Systems Connector End View (Window Switch - LR)
Courtesy of GENERAL MOTORS CORP.

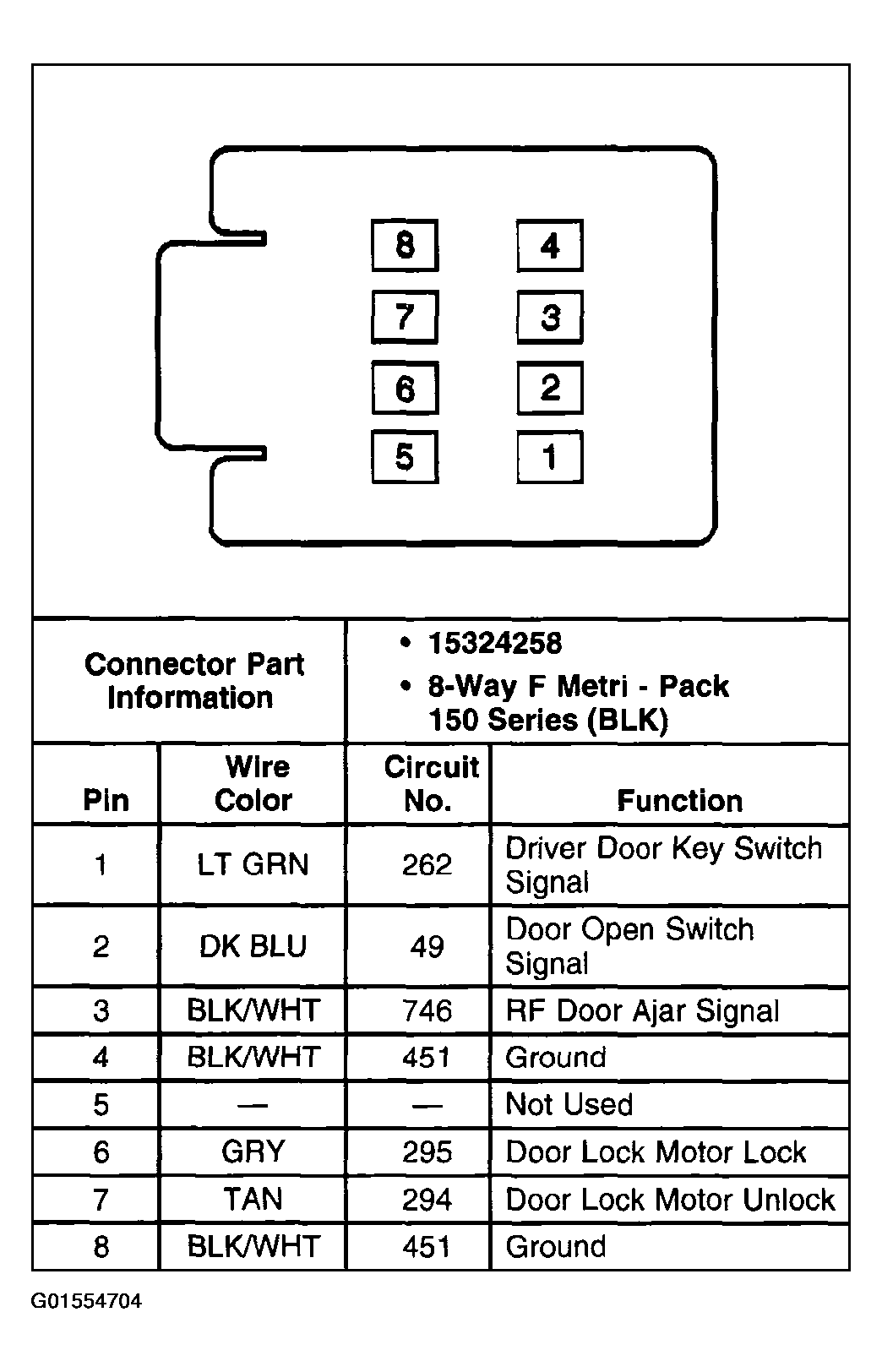

Fig 22: Power Door Systems Connector C1 End View (Door Lock Actuator - Front Passenger)
Courtesy of GENERAL MOTORS CORP.

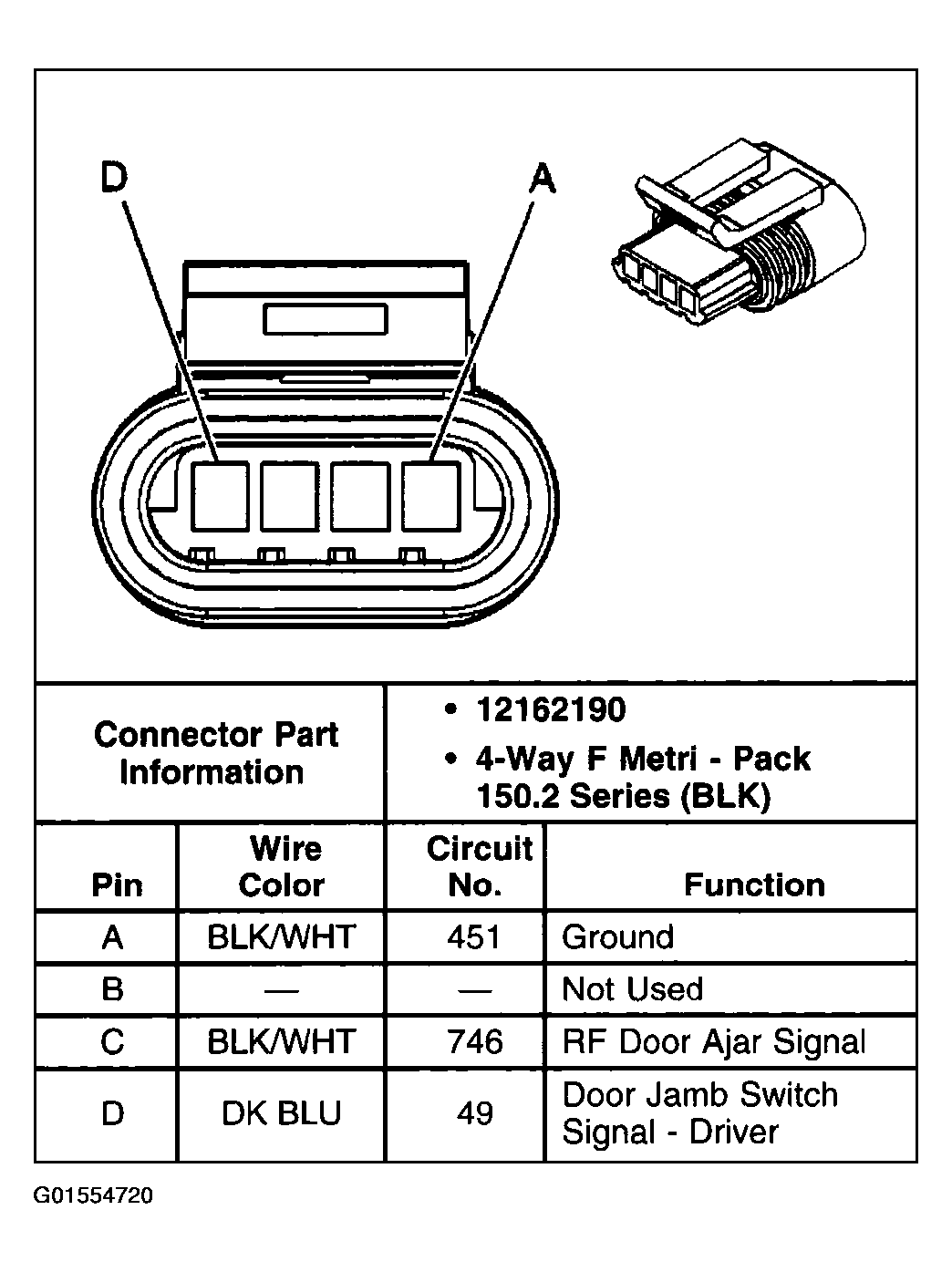

Fig 23: Power Door Systems Connector C2 End View (Door Lock Actuator - Front Passenger)
Courtesy of GENERAL MOTORS CORP.

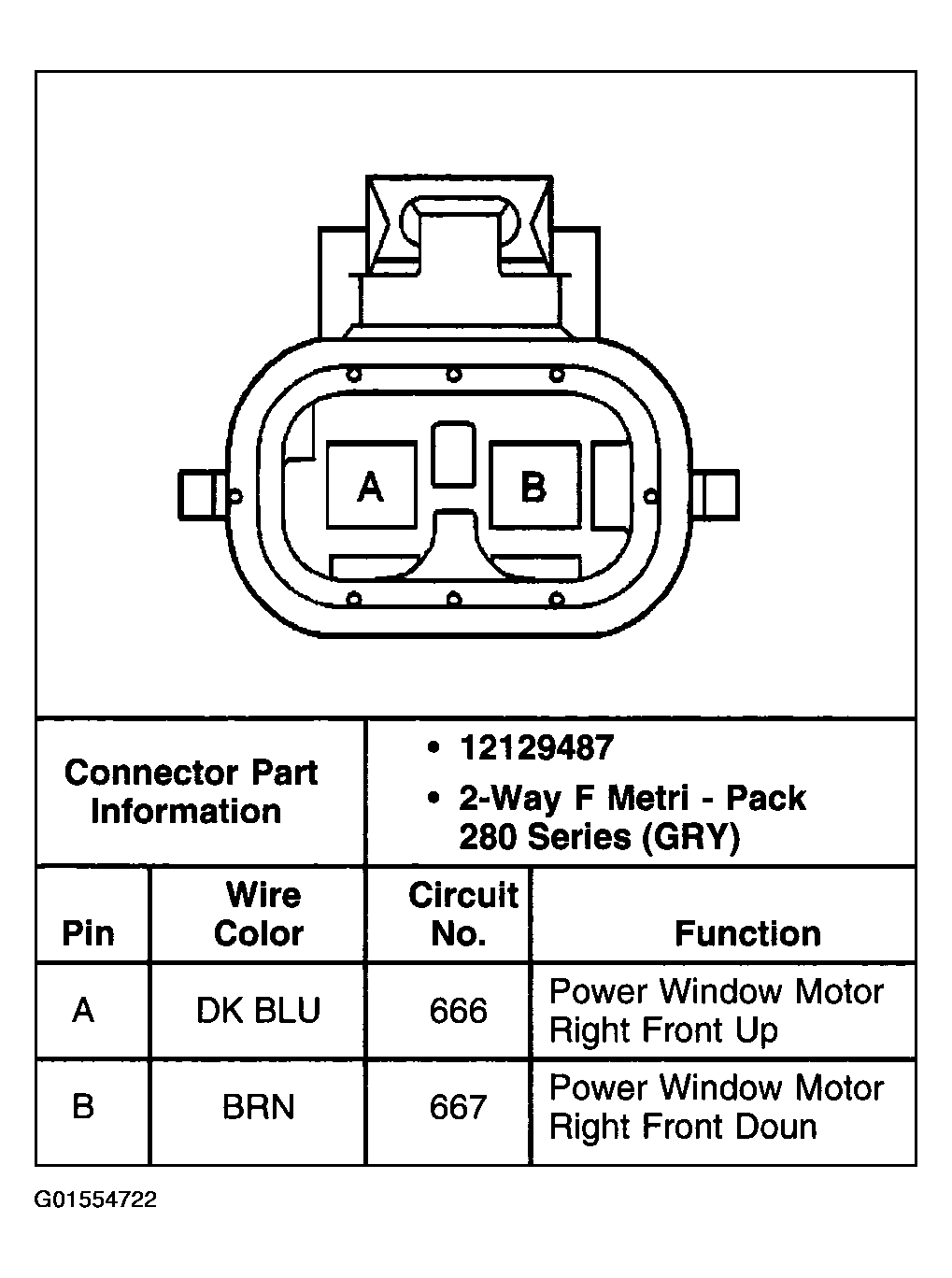

Fig 24: Power Door Systems Connector End View (Window Motor - Front Passenger)
Courtesy of GENERAL MOTORS CORP.

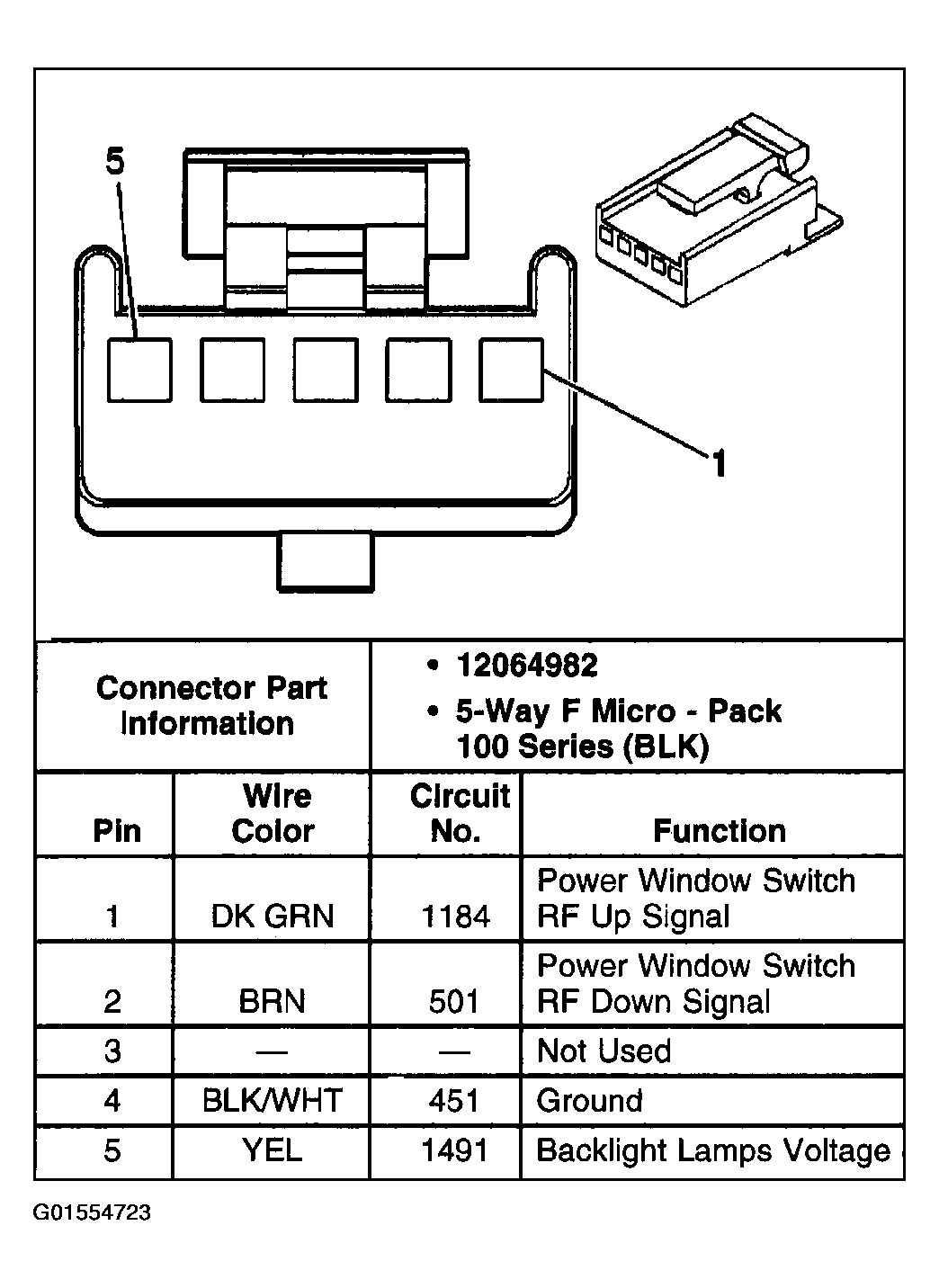

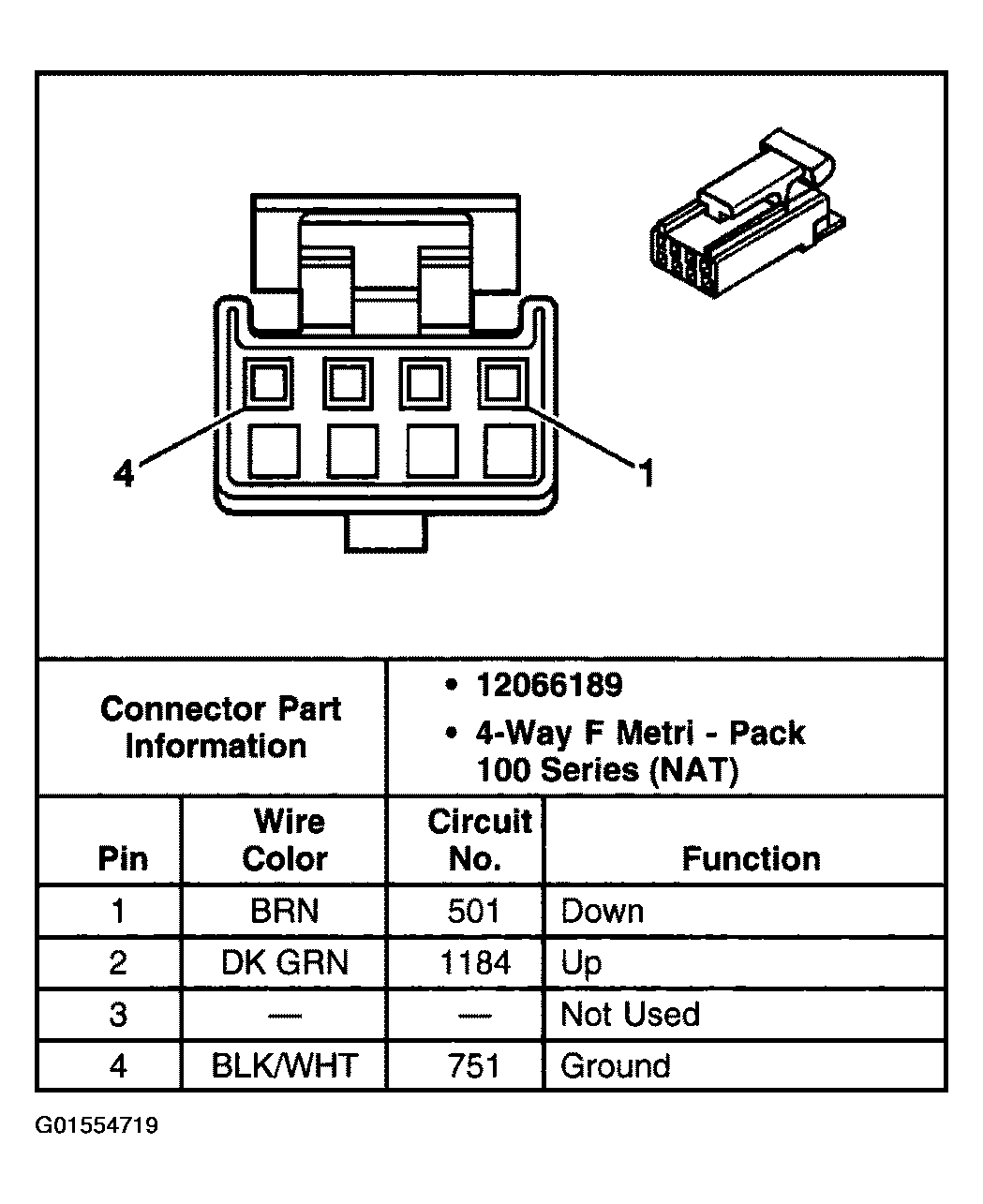

Fig 25: Power Door Systems Connector End View (Window Switch - Front Passenger)
Courtesy of GENERAL MOTORS CORP.

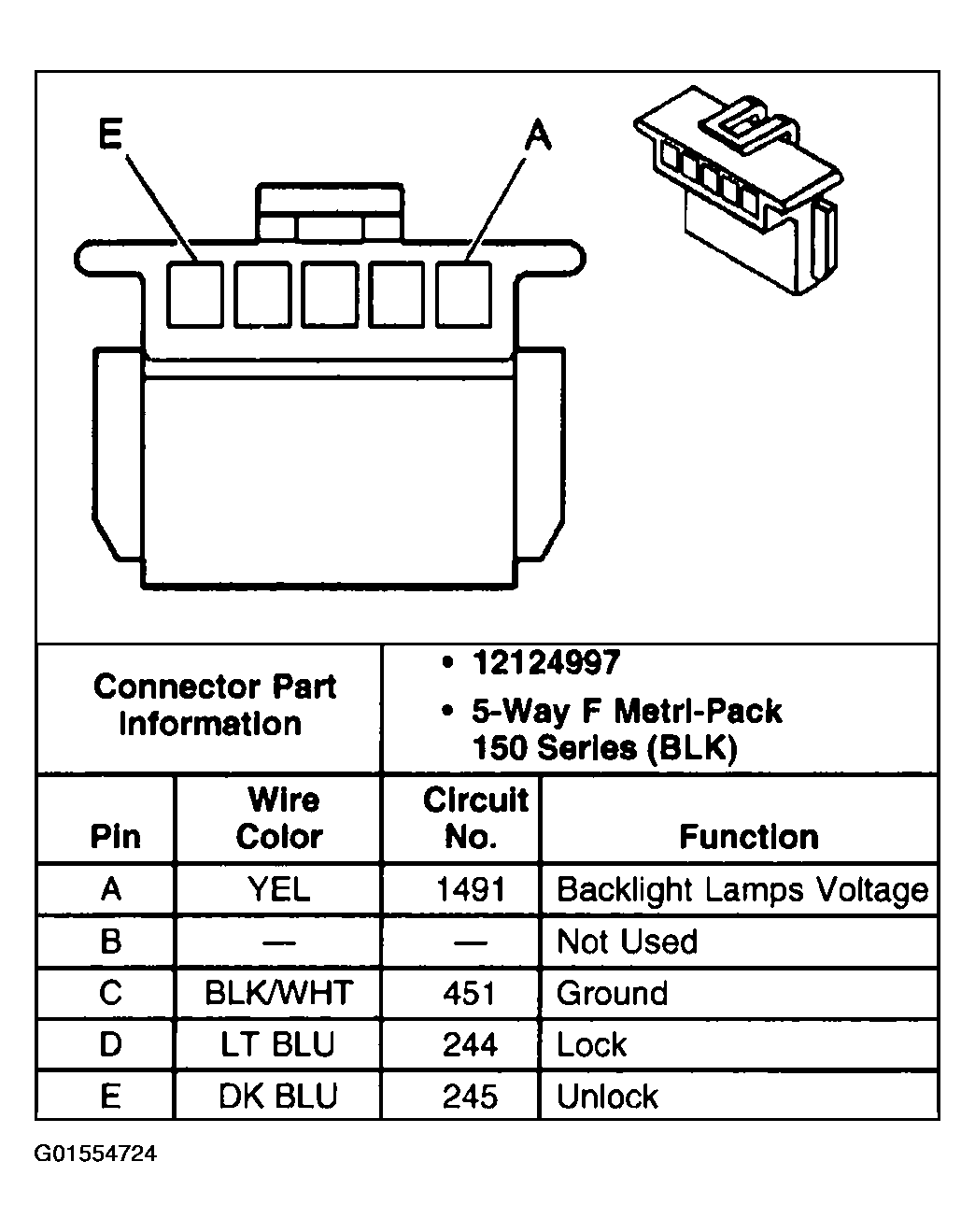

Fig 26: Power Door Systems Connector End View (Door Lock Switch - Front Passenger)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Power Door Systems Connector C1 End View (Door Lock Actuator - RR)
Courtesy of GENERAL MOTORS CORP.

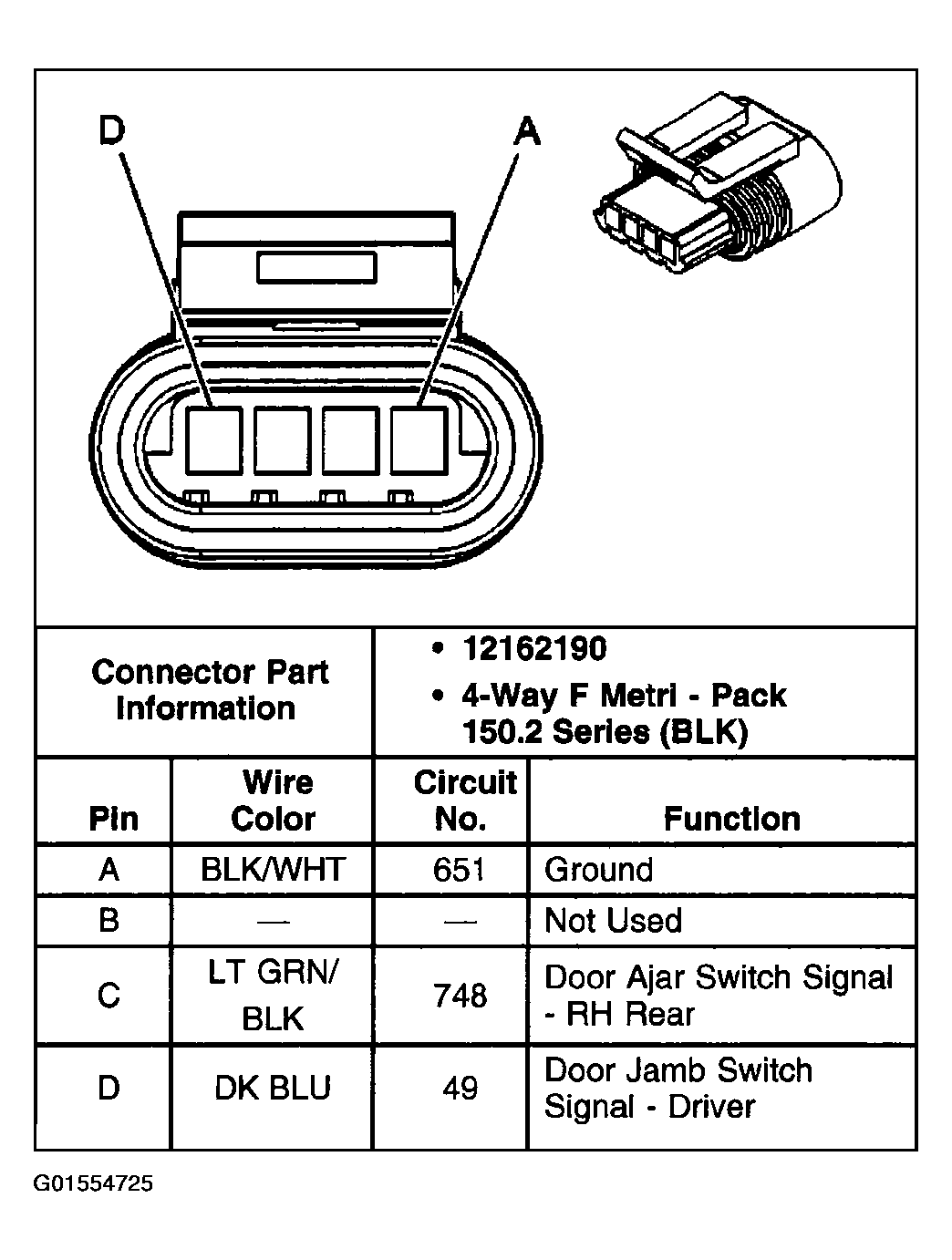

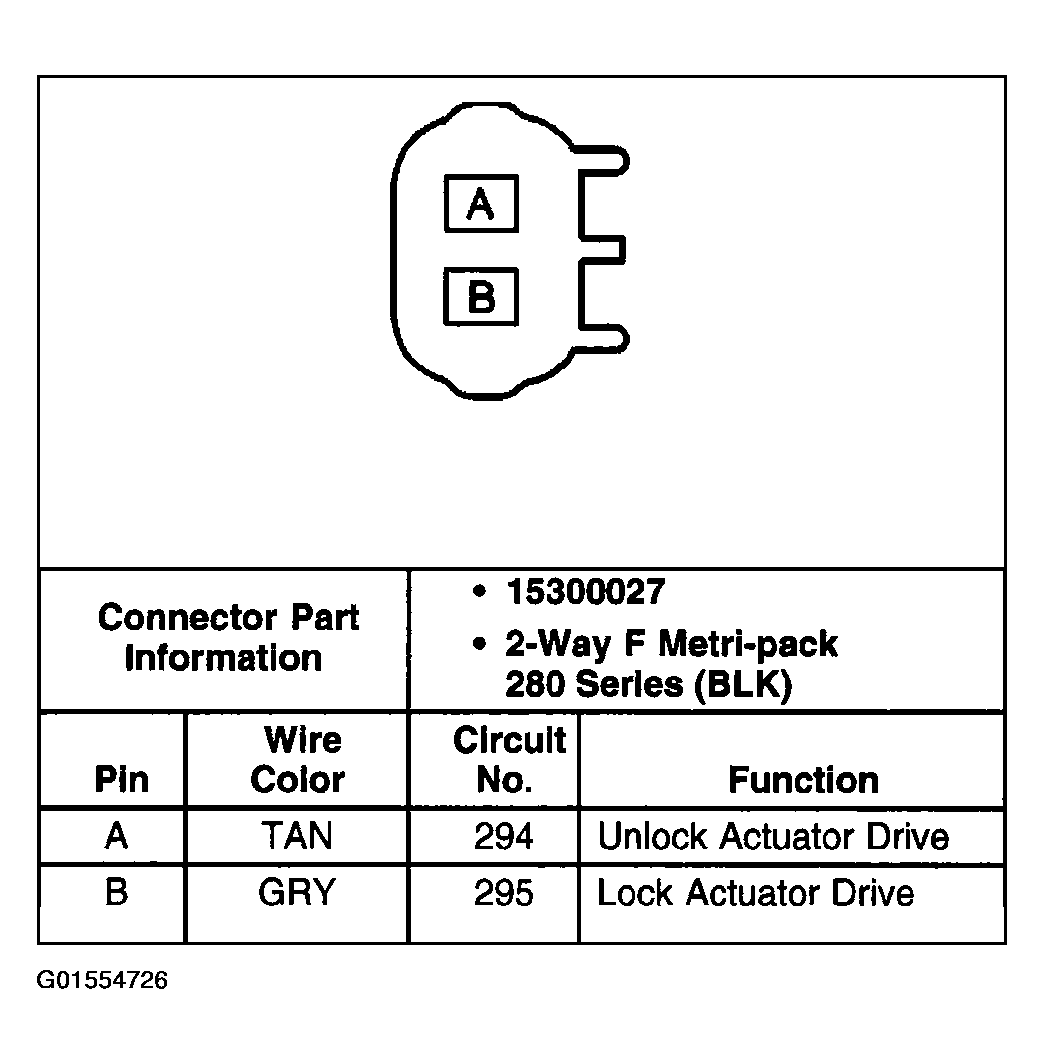

Fig 28: Power Door Systems Connector C2 End View (Door Lock Actuator - RR)
Courtesy of GENERAL MOTORS CORP.

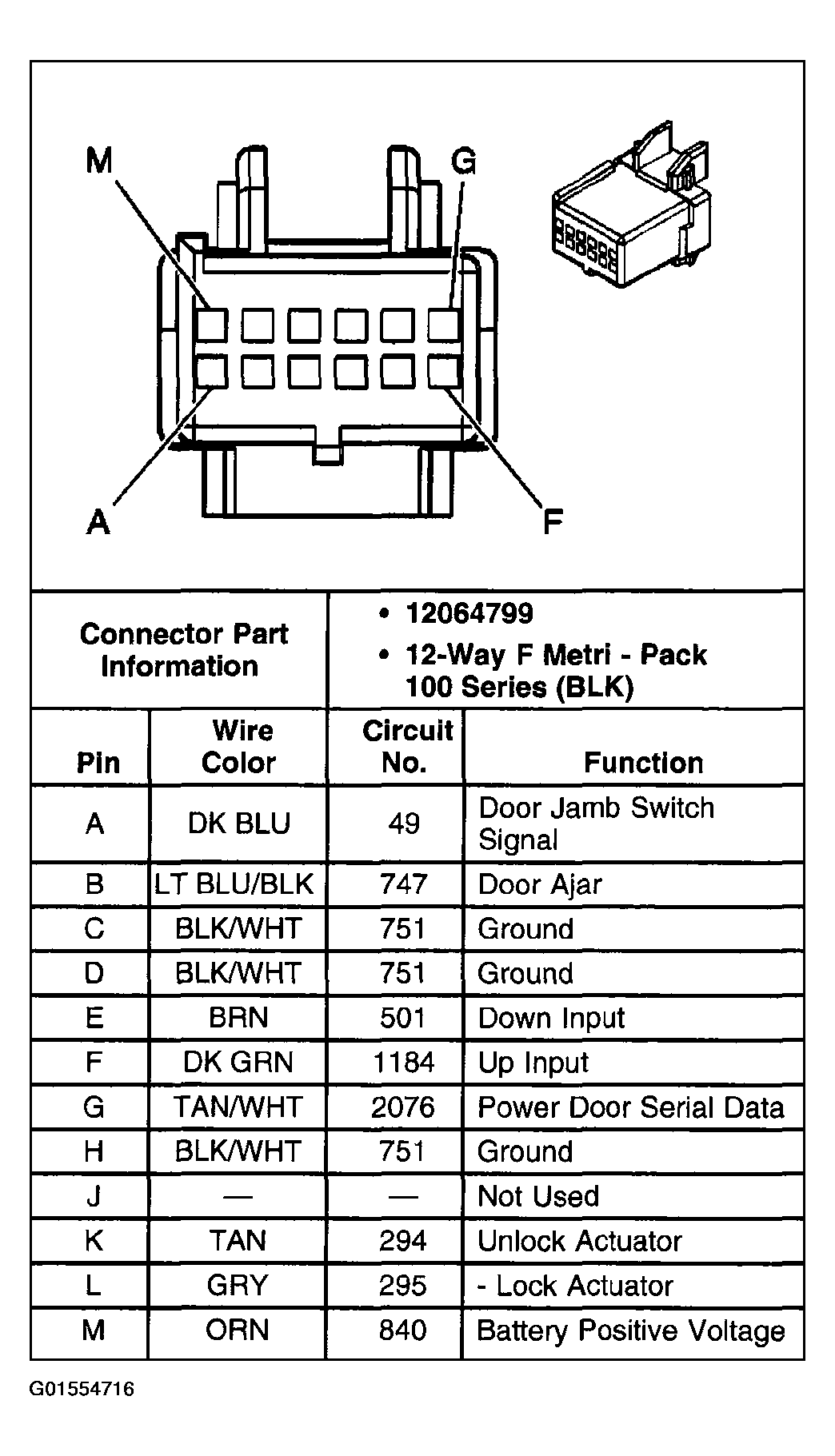

Fig 29: Power Door Systems Connector C1 End View (Right Rear Door Module - RRDM)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Power Door Systems Connector C2 End View (Right Rear Door Module - RRDM)
Courtesy of GENERAL MOTORS CORP.

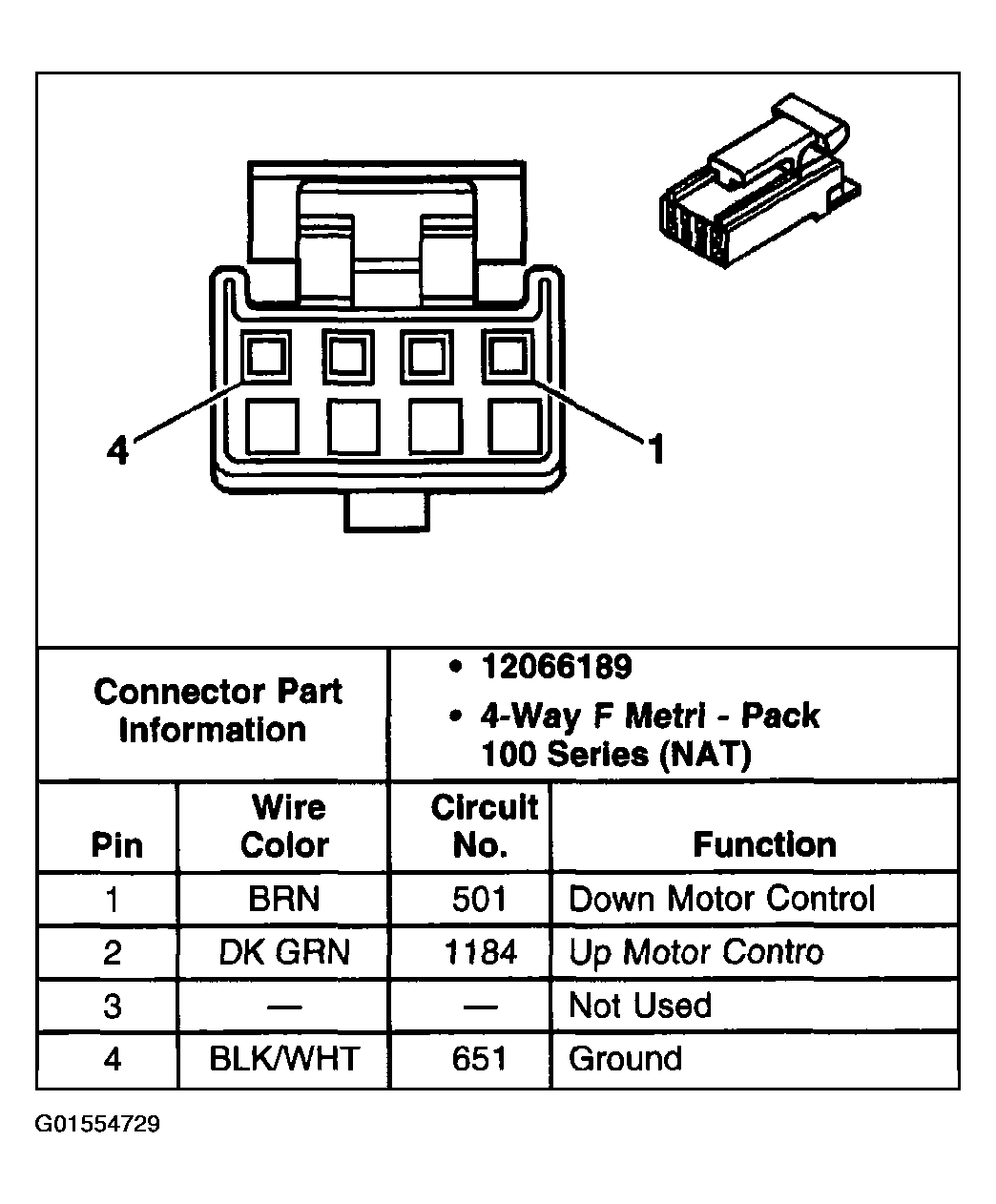

Fig 31: Power Door Systems Connector End View (Window Switch - RR)
Courtesy of GENERAL MOTORS CORP.

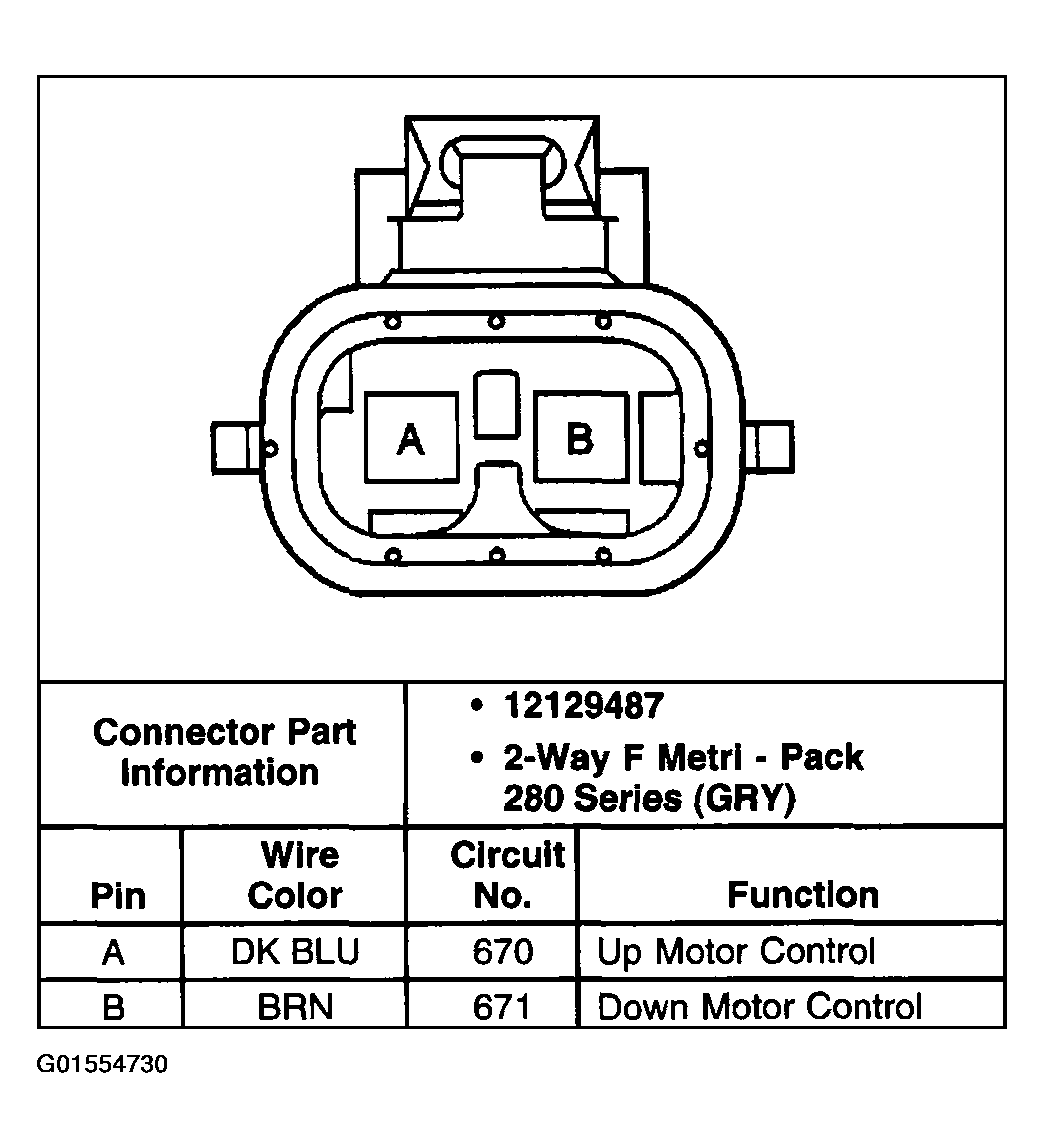

Fig 32: Power Door Systems Connector End View (Window Motor - RR)
Courtesy of GENERAL MOTORS CORP.
