Seat Belt Connector End Views

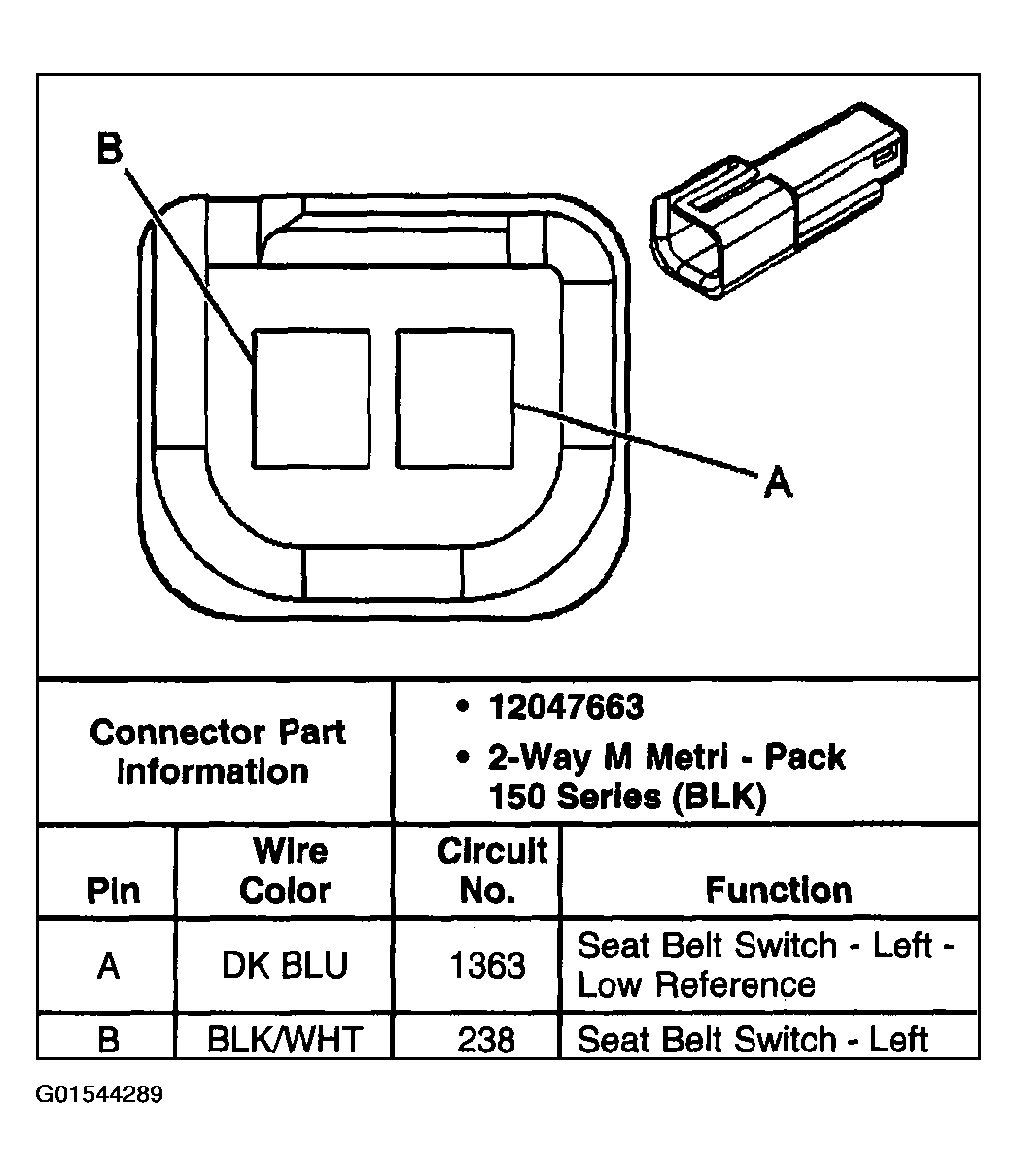

Fig 1: Identifying Seat Belt Connector End Views - Seat Belt Switch (LF)
G01544289Courtesy of GENERAL MOTORS CORP.
