Power Roof Systems Connector End View C1 - Sunroof Module

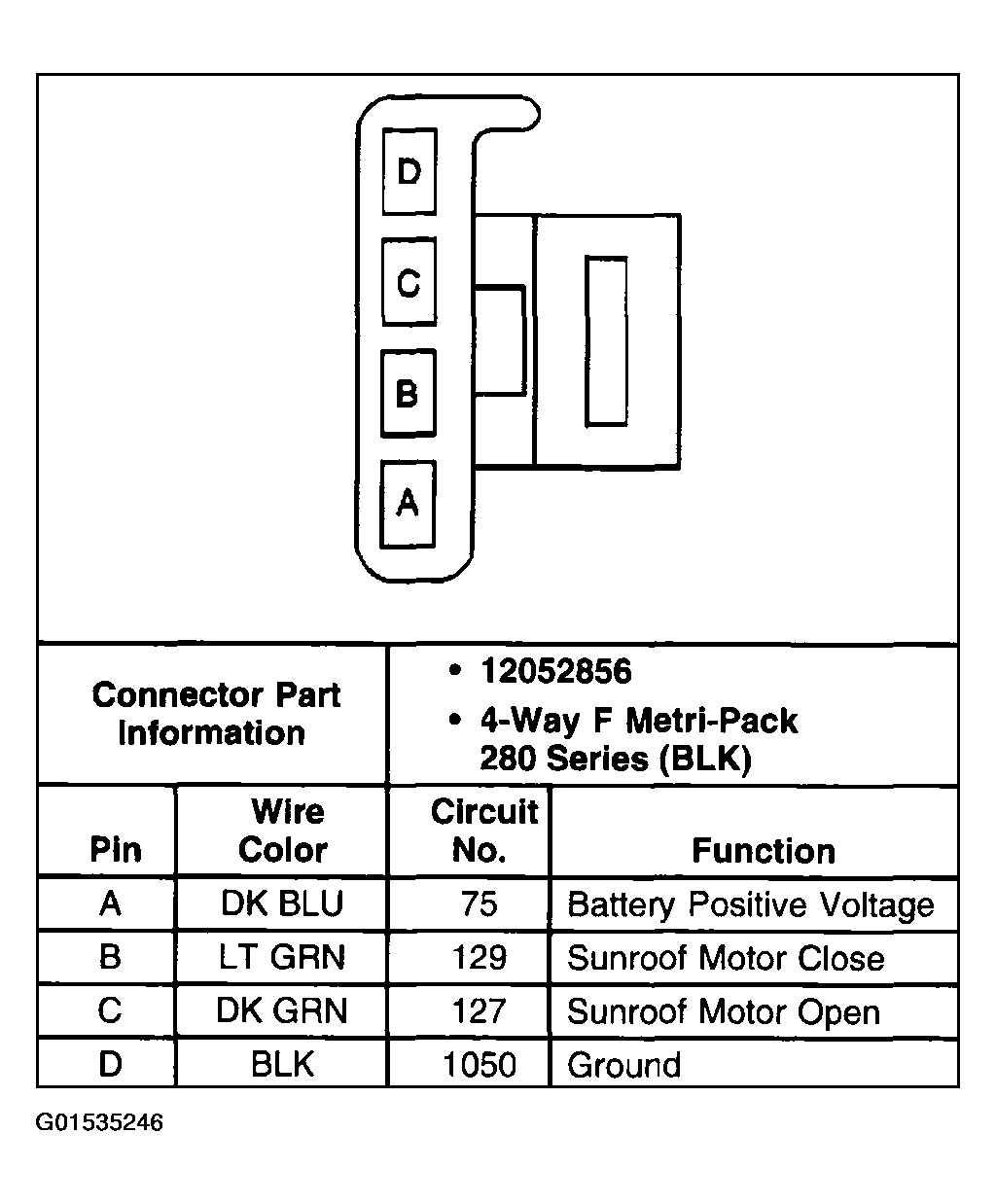

Fig 1: Power Roof Systems C1 - Sunroof Module
G01535246Courtesy of GENERAL MOTORS CORP.
