Instrument Panel Integration Module (IPM) Connector End View C1

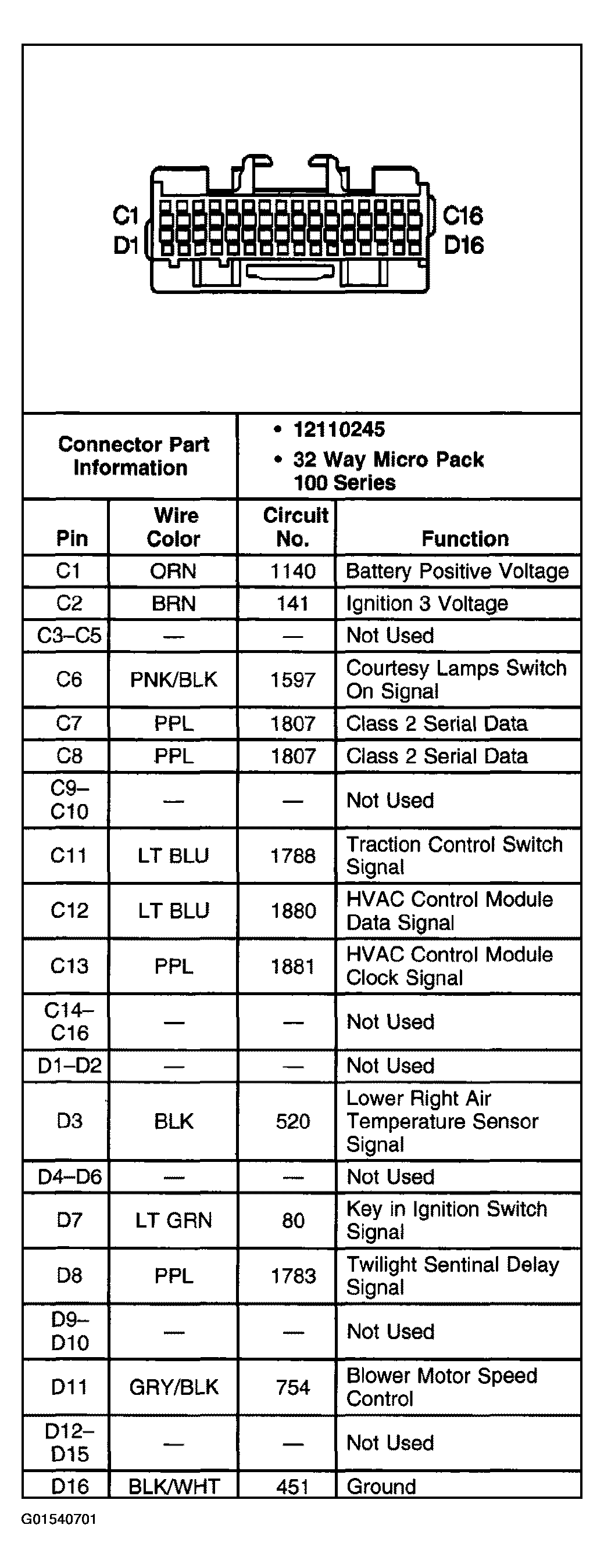

Fig 1: Instrument Panel Integration Module (IPM) C1
G01540701Courtesy of GENERAL MOTORS CORP.
