Blower Motor Control Processor Connector End View

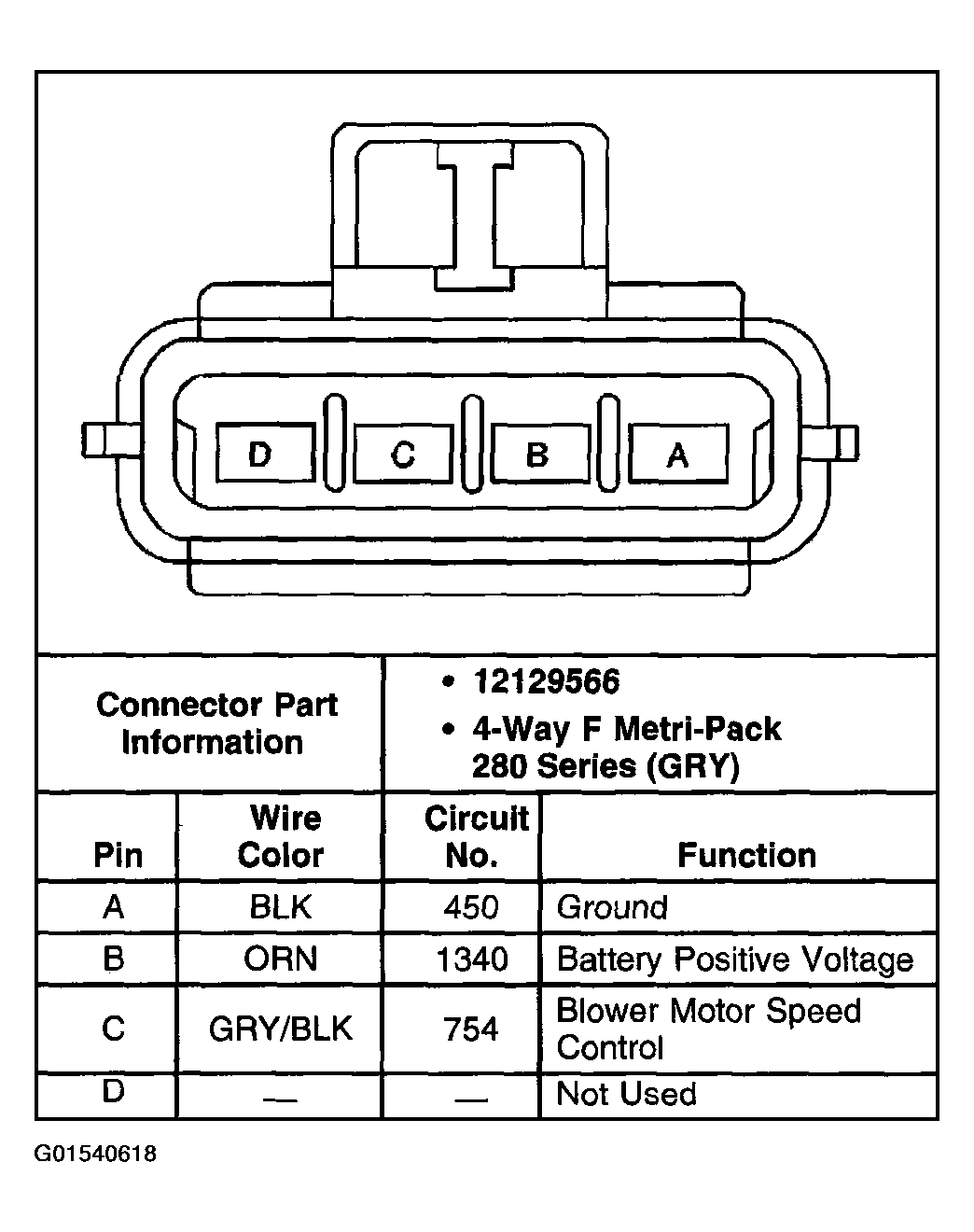

Fig 1: Blower Motor Control Processor
G01540618Courtesy of GENERAL MOTORS CORP.

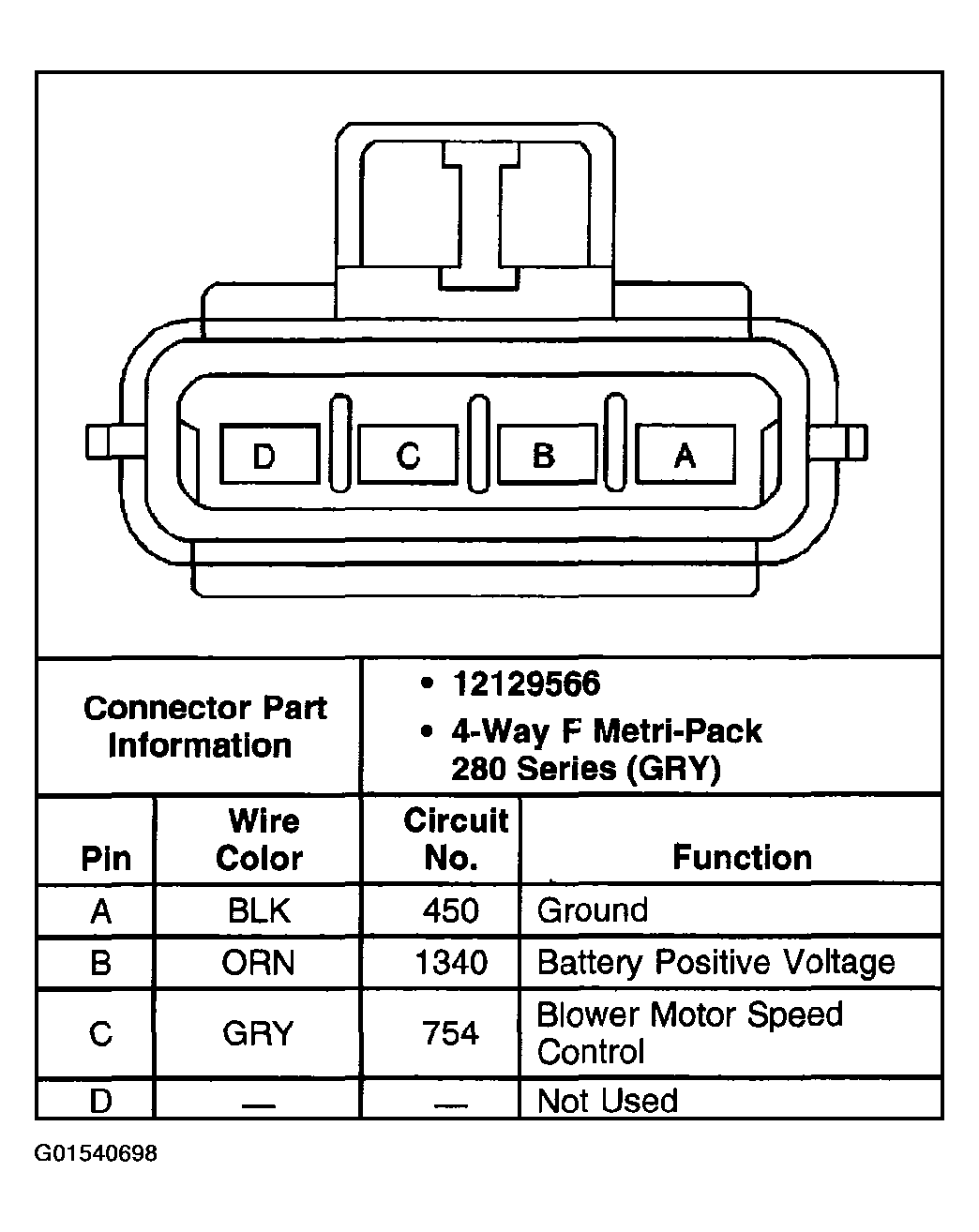

Fig 1: Blower Motor Control Processor
G01540698Courtesy of GENERAL MOTORS CORP.
