Door Control Module Schematics

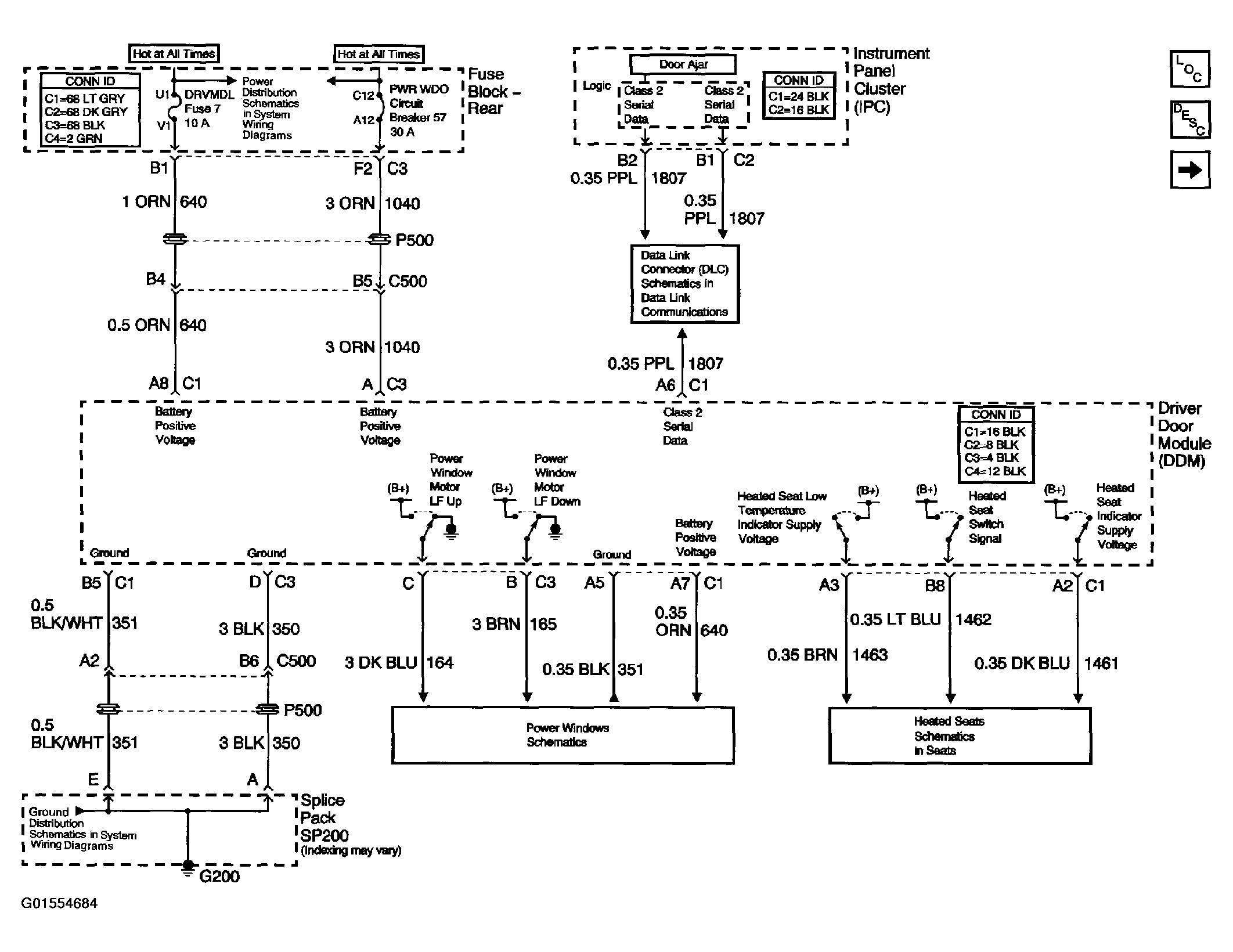

Fig 1: Door Control Module Schematic (Driver Door Module (DDM) Power & Ground)

Courtesy of GENERAL MOTORS CORP.

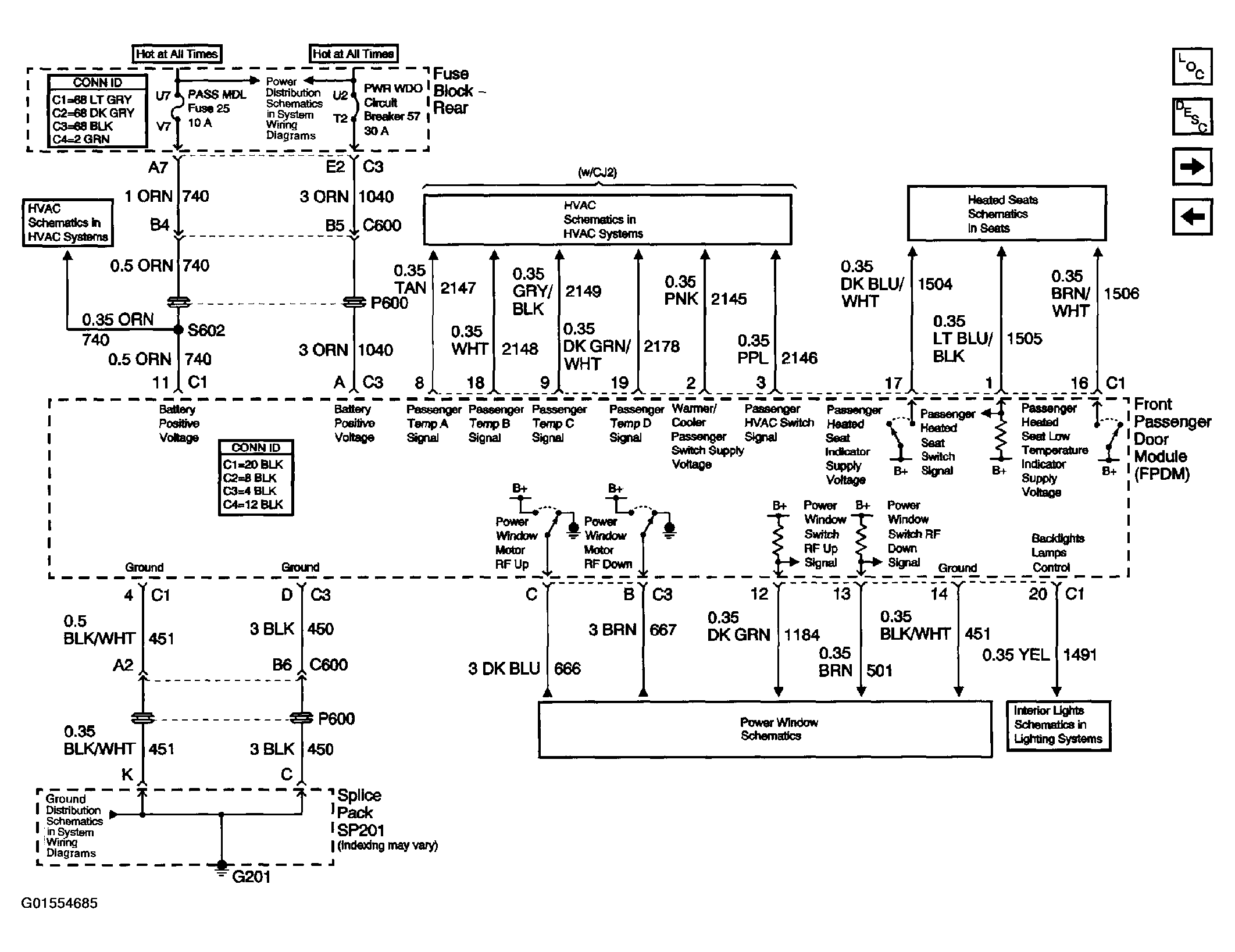

Fig 2: Door Control Module Schematic (Front Passenger Door Module (FPDM) Power & Ground)

Courtesy of GENERAL MOTORS CORP.

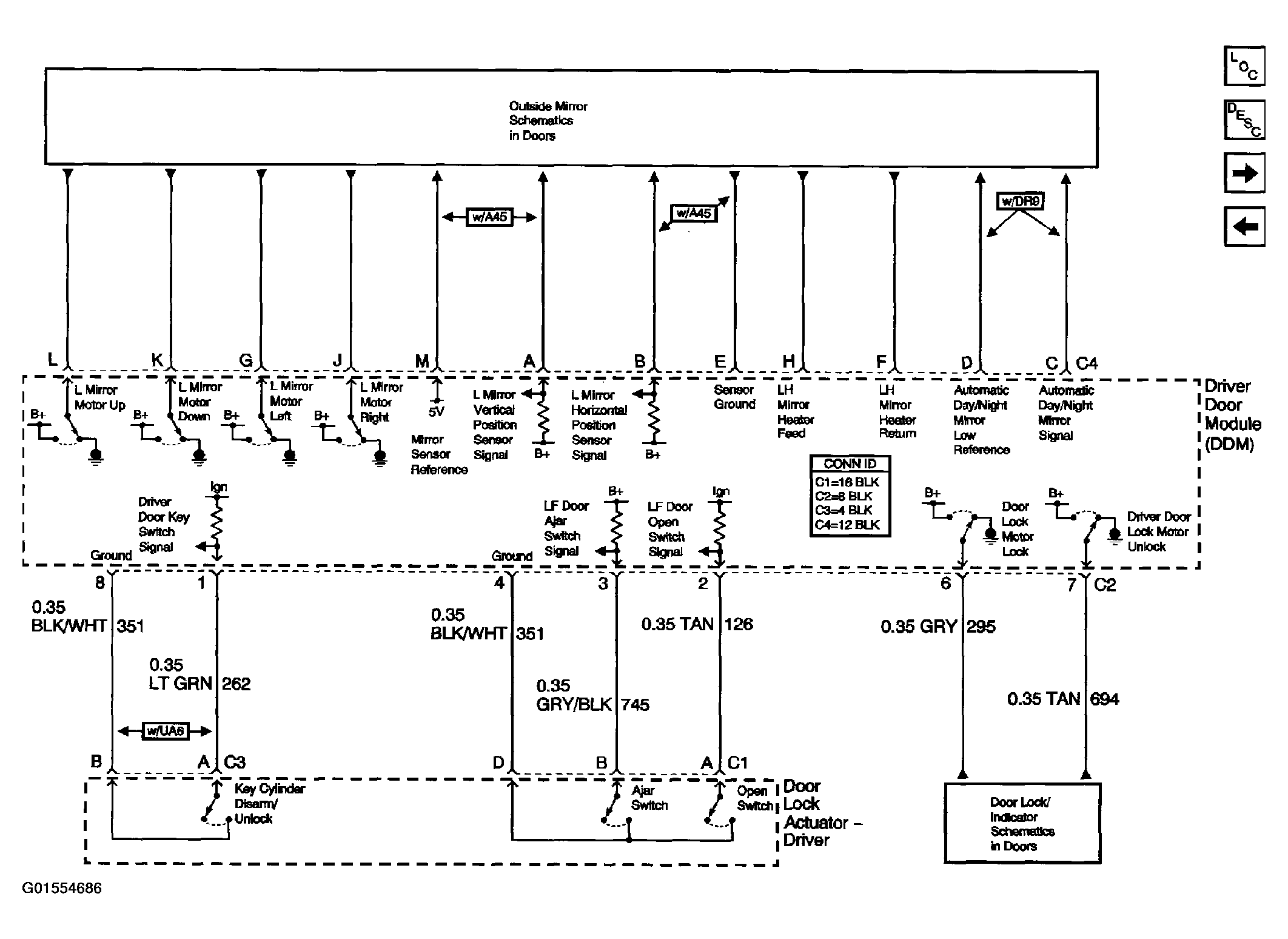

Fig 3: Door Control Module Schematic (Driver Door Module DDM Inputs/Outputs)

Courtesy of GENERAL MOTORS CORP.

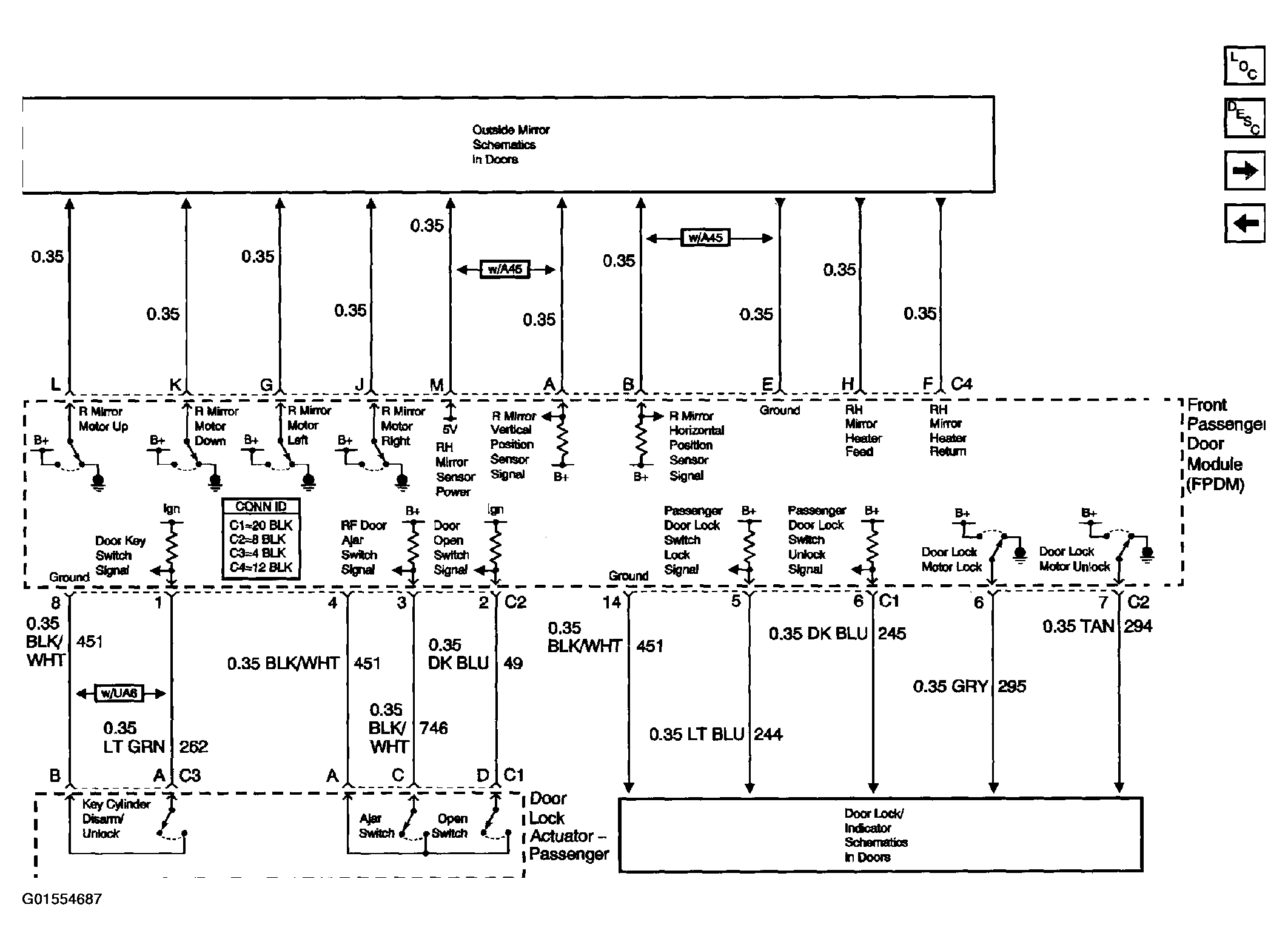

Fig 4: Door Control Module Schematic (Front Passenger Door Module FPDM Inputs/Outputs)

Courtesy of GENERAL MOTORS CORP.

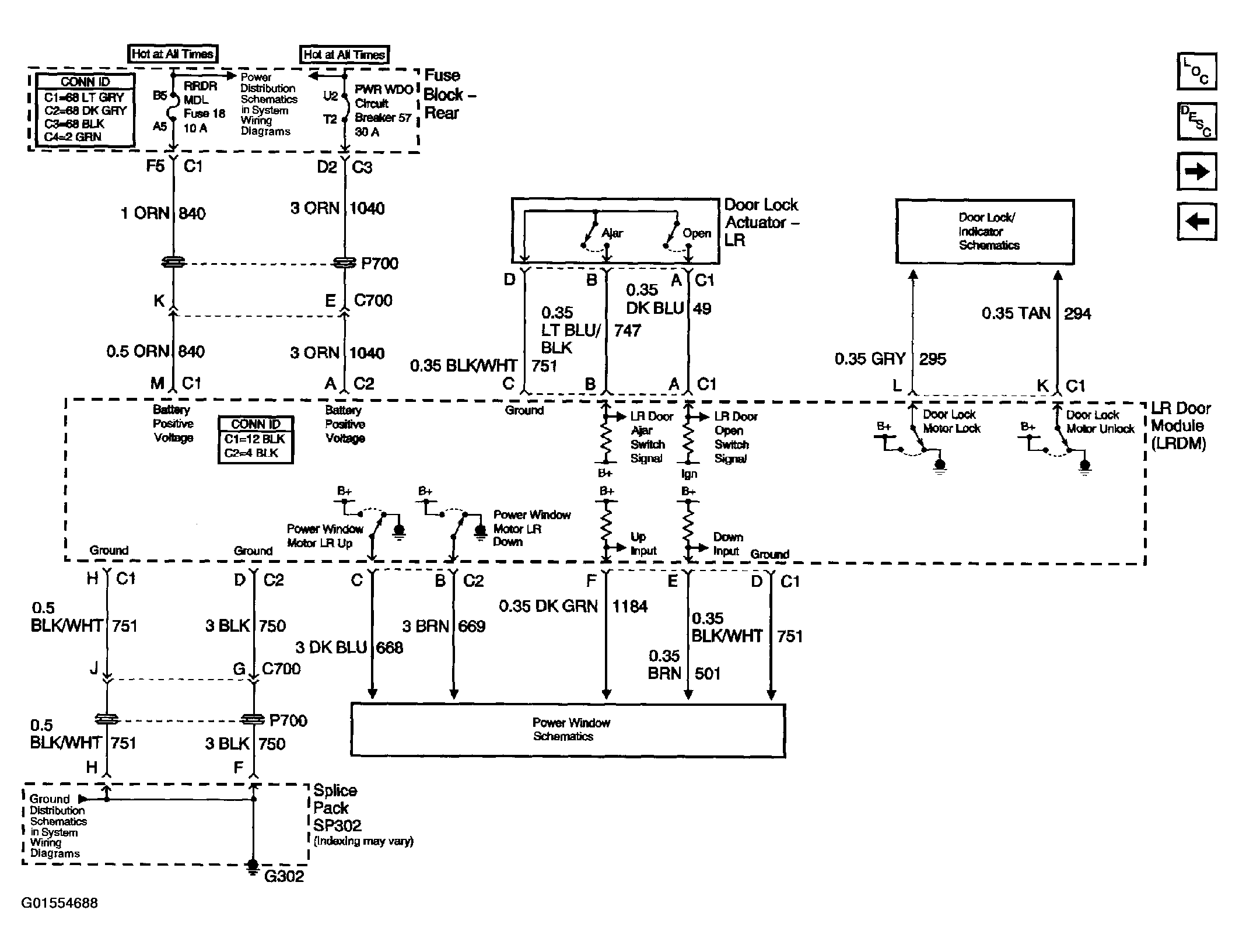

Fig 5: Door Control Module Schematic (Left Rear Door Module LRDM)

Courtesy of GENERAL MOTORS CORP.

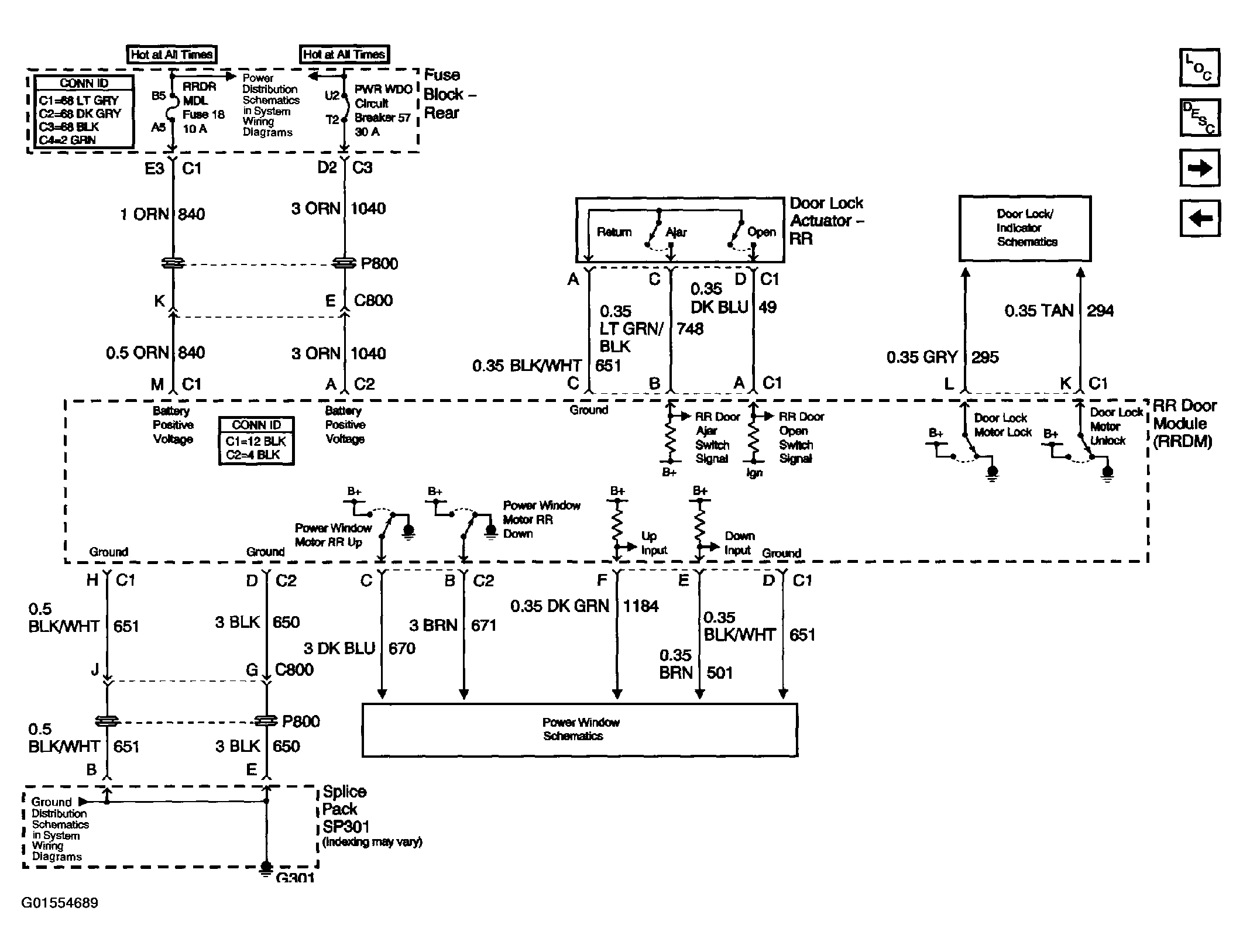

Fig 6: Door Control Module Schematic (Right Rear Door Module RRDM)

Courtesy of GENERAL MOTORS CORP.

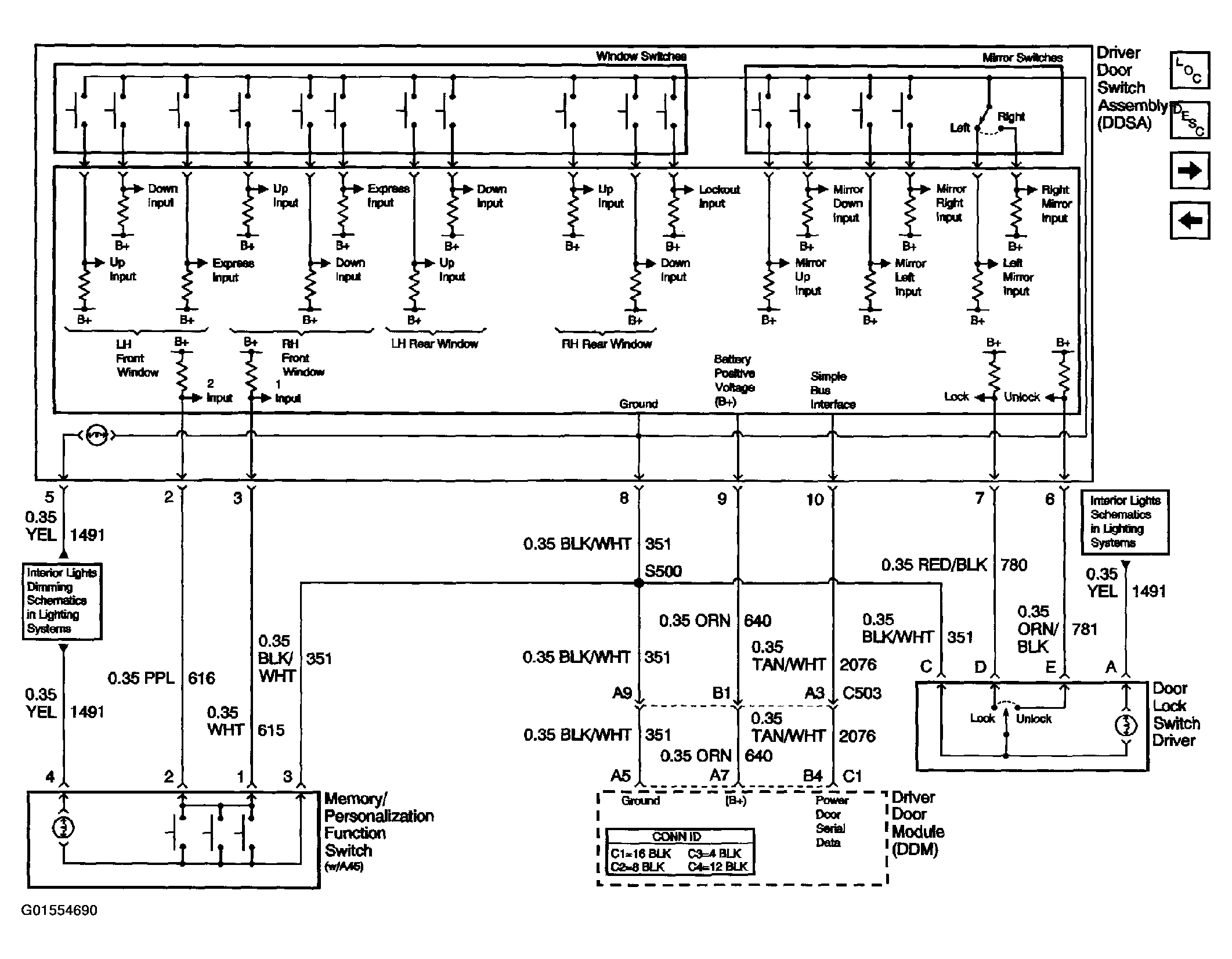

Fig 7: Door Control Module Schematic (Driver Door Switch Assembly DDSA)

Courtesy of GENERAL MOTORS CORP.

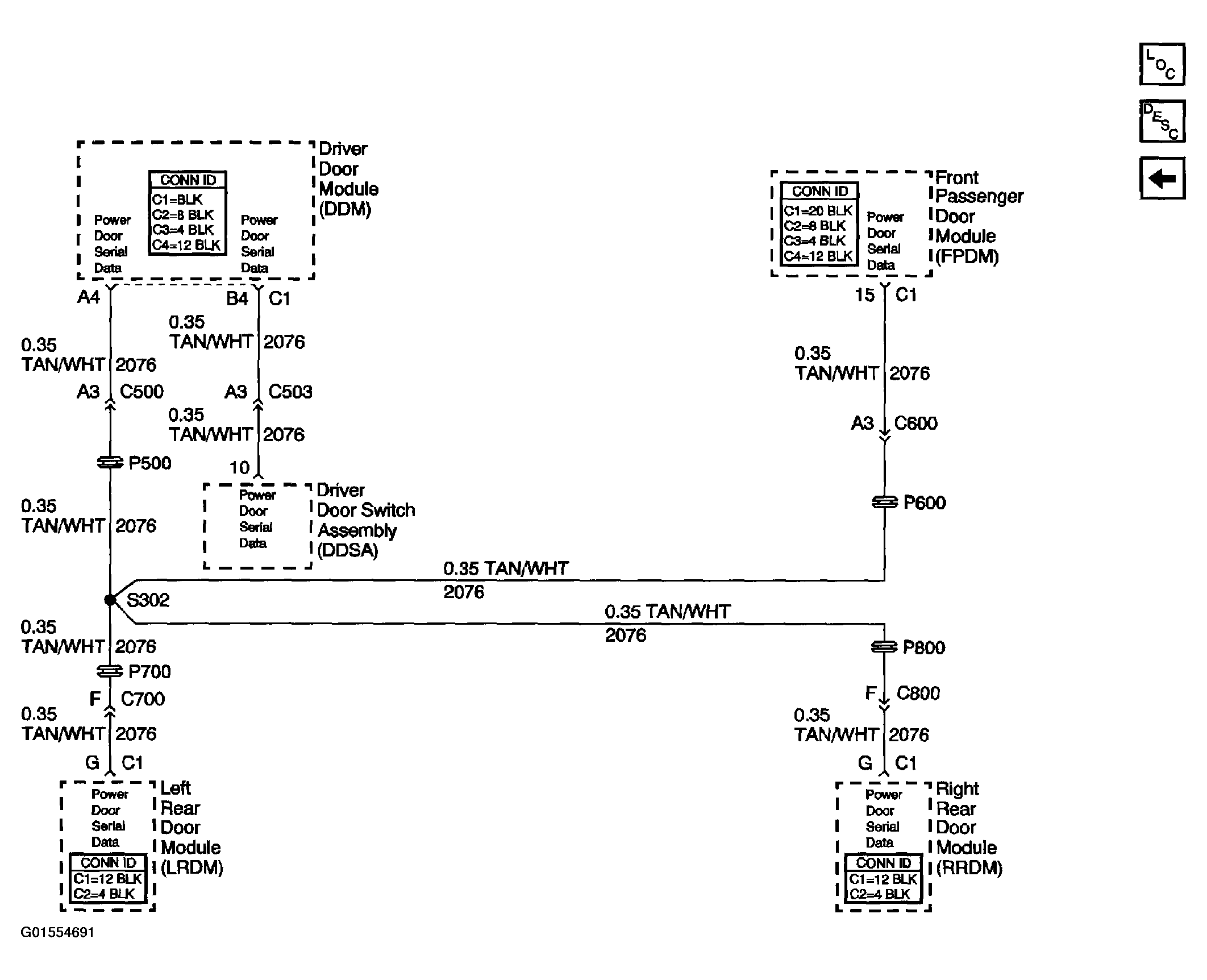

Fig 8: Door Control Module Schematic (Power Door Serial Data)

Courtesy of GENERAL MOTORS CORP.
