Removal Procedure

  1. Remove the inside door handle bezel. Refer to HANDLE BEZEL REPLACEMENT - INSIDE  .
  2. Disconnect the electrical connector.
  3. Remove the power door lock switch by releasing the lock tabs on the door handle bezel with a small flat bladed tool.

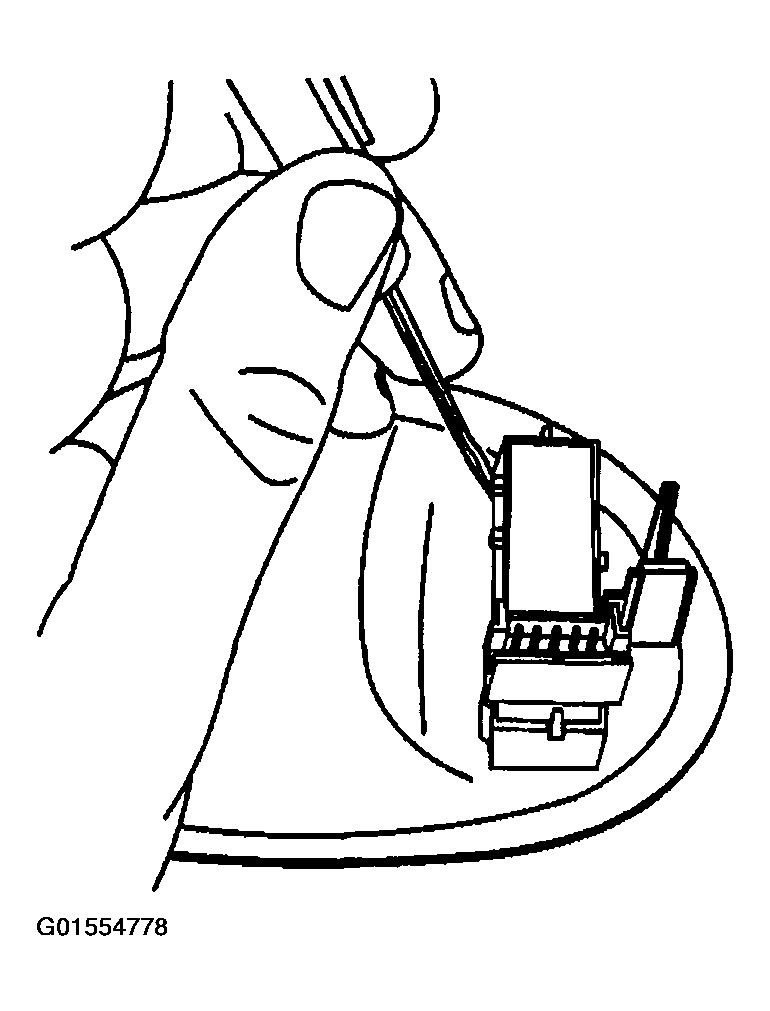

    Fig 1: Removing Power Door Lock Switch
    G01554778Courtesy of GENERAL MOTORS CORP.
