Installation Procedure

  1. Install the cruise control cable ball stud (1) into the slot in the cruise control module actuator strip (2).
  2. Insert the cruise control cable housing into the cruise control module and twist clockwise to secure.

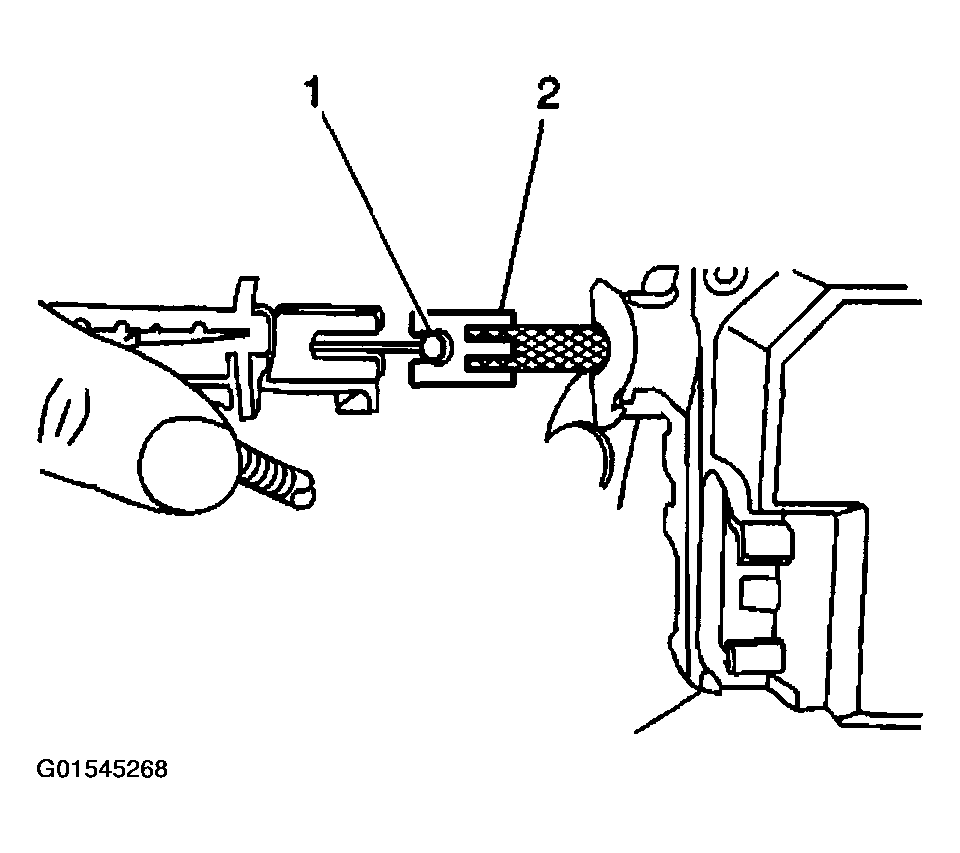

    Fig 1: Installing Cruise Control Cable Ball Stud Into Slot In Cruise Control Module Actuator Strip
    G01545268Courtesy of GENERAL MOTORS CORP.

    Important:  The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION AND OPERATION  for the complete operational details.

  3. Connect the cruise control cable to the throttle body injection cam (4).
  4. Snap the cable bracket into the throttle body bracket.
  5. Install the cable into the retainers (2).

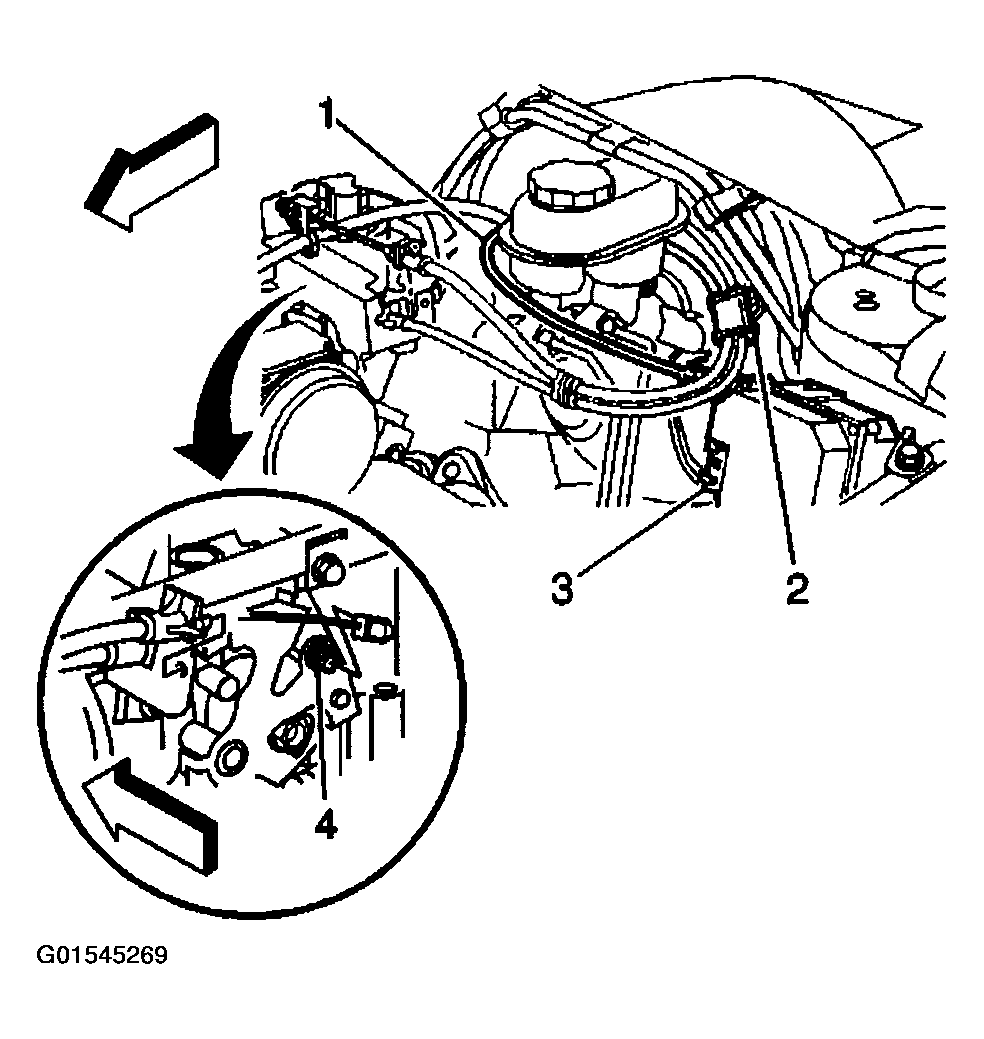

    Fig 2: Connecting Cruise Control Cable To Throttle Body Injection Cam
    G01545269Courtesy of GENERAL MOTORS CORP.
