Power Seat Systems Connector End View - Memory/Personalization Function Switch

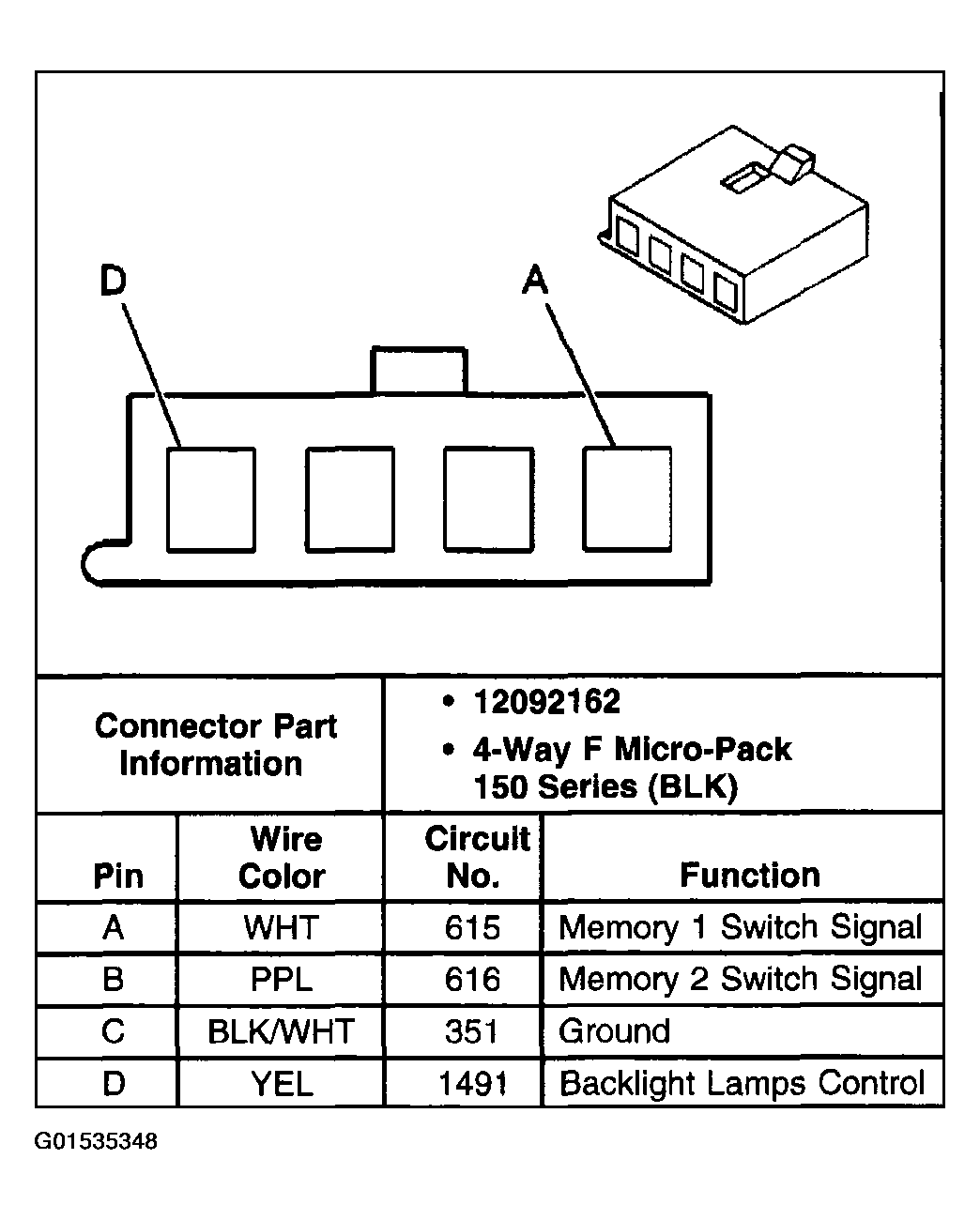

Fig 1: Power Seat Systems - Memory/Personalization Function Switch
G01535348Courtesy of GENERAL MOTORS CORP.
