Front Toe Adjustment

  1. Loosen the lock nuts on the tie rod.
    NOTE: Refer to FASTENER NOTICE .
    NOTE: Care must be taken that the boots are not twisted when rotating the inner tie rods, or damage to the boots may result.
  2. Rotate the inner tie rod to adjust the toe. Refer to WHEEL ALIGNMENT SPECIFICATIONS  .

    Tighten

    Tighten the lock nuts to 64 N.m (47 lb ft).

  3. Adjust the boots as needed in order to prevent damage.

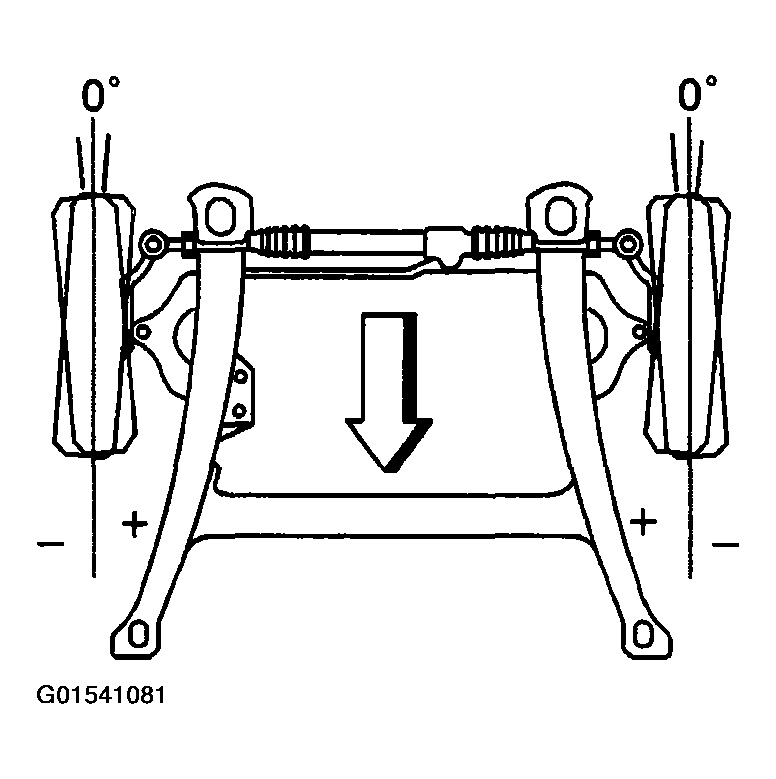

    Fig 1: Adjusting Front Toe
    G01541081Courtesy of GENERAL MOTORS CORP.
