Door Lock/Indicator Schematics

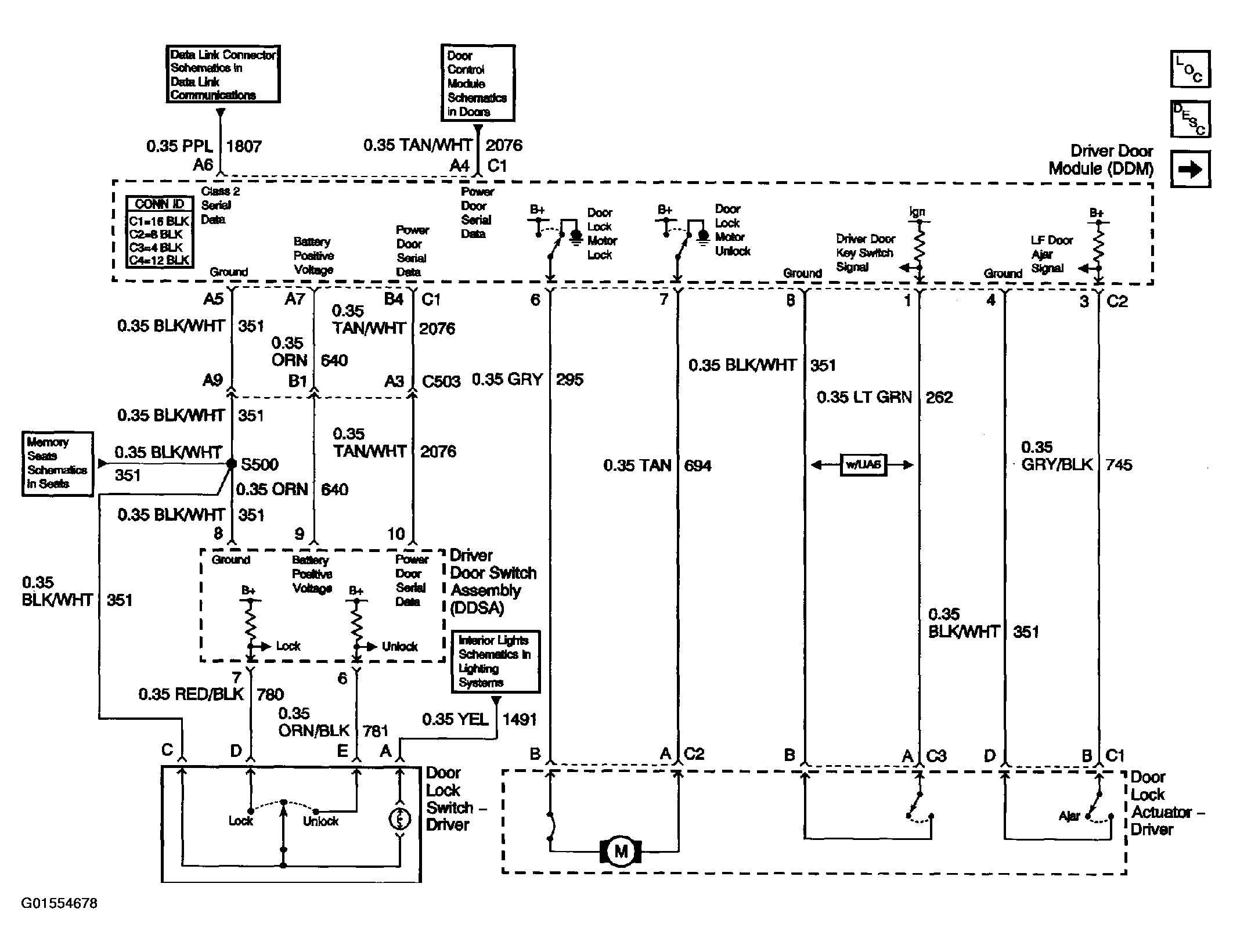

Fig 1: Door Lock/Indicator Schematic (Driver Door)

Courtesy of GENERAL MOTORS CORP.

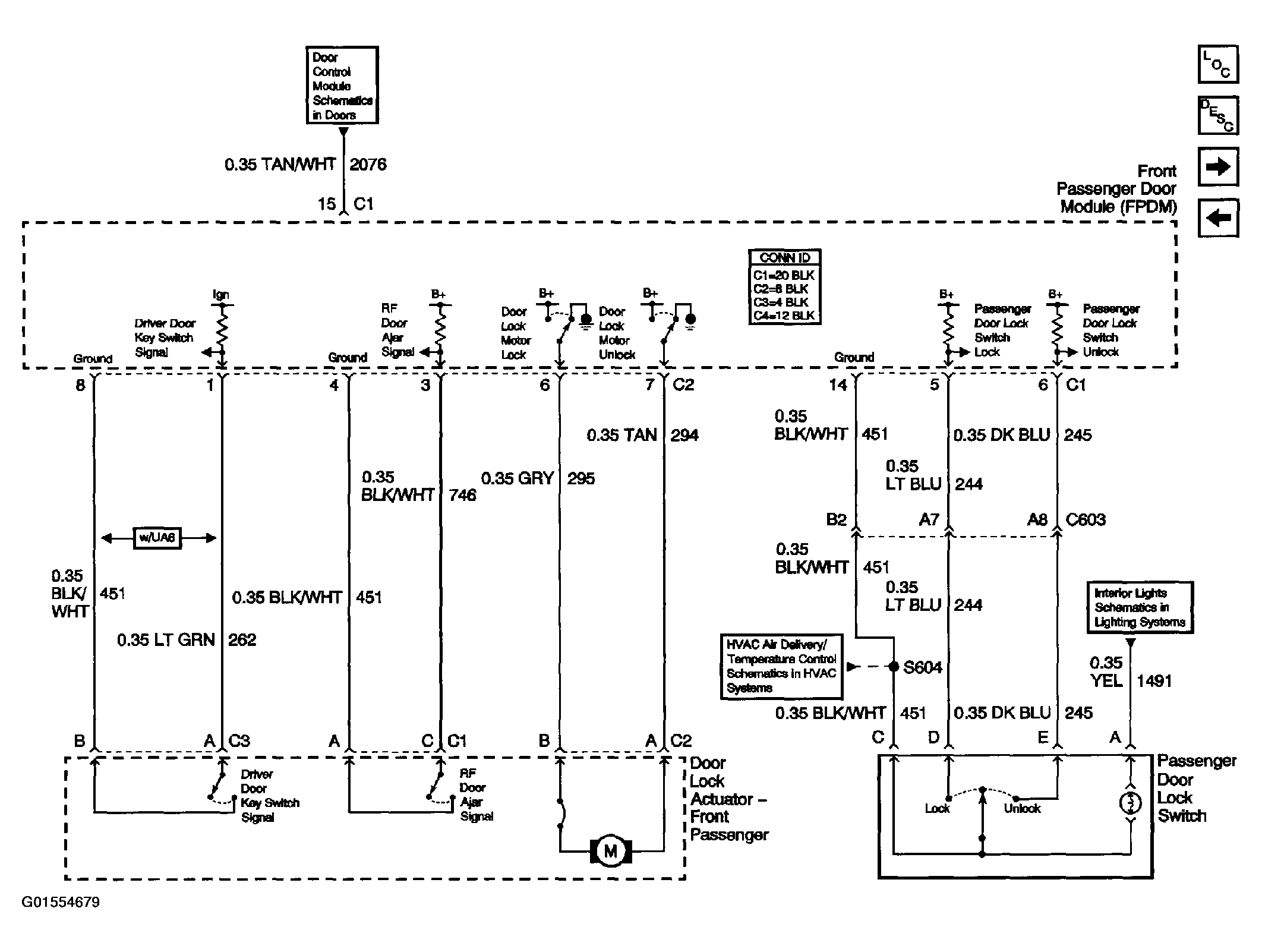

Fig 2: Door Lock/Indicator Schematic (Front Passenger Door)

Courtesy of GENERAL MOTORS CORP.

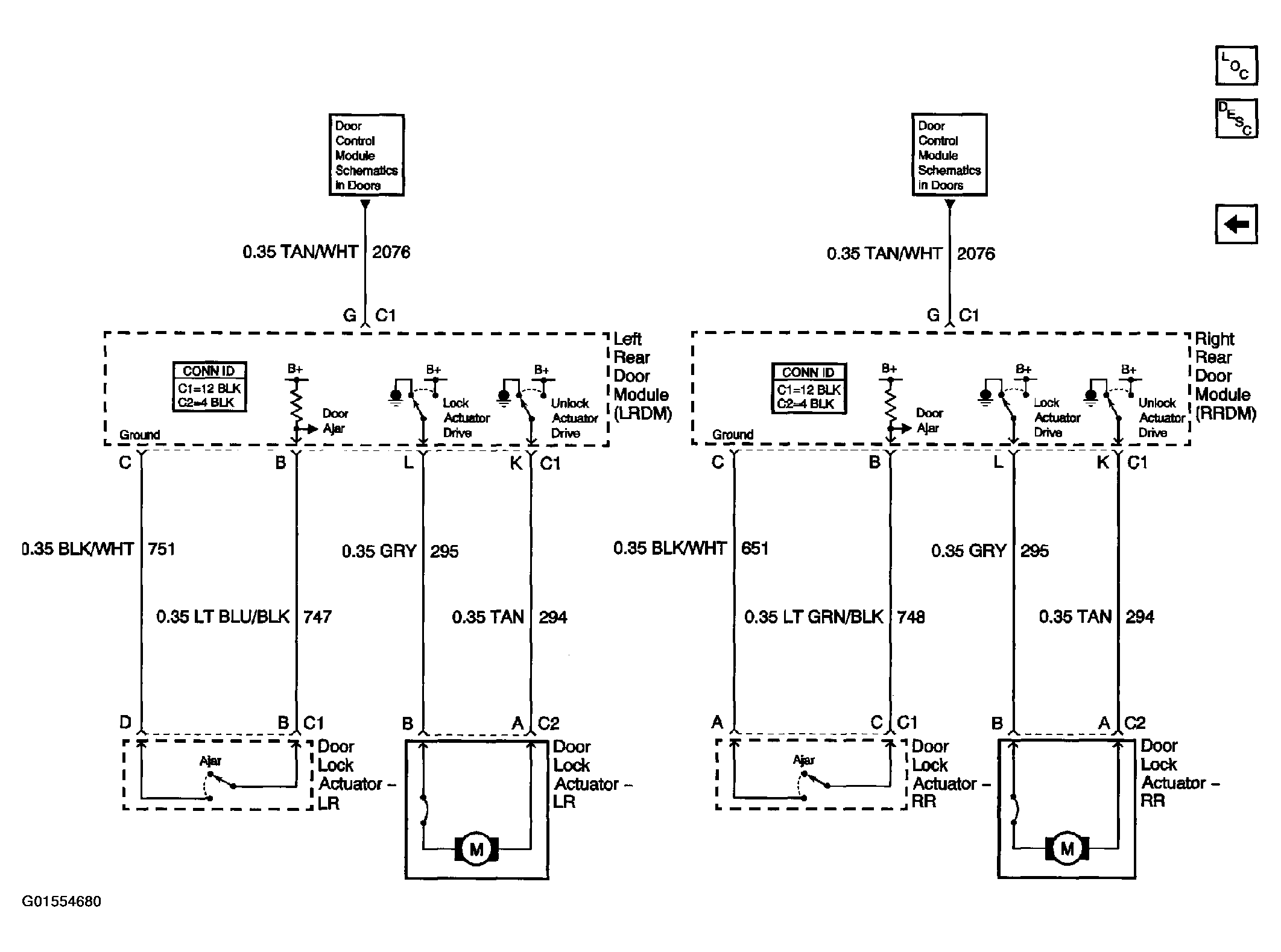

Fig 3: Door Lock/Indicator Schematic (Left Rear Door & Right Rear Door)

Courtesy of GENERAL MOTORS CORP.
