Installation Procedure

  1. Position the front seat in the vehicle.
  2. Install the center seat belt on the AM6 drivers seat. Refer to SEAT BELT REPLACEMENT - CENTER FRONT in Seat Belts.
  3. Connect the electrical connector on the six-way power seat.

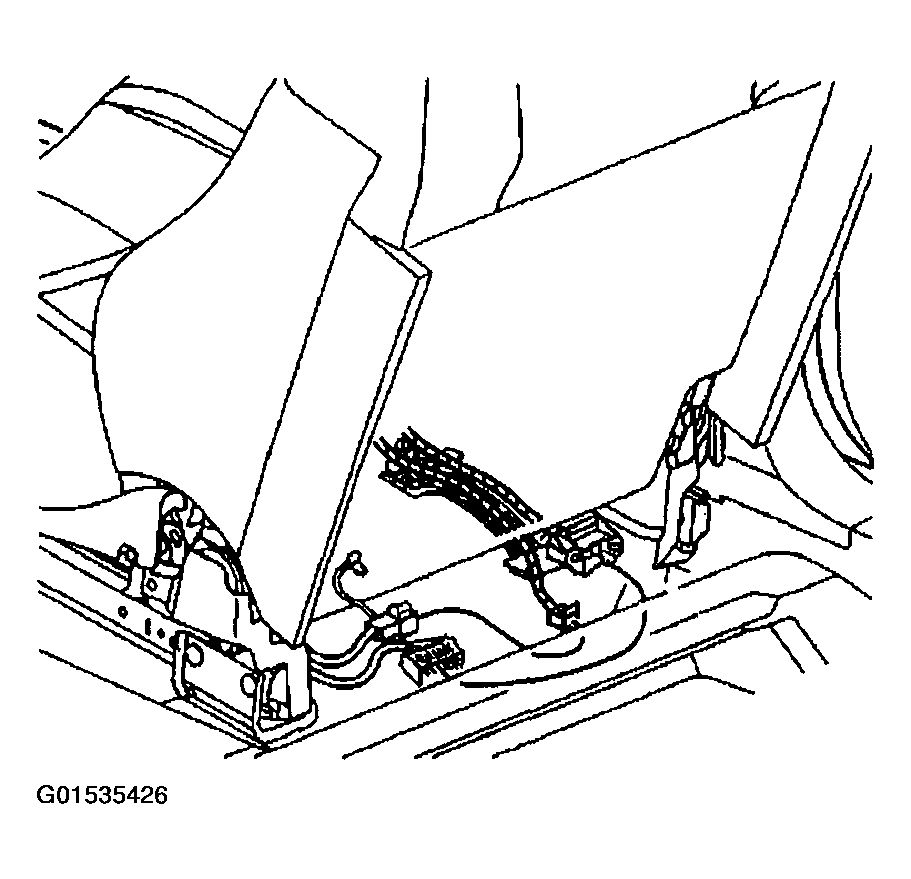

    Fig 1: Connecting Electrical Connector On Six-Way Power Seat
    G01535426Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the rearward front seat fasteners.

    Tighten

    Tighten the fasteners to 30 N.m (22 lb ft).

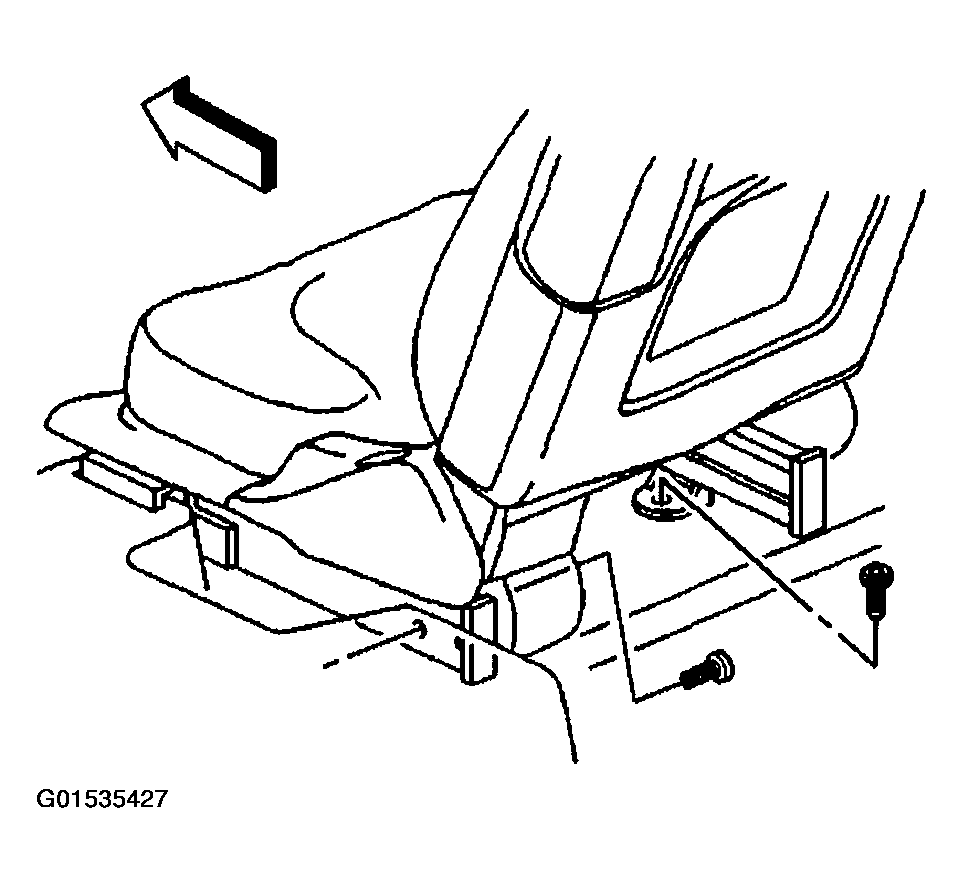

    Fig 2: Installing Rearward Front Seat Fasteners
    G01535427Courtesy of GENERAL MOTORS CORP.
  5. Place the seat to the full rearward position.
  6. Install the forward front seat fasteners.

    Tighten

    Tighten the fasteners to 30 N.m (22 lb ft).

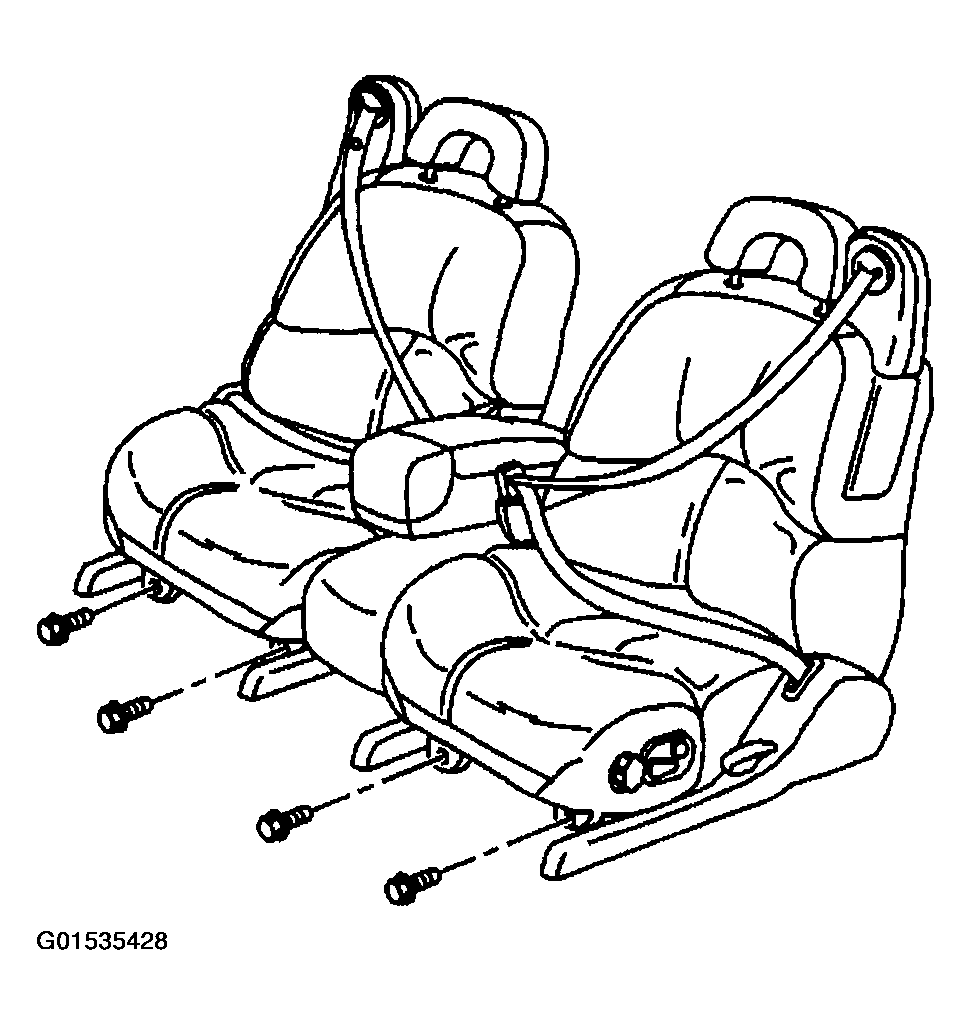

    Fig 3: Installing Forward Front Seat Fasteners
    G01535428Courtesy of GENERAL MOTORS CORP.
  7. Install the front seat fastener trim covers.
  8. Return the front seat to its original position.
  9. Enable the SIR system. Refer to ZONE 7 and to ZONE 9 .

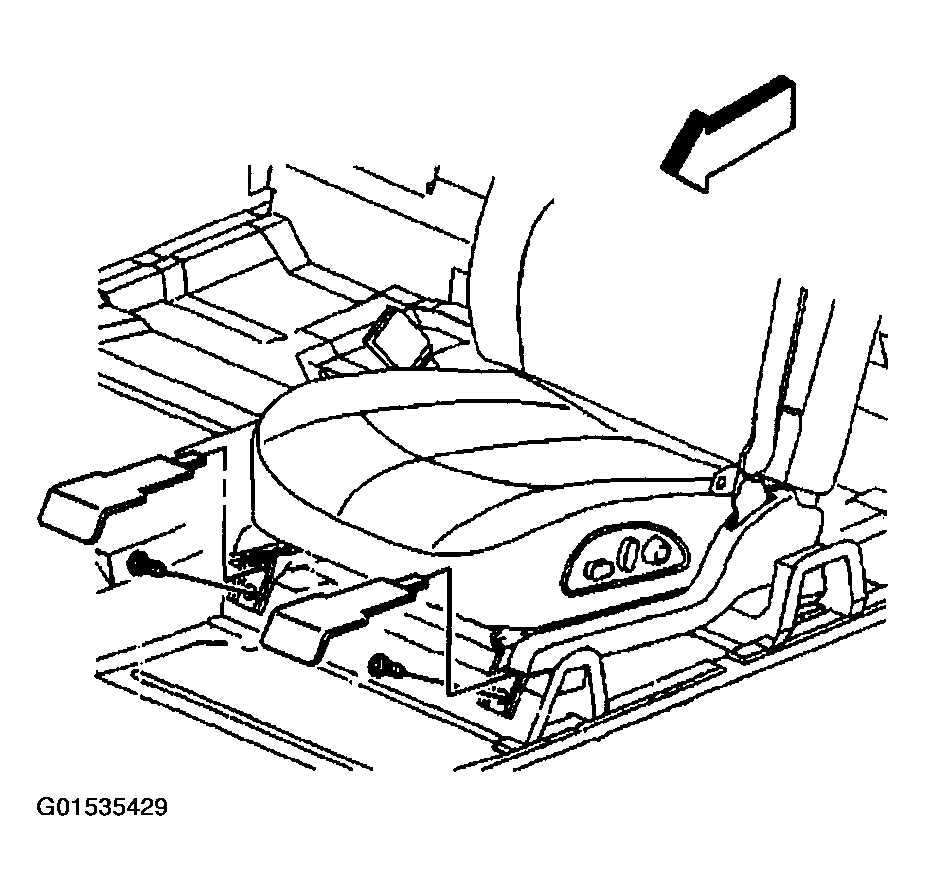

    Fig 4: Installing Front Seat Fastener Trim Covers
    G01535429Courtesy of GENERAL MOTORS CORP.
