Power Seat Systems Connector End Views

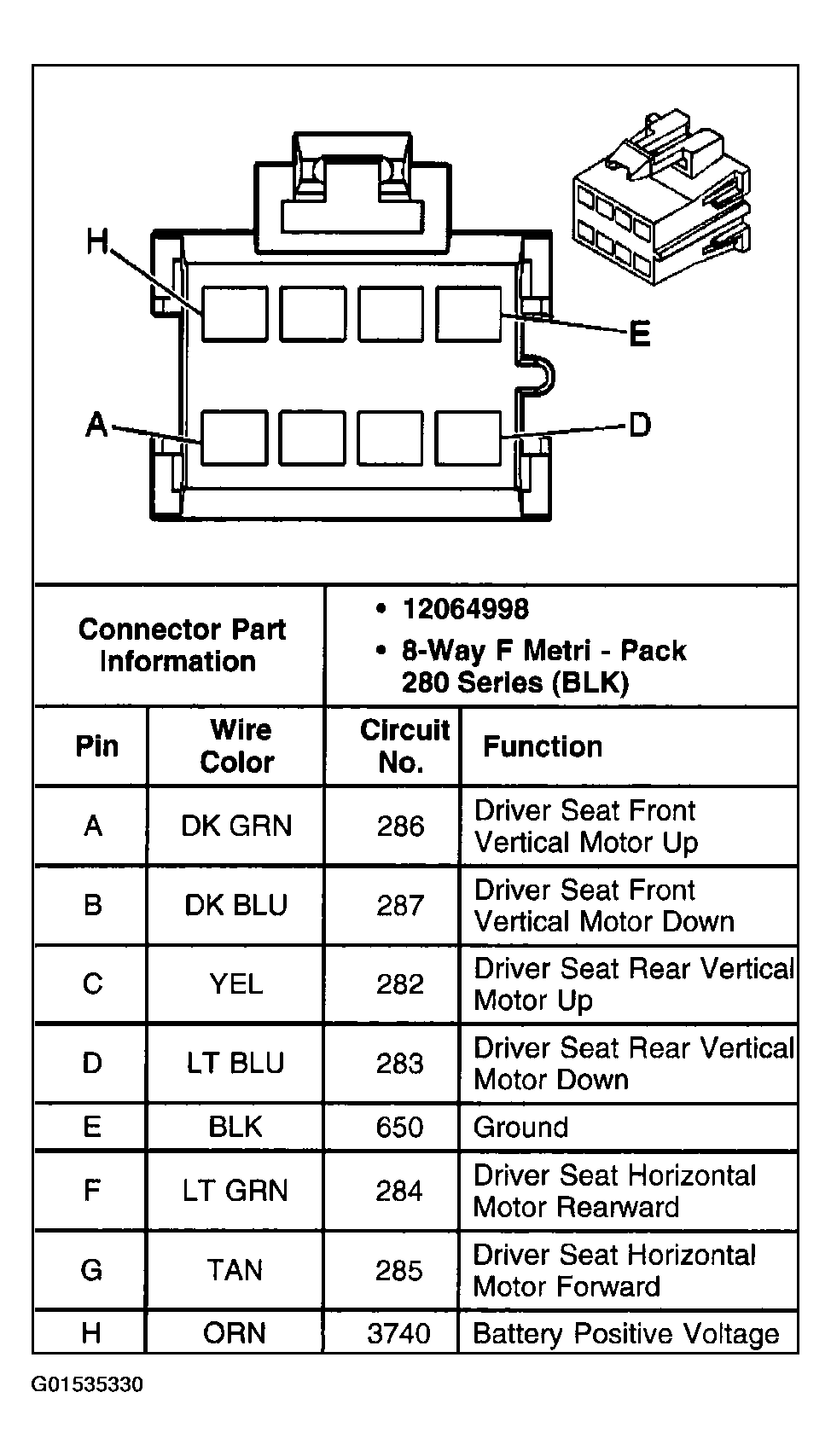

Fig 1: Power Seat Systems Connector End View - Seat Adjuster Switch - Driver (AG1)
G01535330Courtesy of GENERAL MOTORS CORP.

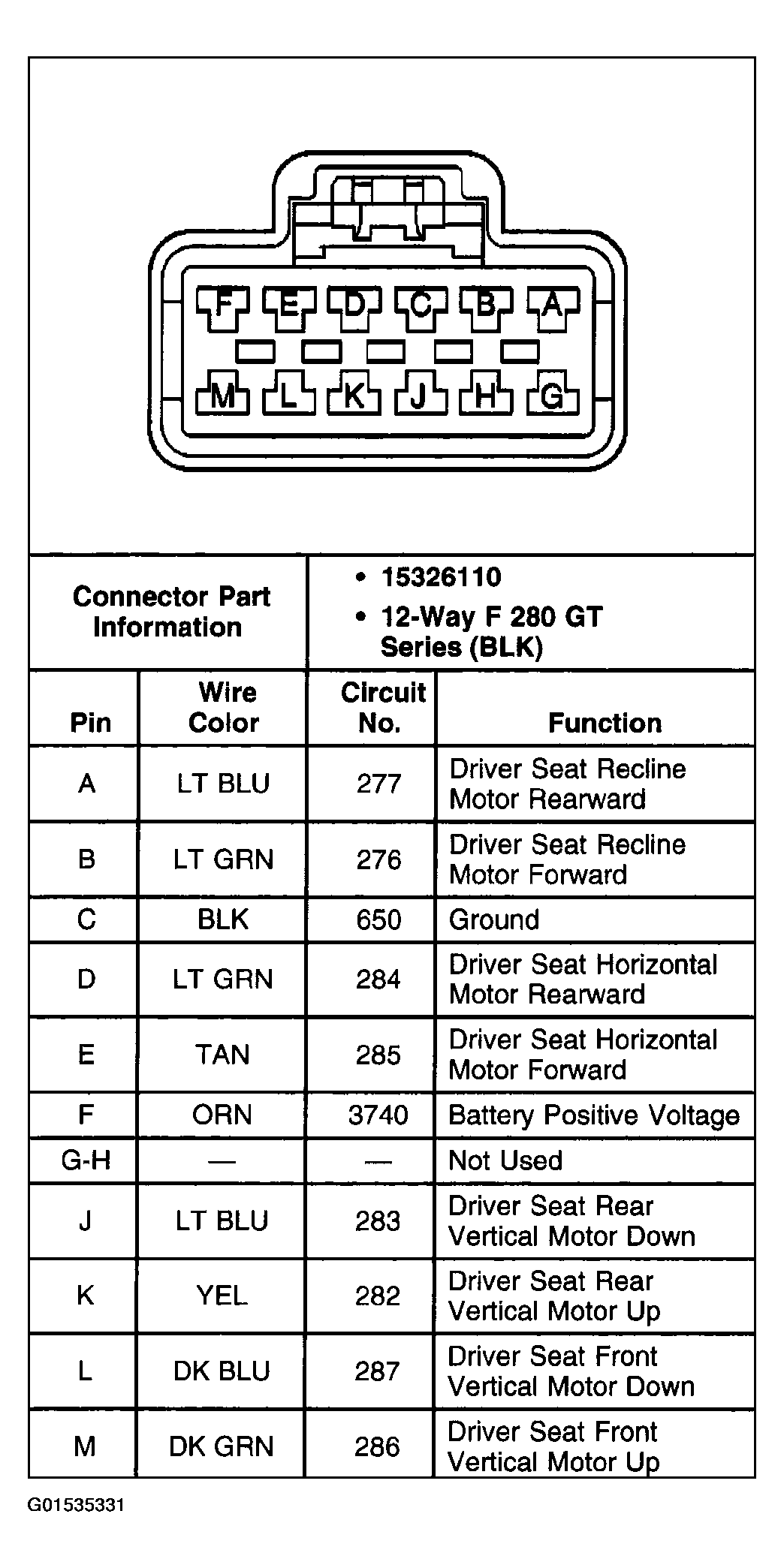

Fig 2: Power Seat Systems Connector End View - Seat Adjuster Switch - Driver (AG1 & A80)
G01535331Courtesy of GENERAL MOTORS CORP.

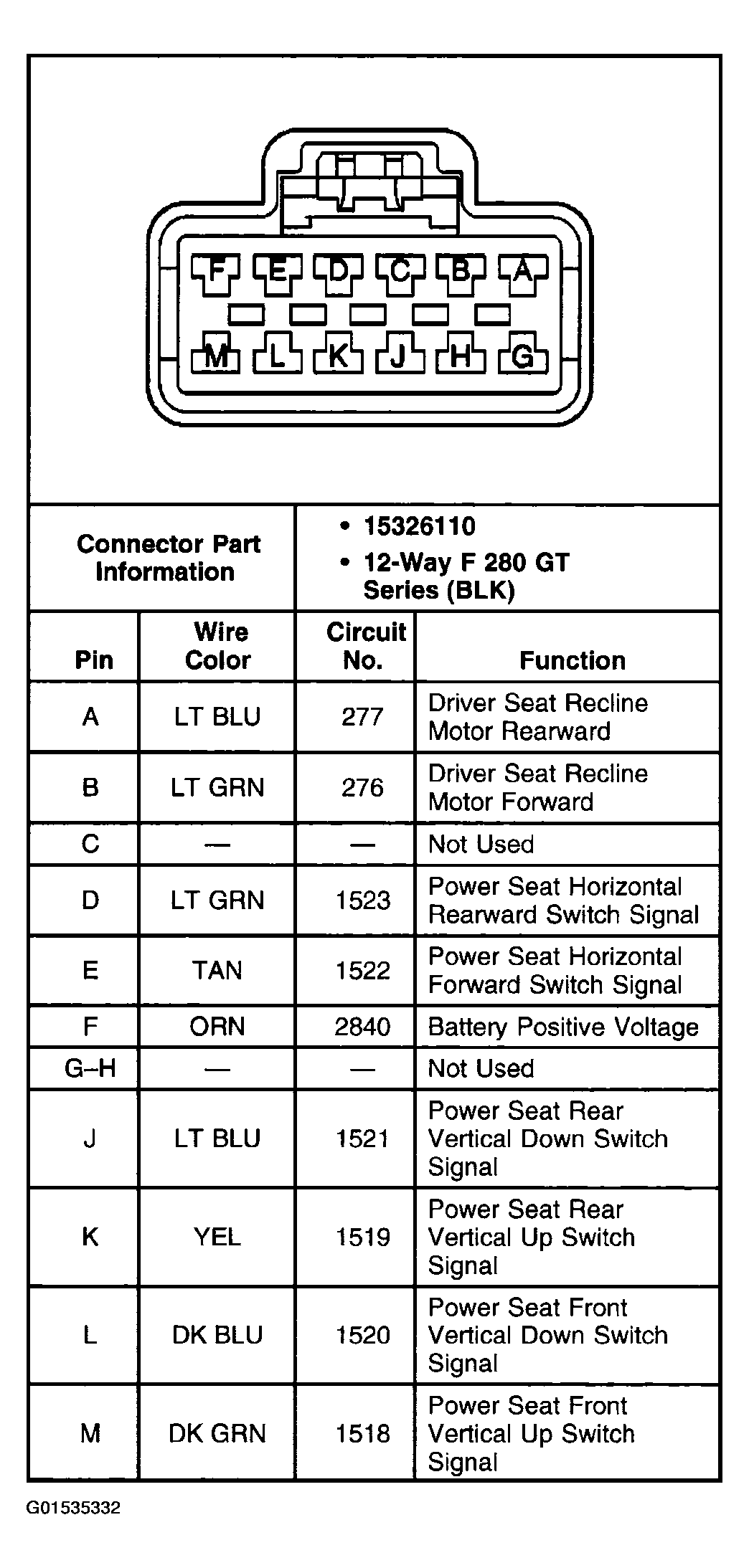

Fig 3: Power Seat Systems Connector End View - Seat Adjuster Switch - Driver (AG1, A80 & A45)
G01535332Courtesy of GENERAL MOTORS CORP.

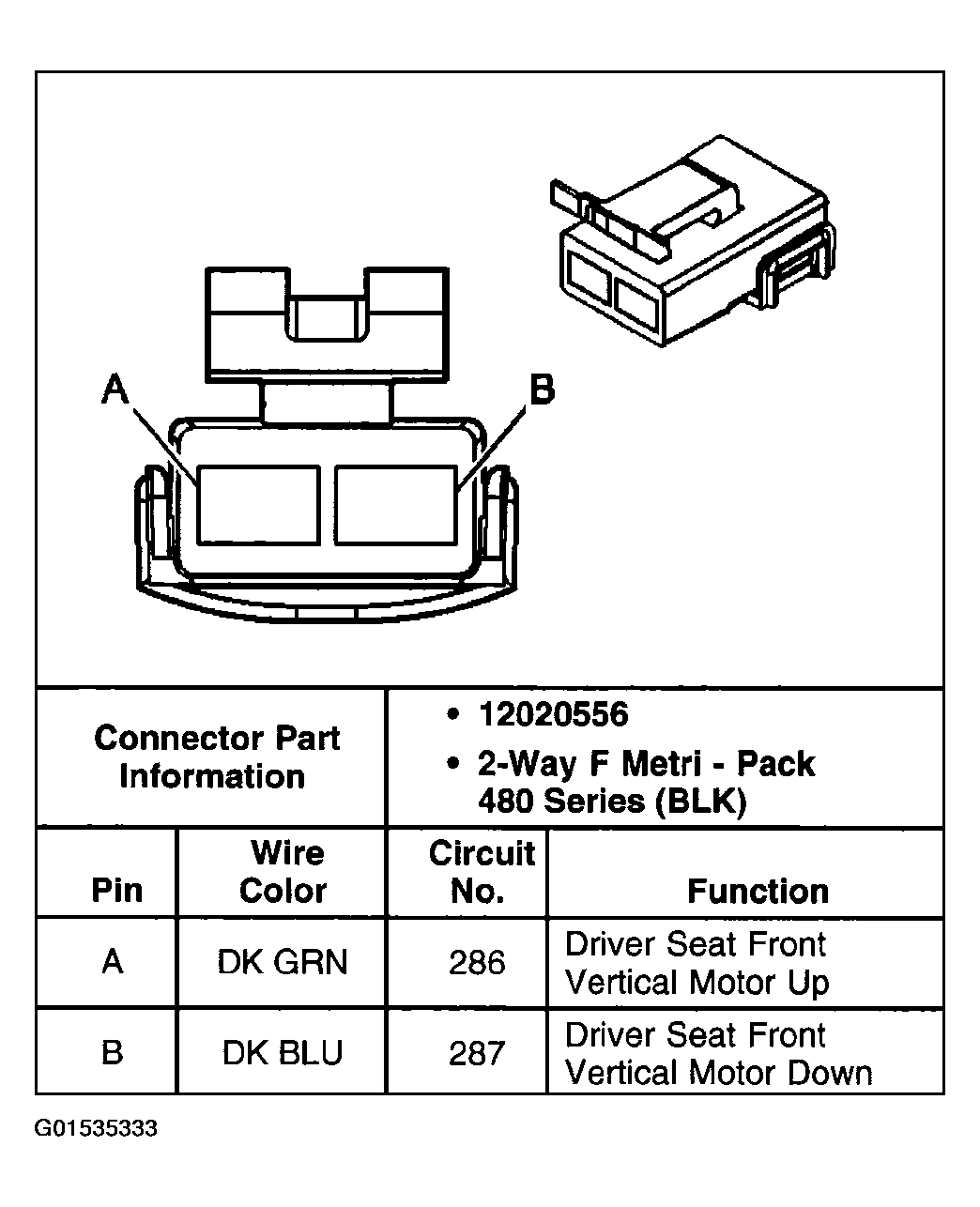

Fig 4: Power Seat Systems Connector End View - Seat Front Vertical Motor - Driver
G01535333Courtesy of GENERAL MOTORS CORP.

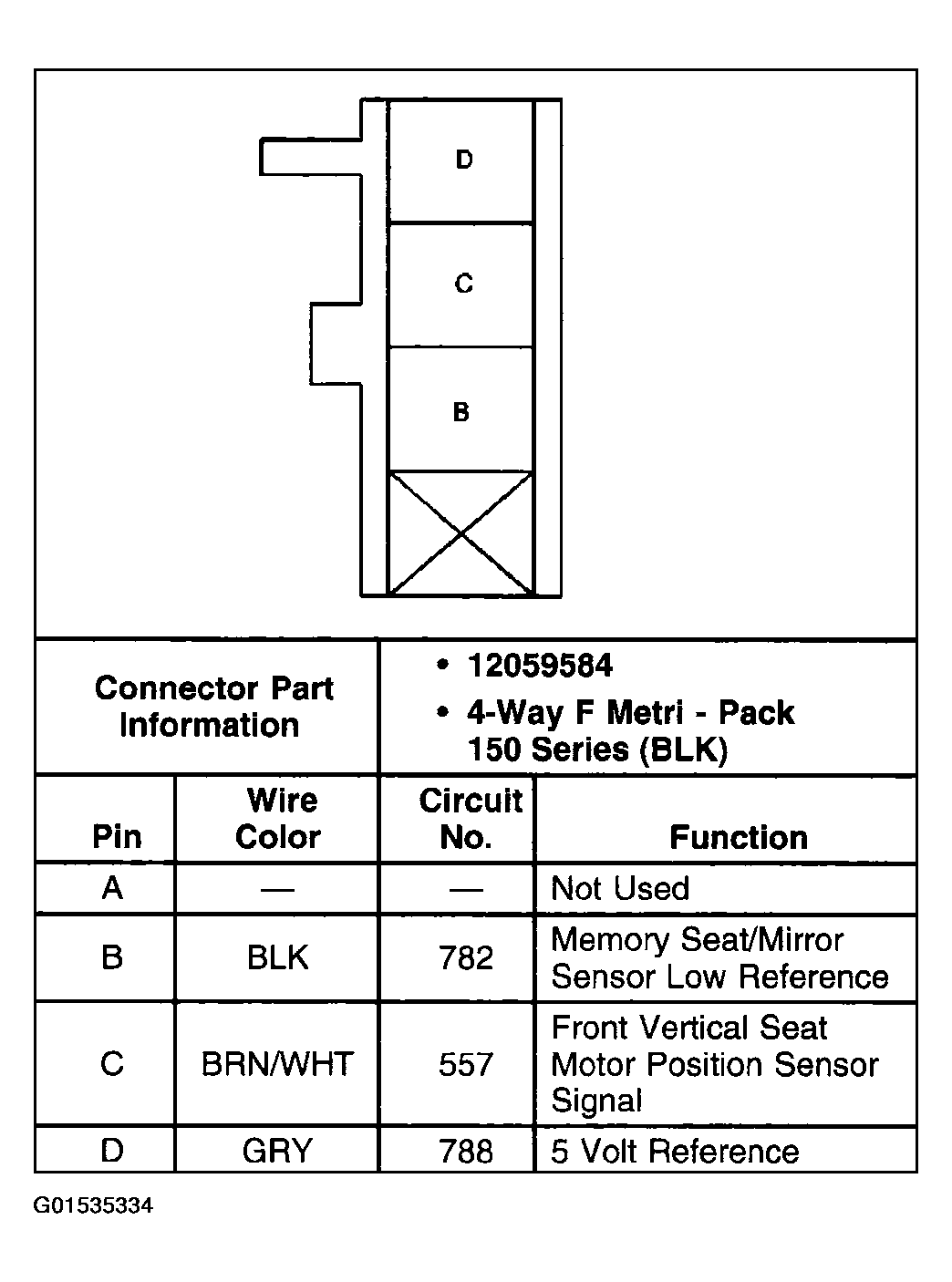

Fig 5: Power Seat Systems Connector End View - Seat Front Vertical Position Sensor - Driver (w/A45)
G01535334Courtesy of GENERAL MOTORS CORP.

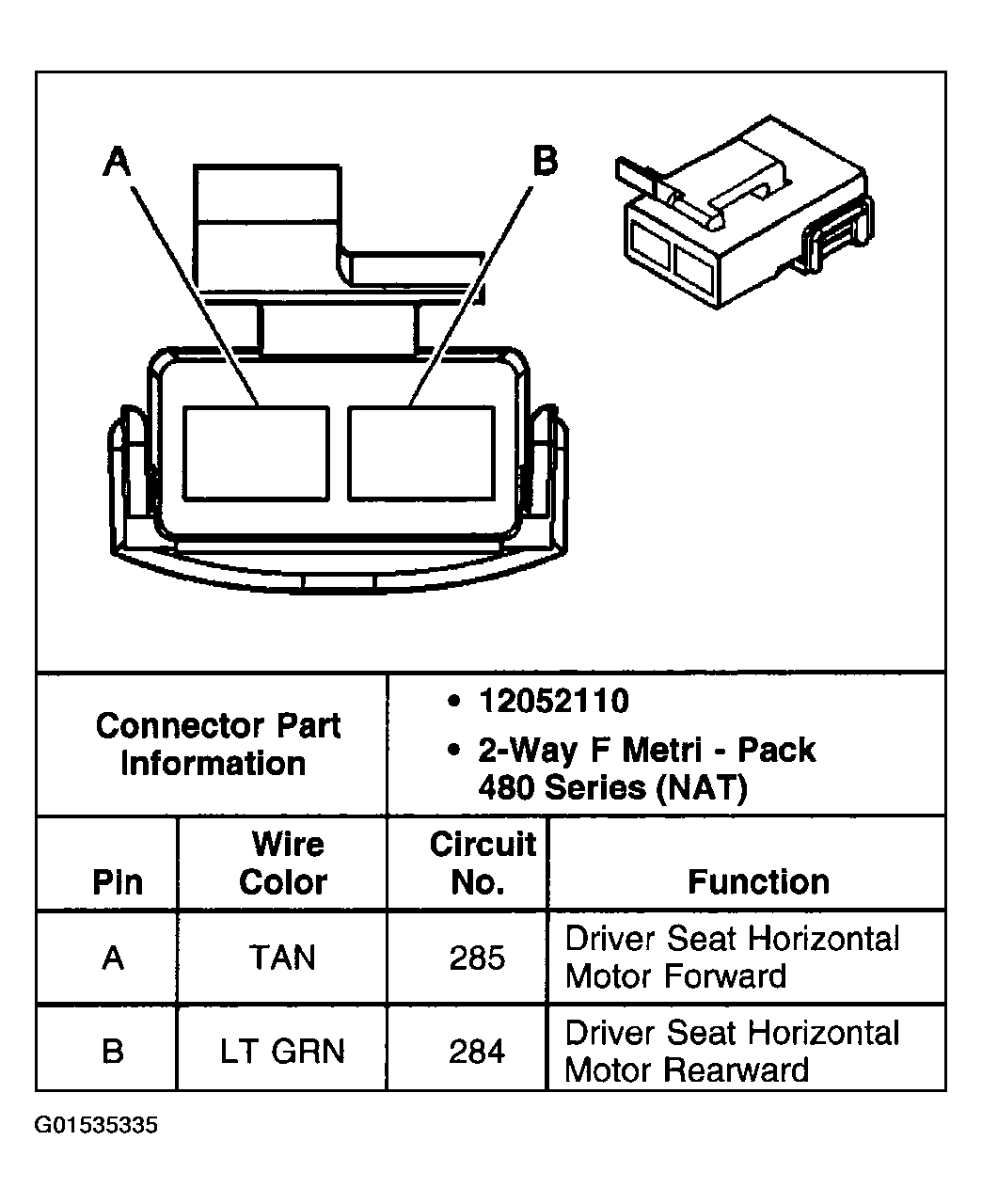

Fig 6: Power Seat Systems Connector End View - Front Seat Horizontal Motor - Driver
G01535335Courtesy of GENERAL MOTORS CORP.

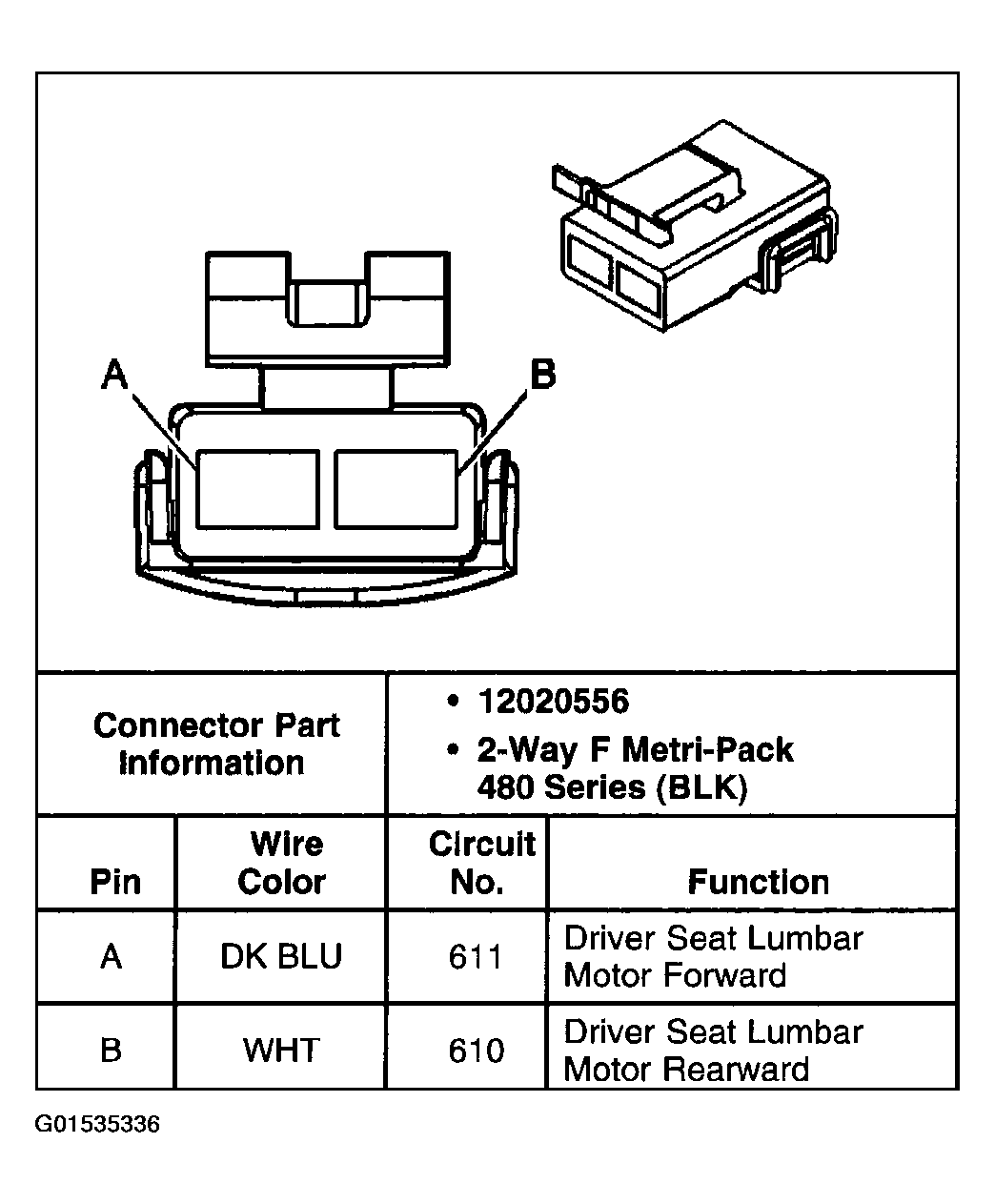

Fig 7: Power Seat Systems Connector End View - Seat Lumbar Horizontal Motor - Driver
G01535336Courtesy of GENERAL MOTORS CORP.

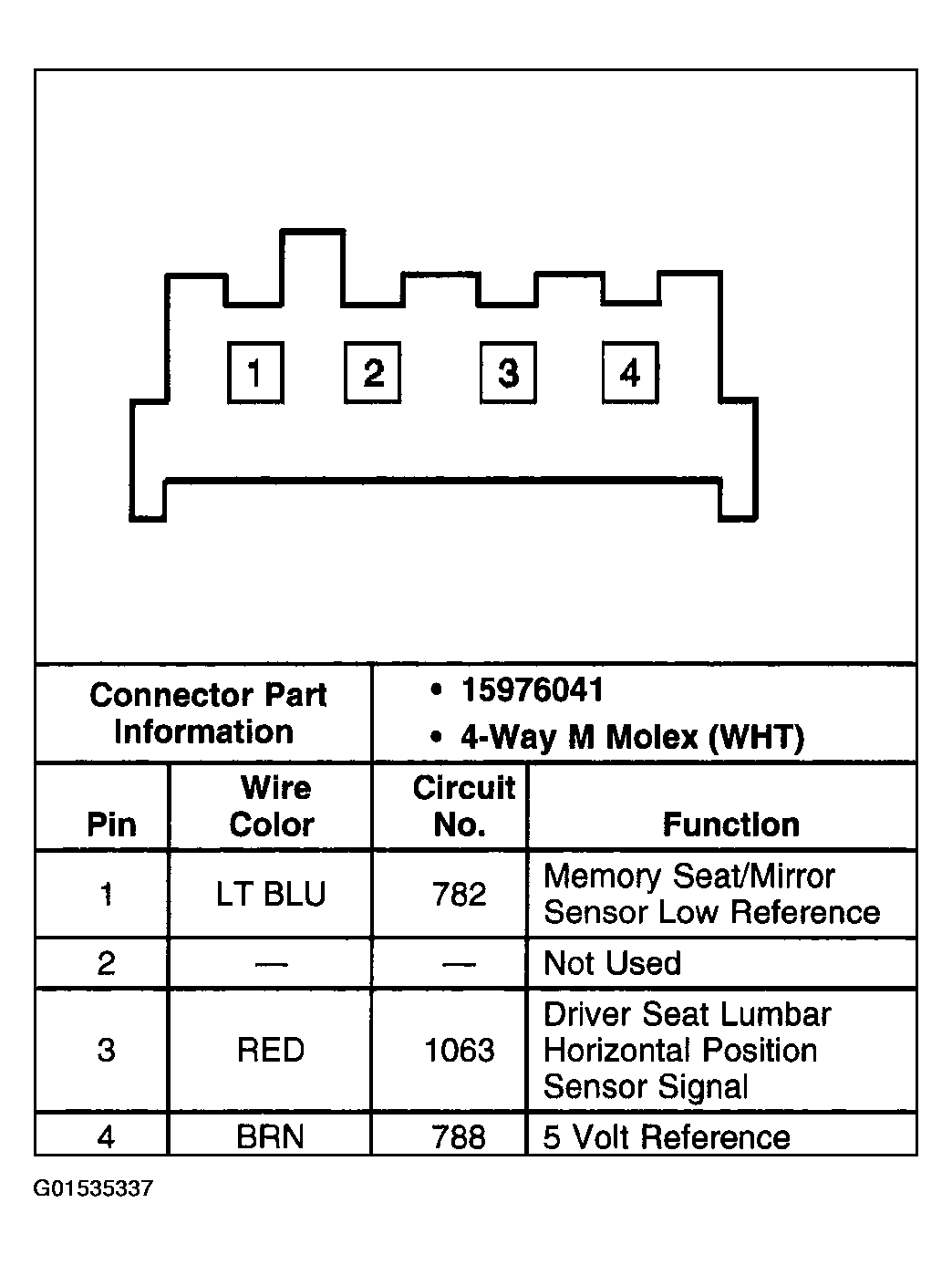

Fig 8: Power Seat Systems Connector End View - Seat Lumbar Horizontal Position Sensor - Driver
G01535337Courtesy of GENERAL MOTORS CORP.

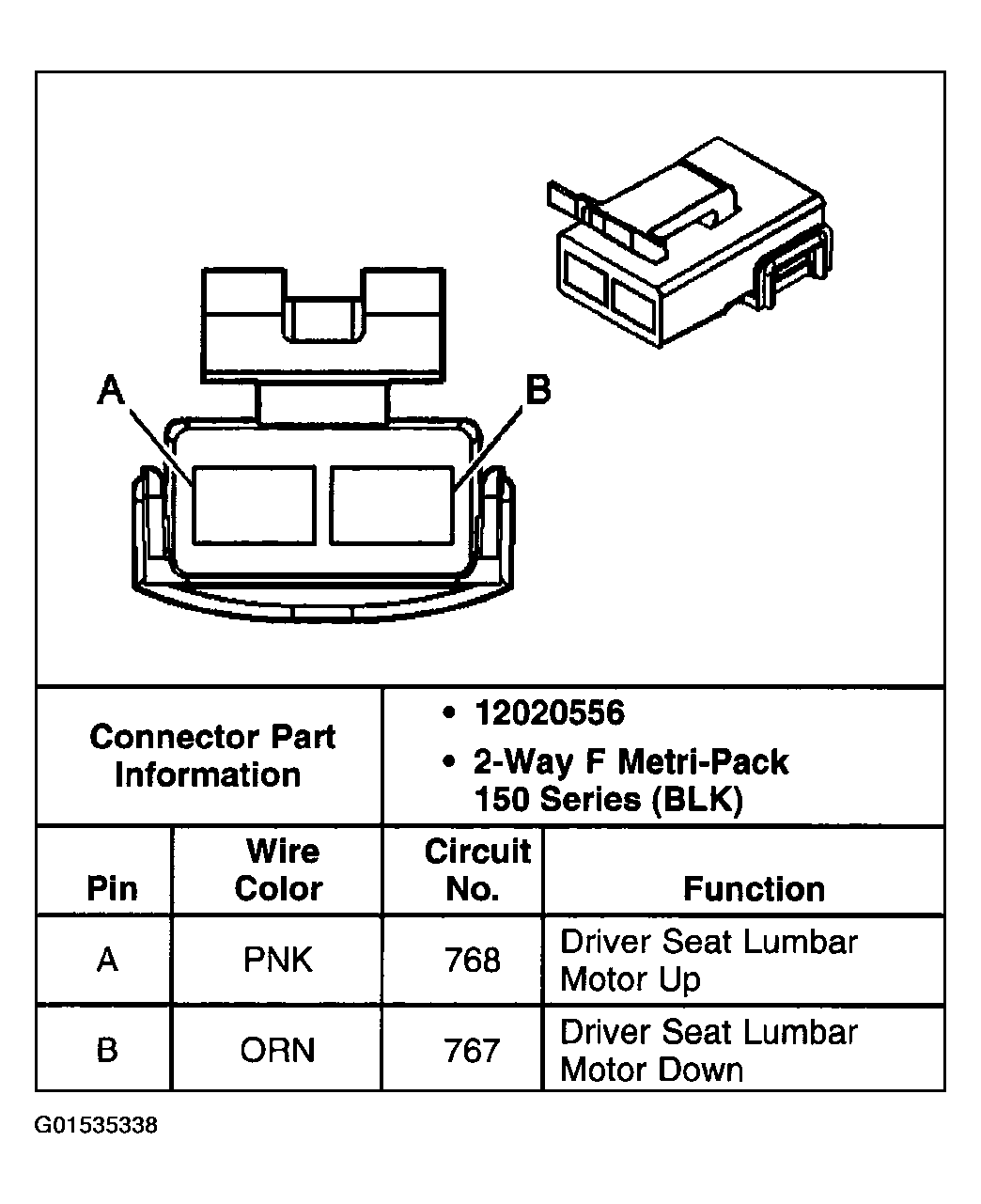

Fig 9: Power Seat Systems Connector End View - Seat Lumbar Vertical Motor - Driver
G01535338Courtesy of GENERAL MOTORS CORP.

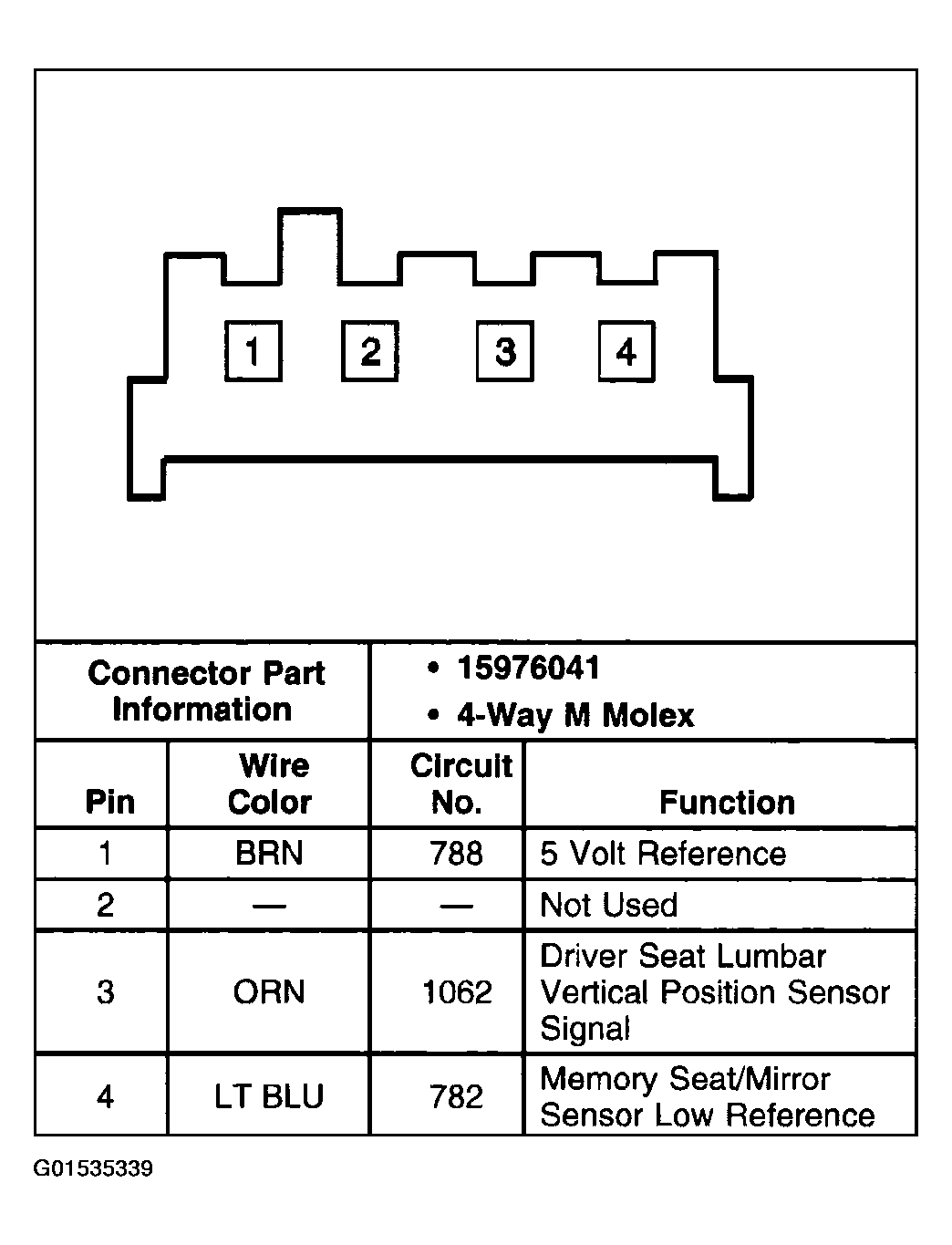

Fig 10: Power Seat Systems Connector End View - Seat Lumbar Vertical Position Sensor - Driver
G01535339Courtesy of GENERAL MOTORS CORP.

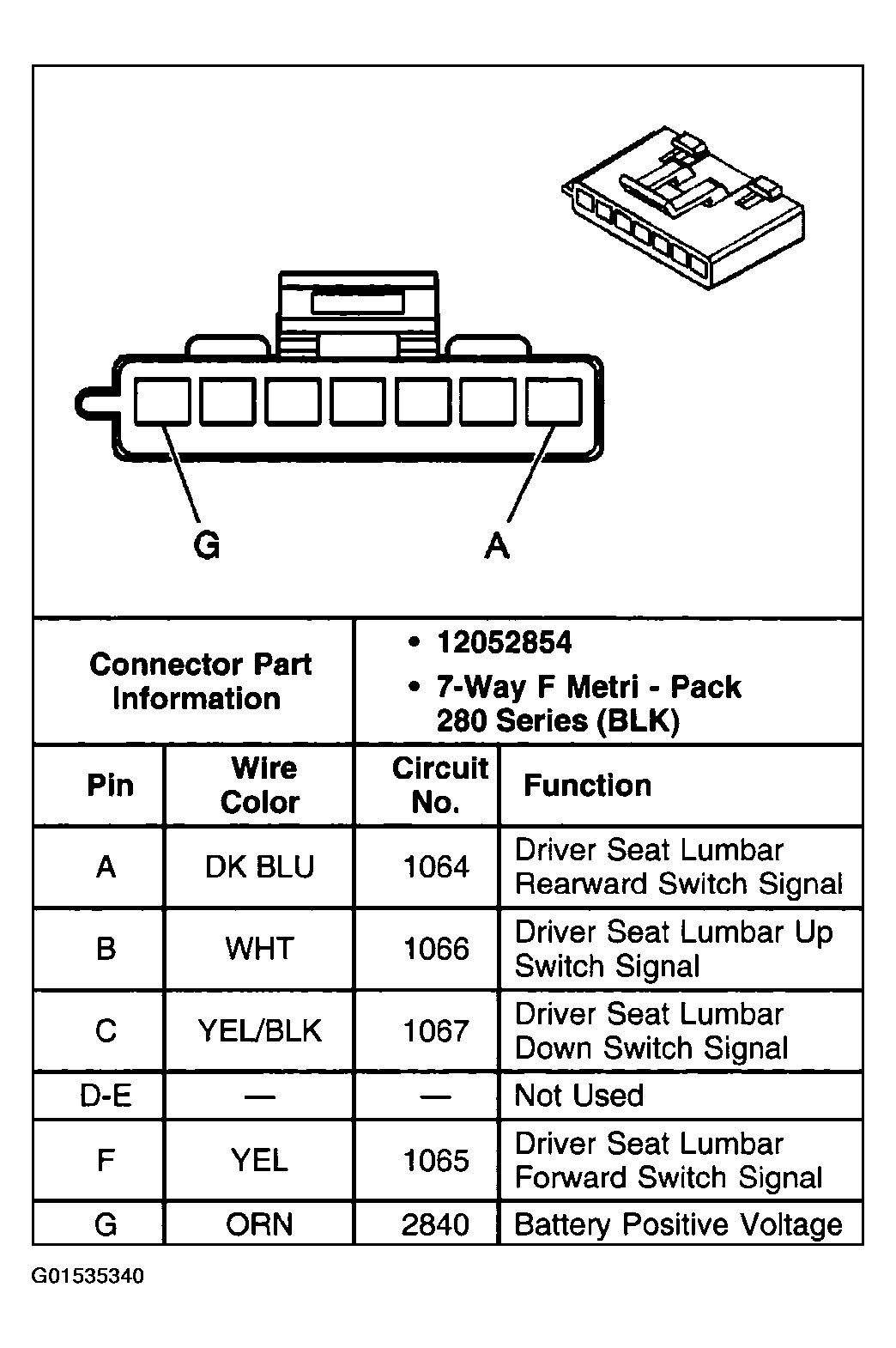

Fig 11: Power Seat Systems Connector End View - Seat Lumbar Switch - Driver (A45 & AL9)
G01535340Courtesy of GENERAL MOTORS CORP.

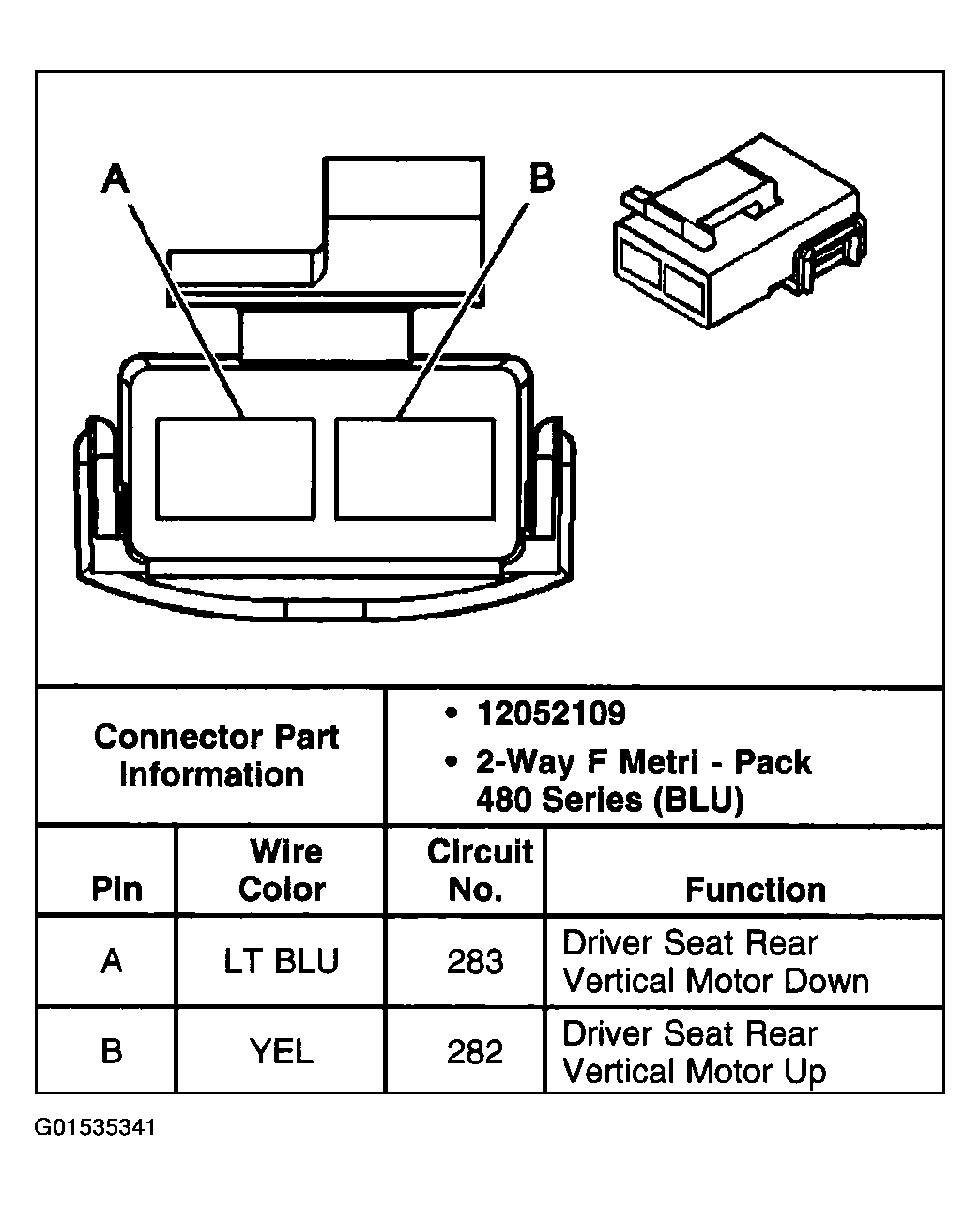

Fig 12: Power Seat Systems Connector End View - Seat Rear Vertical Motor - Driver
G01535341Courtesy of GENERAL MOTORS CORP.

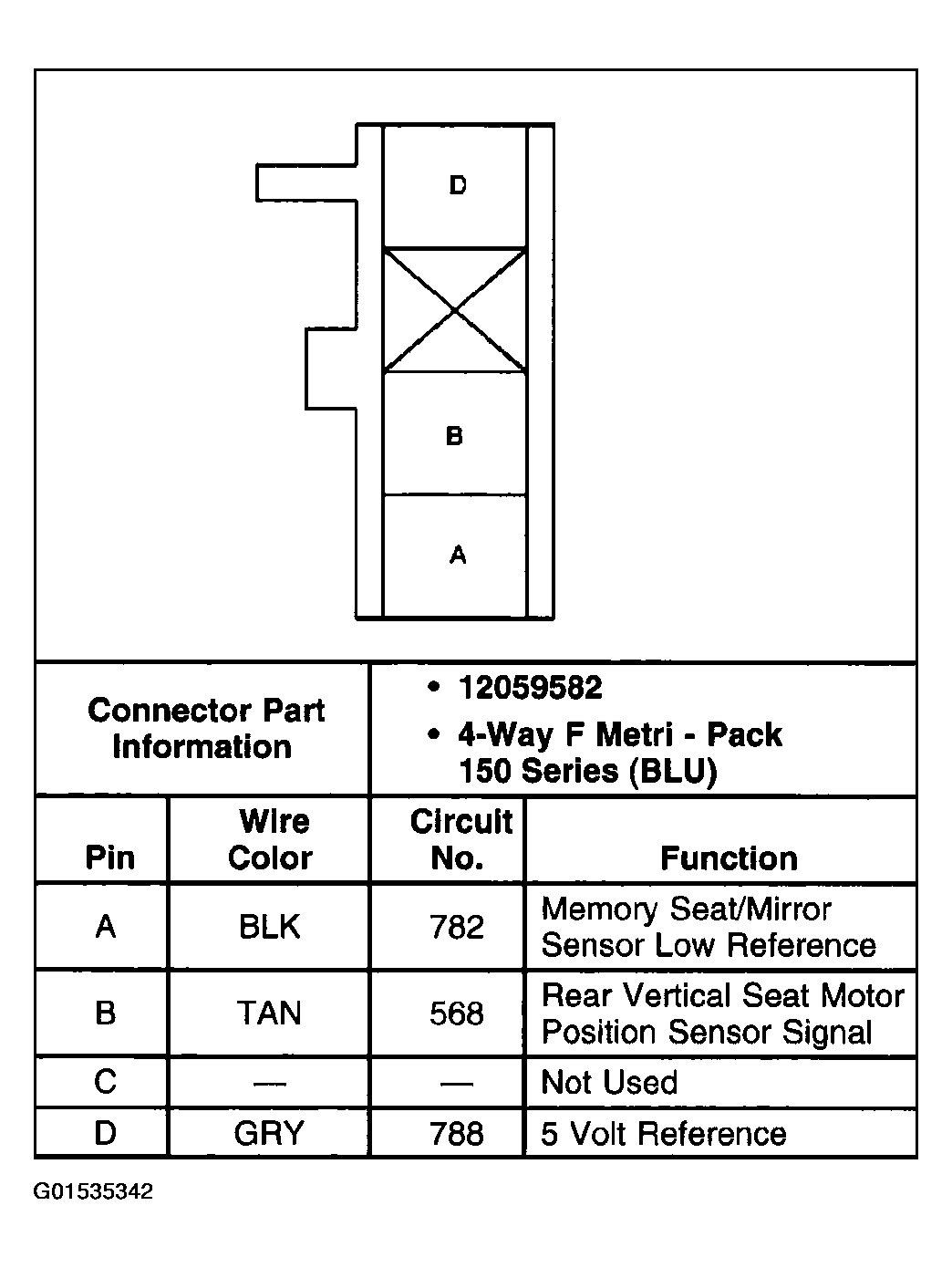

Fig 13: Power Seat Systems Connector End View - Seat Rear Vertical Position Sensor - Driver (w/A45)
G01535342Courtesy of GENERAL MOTORS CORP.

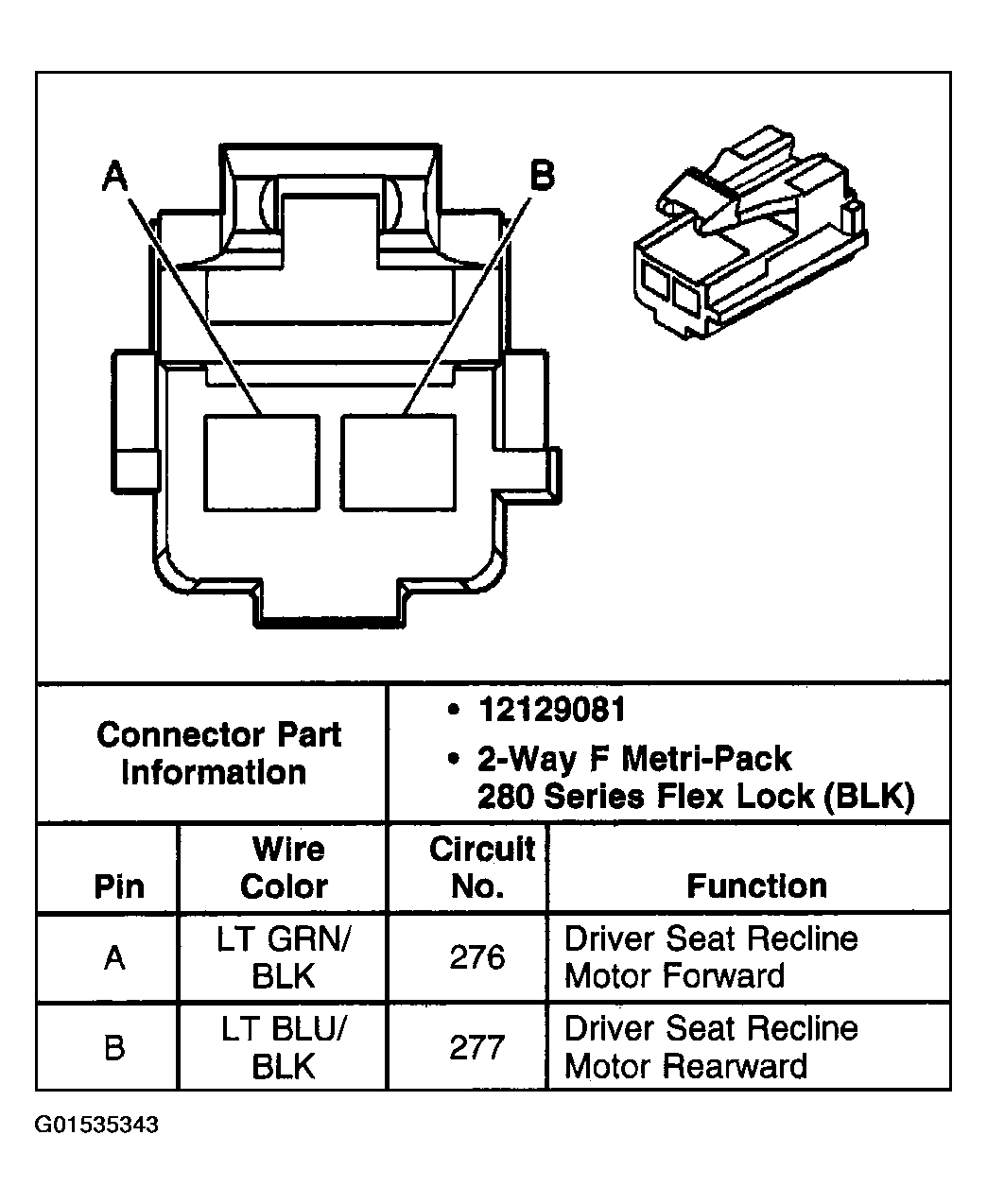

Fig 14: Power Seat Systems Connector End View - Seat Recline Motor - Driver (A45)
G01535343Courtesy of GENERAL MOTORS CORP.

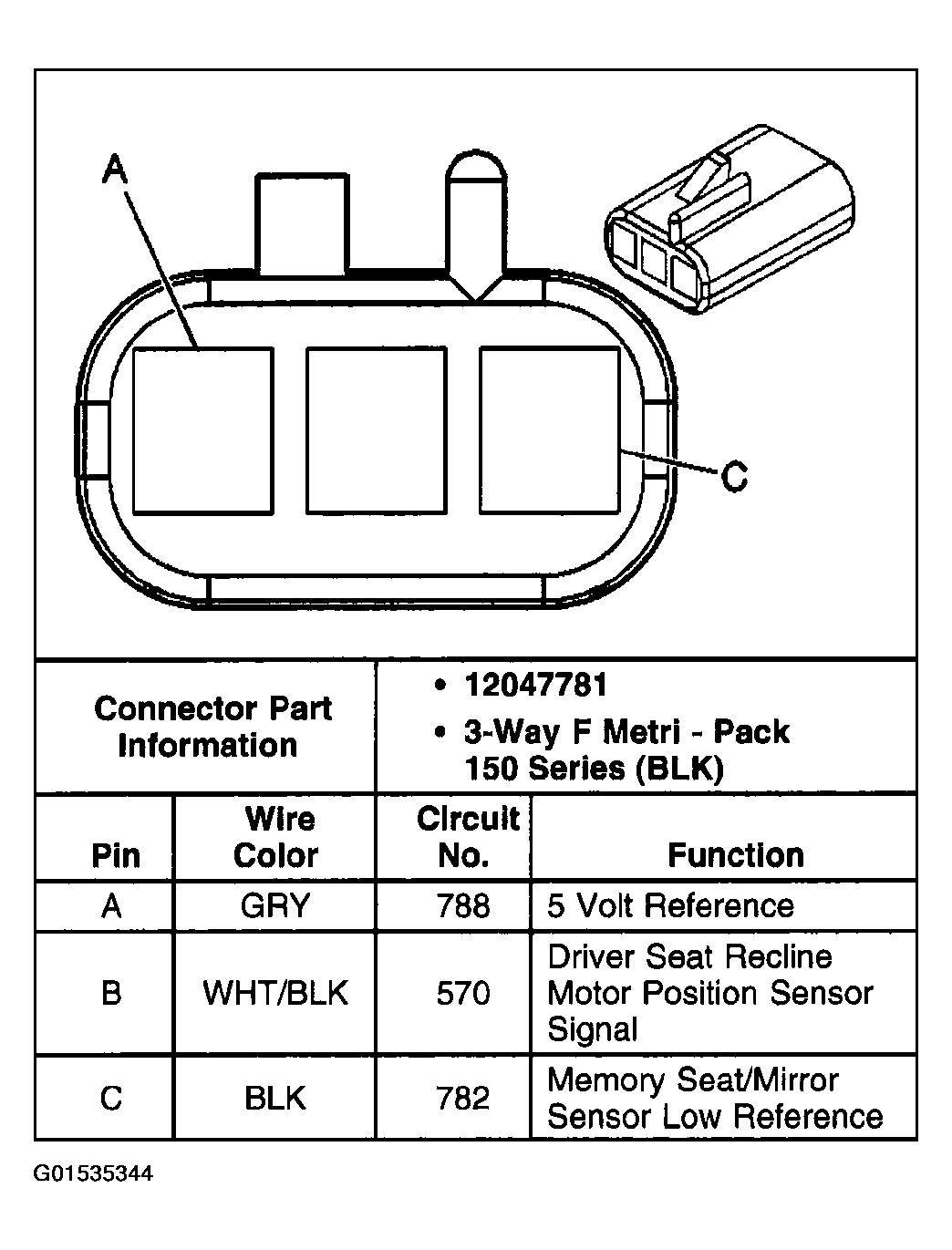

Fig 15: Power Seat Systems Connector End View - Seat Recline Position Sensor - Driver (A45)
G01535344Courtesy of GENERAL MOTORS CORP.

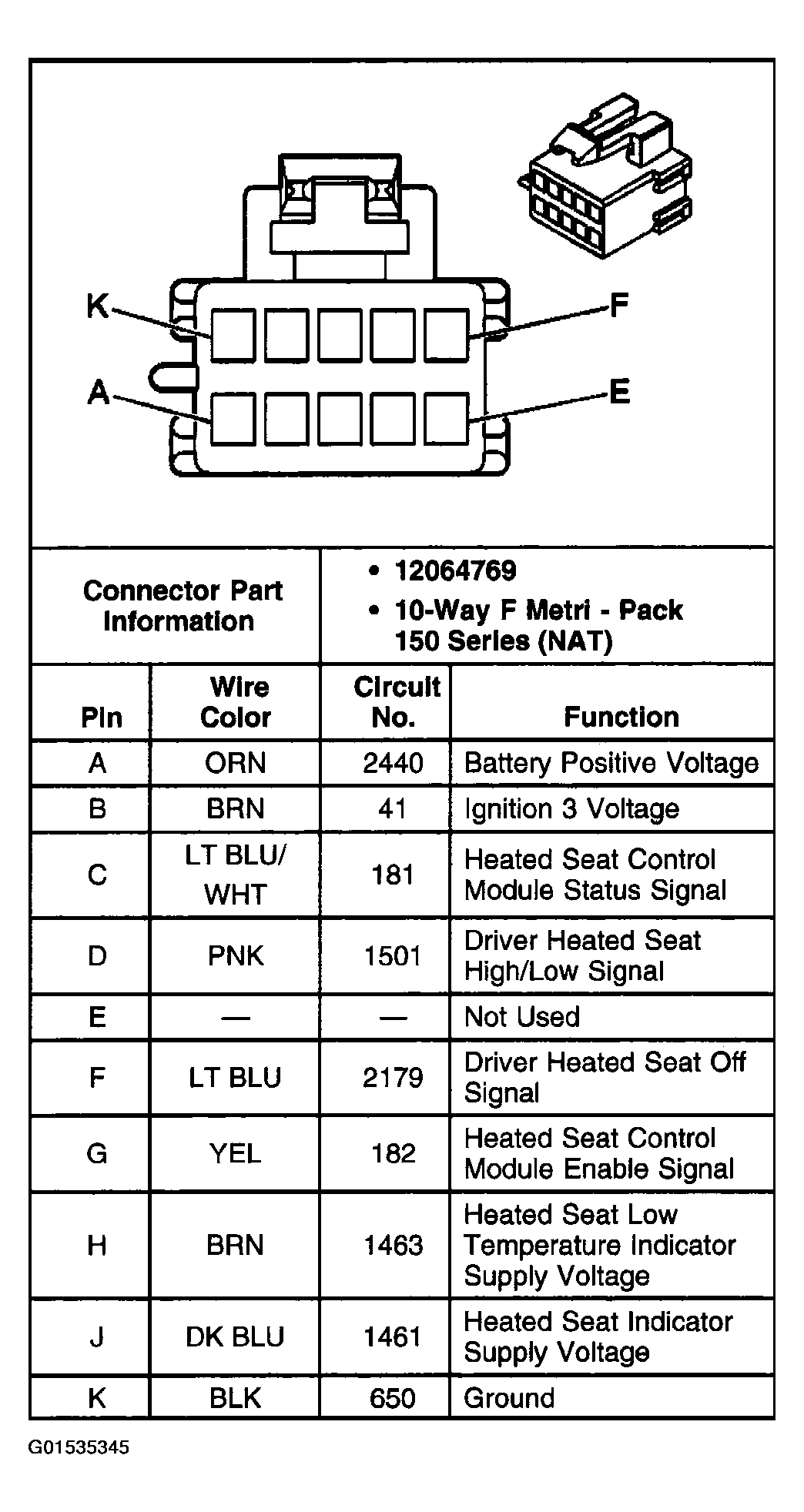

Fig 16: Power Seat Systems Connector End View - Heated Seat Module - Driver C1 (AG1, A80, KA1)
G01535345Courtesy of GENERAL MOTORS CORP.

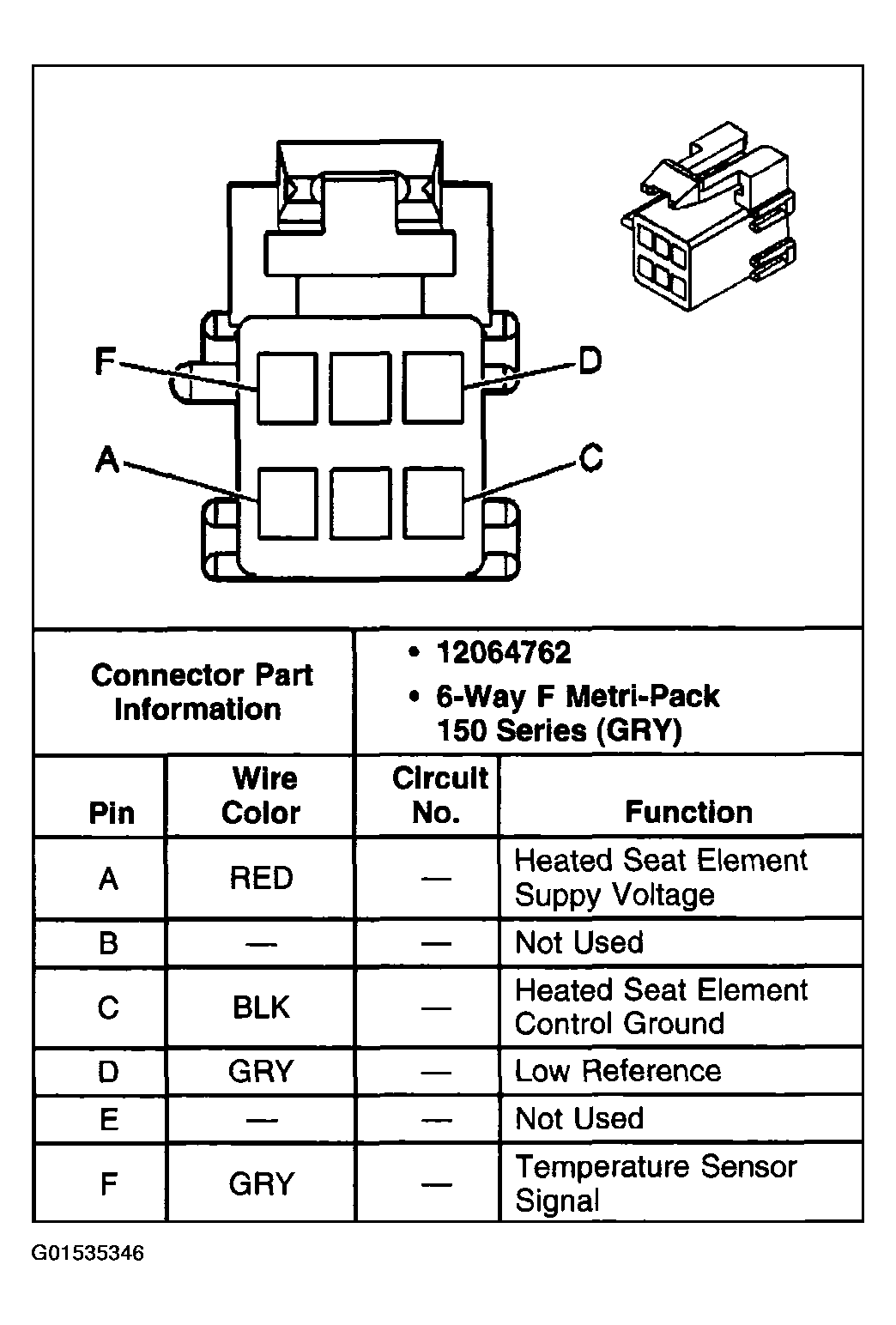

Fig 17: Power Seat Systems Connector End View - Heated Seat Module - Driver C2 (w/AG1, A80, KA1)
G01535346Courtesy of GENERAL MOTORS CORP.

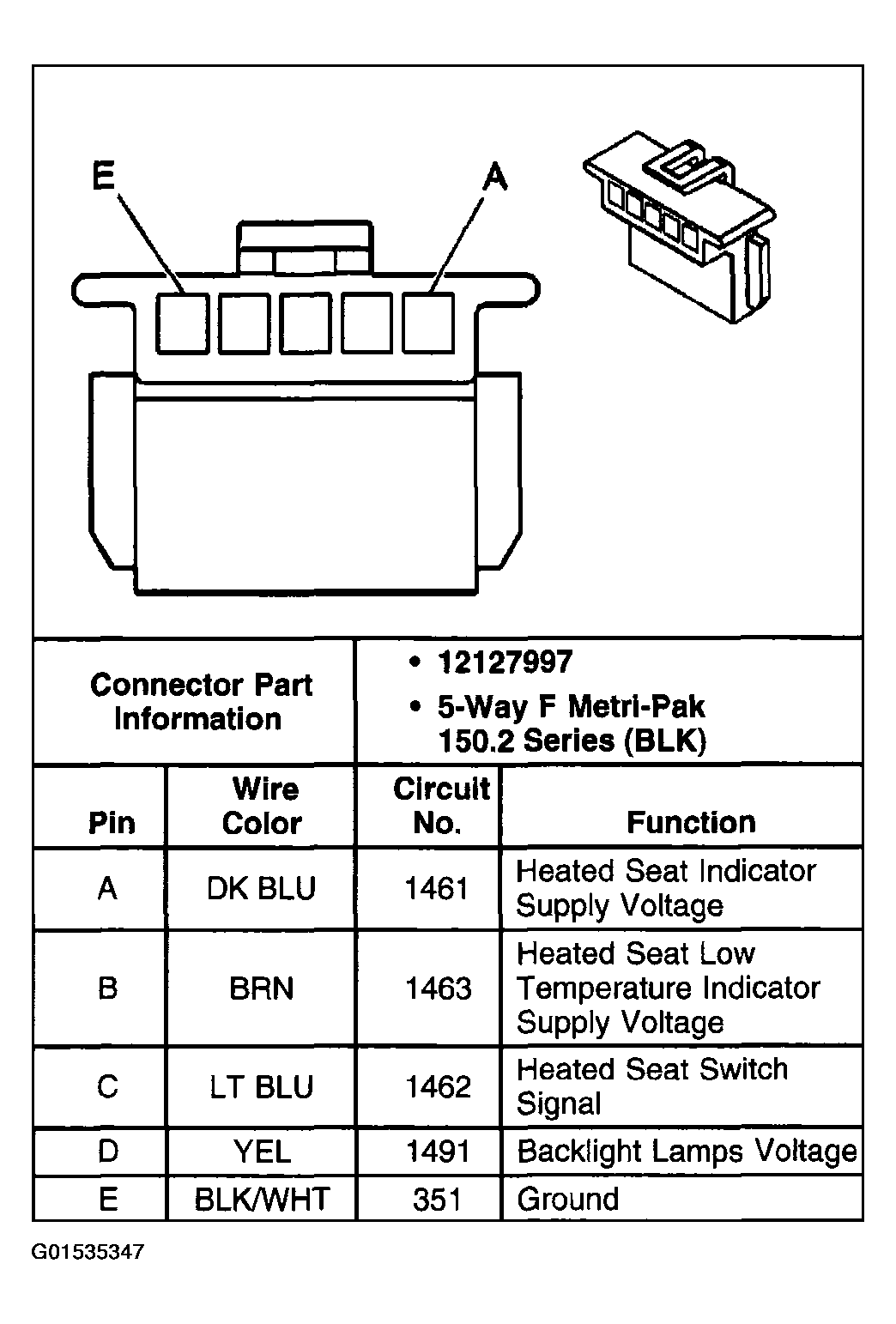

Fig 18: Power Seat Systems Connector End View - Heated Seat Switch - Driver
G01535347Courtesy of GENERAL MOTORS CORP.
Fig 19: Power Seat Systems Connector End View - Memory/Personalization Function Switch
G01535348Courtesy of GENERAL MOTORS CORP.
Fig 20: Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C1 (A45)
G01535349Courtesy of GENERAL MOTORS CORP.

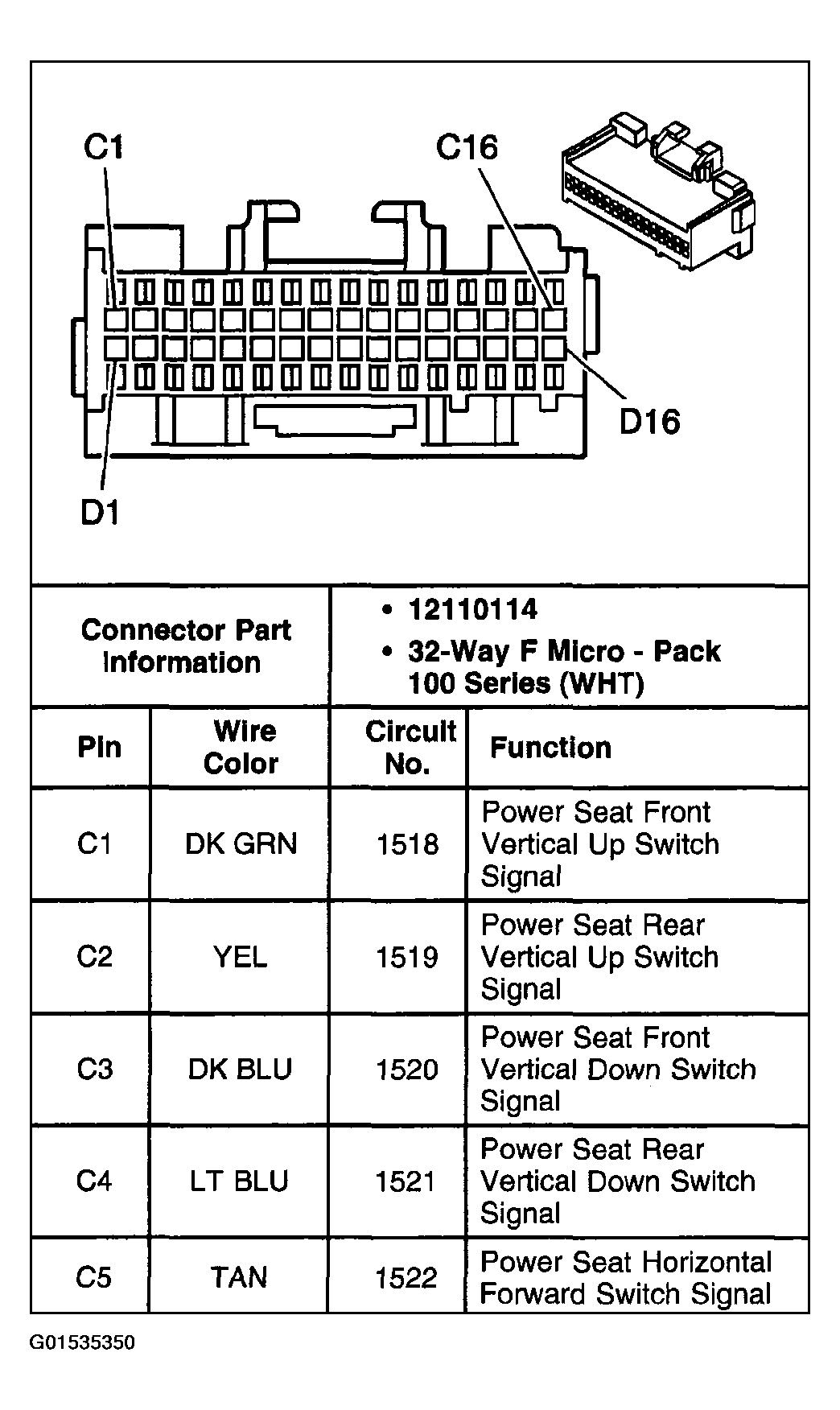

Fig 21: Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C2 (A45) (1 Of 3)
G01535350Courtesy of GENERAL MOTORS CORP.

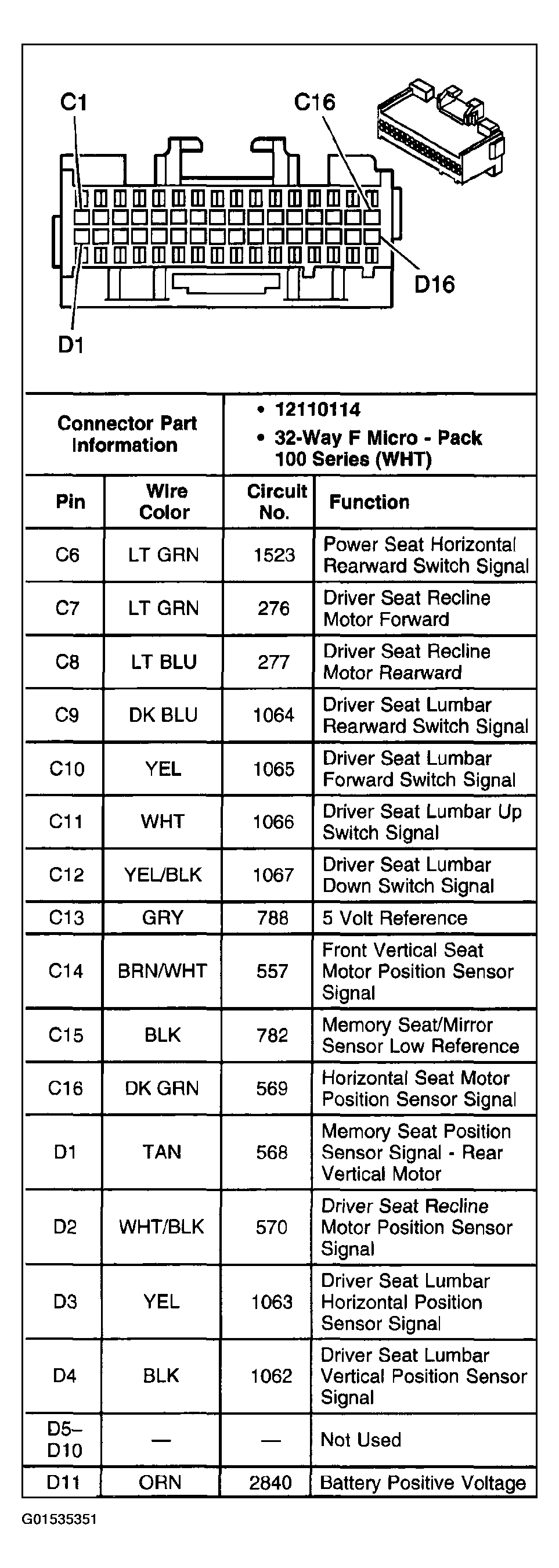

Fig 22: Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C2 (A45) (2 Of 3)
G01535351Courtesy of GENERAL MOTORS CORP.

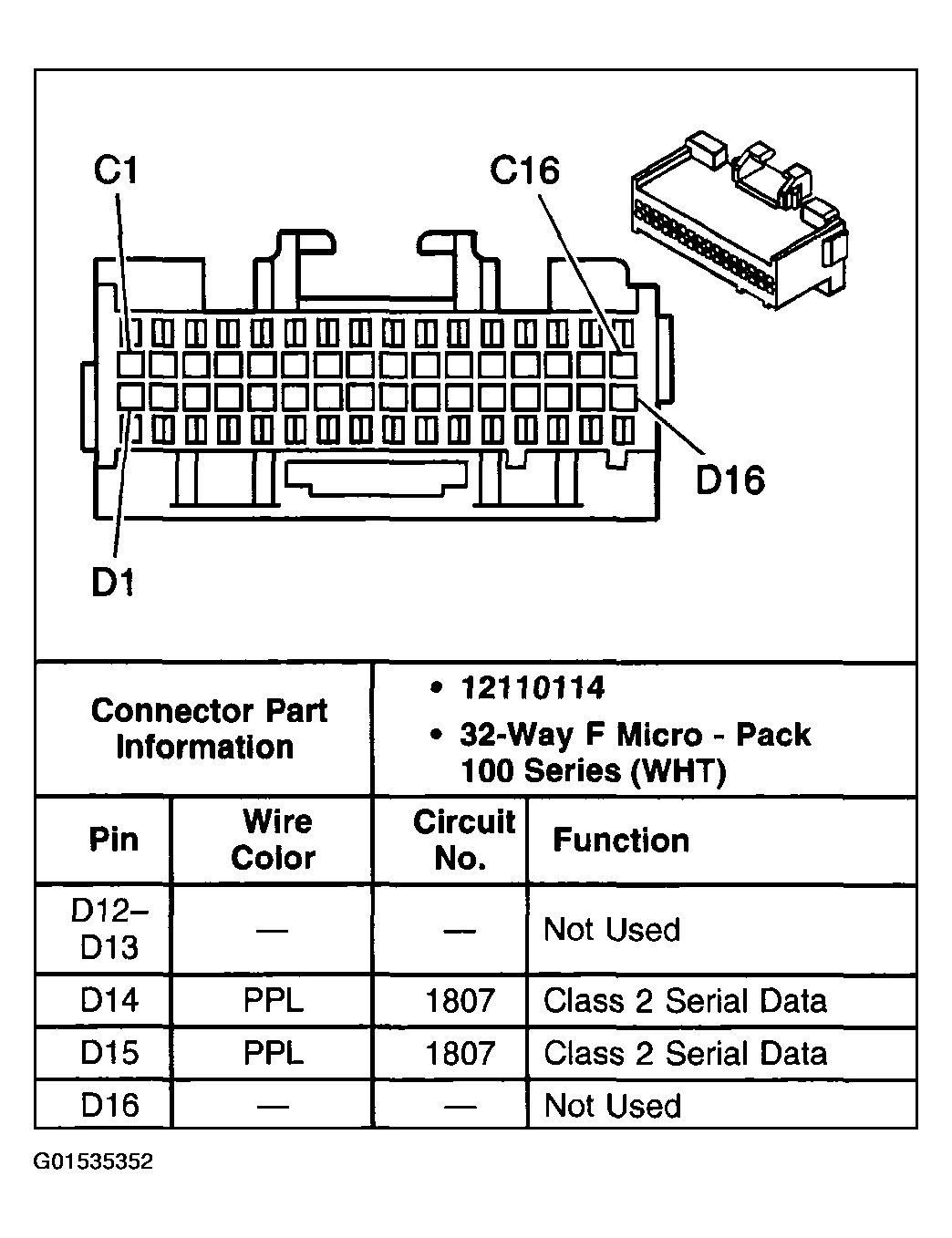

Fig 23: Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C2 (A45) (3 Of 3)
G01535352Courtesy of GENERAL MOTORS CORP.

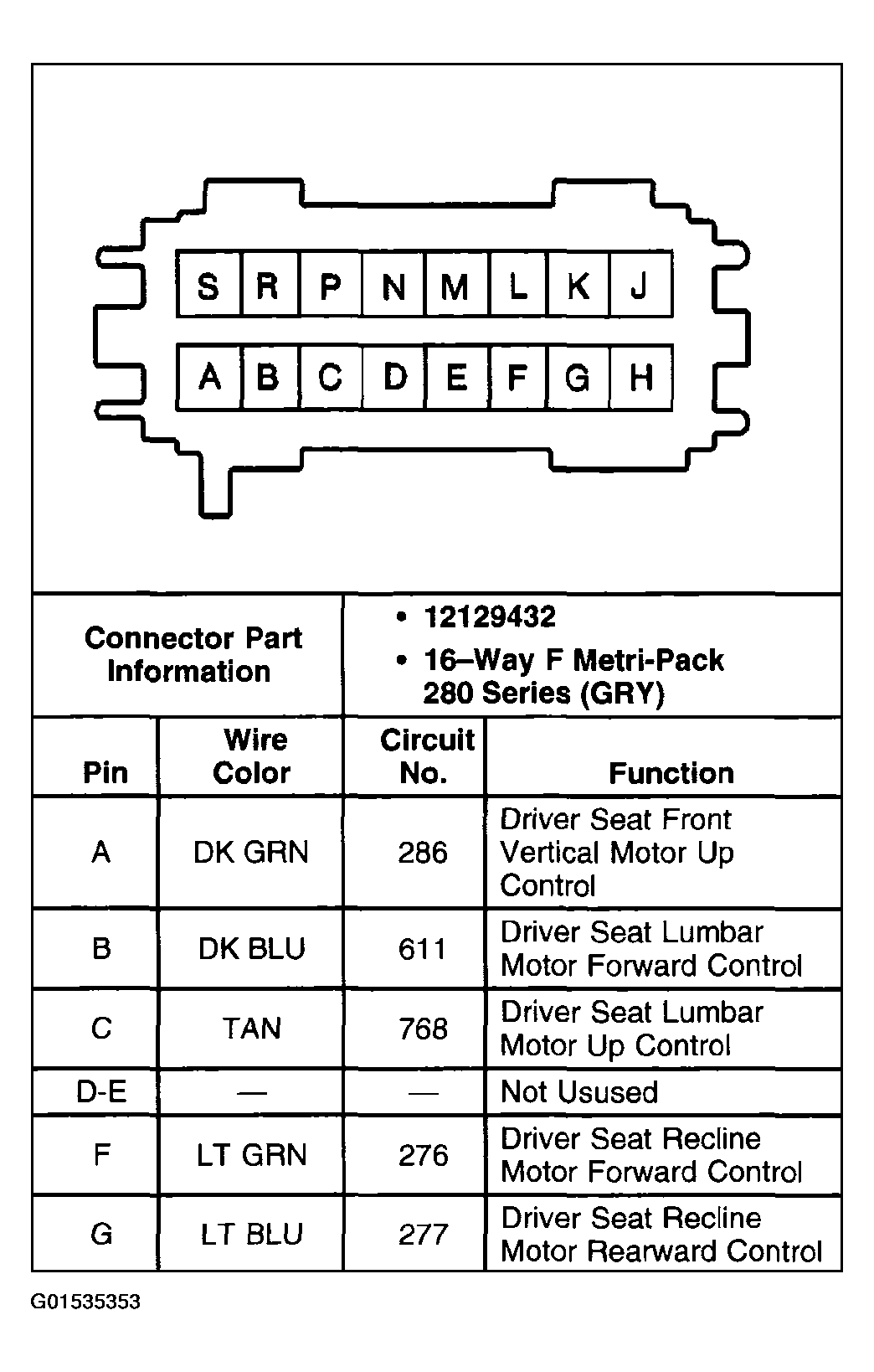

Fig 24: Power Seat Systems Connector End View - Memory Seat Module - C3 (w/A45) (1 Of 2)
G01535353Courtesy of GENERAL MOTORS CORP.

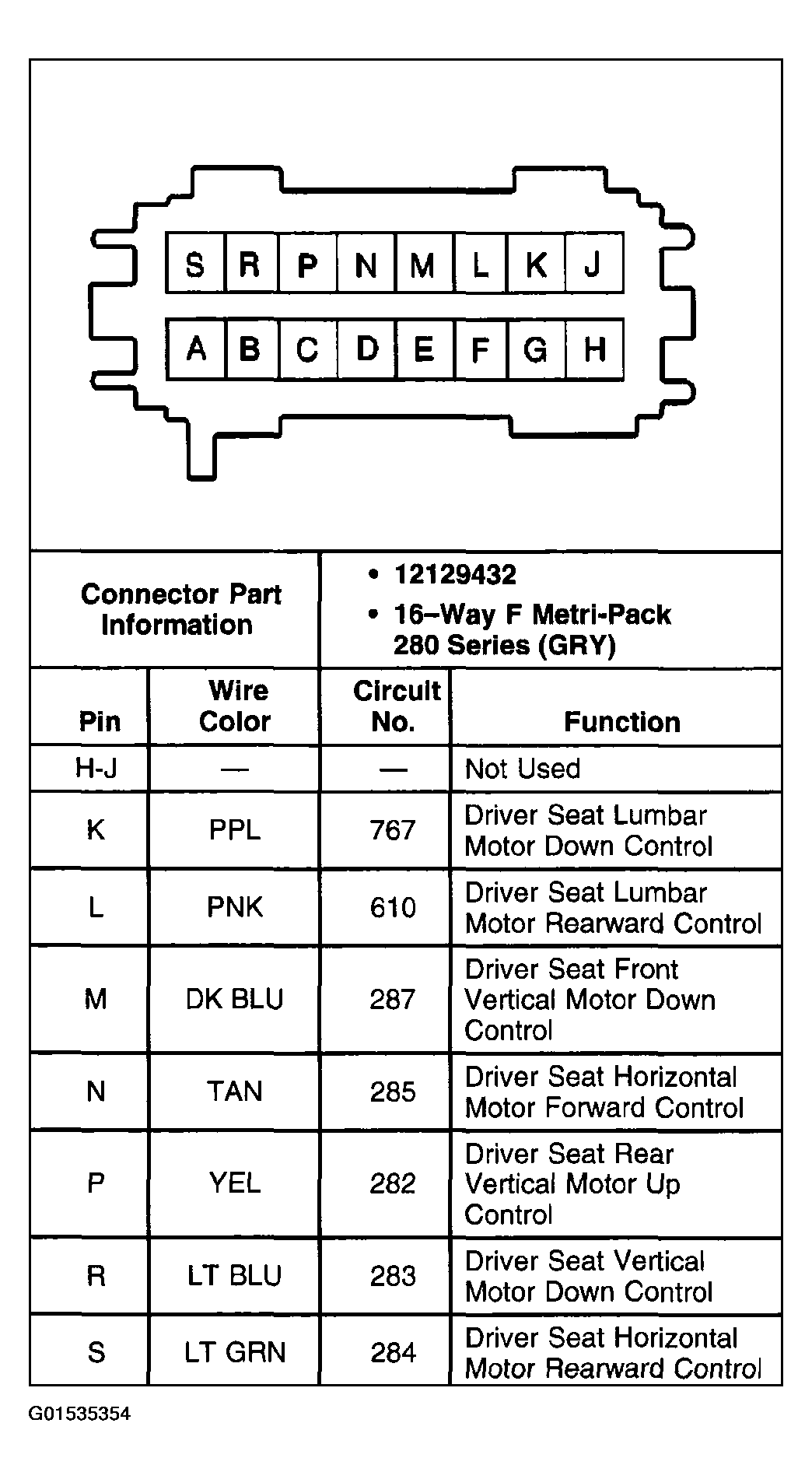

Fig 25: Power Seat Systems Connector End View - Memory Seat Module - C3 (w/A45) (2 Of 2)
G01535354Courtesy of GENERAL MOTORS CORP.

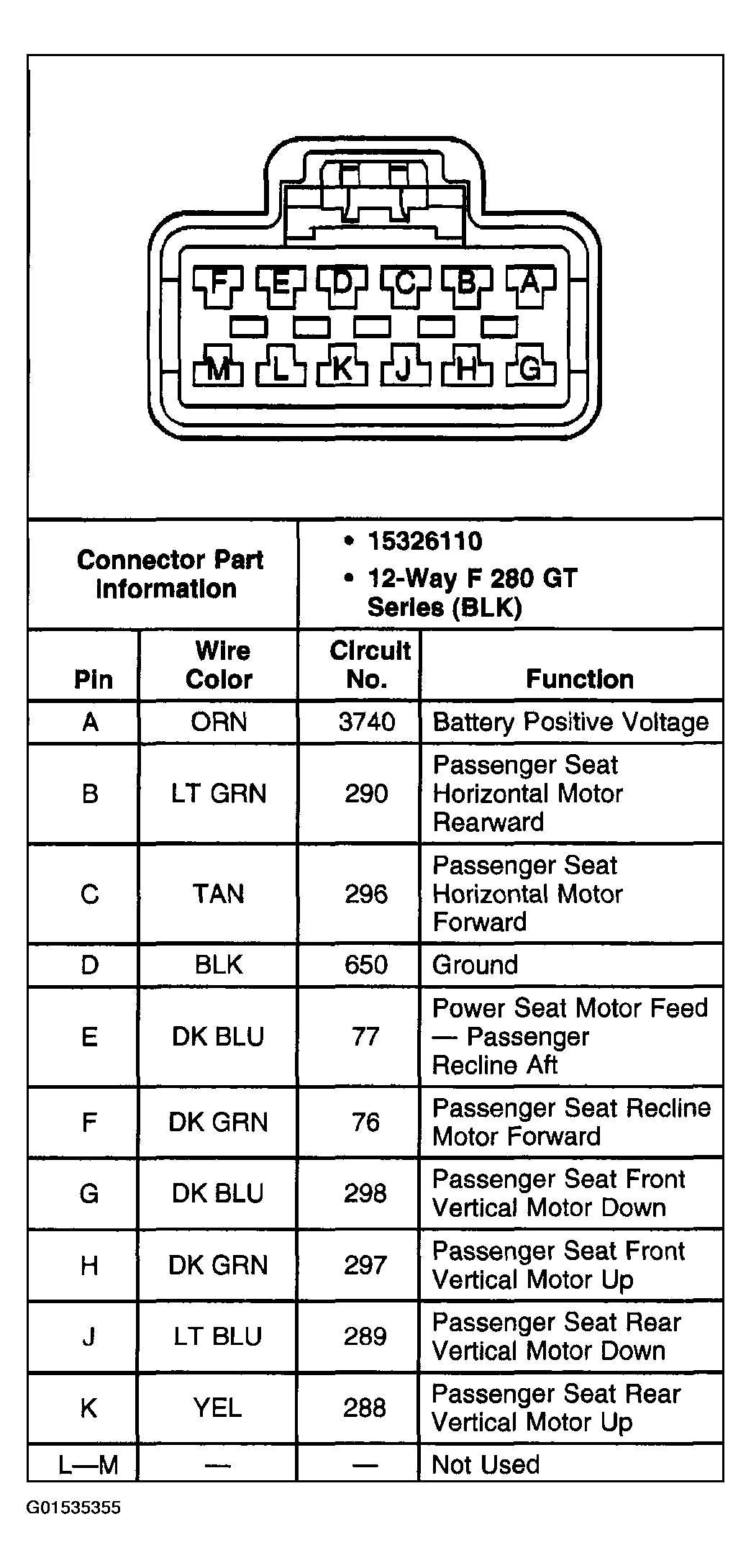

Fig 26: Power Seat Systems Connector End View - Seat Adjuster Switch - Front Passenger (AG2, A81)
G01535355Courtesy of GENERAL MOTORS CORP.

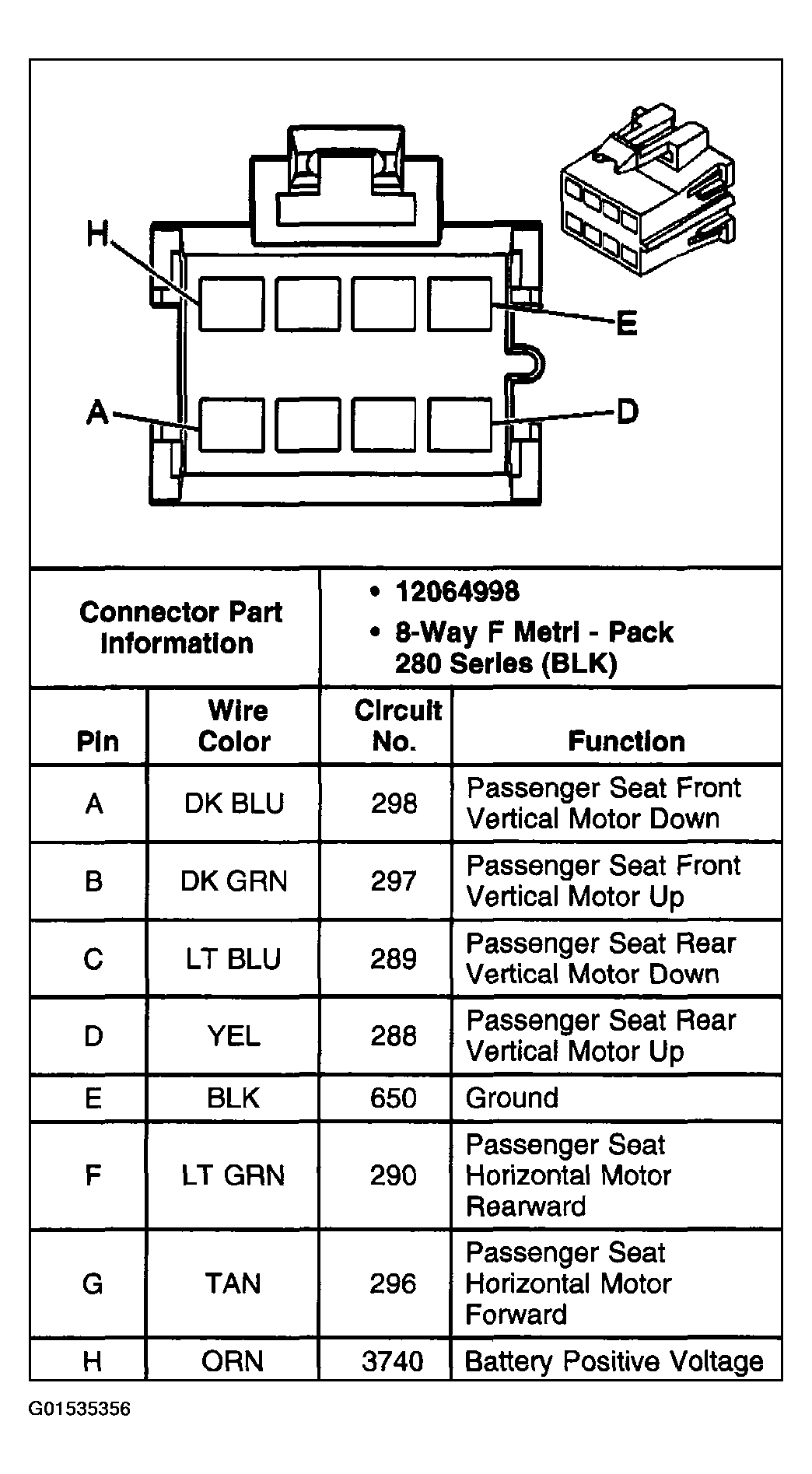

Fig 27: Power Seat Systems Connector End View - Front Passenger (AG2)
G01535356Courtesy of GENERAL MOTORS CORP.

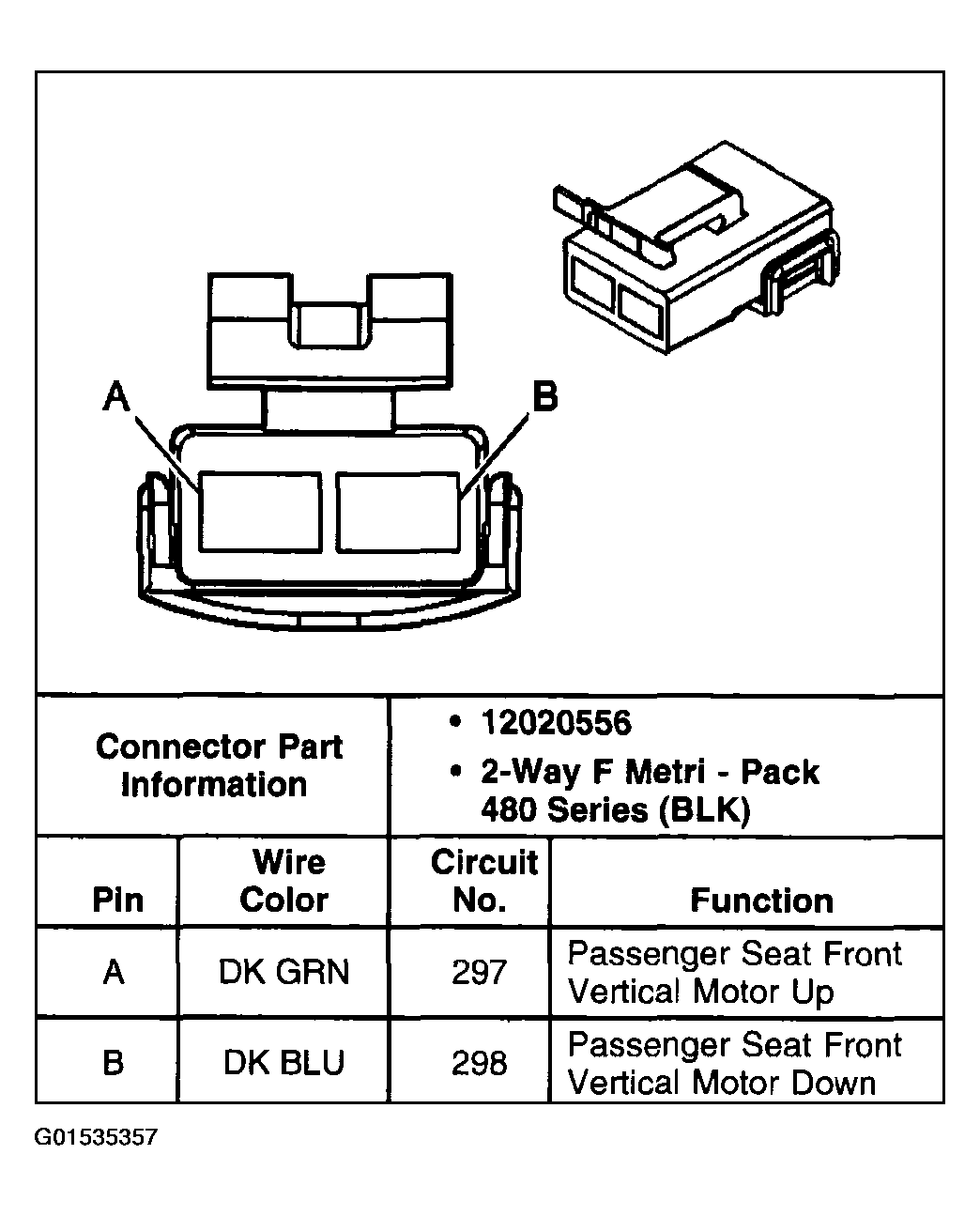

Fig 28: Power Seat Systems Connector End View - Seat Front Vertical Motor - Front Passenger
G01535357Courtesy of GENERAL MOTORS CORP.

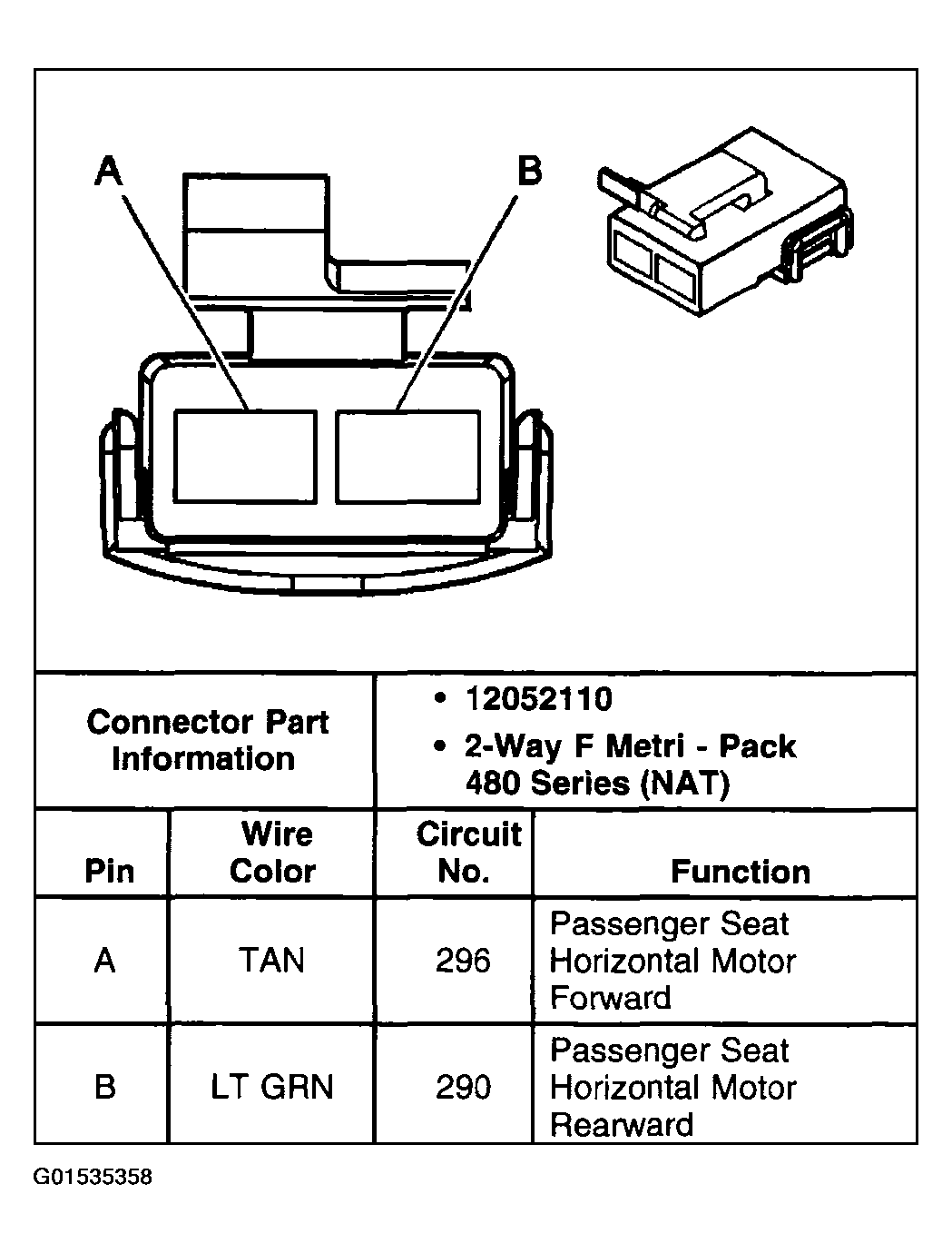

Fig 29: Power Seat Systems Connector End View - Seat Horizontal Motor - Front Passenger
G01535358Courtesy of GENERAL MOTORS CORP.

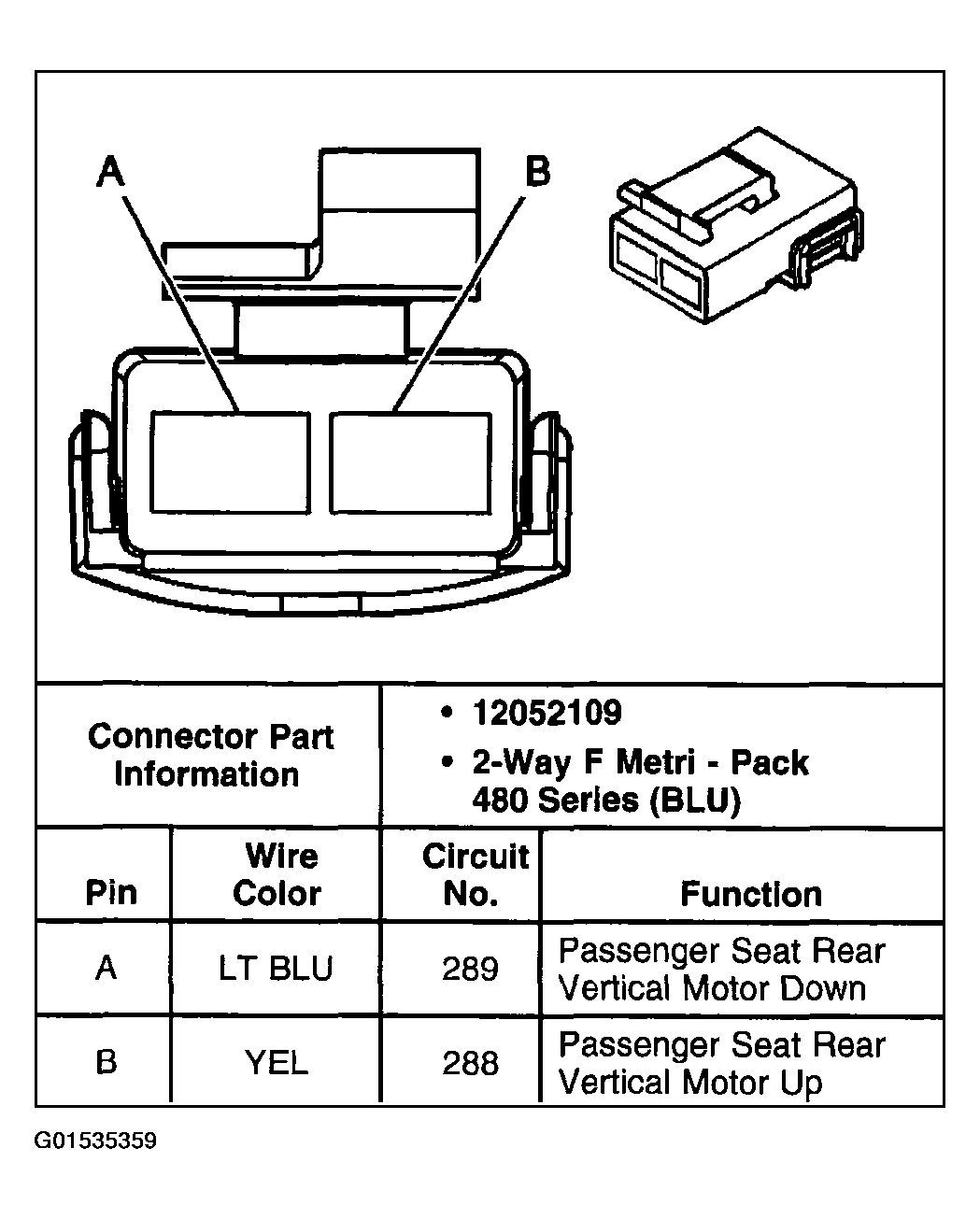

Fig 30: Power Seat Systems Connector End View - Seat Rear Vertical Motor - Front Passenger
G01535359Courtesy of GENERAL MOTORS CORP.

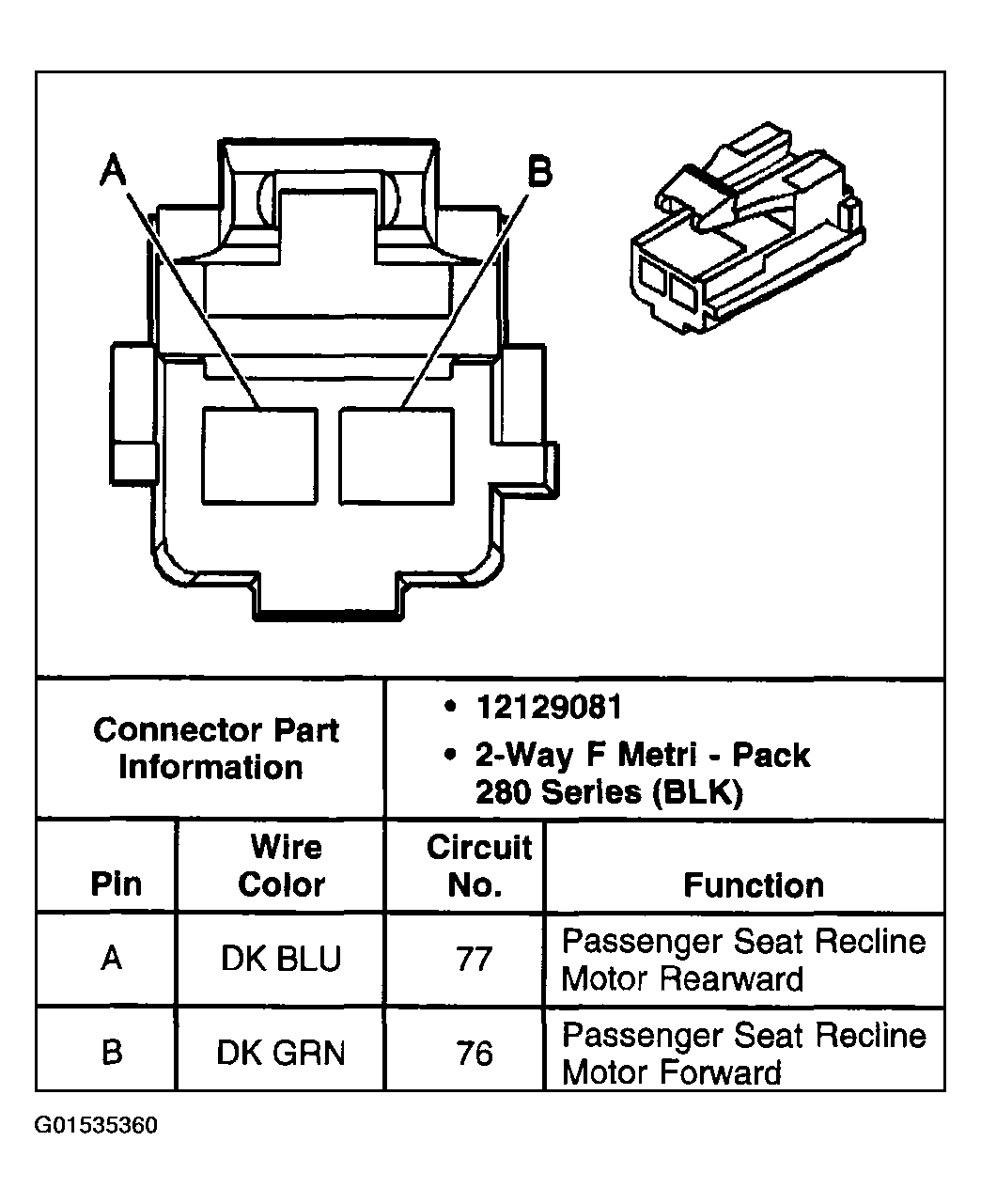

Fig 31: Power Seat Systems Connector End View - Seat Recline Motor - Front Passenger
G01535360Courtesy of GENERAL MOTORS CORP.

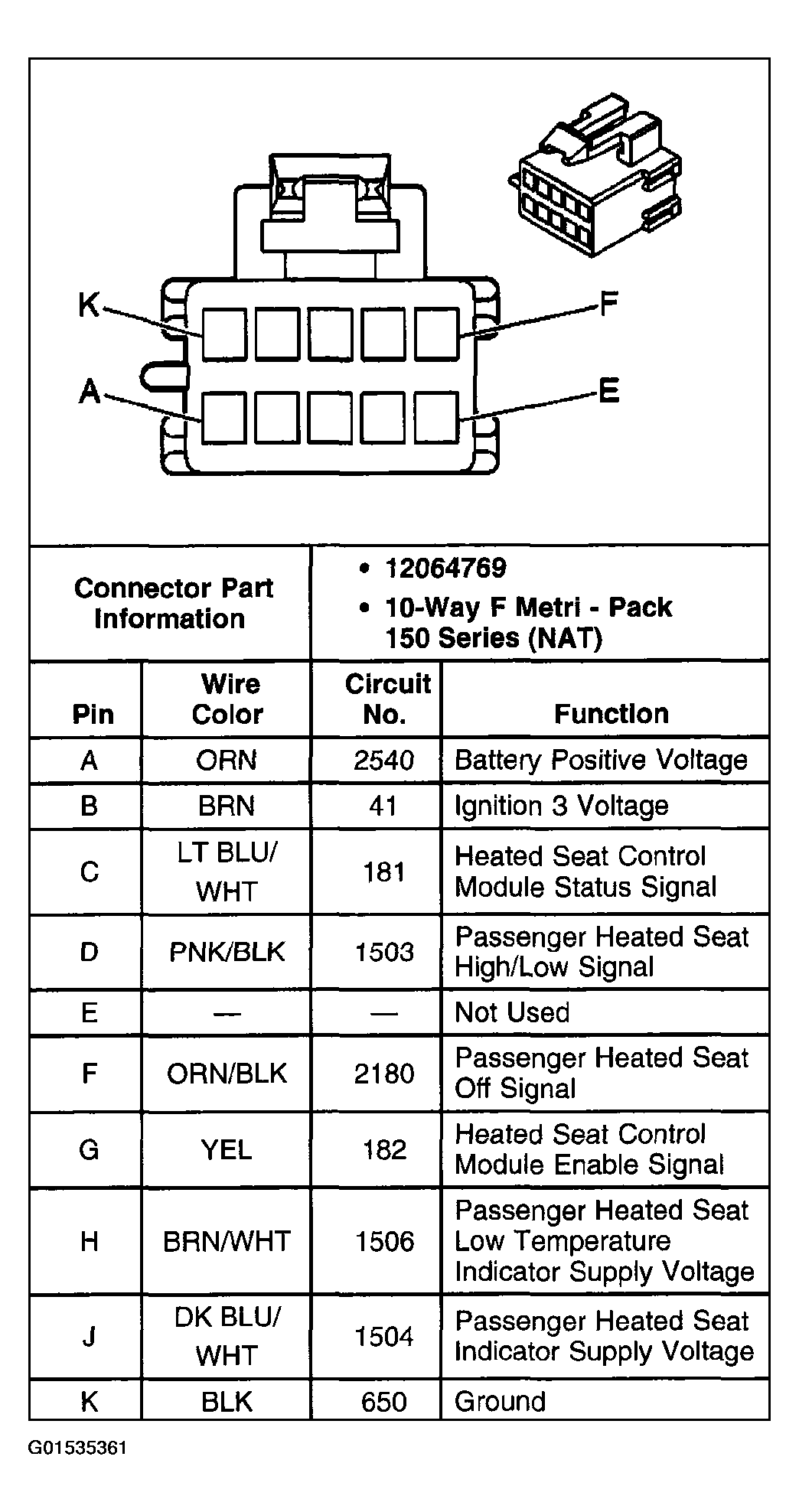

Fig 32: Power Seat Systems Connector End View - Heated Seat Module - Front Passenger C1 (AG2, A81, KA1)
G01535361Courtesy of GENERAL MOTORS CORP.

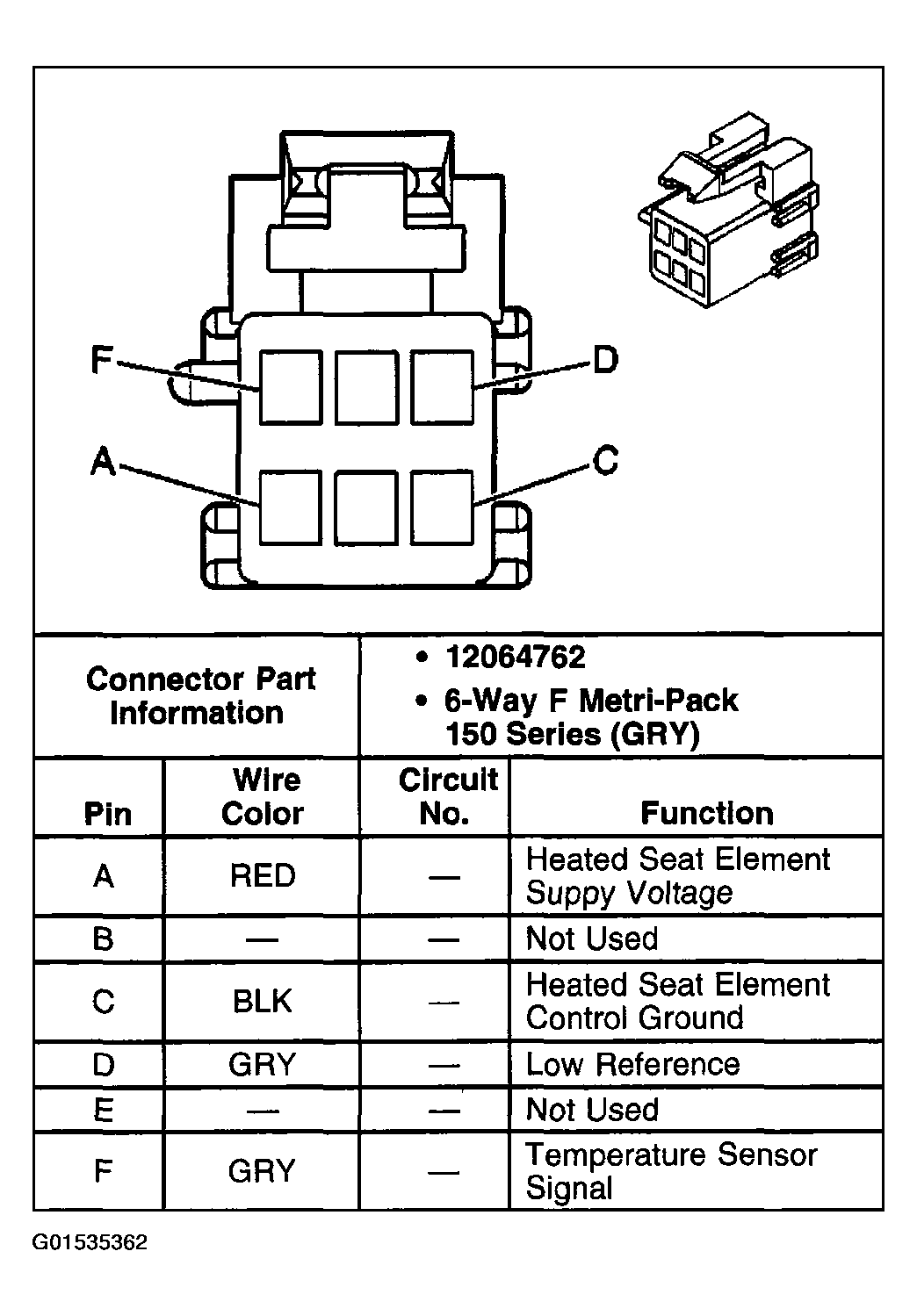

Fig 33: Power Seat Systems Connector End View - Heated Seat Module - Front Passenger C2 (w/AG2, A81, KA1)
G01535362Courtesy of GENERAL MOTORS CORP.

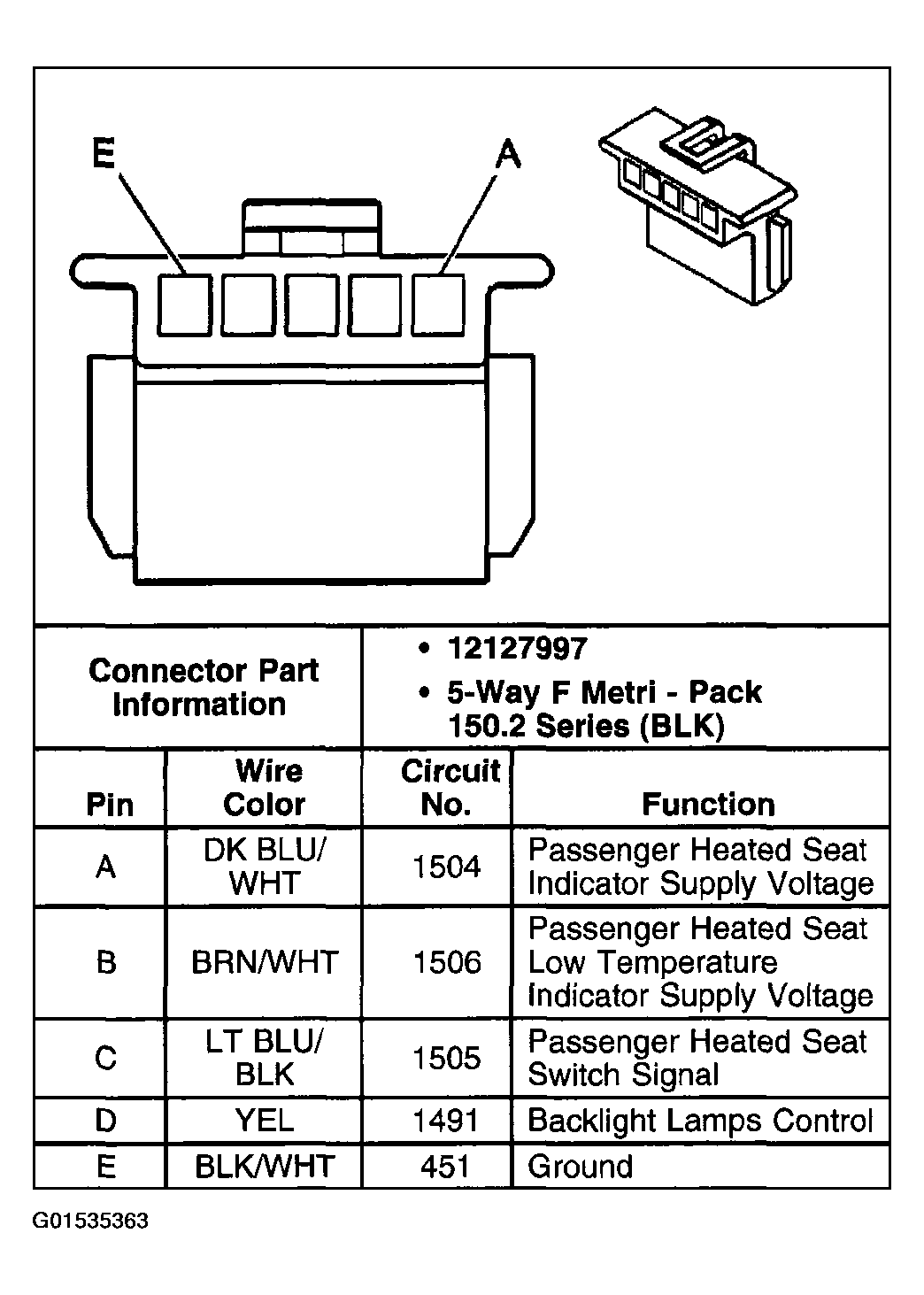

Fig 34: Power Seat Systems Connector End View - Heated Seat Switch - Front Passenger
G01535363Courtesy of GENERAL MOTORS CORP.

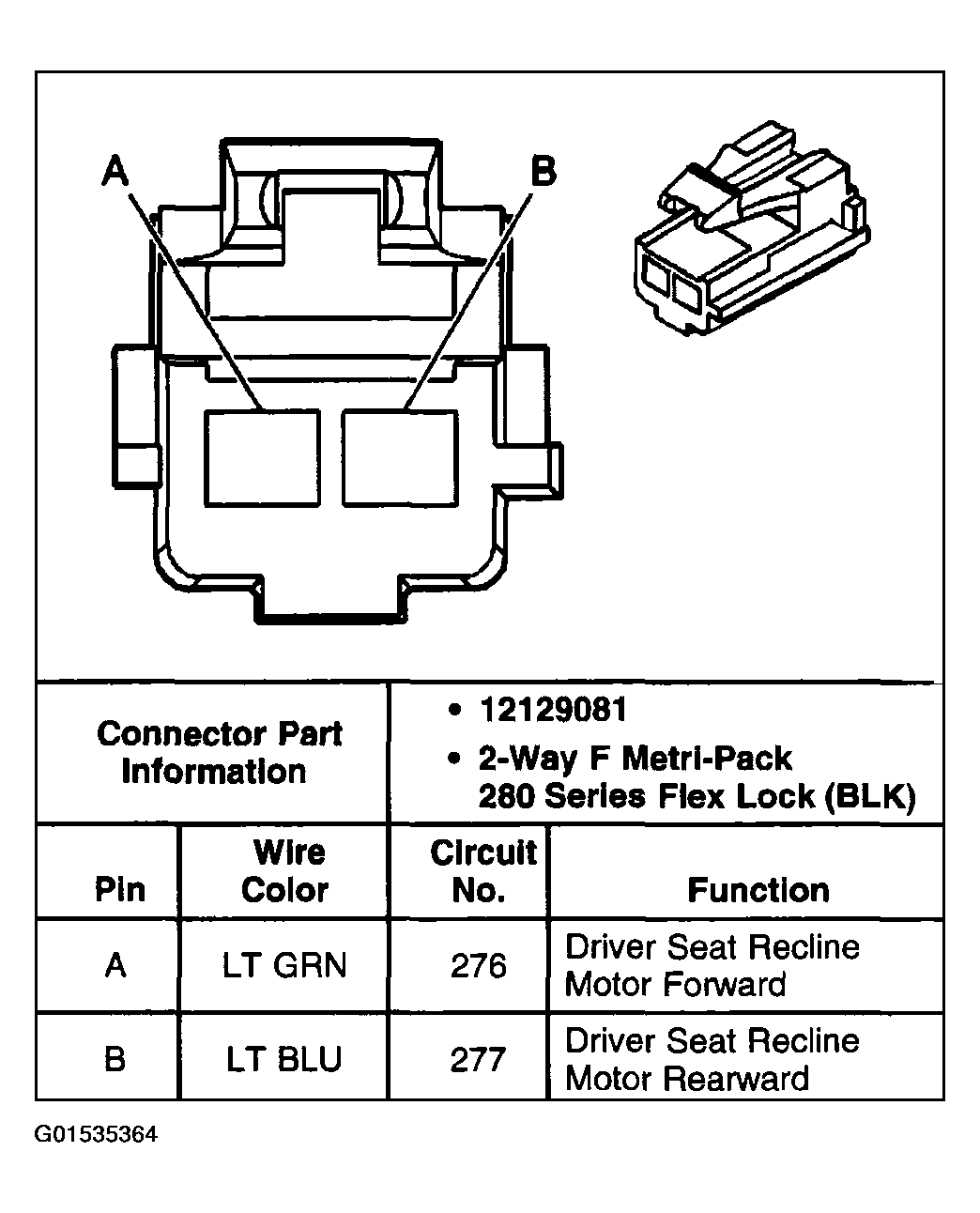

Fig 35: Power Seat Systems Connector End View - Recline Motor - Driver (AG1)
G01535364Courtesy of GENERAL MOTORS CORP.

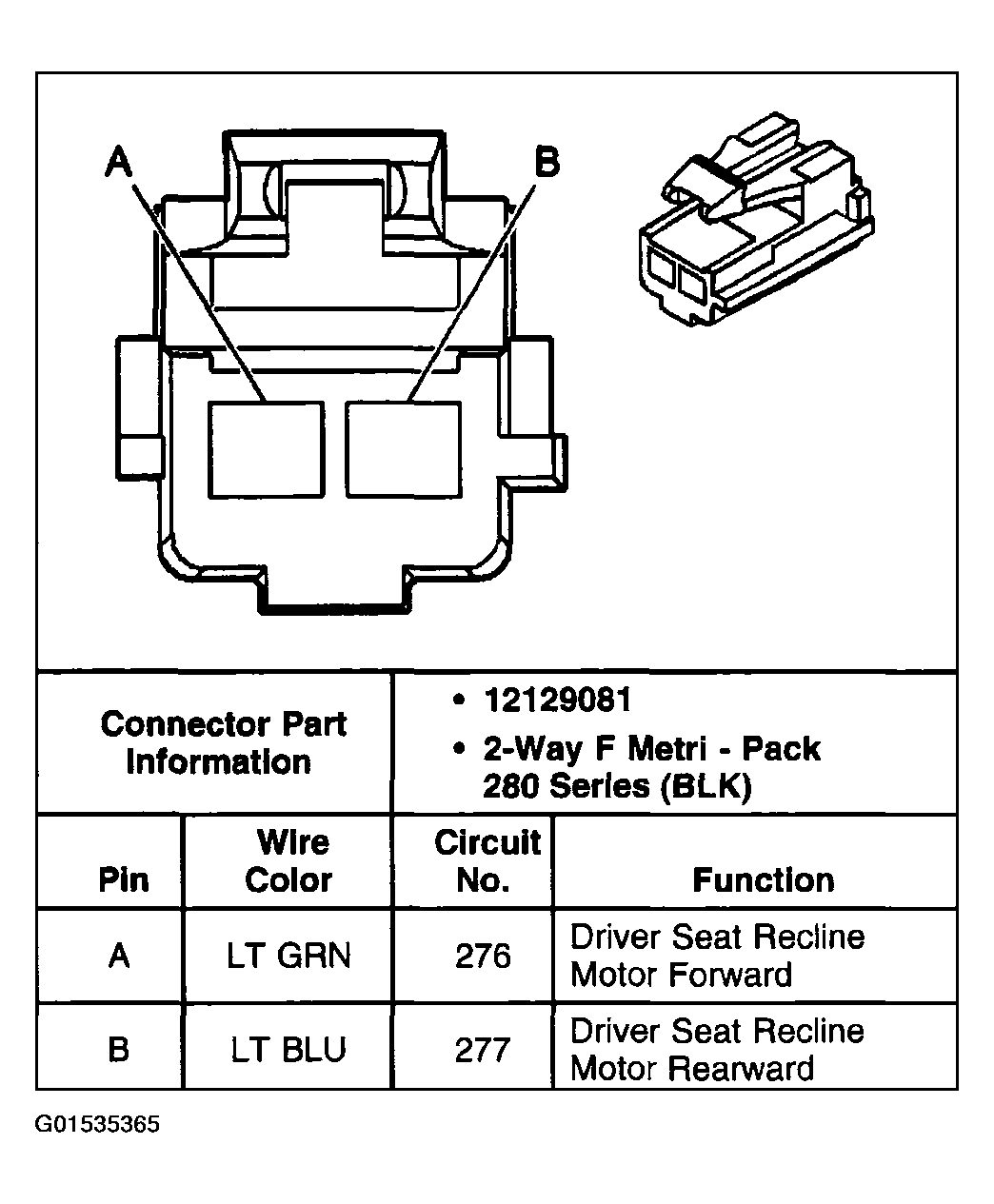

Fig 36: Power Seat Systems Connector End View - Seat Recline Motor - Driver
G01535365Courtesy of GENERAL MOTORS CORP.

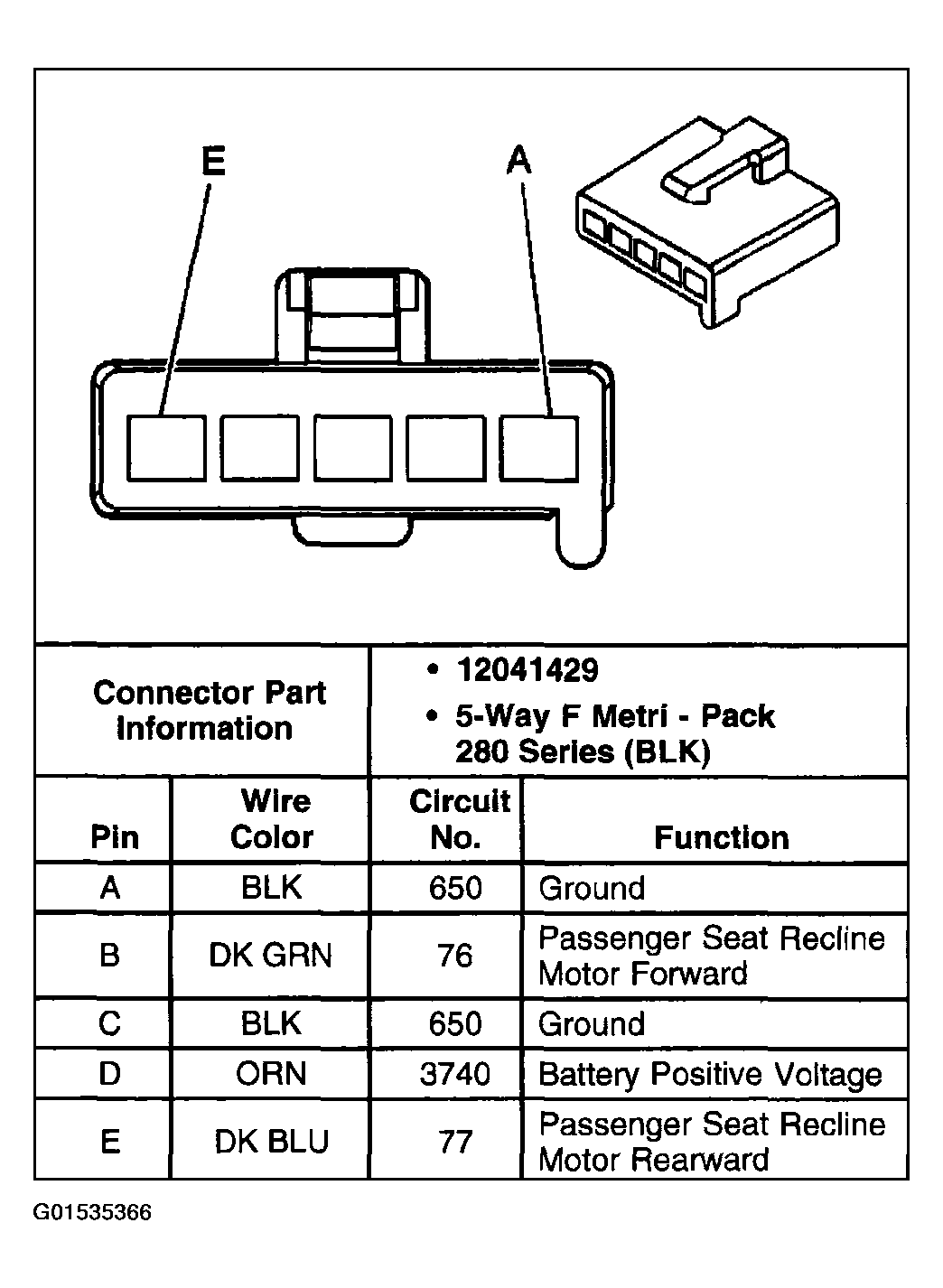

Fig 37: Power Seat Systems Connector End View - Seat Recline Switch - Front Passenger
G01535366Courtesy of GENERAL MOTORS CORP.

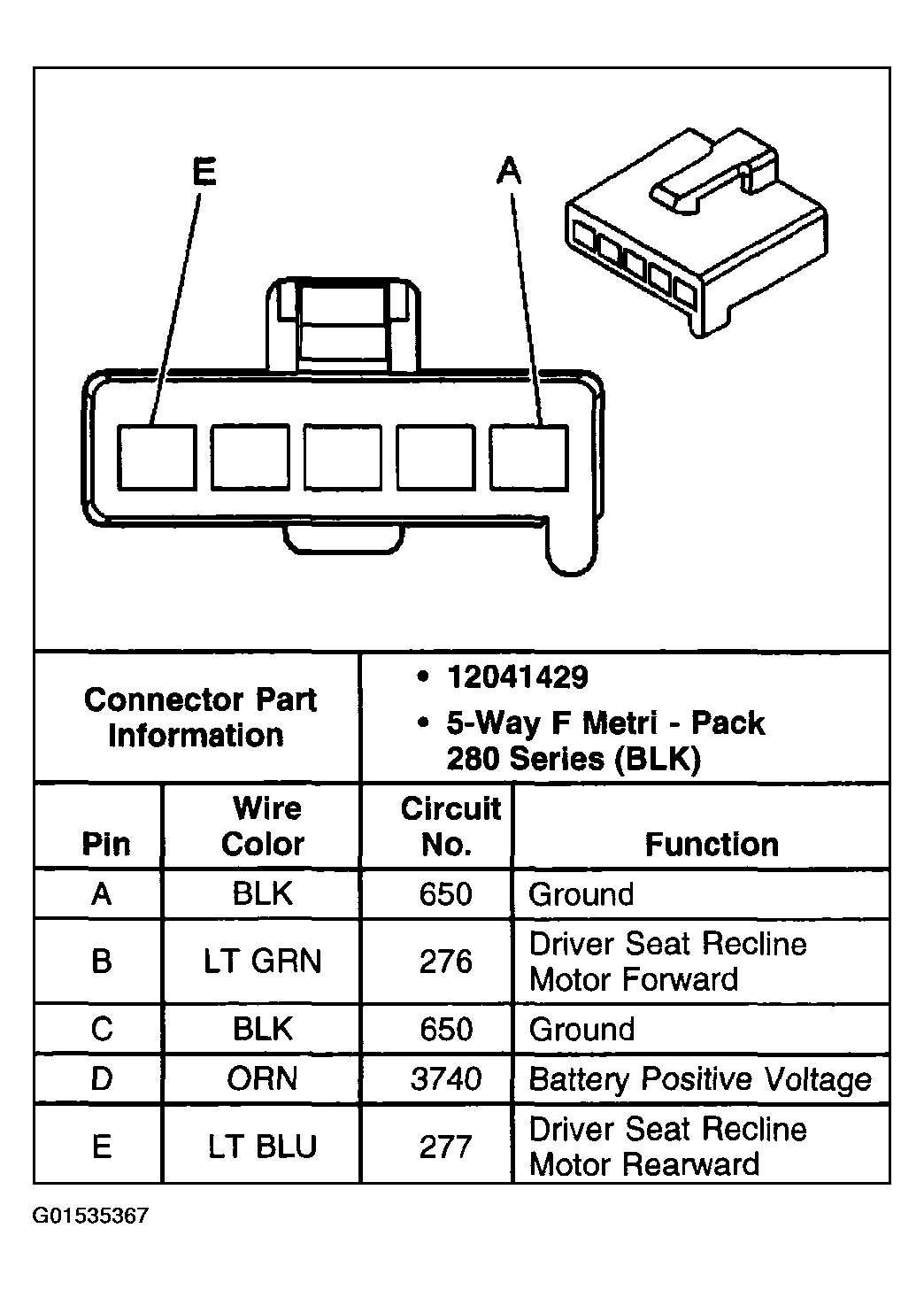

Fig 38: Power Seat Systems Connector End View - Seat Recline Switch - Driver
G01535367Courtesy of GENERAL MOTORS CORP.
