Removal Procedure

  1. Open the seat belt guide loop cover.
  2. Remove the guide loop nut.

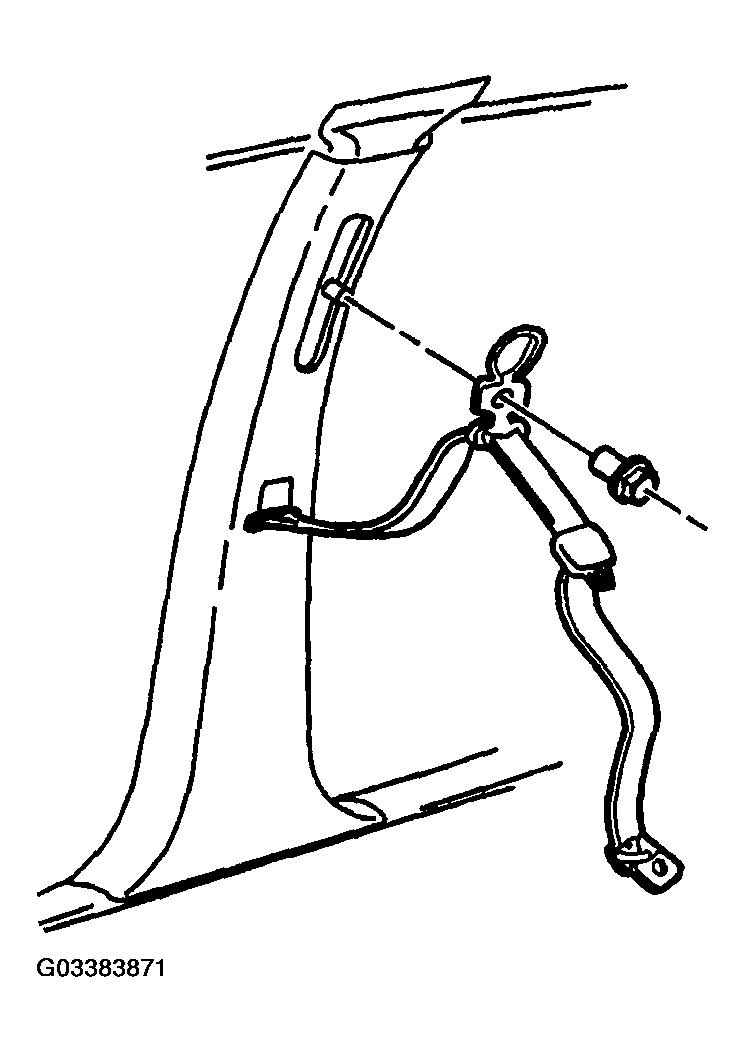

    Fig 1: Removing Guide Loop Nut
    G03383871Courtesy of GENERAL MOTORS CORP.
  3. Remove the guide loop from the guide adjuster bracket.
  4. Remove the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  in Interior Trim.
  5. Remove the intermediate guide bolts.

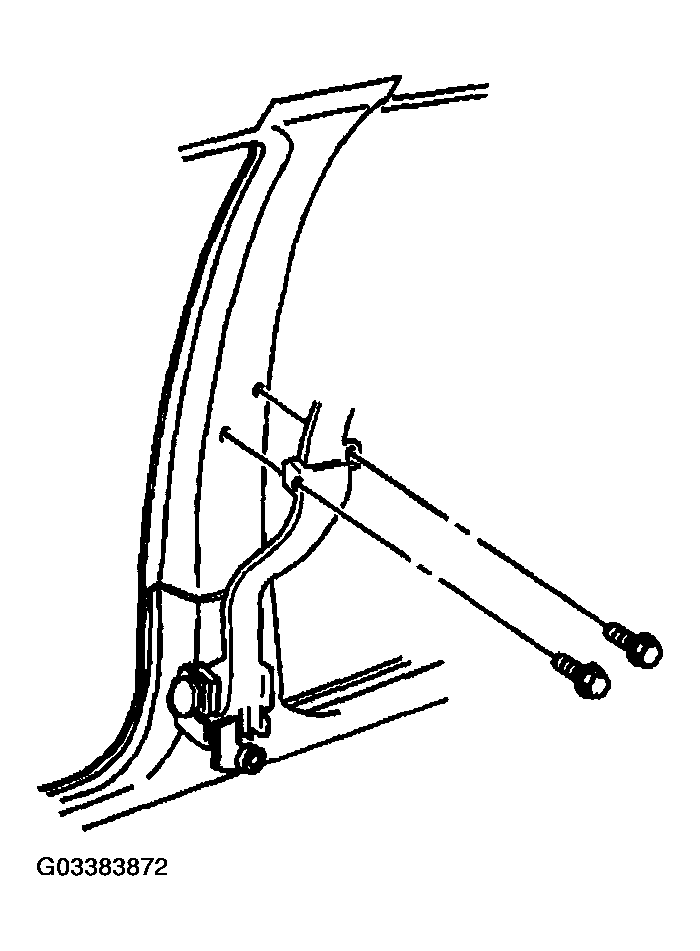

    Fig 2: Removing Intermediate Guide Bolts
    G03383872Courtesy of GENERAL MOTORS CORP.
  6. Remove the anchor plate nut from the seat stud.

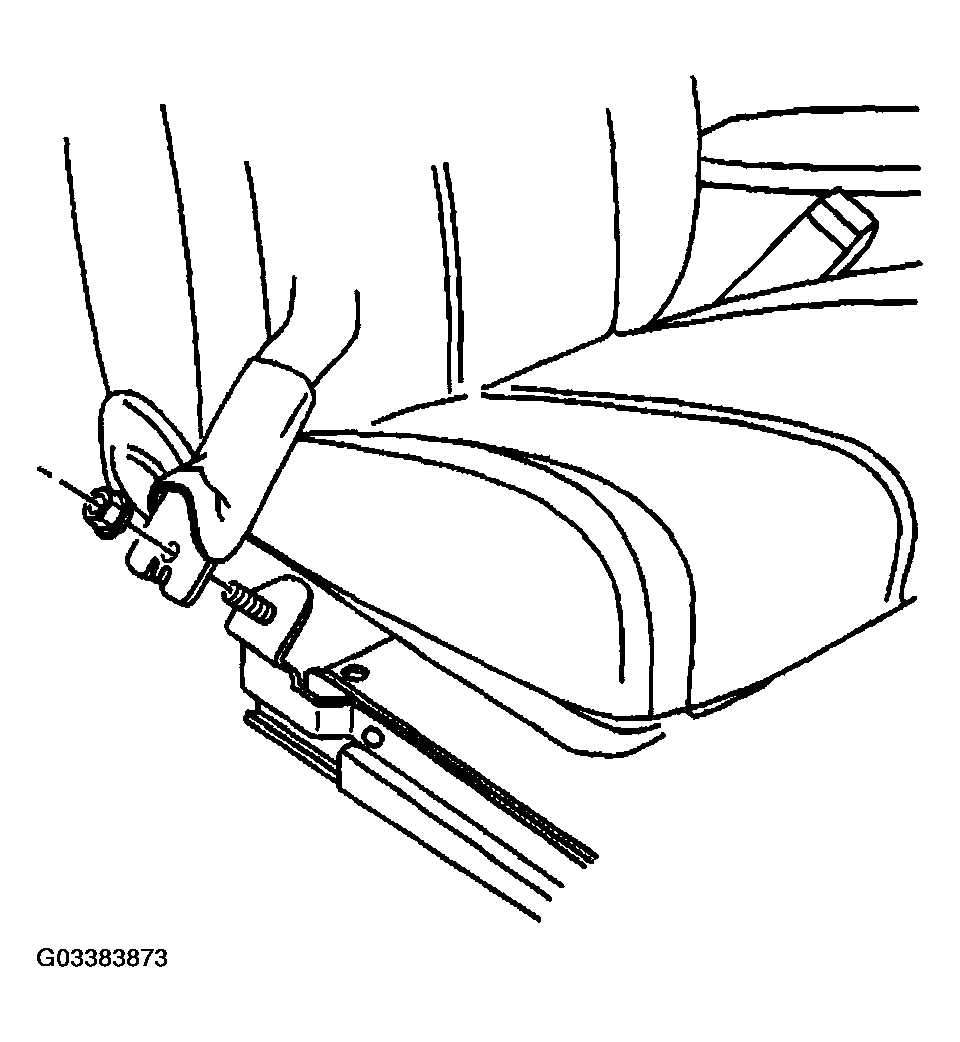

    Fig 3: Removing Anchor Plate Nut From Seat Stud
    G03383873Courtesy of GENERAL MOTORS CORP.
  7. Remove the anchor plate from the seat stud.
  8. Remove the retractor side seat belt bolt.
  9. Remove the retractor side seat belt from the lower center pillar.

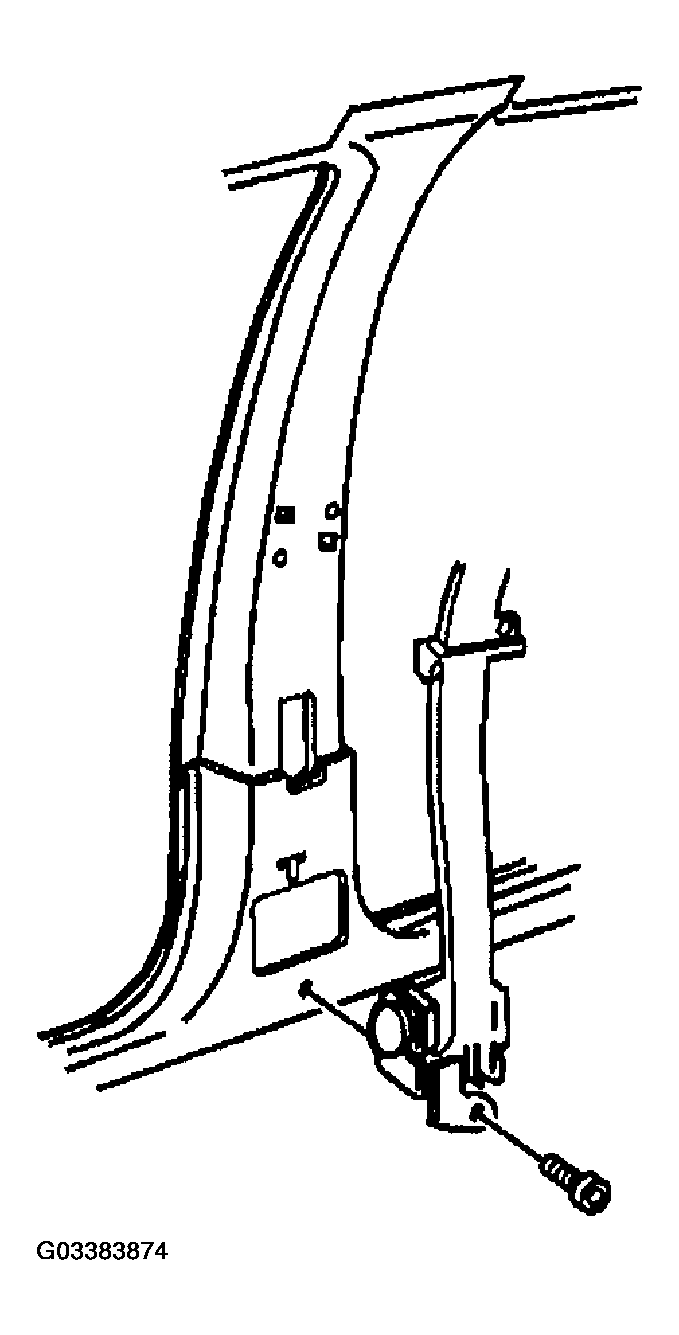

    Fig 4: Removing Retractor Side Seat Belt Bolt
    G03383874Courtesy of GENERAL MOTORS CORP.
