Identifying Seat Belt Switch Connector End View - Driver
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Identifying Seat Belt Switch Connector End View - Driver

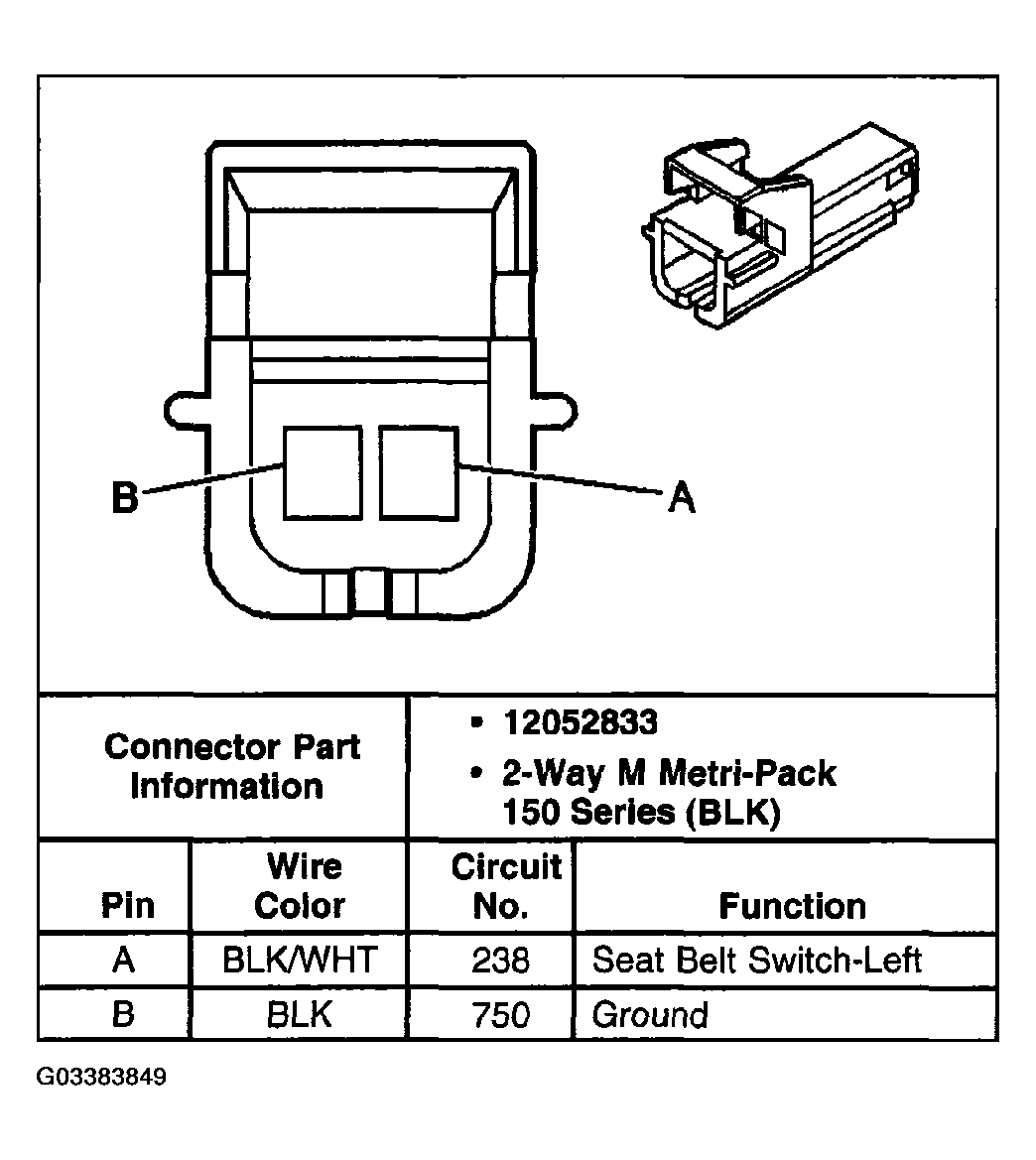

Fig 1: Identifying Seat Belt Switch Connector End View - Driver
Courtesy of GENERAL MOTORS CORP.
