Removal Procedure

  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Disconnect the cruise release switch electrical connector.
  3. Remove the cruise release switch from the cruise release switch retainer on the brake pedal bracket.

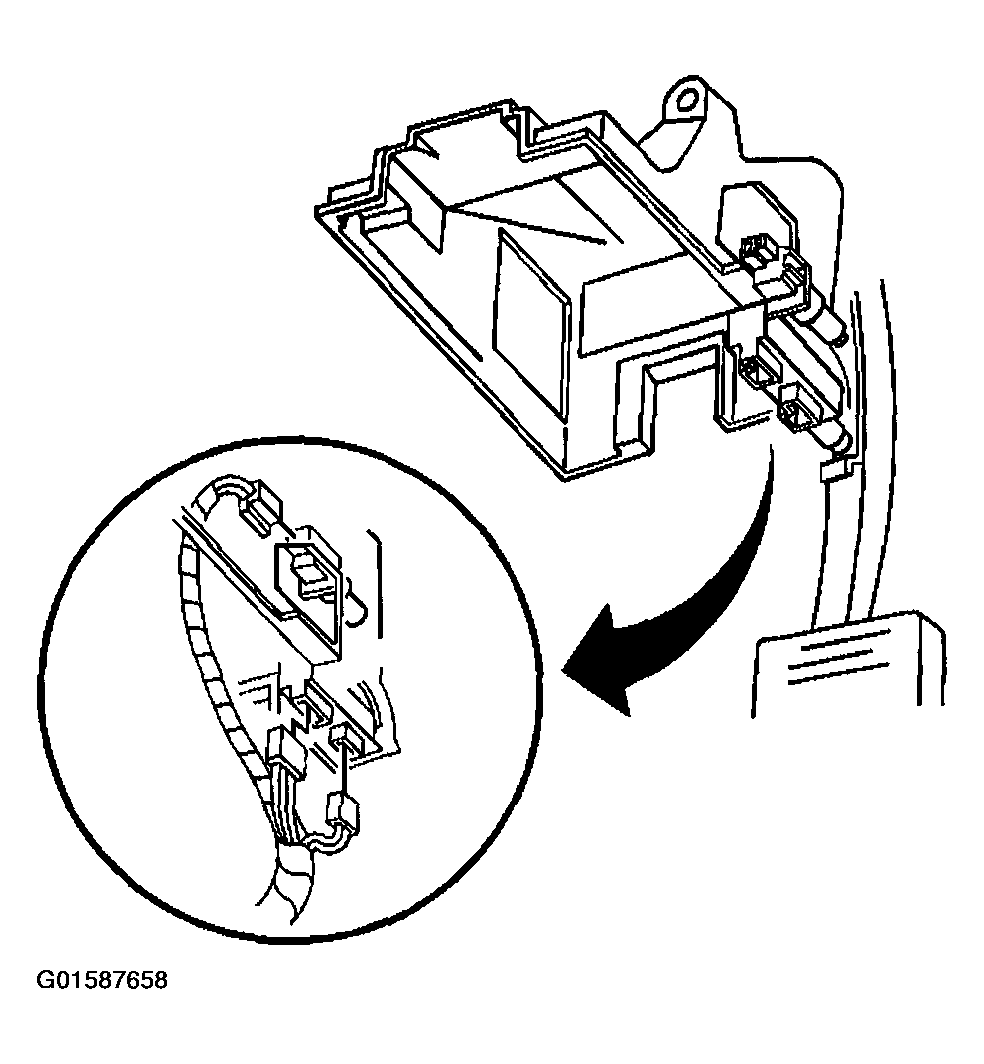

    4. Fig 1: Disconnecting Cruise Release Switch Electrical Connector
    G01587658Courtesy of GENERAL MOTORS CORP.
