Scan Tool Output Controls

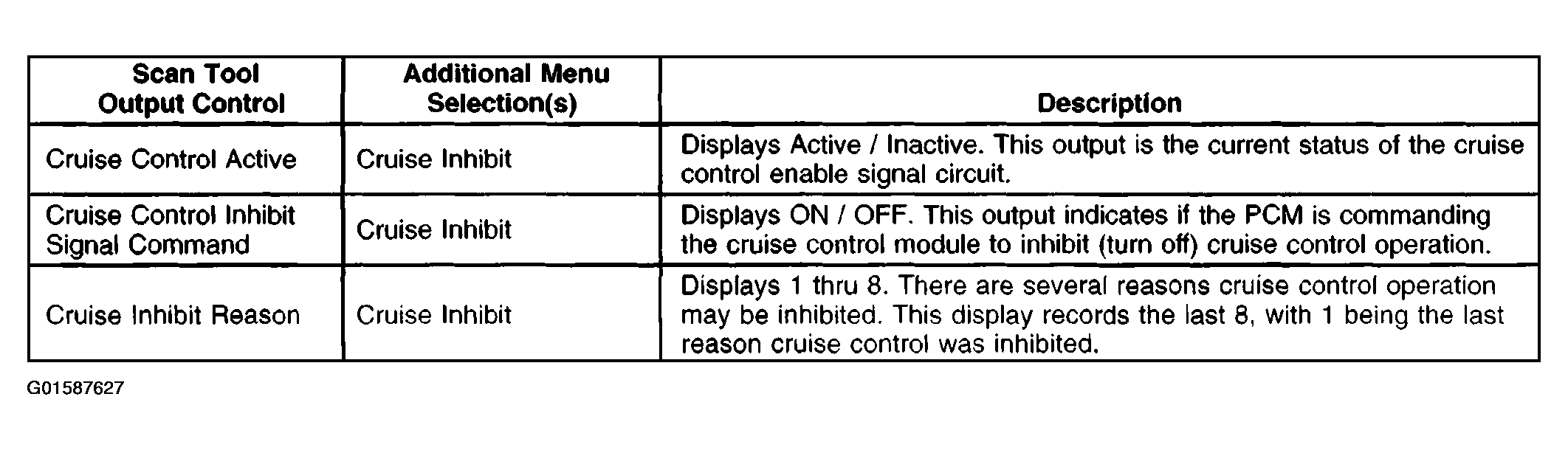

Fig 1: Scan Tool Output Controls - Powertrain Control Module (PCM)
G01587627Courtesy of GENERAL MOTORS CORP.
