Installation Procedure

Install the strut to the vehicle. Refer to STRUT ASSEMBLY REPLACEMENT .
Tighten:

Tighten the strut-to-knuckle bolts as far as to allow movement of the knuckle
Install the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Adjust the camber (1).
Tighten:

Tighten the strut-to-knuckle bolts to 122 N.m (90 ft lbs).

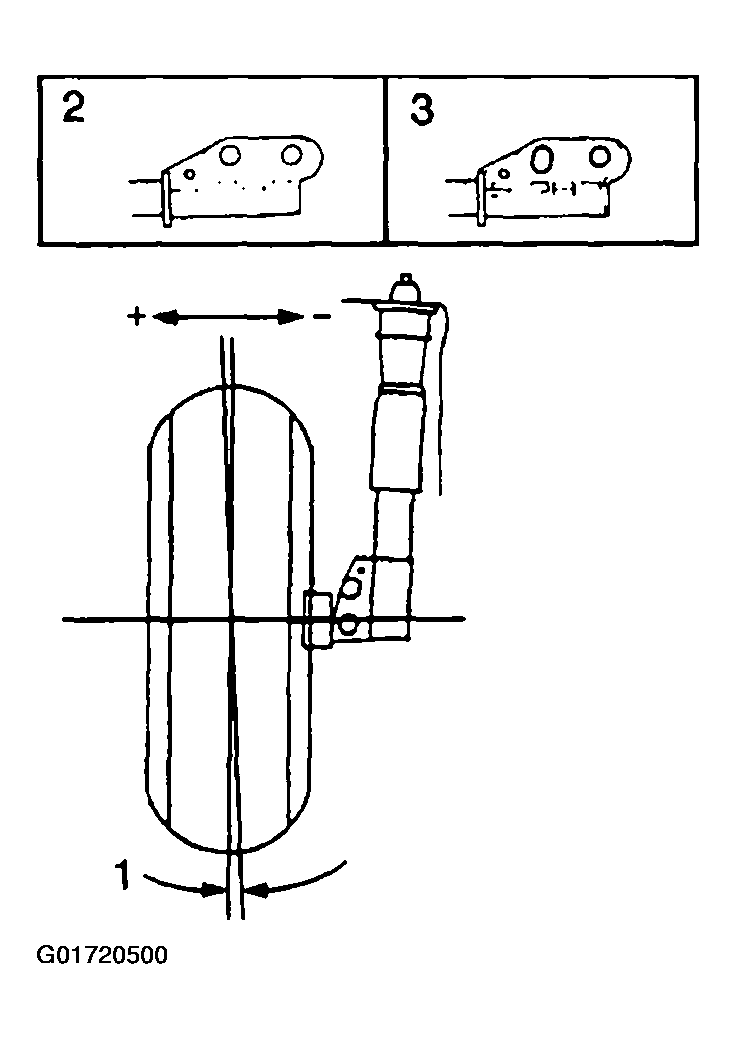

Fig 1: Adjusting Rear Camber
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
