Installation Procedure

  1. Install the belt retractor into the T-slot in the center pillar.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat belt retractor bolt. Tighten the seat belt retractor bolt to 68 N.m (50 ft lbs).

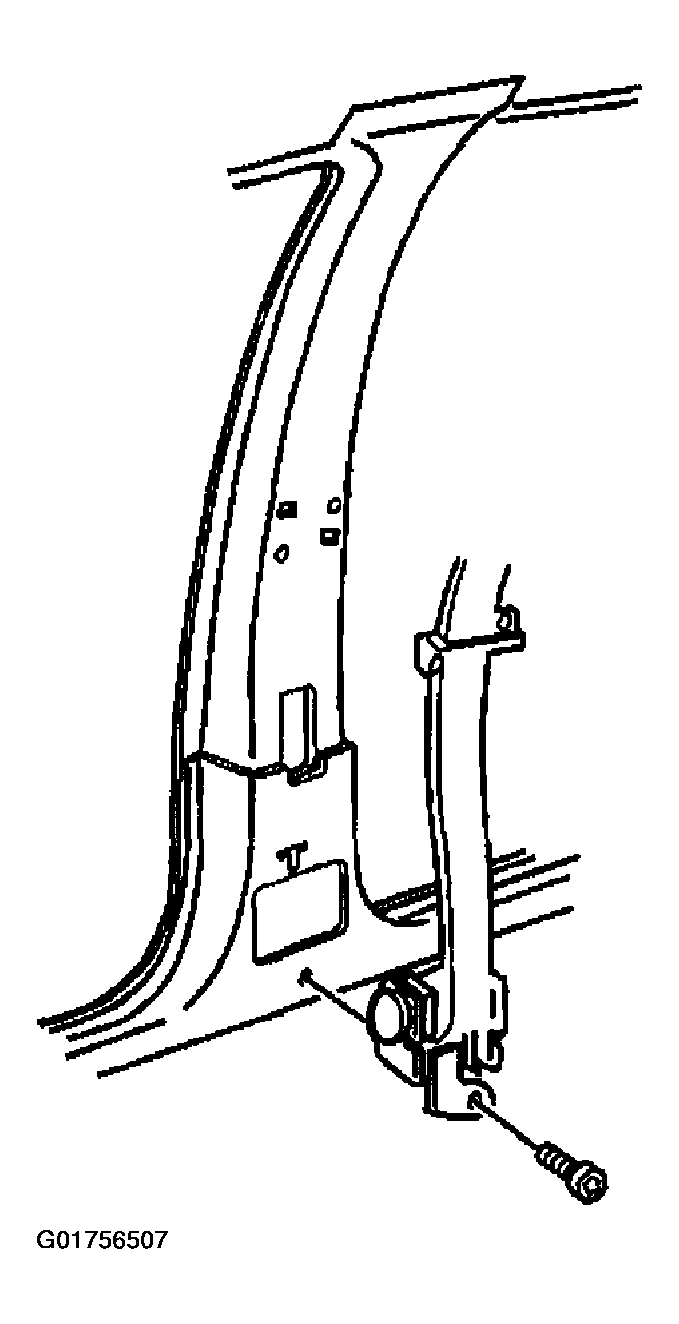

    Fig 1: Identifying Lower Center Pillar Seat Belt Retractor
    G01756507Courtesy of GENERAL MOTORS CORP.
  3. Position the anchor plate to the seat stud.
  4. Install the anchor plate nut to the seat stud. Tighten the anchor plate nut to 42 N.m (31 ft lbs).

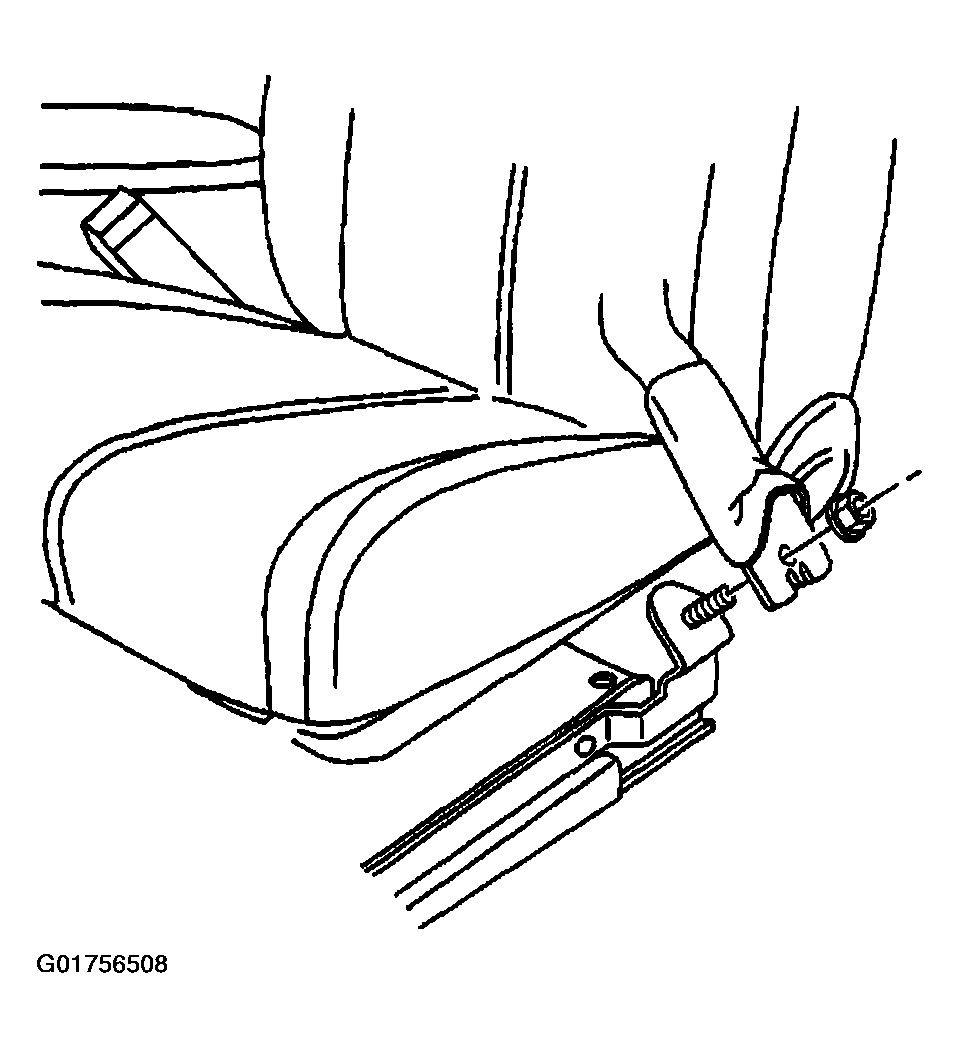

    Fig 2: Identifying Seat Stud Anchor Plate Nut
    G01756508Courtesy of GENERAL MOTORS CORP.
  5. Install the intermediate guide bolts. Tighten the intermediate guide bolts to 10 N.m (89 in lbs).
    Fig 3: Identifying Intermediate Guide Bolts
    G01756509Courtesy of GENERAL MOTORS CORP.
  6. Install the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
  7. Position the guide loop to the guide adjuster bracket.
  8. Install the guide loop nut. Tighten the guide loop nut to 42 N.m (31 ft lbs).

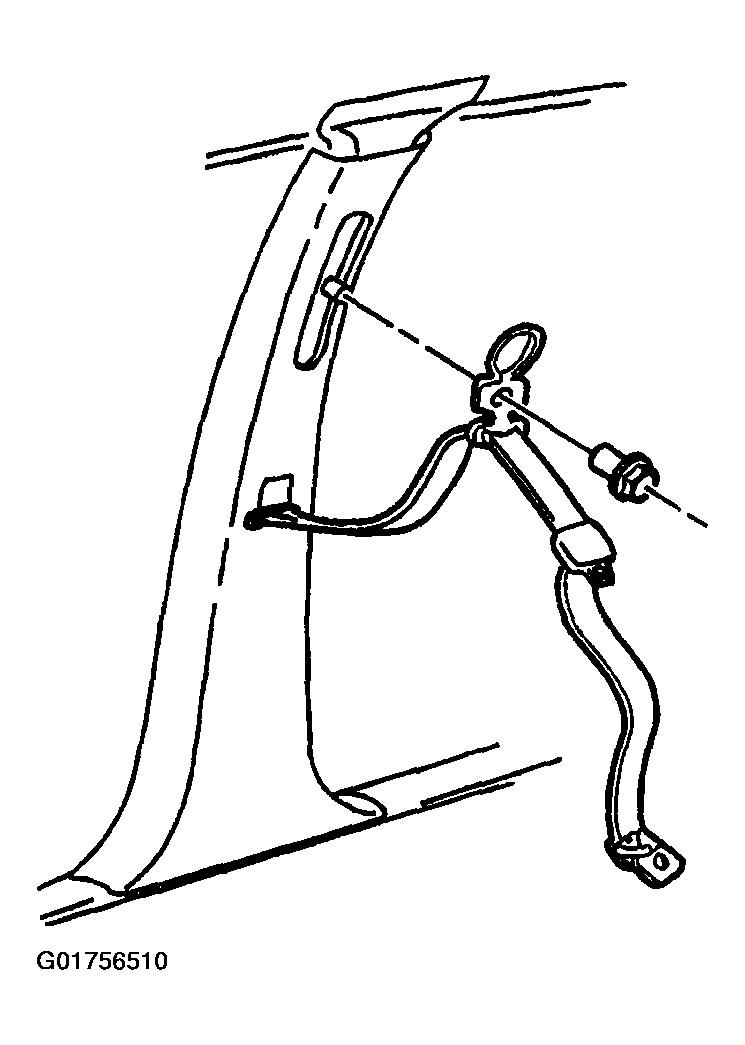

    9. Fig 4: Identifying Left Front Seat Belt Retractor Guide Loop Nut
    G01756510Courtesy of GENERAL MOTORS CORP.
  9. Close the guide loop cover.
