Automatic Level Control Suspension Component Views

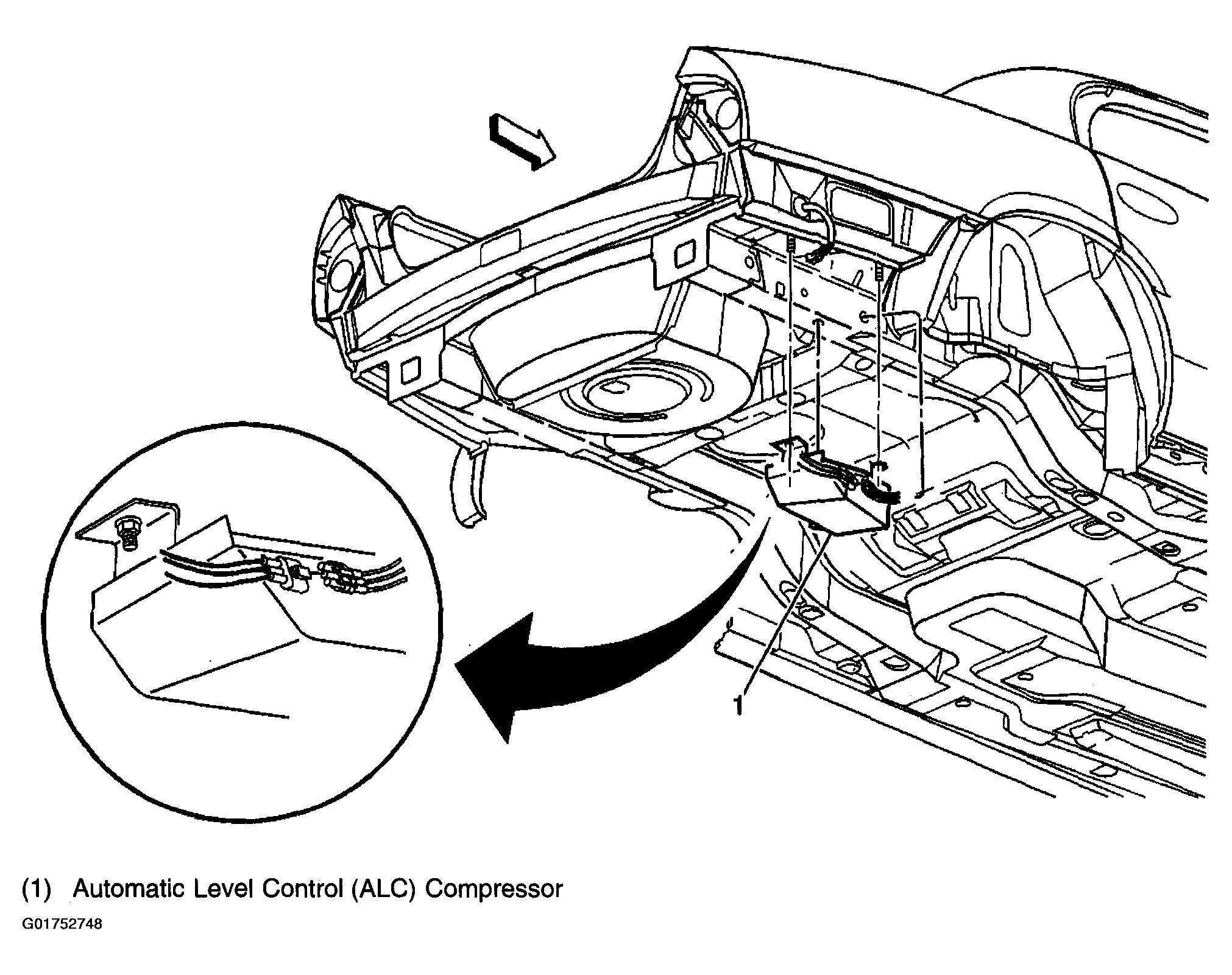

Fig 1: Locating Automatic Level Control (ALC) Compressor
Courtesy of GENERAL MOTORS CORP.

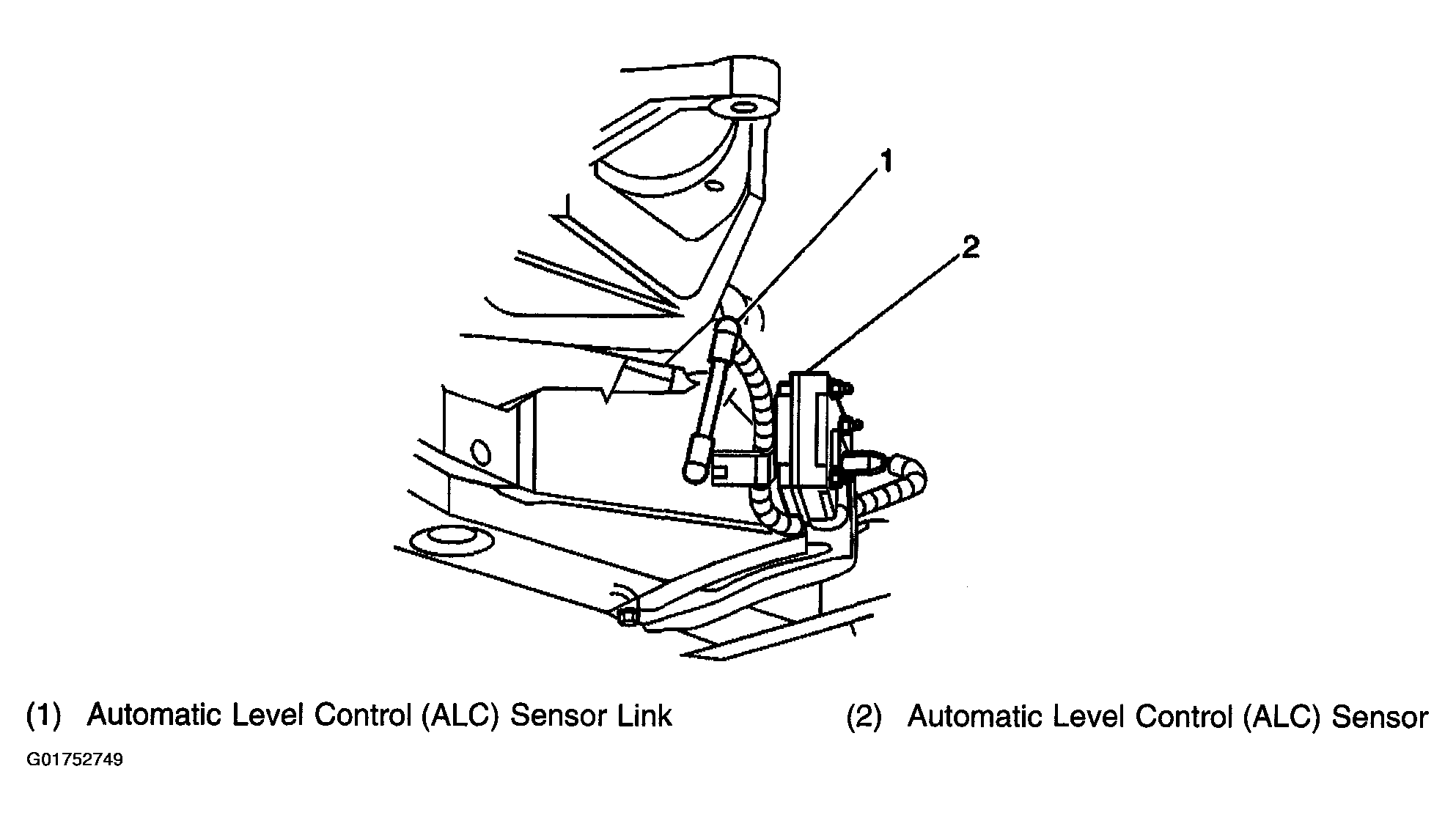

Fig 2: Locating Automatic Level Control (ALC) Sensor
Courtesy of GENERAL MOTORS CORP.
