Scan Tool Data List

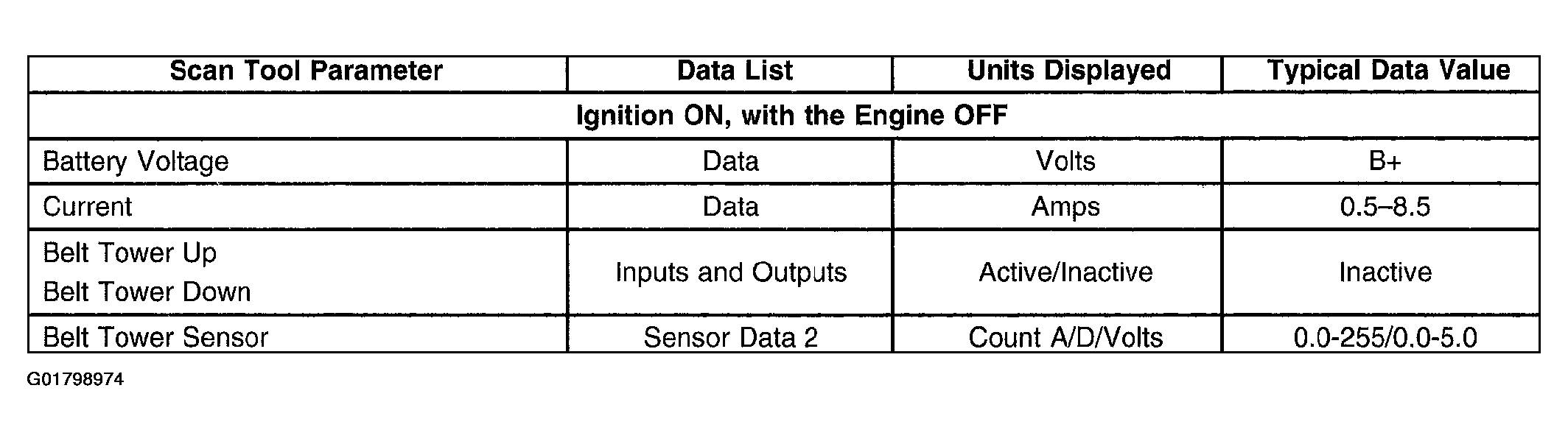

Fig 1: Memory Seat Module (MSM) Scan Tool Data List
G01798974Courtesy of GENERAL MOTORS CORP.

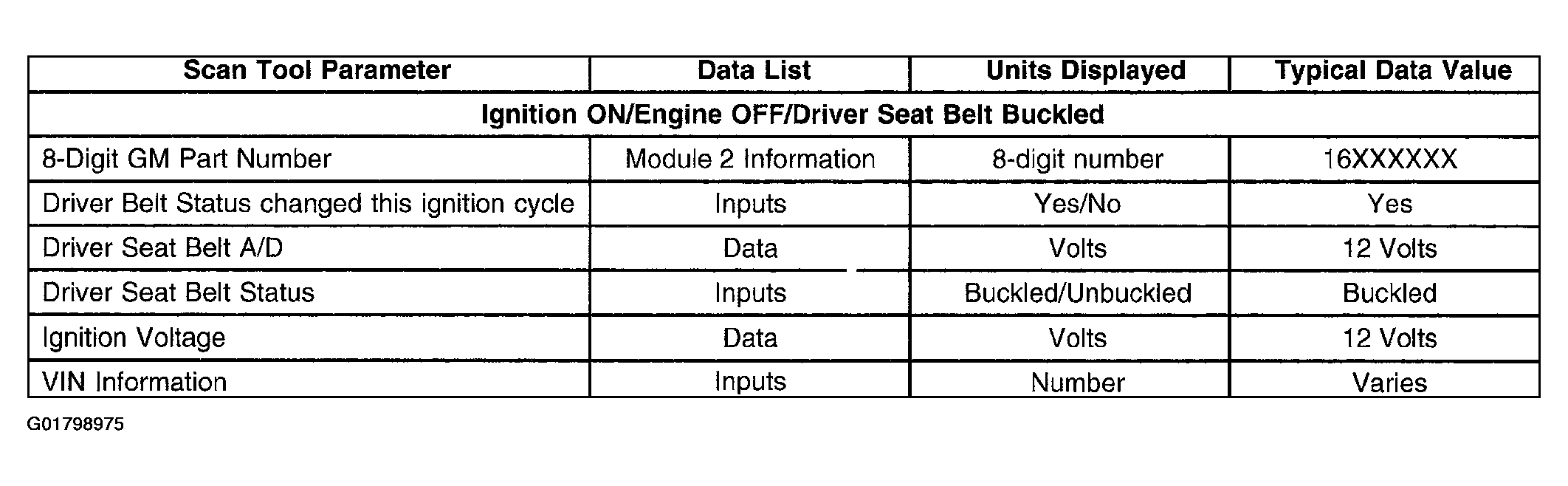

Fig 2: SIR Scan Tool Data List
G01798975Courtesy of GENERAL MOTORS CORP.
