Cellular Communication Connector End Views

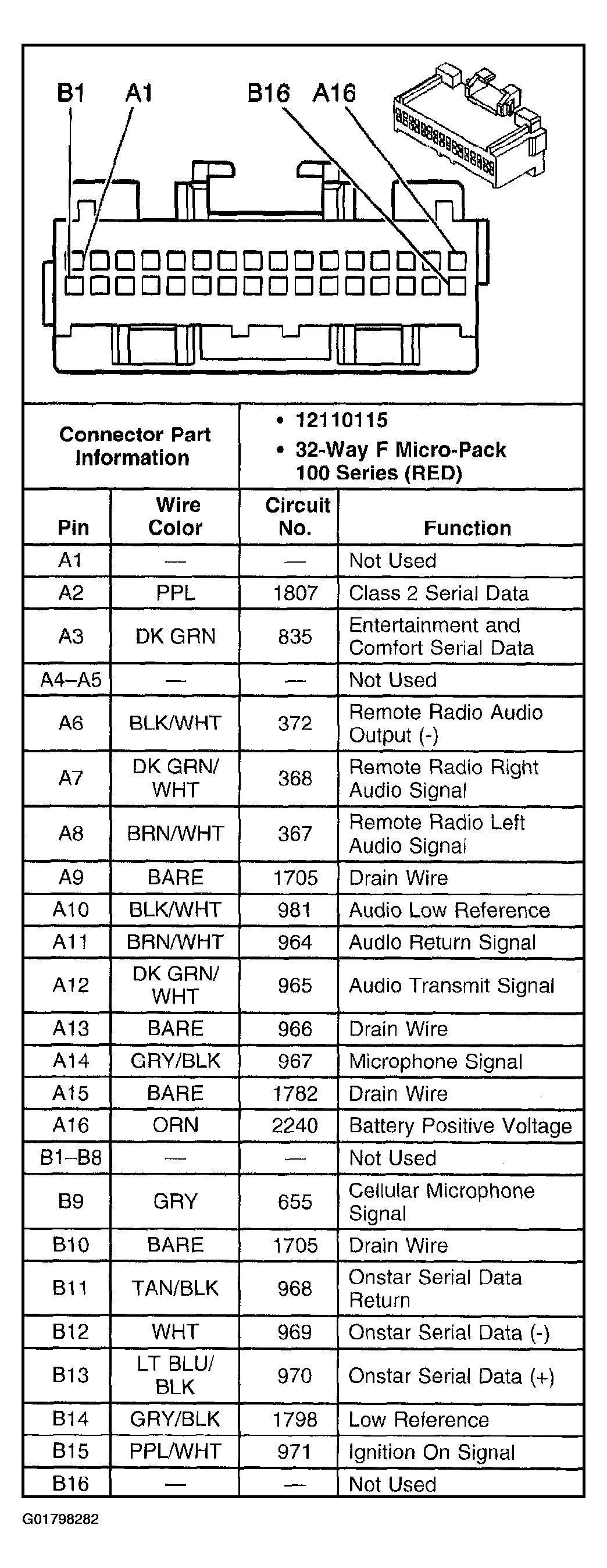

Fig 1: Identifying Vehicle Communication Unit (VCU) Harness Connector
Courtesy of GENERAL MOTORS CORP.

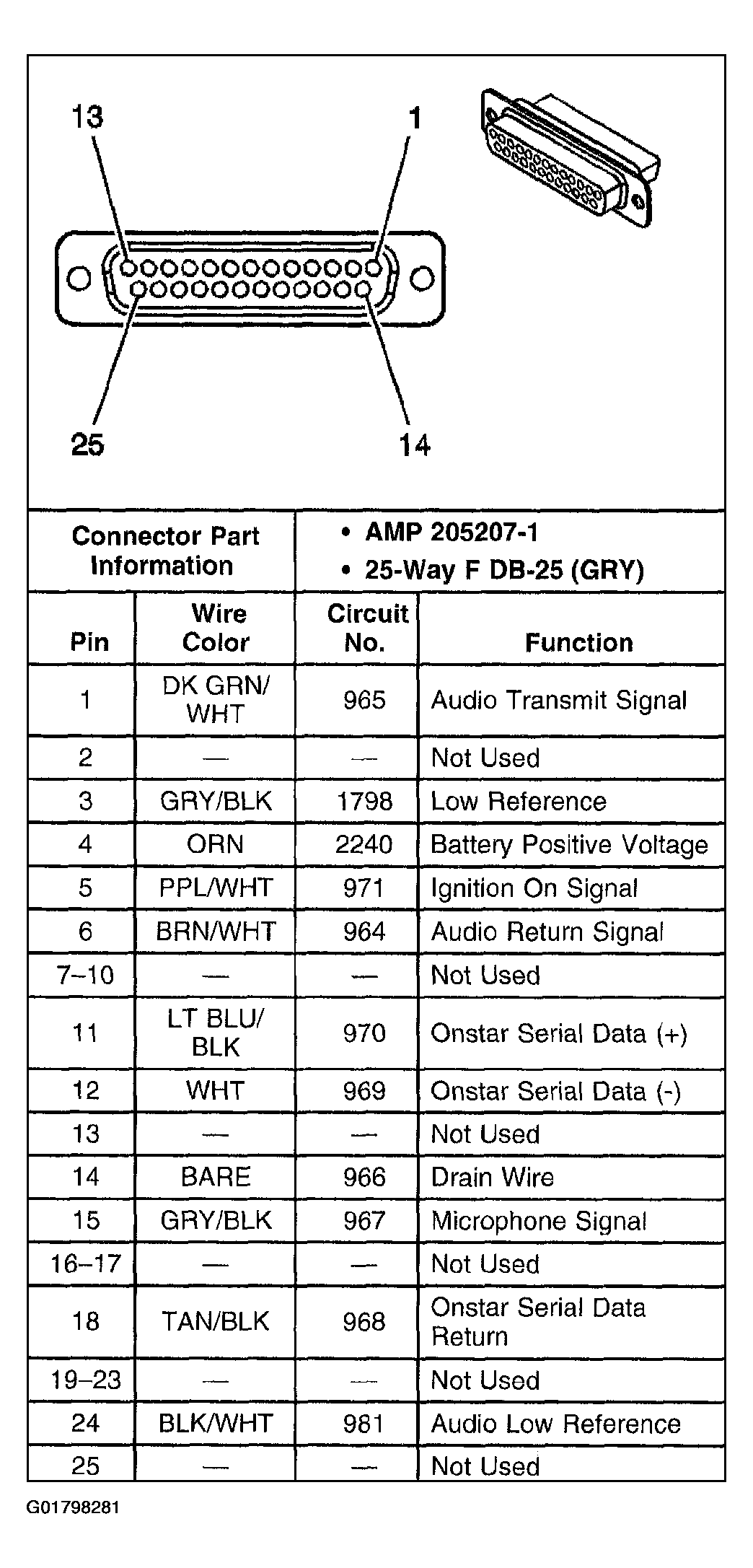

Fig 2: Identifying Vehicle Interface Unit (VIU) Harness Connector C1
Courtesy of GENERAL MOTORS CORP.

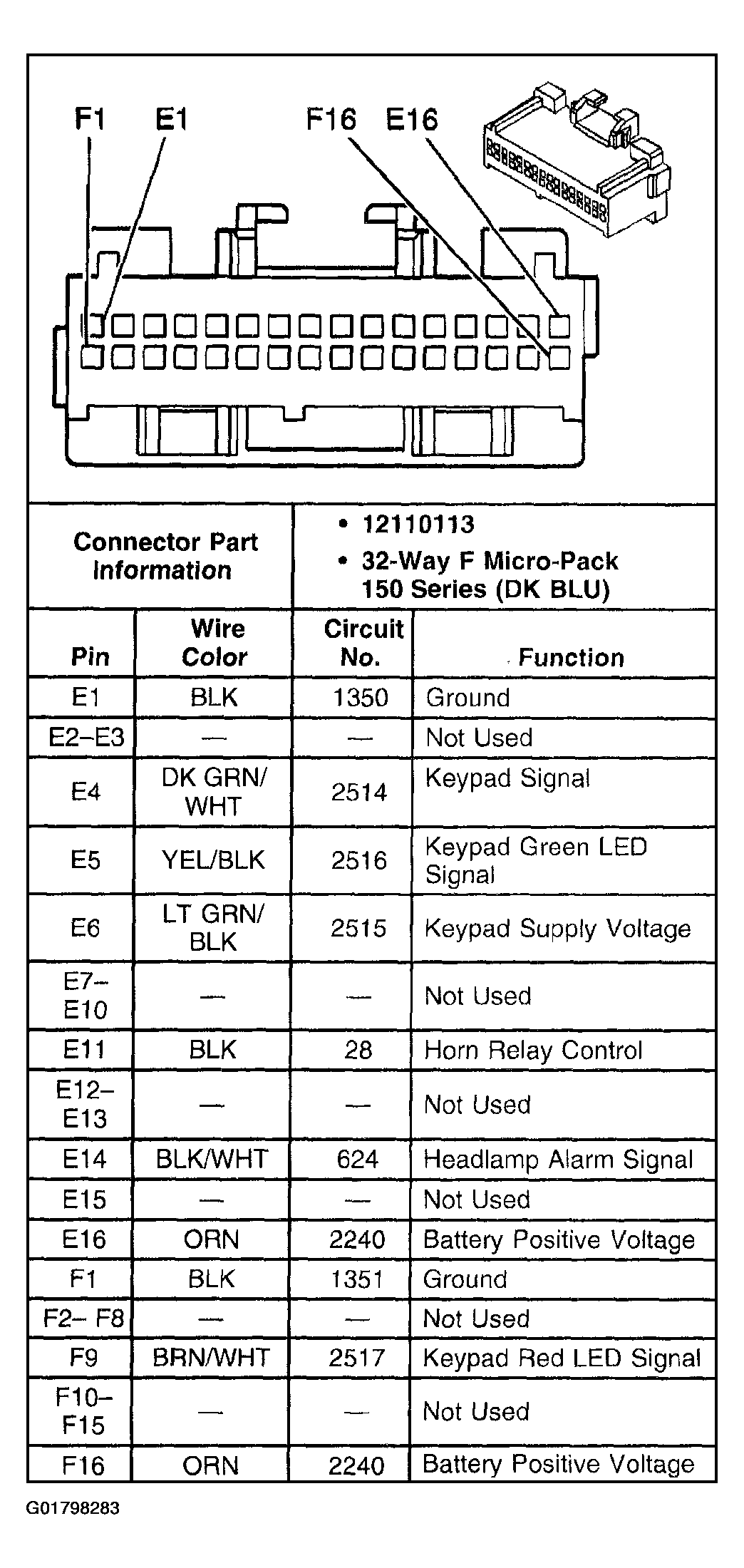

Fig 3: Identifying Vehicle Interface Unit (VIU) Harness Connector C2
Courtesy of GENERAL MOTORS CORP.
