Cellular Communication Component Views

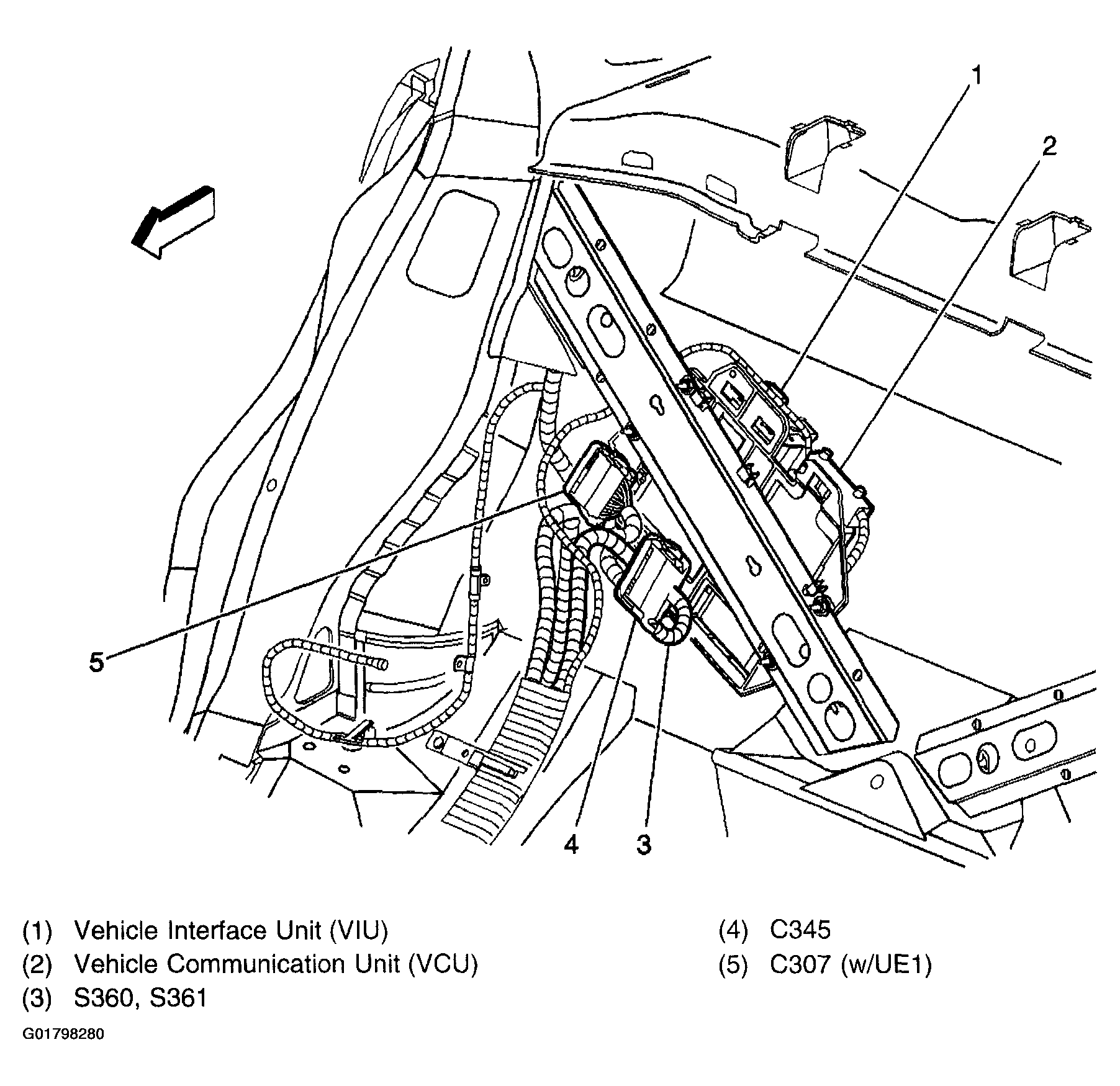

Fig 1: Locating Cellular Communication Components On Rear Compartment, Behind Rear Seat
G01798280Courtesy of GENERAL MOTORS CORP.
