Front Toe Adjustment

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the lock nuts on the tie rod.

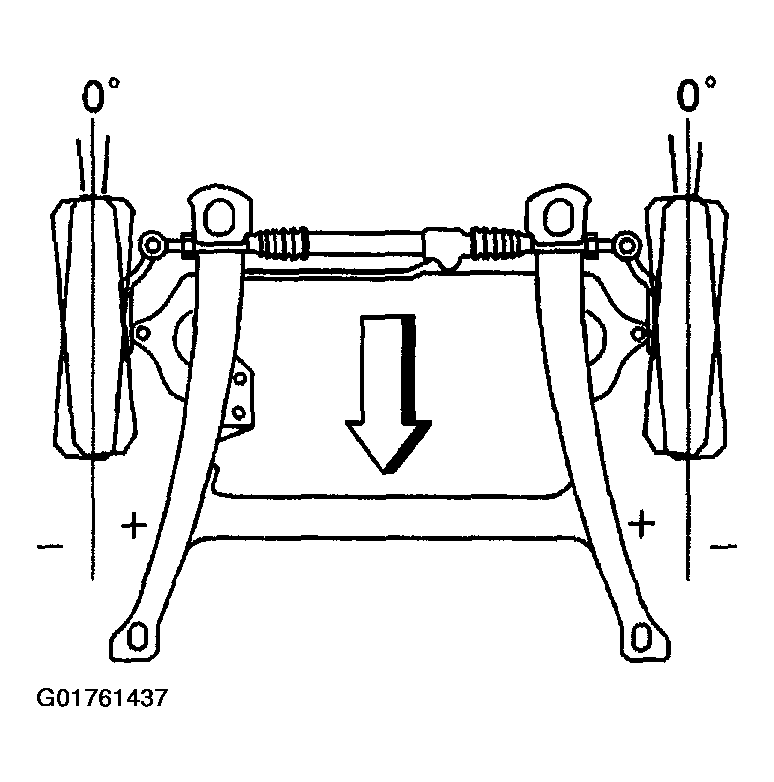

Fig 1: Identifying Front Toe Adjustment
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

NOTE: Care must be taken that the boots are not twisted when rotating the inner tie rods, or damage to the boots may result.
Rotate the inner tie rod to adjust the toe. Refer to Wheel Alignment Specifications .
Tighten

Tighten the lock nuts to 64 N.m (47 lb ft).
Adjust the boots as needed in order to prevent damage.
