Removal Procedure
- Remove the accessory drive belt. Refer to SPECIFICATIONS & DRIVE BELT ROUTING
- Raise and support the vehicle.
- Place a drain pan under the vehicle in order to catch any draining power steering fluid.
- Remove the tire and wheel assembly.

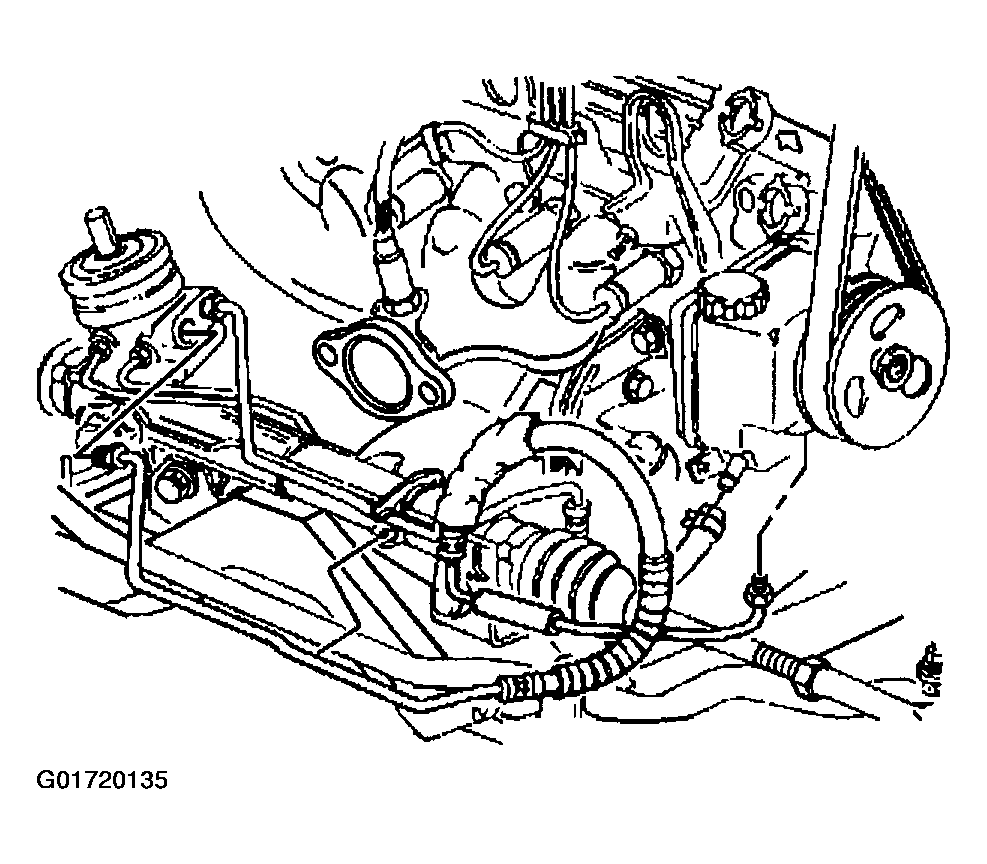

- Remove the power steering return hose from the power steering gear.
Courtesy of GENERAL MOTORS CORP.

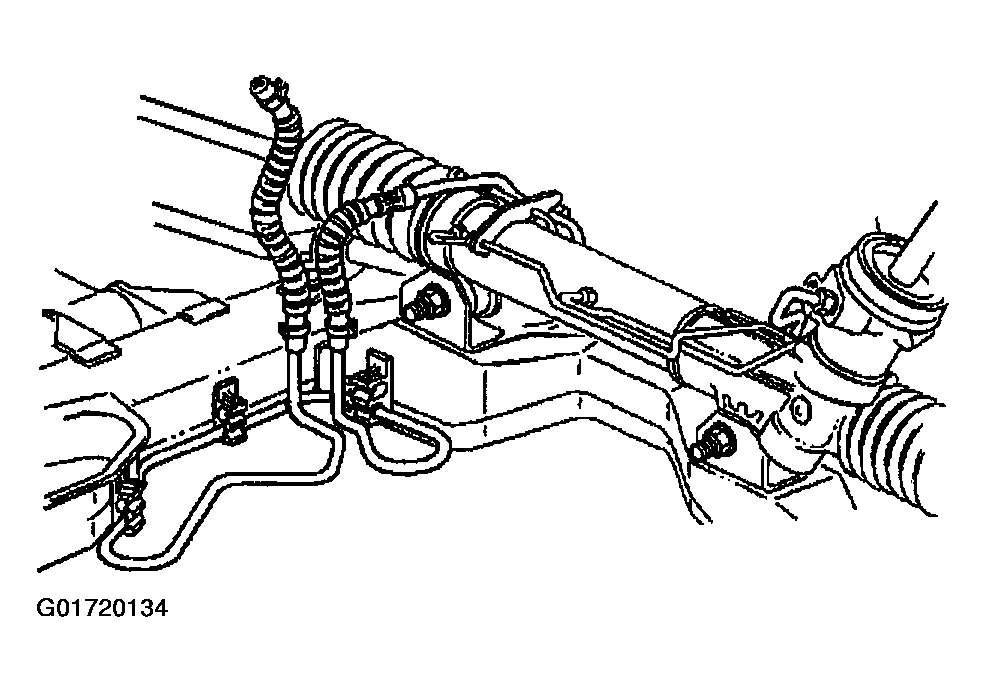

- Remove the return hose from the power steering pump.
- Remove the return hose from the hose retainer.
- Remove the return hose from the vehicle.
Courtesy of GENERAL MOTORS CORP.
