V5 - Conventional Mount




TOOLS REQUIRED
J 5403 Snap Ring Pliers

1. Remove the control valve retaining ring using the J 5403.

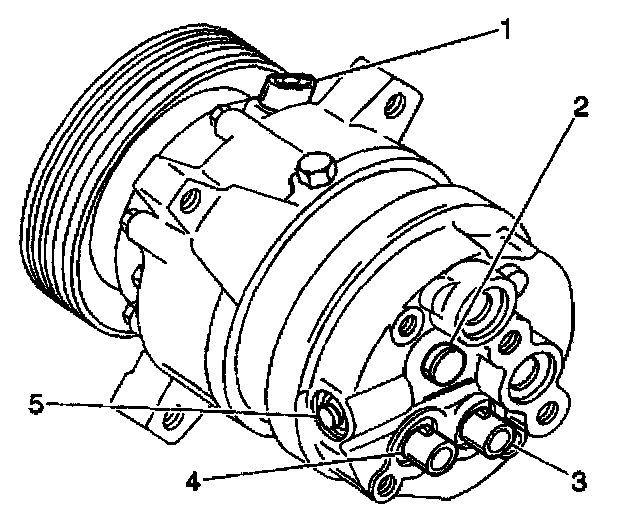

2. Remove the control valve assembly (5).
