Driver Door Module (DDM) Inputs/Outputs
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

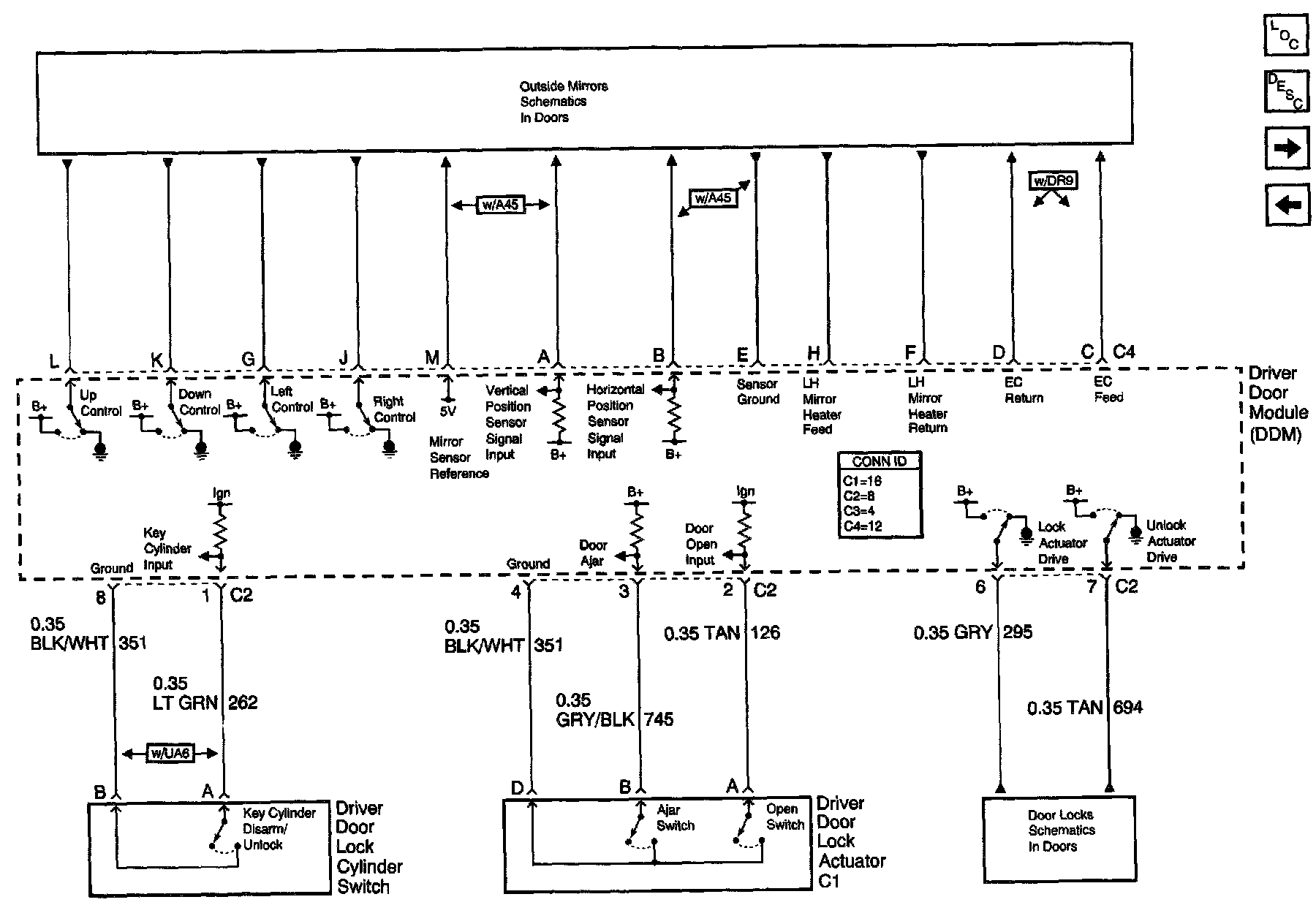

Driver Door Module (DDM) Inputs/Outputs
Door Control Module Schematics: Driver Door Module (DDM) Inputs/Outputs:
