Inflatable Restraint Steering Wheel Module Coil

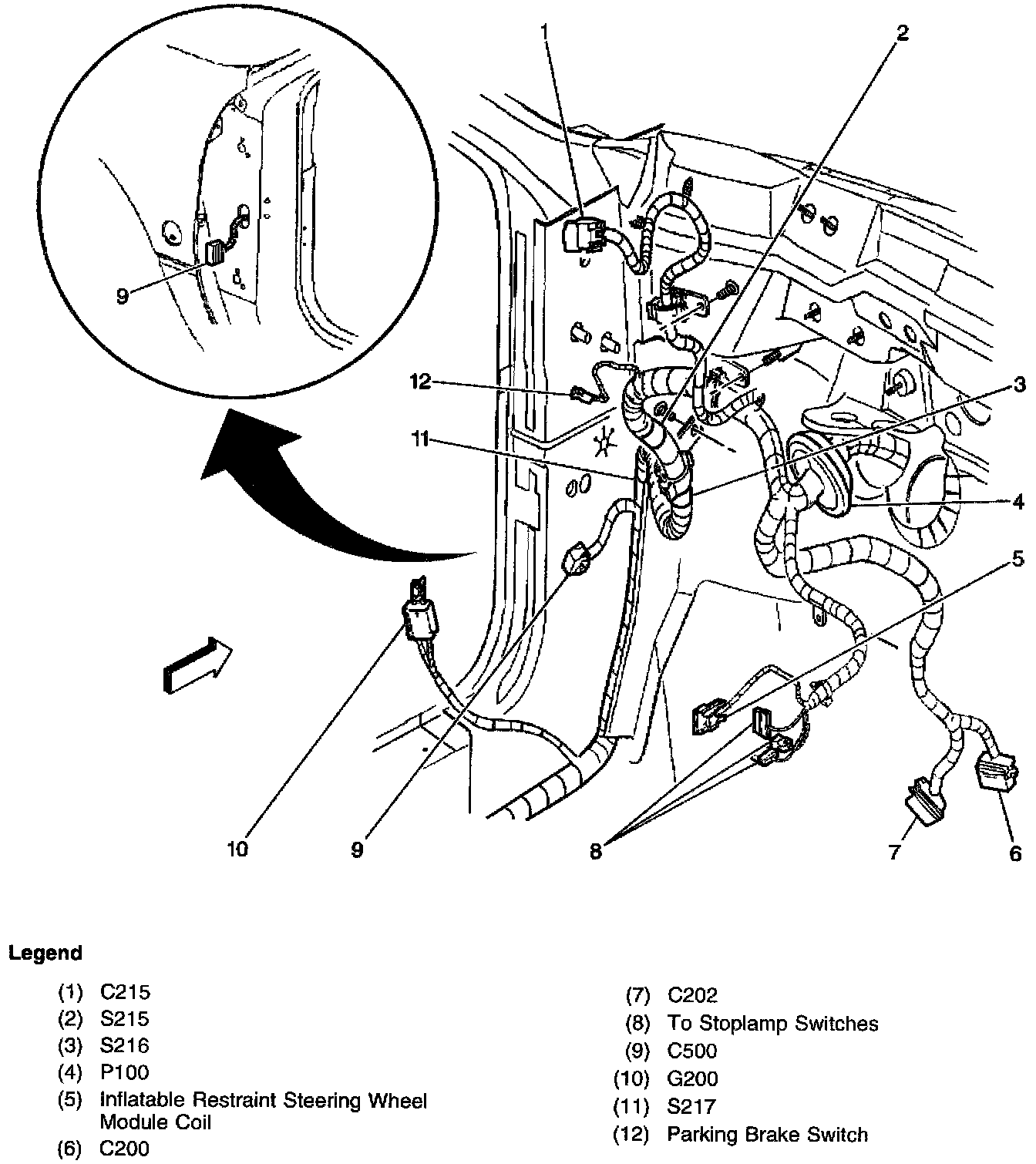

Locations View:

Left hand front of the passenger compartment, under steering wheel

LH lower front corner of passenger compartment on underside of instrument panel near steering column (Body Harness to Steering Wheel Coil Harness)

Left front corner of the passenger compartment, on the underside of the steering wheel

LH front of passenger compartment behind steering wheel assembly
