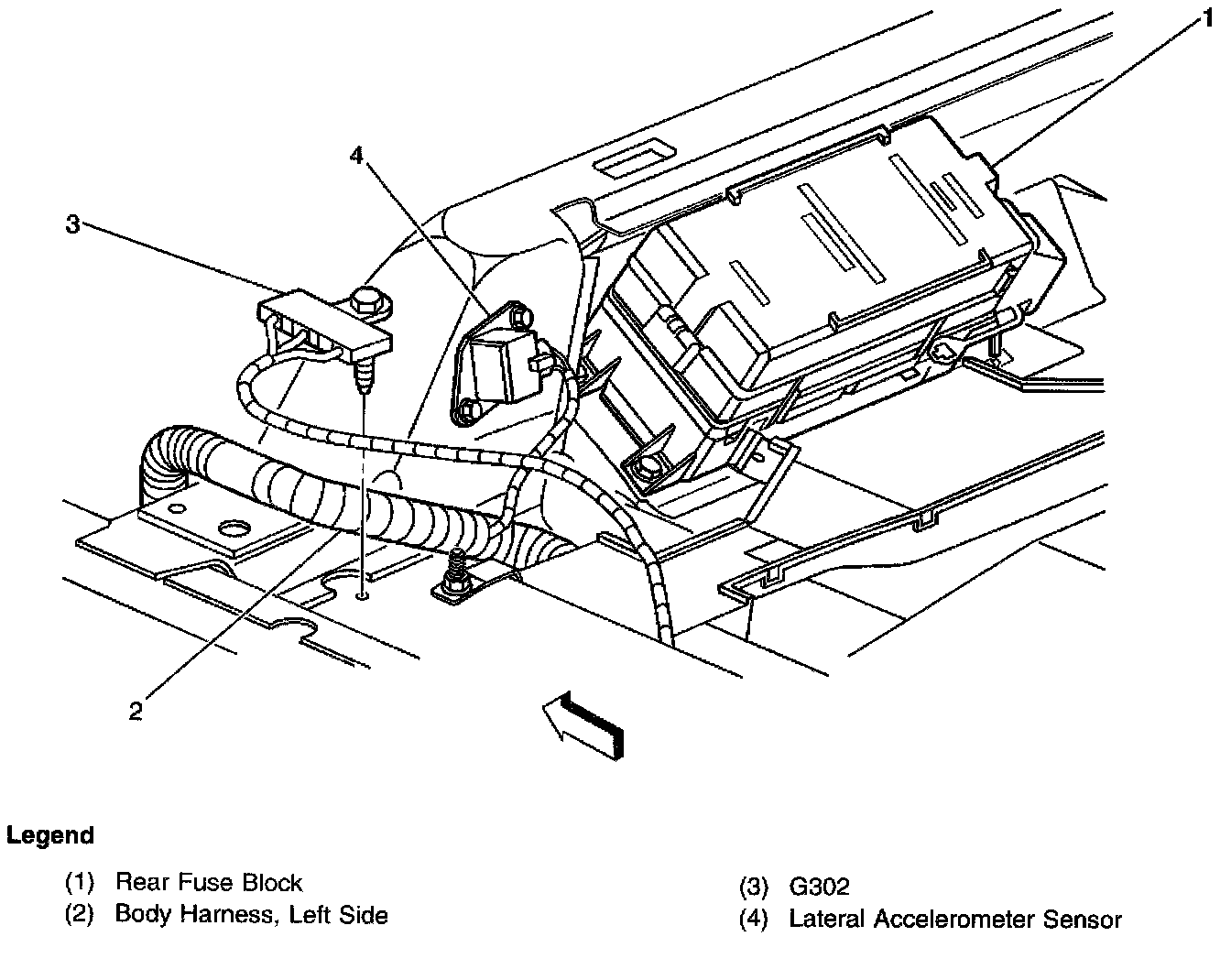

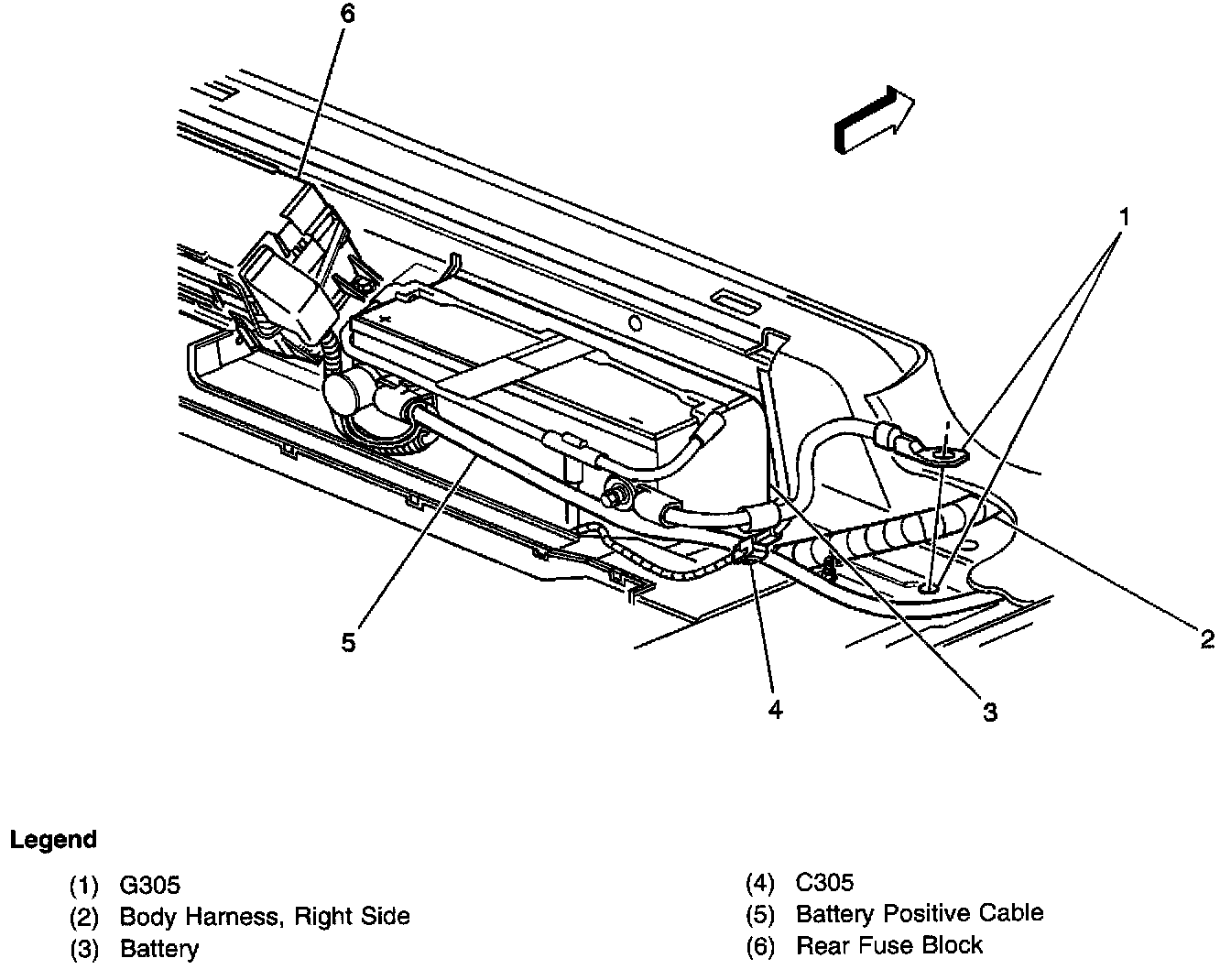

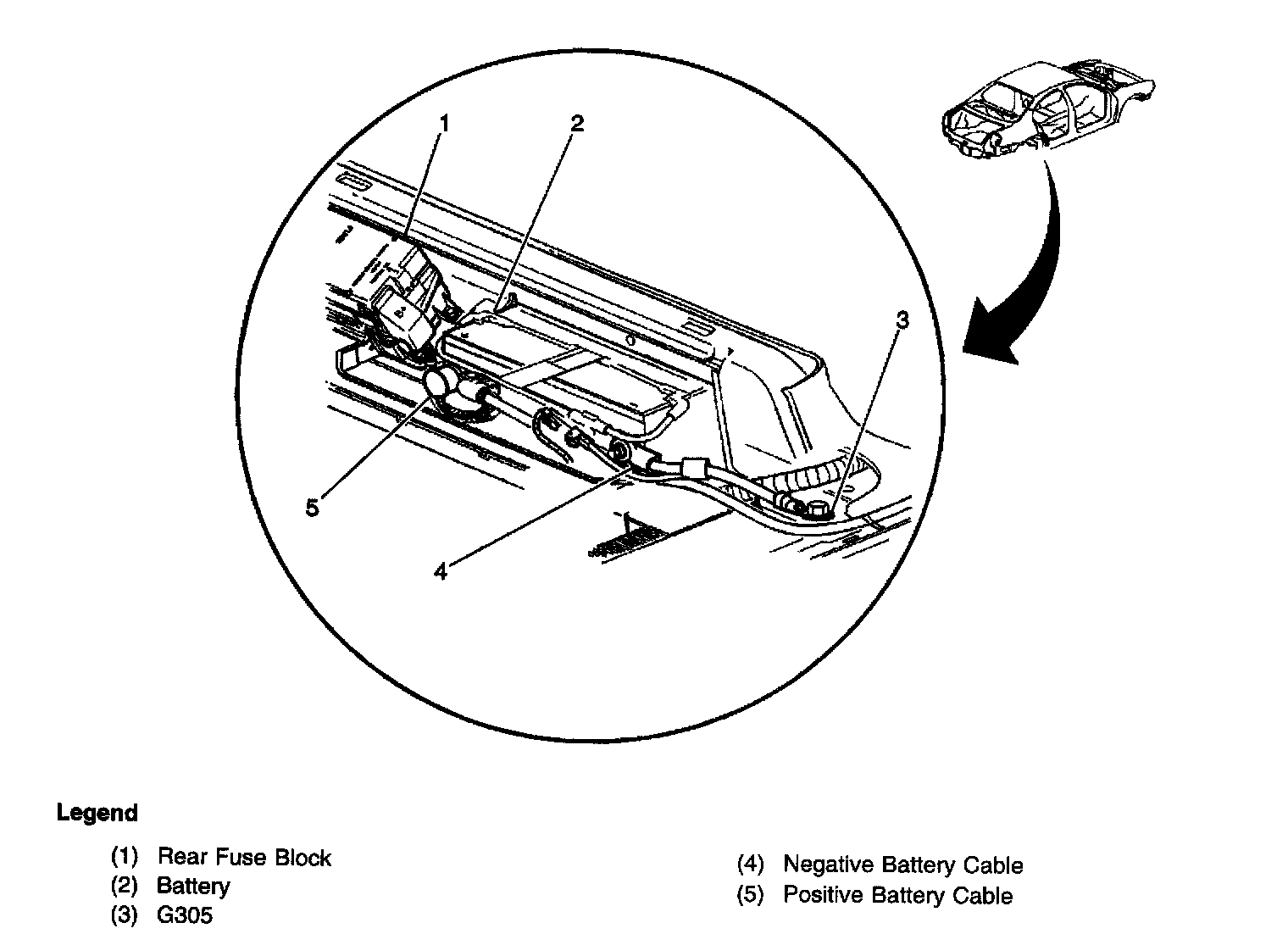

Rear Fuse Block

Locations View:




Locations View:




Locations View:





On the left side of the rear passenger compartment, under the rear seat
