Wiper/Washer System Component Views
WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

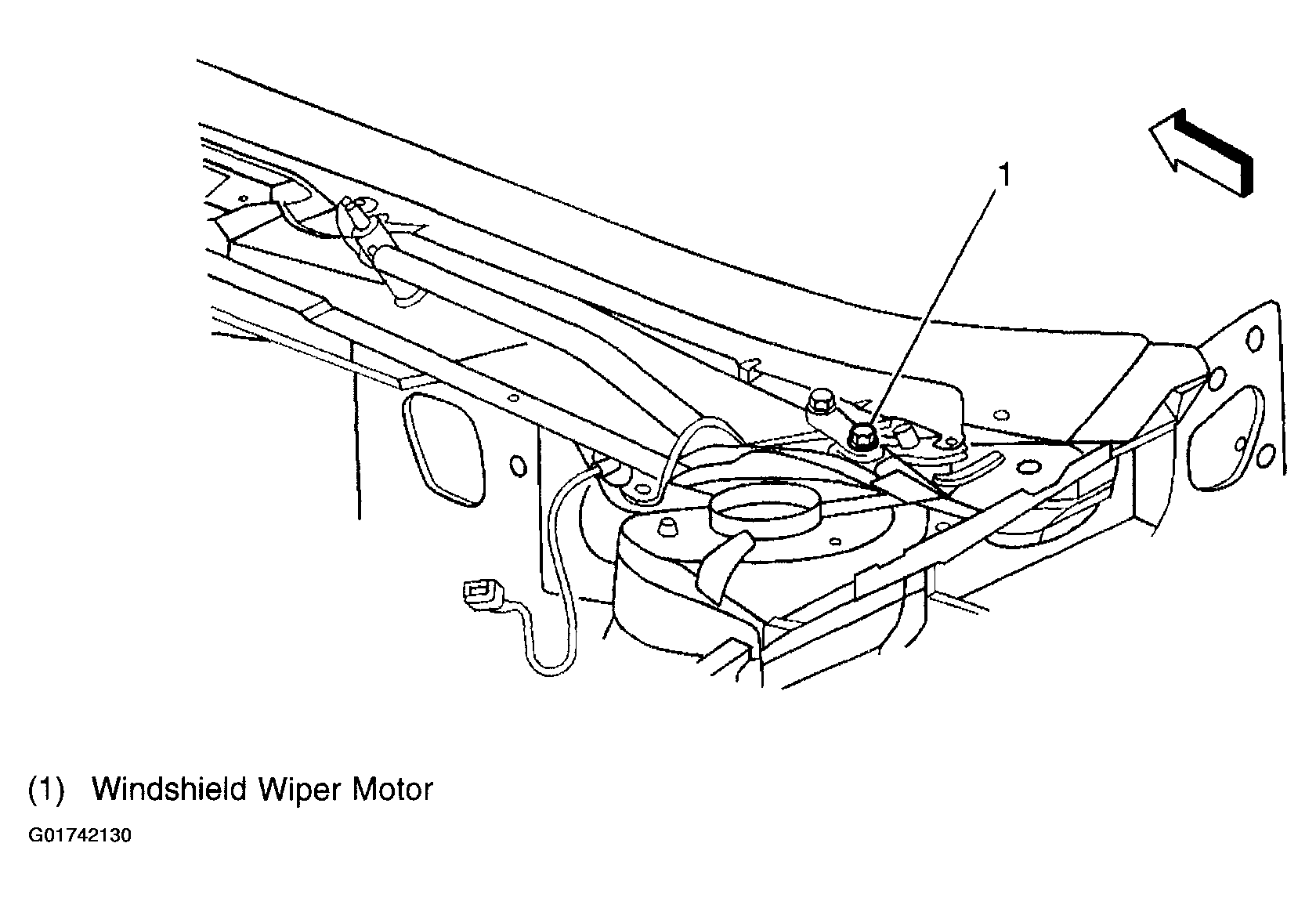

Fig 1: Windshield Wiper Motor
Courtesy of GENERAL MOTORS CORP.

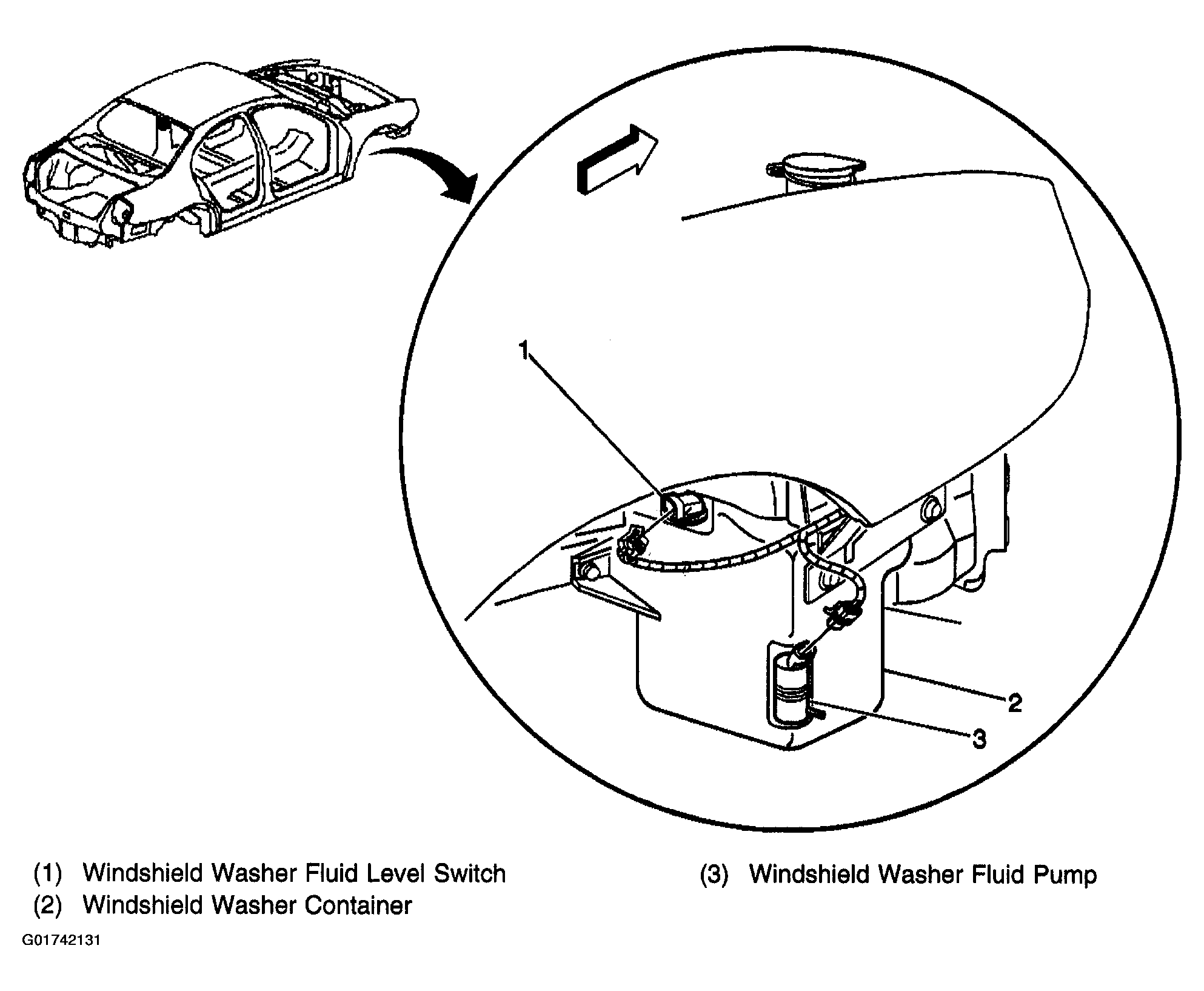

Fig 2: Lower Right Front Wheel Well
Courtesy of GENERAL MOTORS CORP.

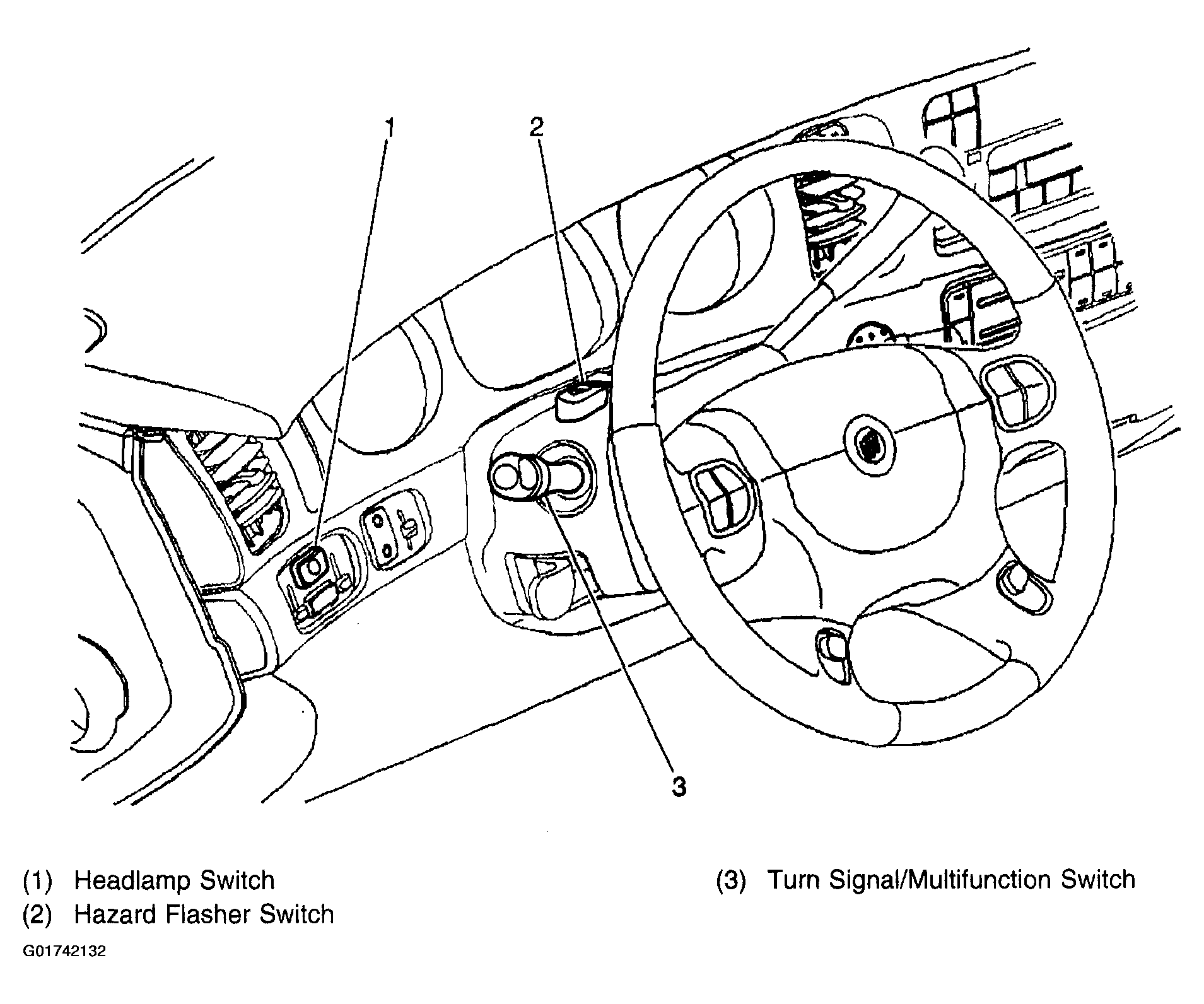

Fig 3: Wiper/Washer Switch
Courtesy of GENERAL MOTORS CORP.

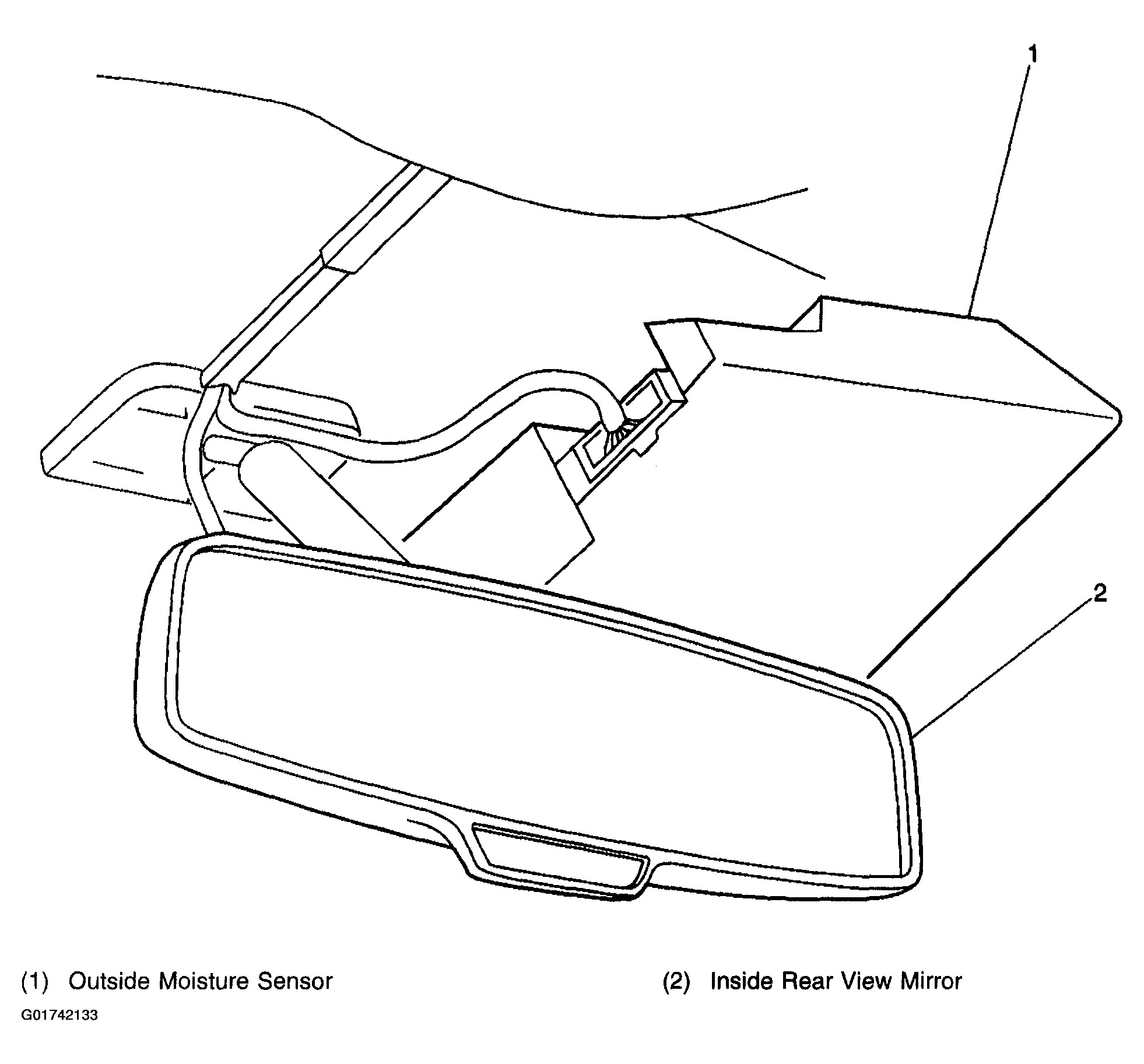

Fig 4: Passenger Compartment, Near The Inside Rear View Mirror
