Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

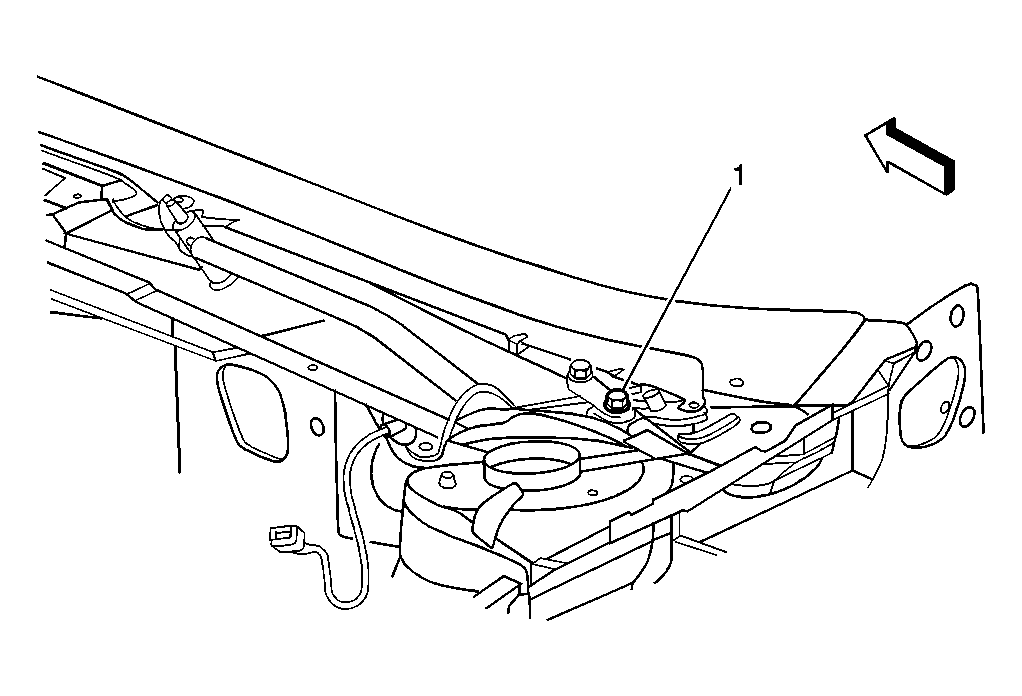

Fig 1: Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

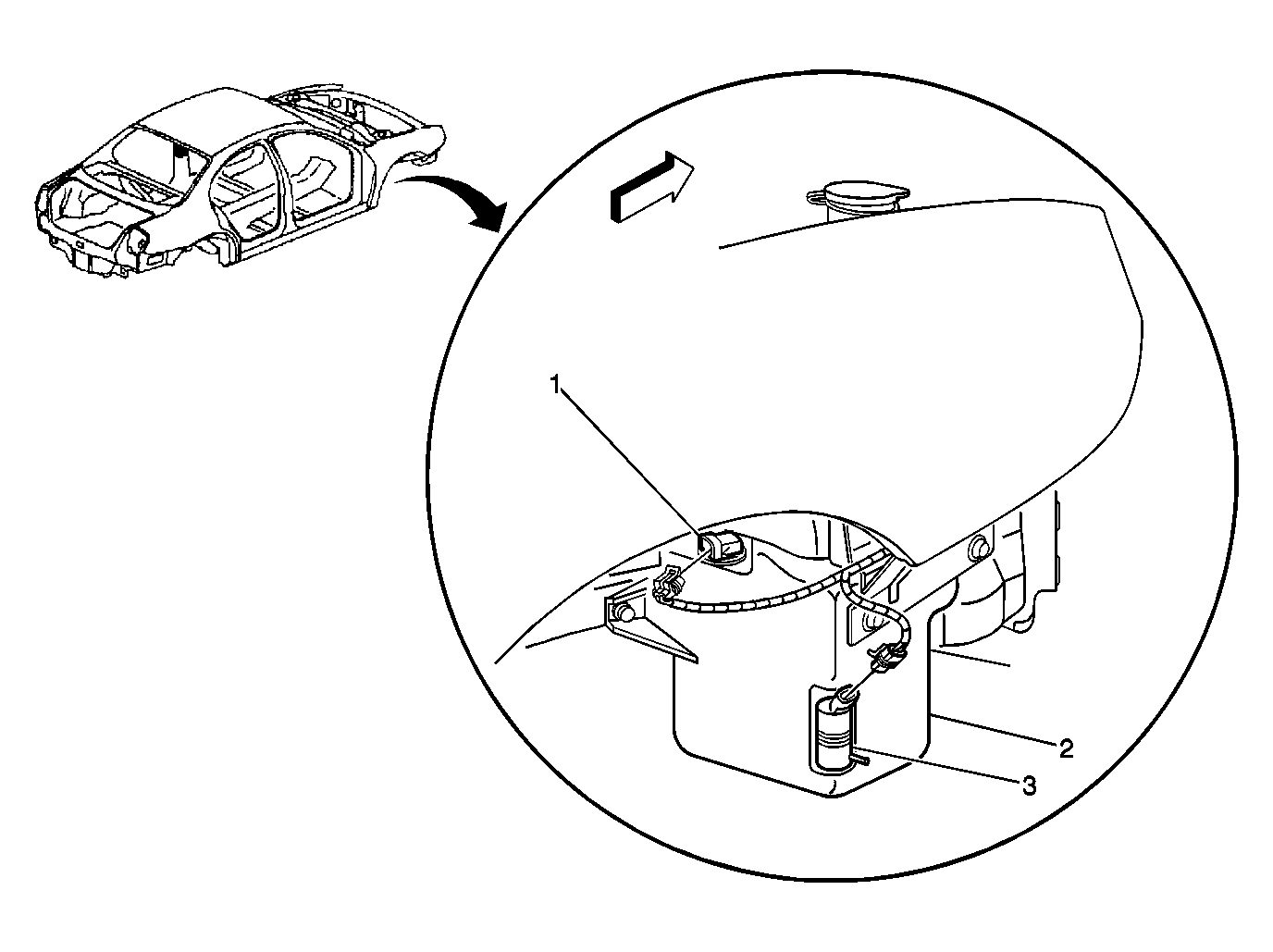

Fig 2: Windshield washer Fluid Level Switch, Washer Container & Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Windshield Washer Container
3	Windshield Washer Fluid Pump

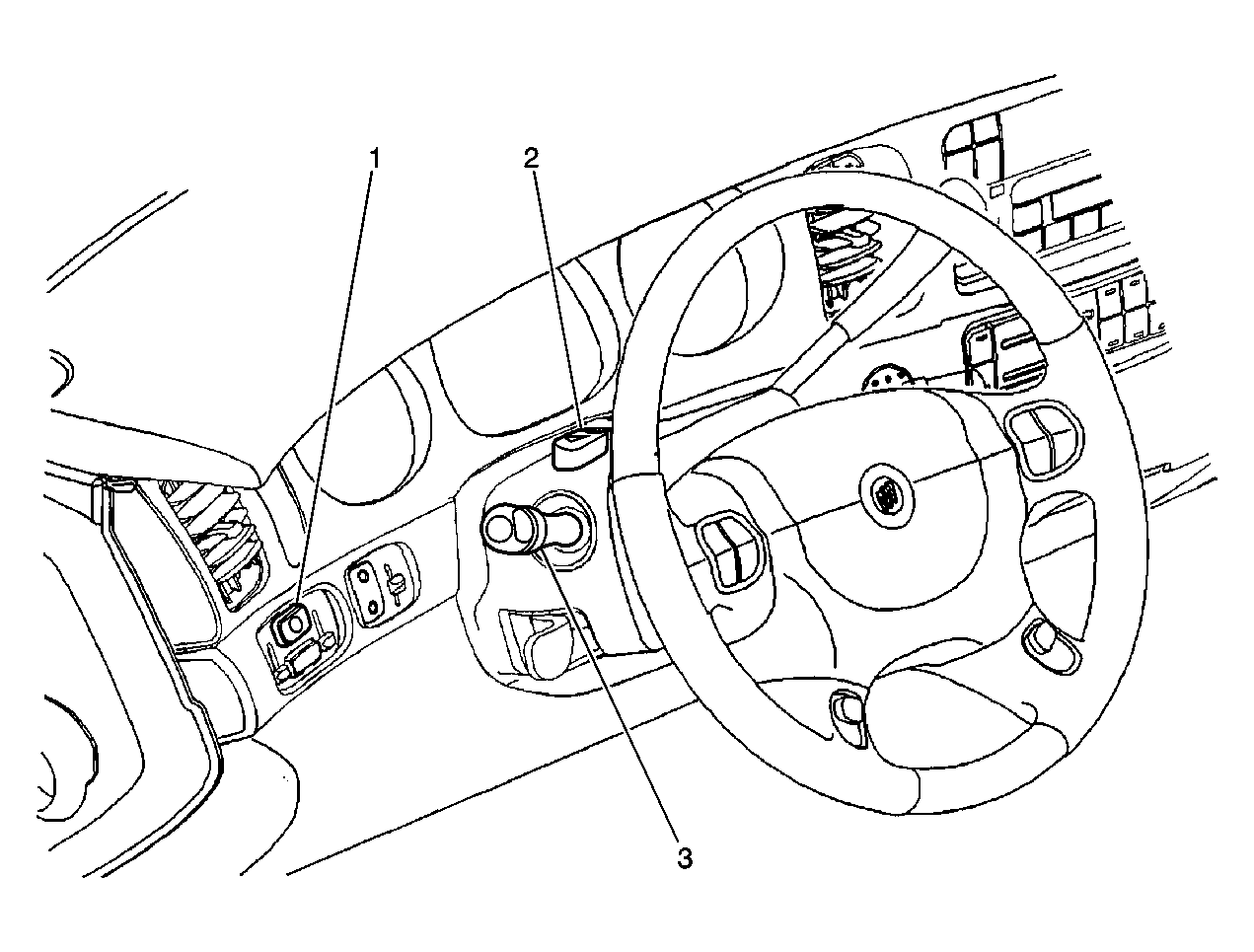

Fig 3: Headlamp, Multifunction & Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Hazard Flasher Switch
3	Turn Signal/Multifunction Switch

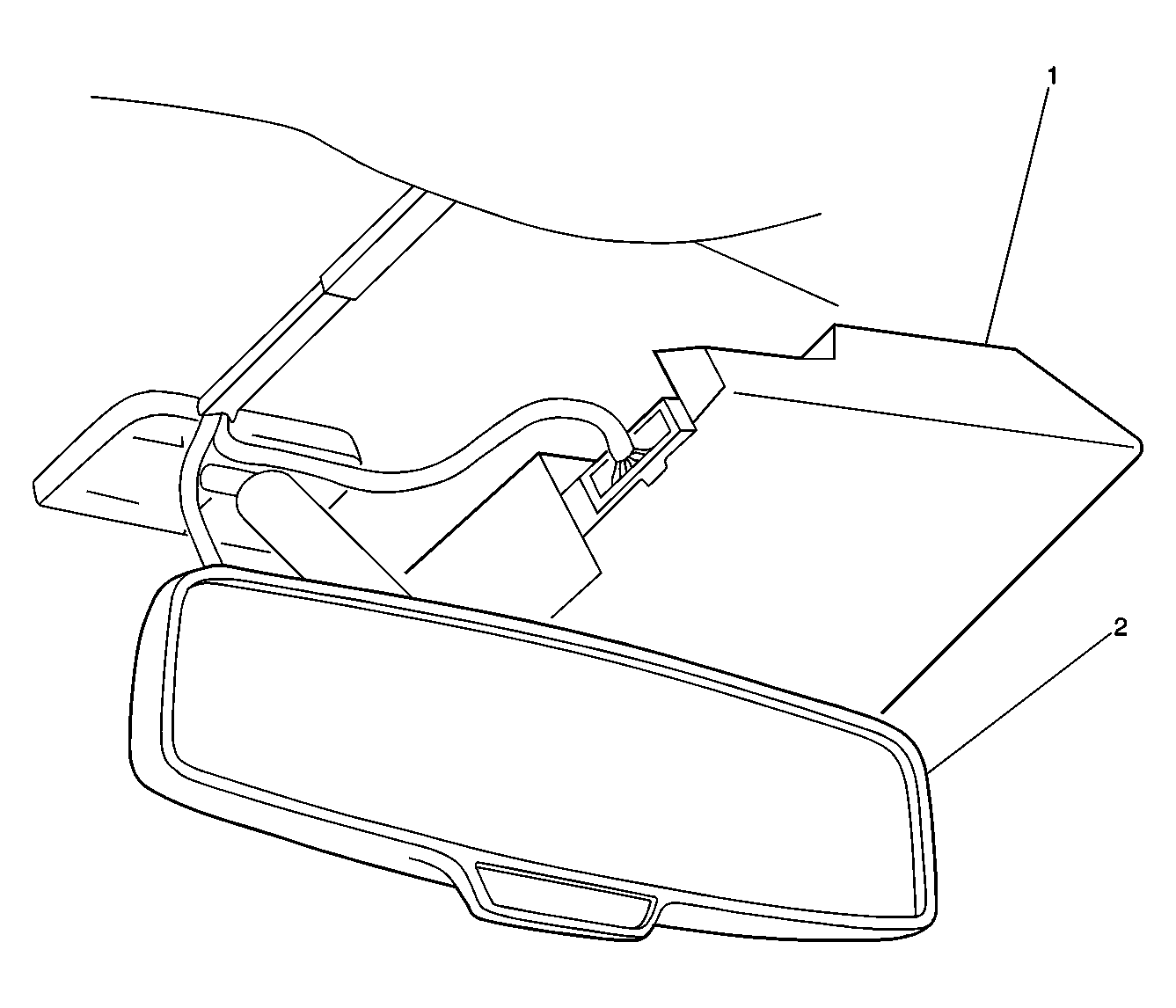

Fig 4: Inside Rear View Mirror & Outside Moisture Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Moisture Sensor
2	Inside Rear View Mirror
