Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover from the high mounted stop lamp opening.

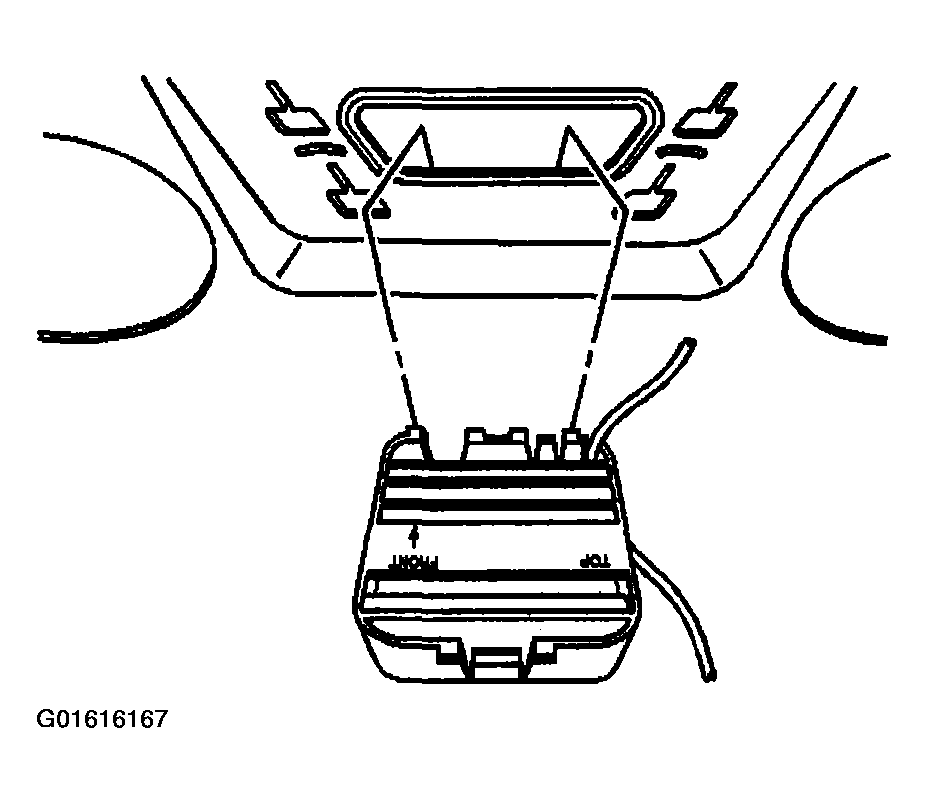

    Fig 1: High Mounted Stop Lamp Cover
    G01616167Courtesy of GENERAL MOTORS CORP.
  2. Rotate the socket counterclockwise. Remove the socket from the opening.
  3. Rotate the bulb counterclockwise. Remove the bulb from the socket.

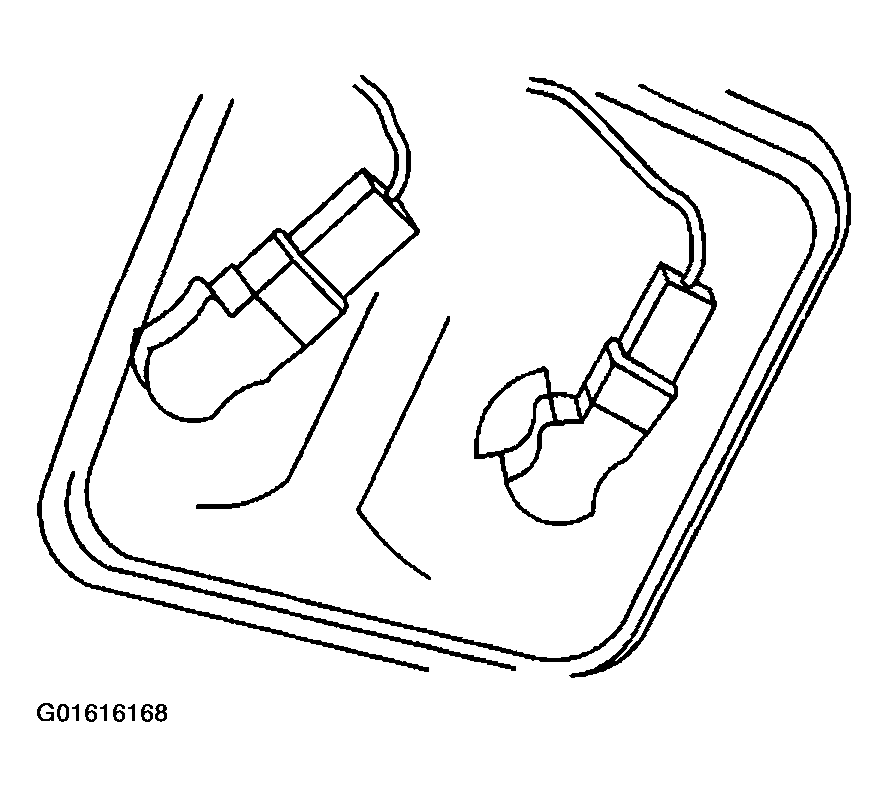

    Fig 2: High Mounted Stop Lamp Bulb
    G01616168Courtesy of GENERAL MOTORS CORP.
