Installation Procedure

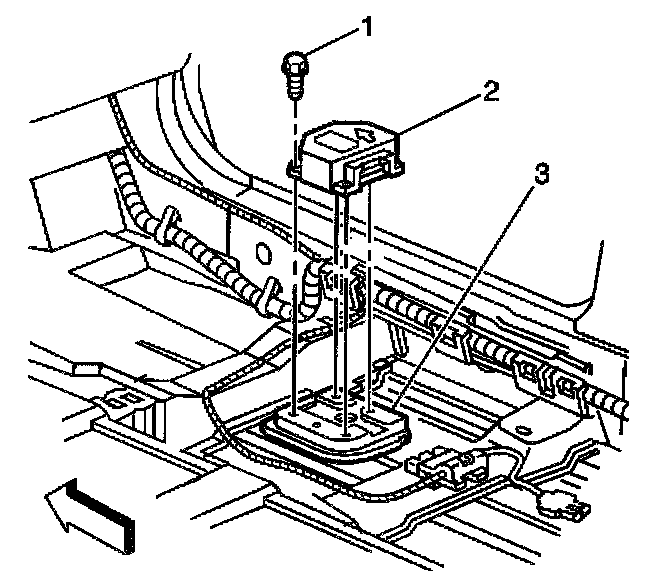

1. Install the SDM (2) to the floor pan (3).

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the Inflatable Restraint Sensing and Diagnostic Module (SDM) mounting fasteners (1).

Tighten
Tighten fasteners to 10 N.m (89 lb in).

3. Install the SDM wiring harness connector to the SDM.
4. Install the Connector Position Assurance (CPA) to the SDM wiring harness connector.
5. Install the carpet and the passenger front carpet retainer.
6. Install the passenger front seat.
7. Enable the SIR system.
