Daytime Running Lamp Control Unit

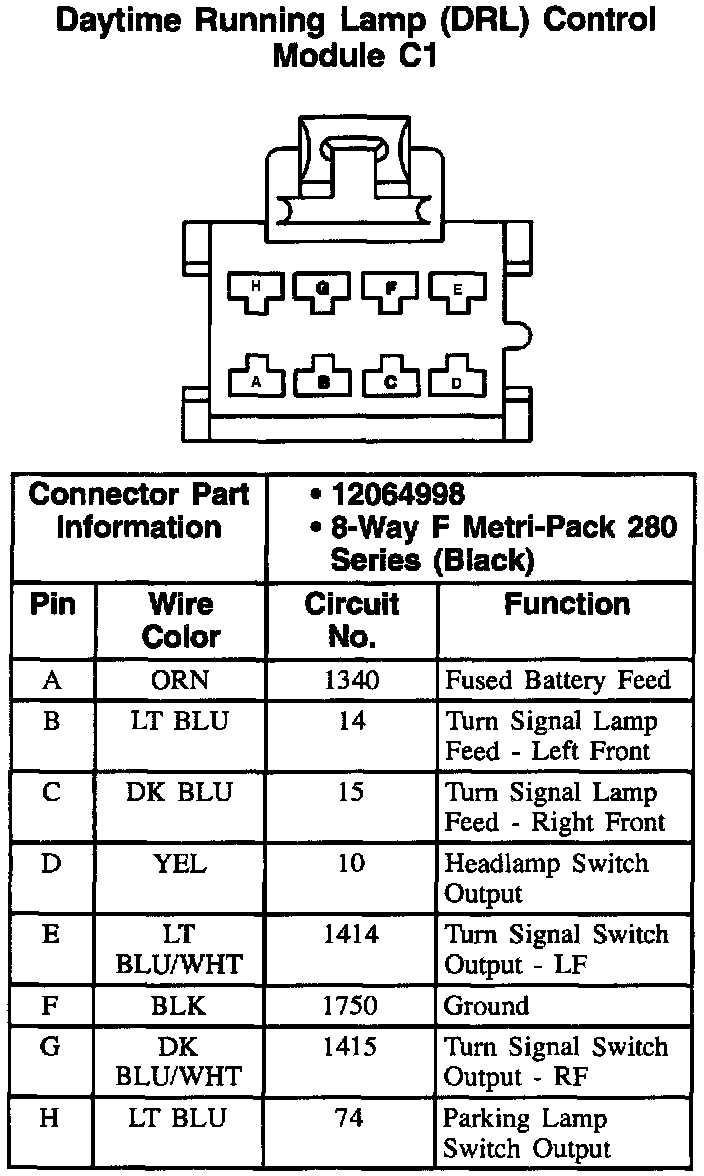

Daytime Running Lamp (DRL) Control Module: C1:

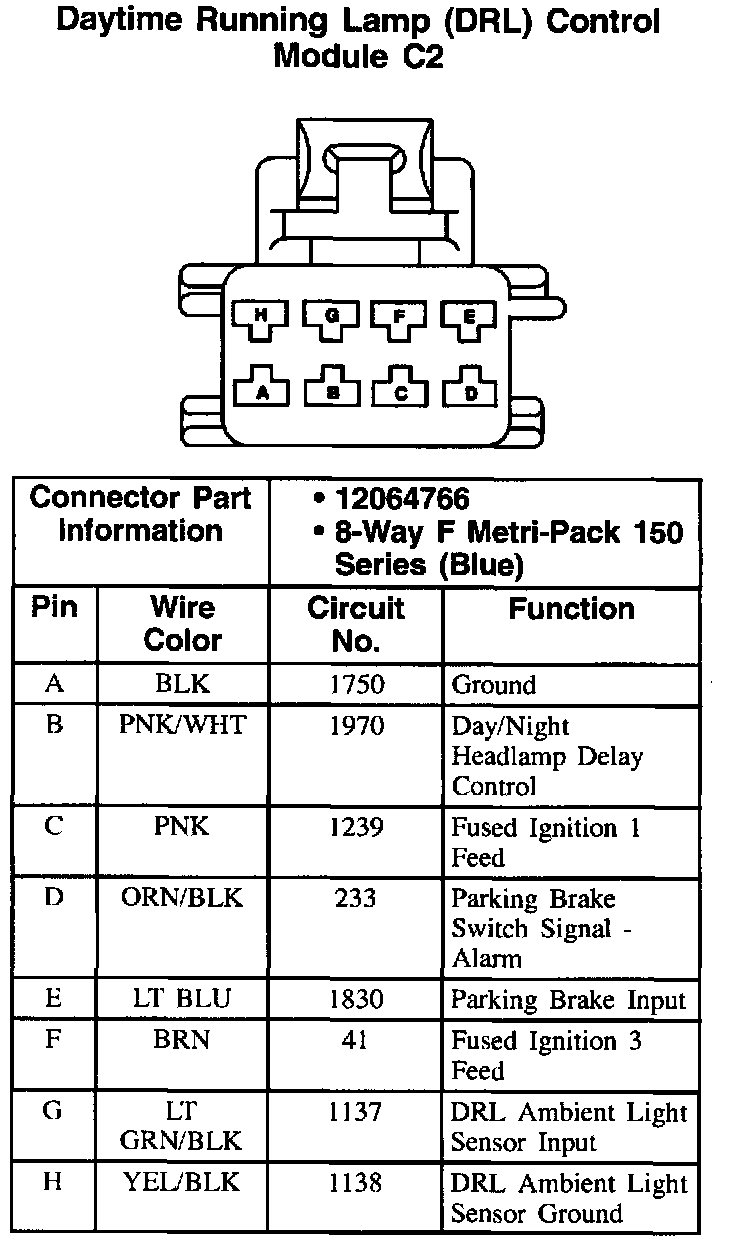

Daytime Running Lamp (DRL) Control Module: C2:
