Left Hand - A/C Front, Manual Controls

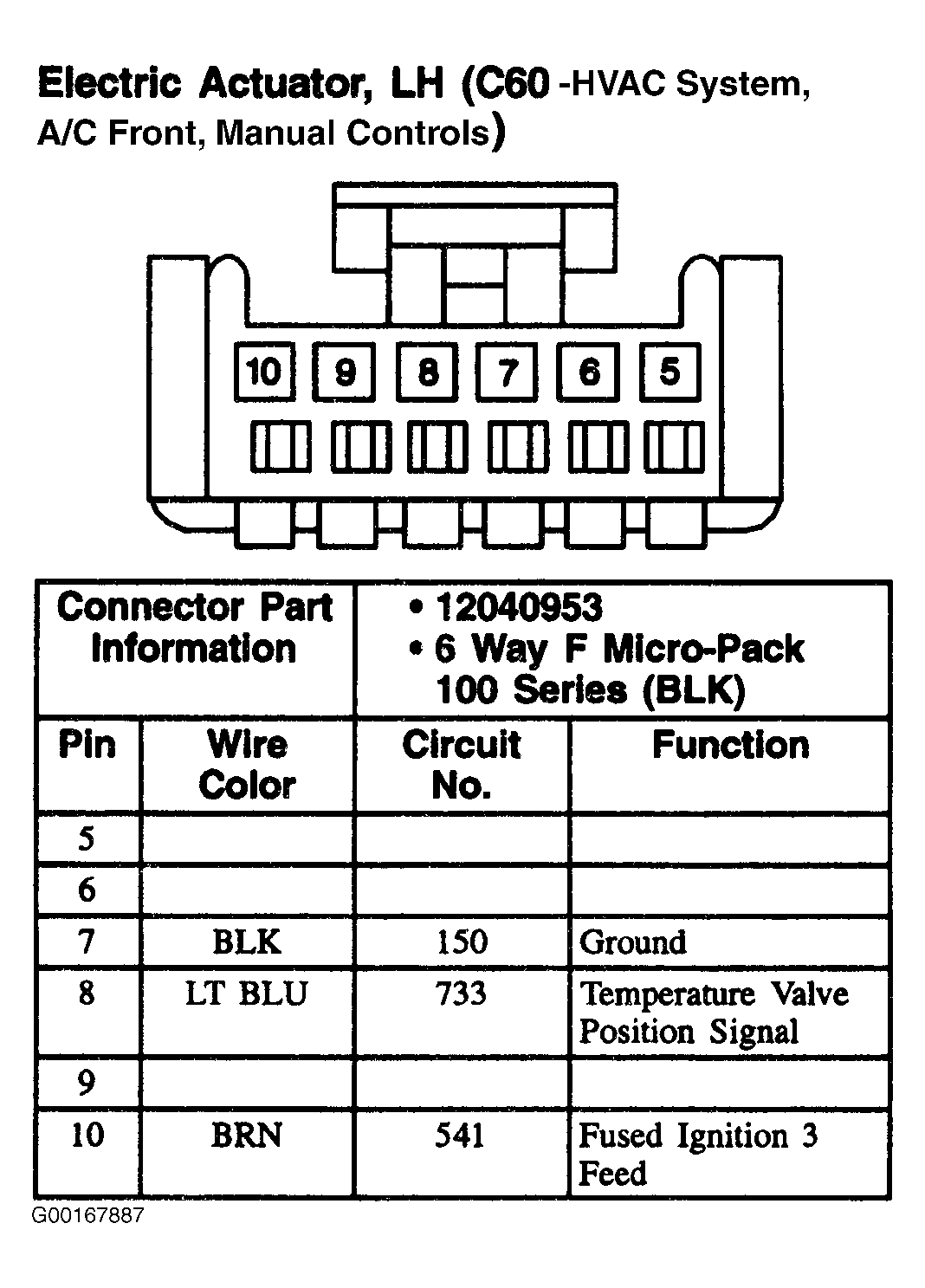

Fig 1: Electric Actuator, Left Hand (C60 - HVAC System, A/C Front, Manual Controls) (Grand Prix) - 6-Pin Connector (Black)
G00167887Courtesy of GENERAL MOTORS CORP.
